EBST
Model | Voltage [V] | Frequency [Hz] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] | |
 | B560M.E003 | 380 | 50/60 | 1620 | 3660 | 15275 | 86.5 |
B560M.E007 | 380 | 50/60 | 1500 | 2990 | 14170 | 82.5 | |
 | B630M.E005 | 380 | 50/60 | 1380 | 3850 | 20100 | 87.2 |
B630M.E004 | 380 | 50/60 | 1260 | 2970 | 18330 | 83.4 |

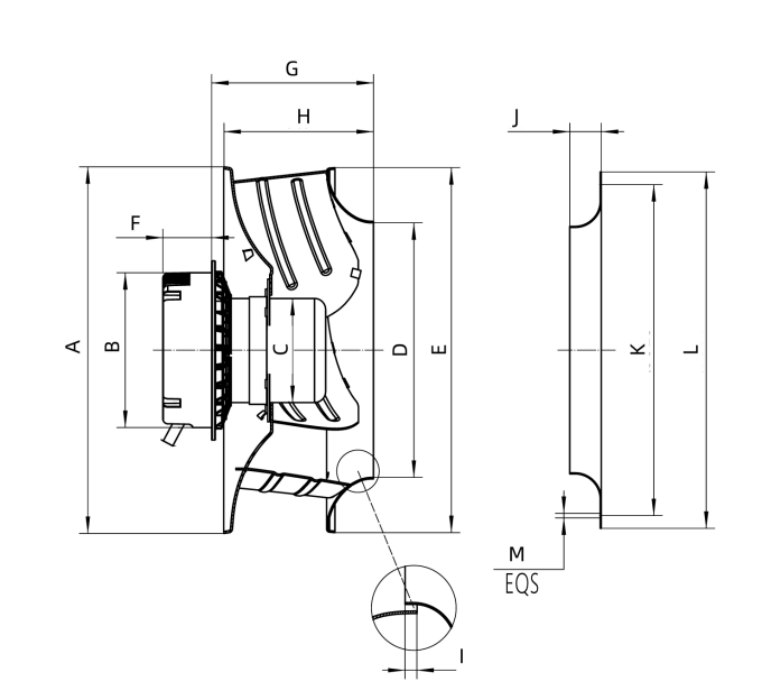

Model | A | B | C | D | E | F | G | H | I | J | k | L | M |
B560M.E003 | ∅570 | ∅226 | ∅188 | ∅438 | ∅585 | 100 | 289 | 258 | 18 | 83 | ∅540 | ∅565 | 6 - ∅9 |
B560M.E007 | ∅570 | ∅226 | ∅188 | ∅438 | ∅585 | 100 | 289 | 258 | 18 | 83 | ∅540 | ∅565 | 6 - ∅9 |
B630M.E005 | ∅650 | ∅226 | ∅188 | ∅514.5 | ∅660 | 100 | 333 | 293 | 18 | 86.5 | ∅600 | ∅634 | 6- ∅10.5 |
B630M.E004 | ∅650 | ∅226 | ∅188 | ∅514.5 | ∅660 | 100 | 333 | 293 | 18 | 86.5 | ∅600 | ∅634 | 6- ∅10.5 |
Designed for 380V three-phase power grids, these EC fans deliver outstanding energy efficiency, with the EC560M.E007 model consuming only 2,990W at 14,170 m³/h airflow. Variable speed control further reduces part-load energy use, supporting data center PUE optimization.
With airflow up to 15,275 m³/h (EC560 series) and 20,100 m³/h (EC630 series), these fans meet the demands of high-capacity precision AC units. Optimized speed design ensures stable, long-lasting operation.
Supporting both 50Hz and 60Hz grids, the EC560/EC630 series is ideal for international and export applications. Clear performance gradients enable flexible, off-the-shelf selection for any cooling requirement.
Noise levels as low as 82.5 dB(A) ensure quiet operation in data centers. Precision balancing minimizes vibration, reducing overall unit noise and disturbance to on-site personnel.
Built for continuous operation, these three-phase fans offer high resistance to load fluctuations and low downtime risk. They are compatible with most mainstream precision air conditioners, simplifying selection and spare parts management.

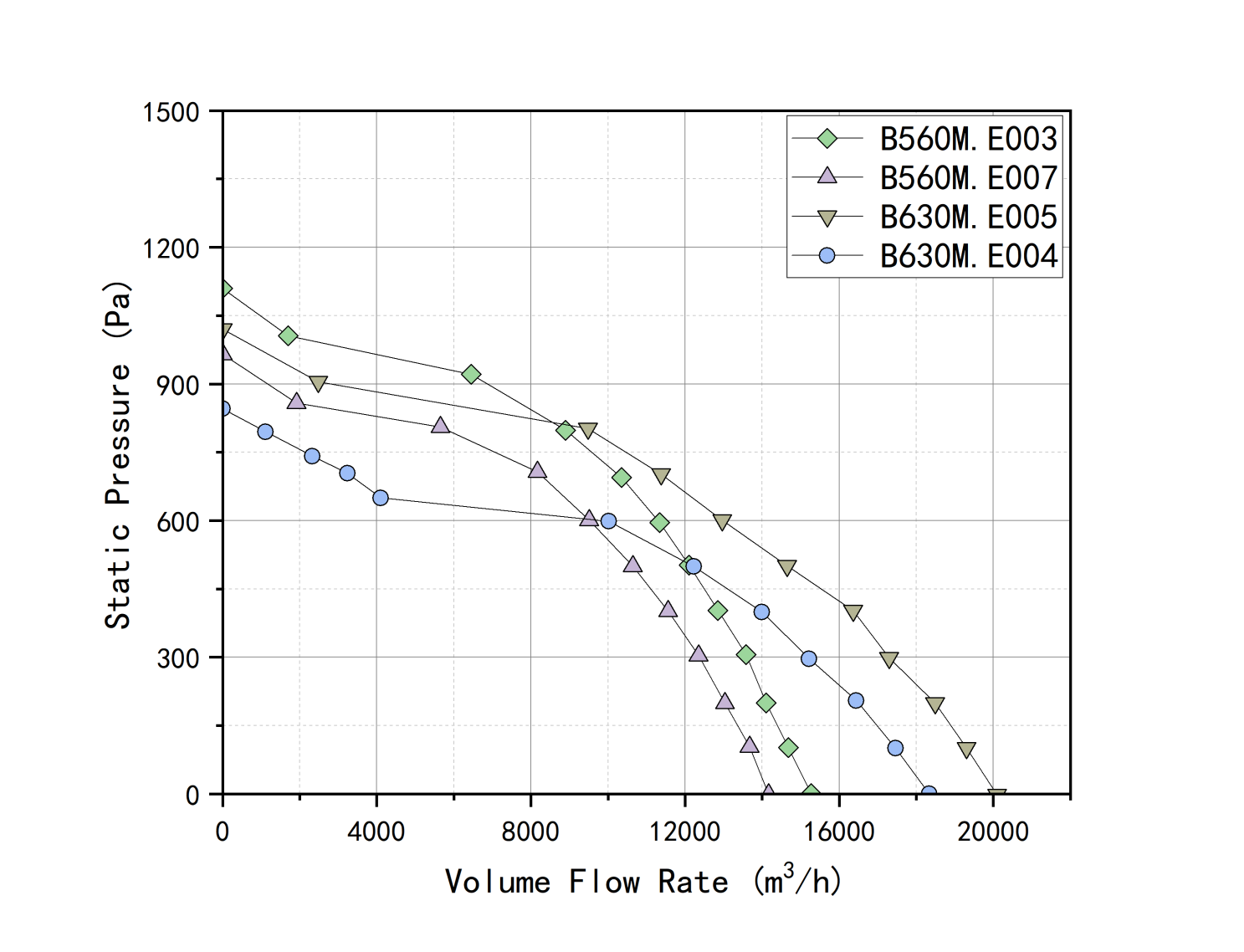

Q1: What is the maximum airflow and static pressure these fans can provide?
A1: The EC560 series delivers up to 15,275 m³/h, while the EC630 series reaches up to 20,100 m³/h. With optimized impeller design, they offer high static pressure to support long duct runs and uniform cooling in room-level layouts, eliminating hot spots.
Q2: Are these fans compatible with different power grids worldwide?
A2: Yes. All EC560/EC630 models support 380V three-phase power and dual-frequency 50/60Hz operation, making them suitable for both domestic and international projects, including export applications.
Q3: How do these fans help reduce energy consumption for precision air conditioners?
A3: Featuring high-efficiency EC motors and variable speed control, these fans adjust airflow on demand based on cooling load. For example, the EC560M.E007 delivers 14,170 m³/h with only 2,990W power consumption, significantly lowering part-load energy use and supporting data center PUE optimization.
Q4: What is the noise level of these fans during operation?
A4: Noise levels are as low as 82.5 dB(A) for the EC560M.E007 and 83.4 dB(A) for the EC630M.E004. Precision dynamic balancing minimizes vibration, ensuring quiet operation even at high speeds, suitable for noise-sensitive environments like data centers.
Q5: Are these fans designed for 24/7 continuous operation in data centers?
A5: Absolutely. Built with robust three-phase motors and high-strength impellers, the EC560/EC630 series offers excellent resistance to load fluctuations and a long service life. They are compatible with most mainstream precision air conditioners, ensuring reliable, non-stop performance for mission-critical cooling.
