[ High Efficiency ] High strength impeller optimized by ternary flow CFD fluid simulation technology, reasonably designed flow runner combined with ultra-efficient motor create the high efficiency of the fan.
[ Low Noise ] The designer closely combines aerodynamics and sound source, and makes the blade angle and blade pattern fully adapt to the ternary flow field, which always ensures lower noise at the same air volume.
[ High Reliability ] Motors have F class insulation, and been tested for 3 months of 60℃ high temperature test and 40,000 hours of life test, which ensure worse-free quality.
[ Wide Application ] The products is used wherever outstanding performance is required, for example, heat pump, ventilation, cold chain, equipment cooling, IDC small cabinet, high voltage inverter cabinet, energy storage, rail transit and more.
[ Variety of Models ] Available in dimensions of : 180mm~305mm, this allows for air flow rates of up to 3150m3/h and static pressure of up to 500Pa.
| Quantity: | |
|---|---|
A200P.A001
EBST
A200P.A001
Product Parameters |
Material: | Impeller:Nylon with Glass Fiber |
Direction of rotation: | Clockwise, seen on rotor |
| Control input: | 0-10VDC/PWM |
Type of protection: | IP 23 |
Insulation class: | F |
Bearing: | Maintenance-free Ball bearings |
Approval: | CCC |
Amb.Temp: | -40~+65℃ |
Model | Curve | Voltage [V] | Frequency [Hz] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] |
A200P.A001 | A | 220 | 50 | 2820 | 54 | 865 | 58 |
 | Ps [Pa] | Airflow [m3/h] | Speed [rpm] | Power [W] | ||
A | ① | 60 | 690 | 2735 | 51 | |
② | 70 | 655 | 2713 | 52 | ||
③ | 80 | 595 | 2710 | 53 | ||
④ | 90 | 475 | 2698 | 54 | ||

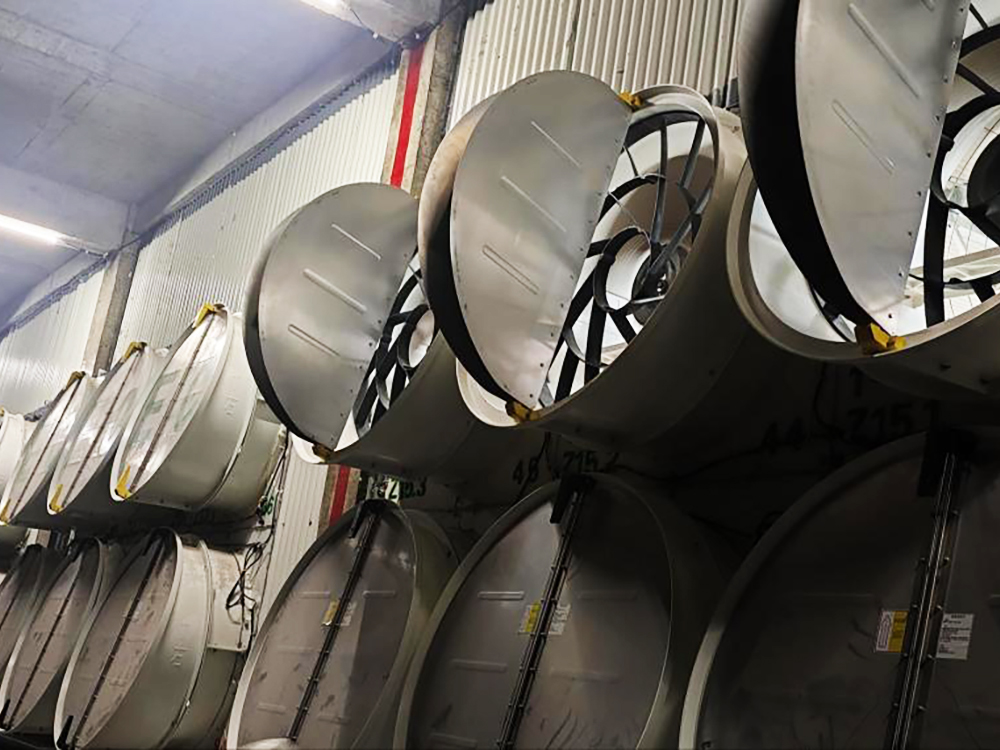

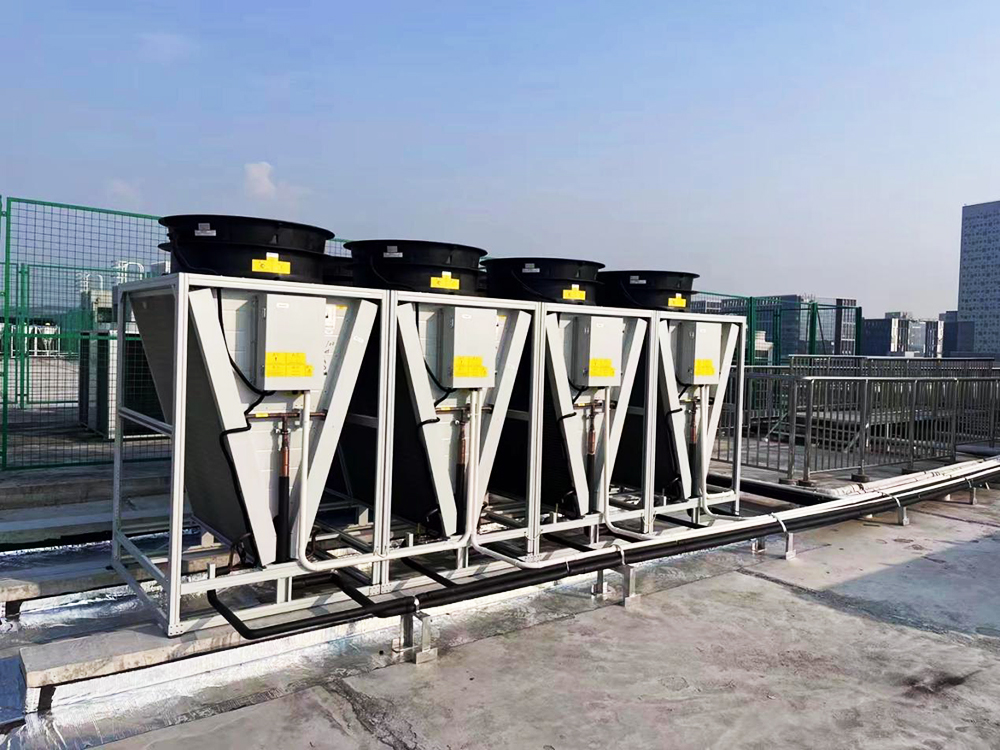

Application Scenarios |
Product Certificate |

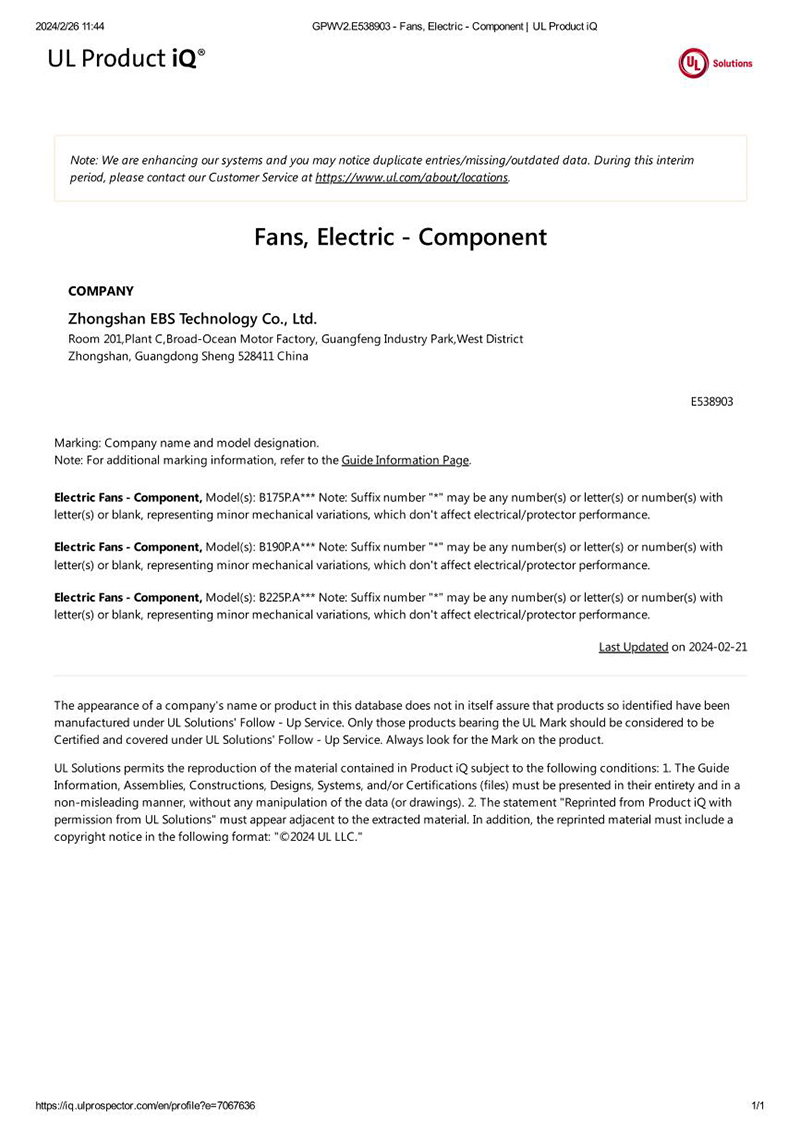

UL Certification
Certified by the authoritative international UL safety mark, the axial fan features high reliability and long service life, suitable for household air conditioning, fresh air purification and other scenarios, meeting the standards of North American and global high-end markets.

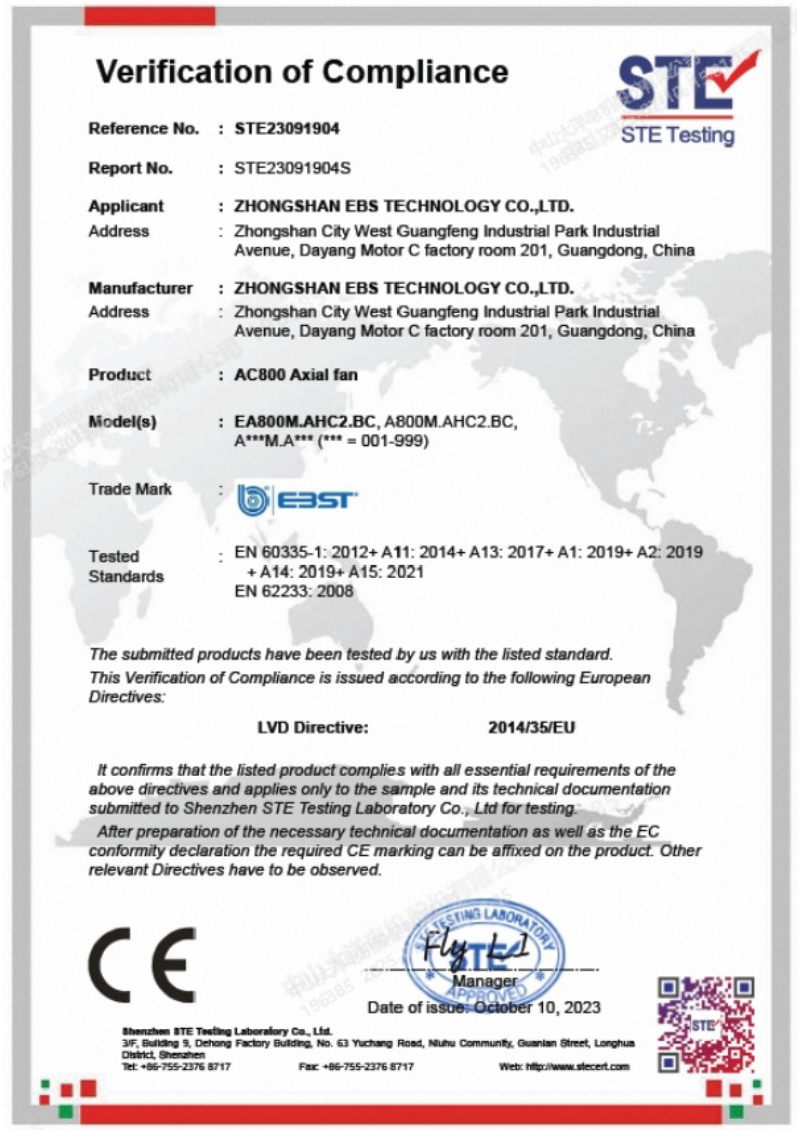

CE Certification
Compliant with EU LVD and EMC directives, the axial fan is qualified for EU market access, enabling smoother global application and suitable for diverse scenarios such as household and civil ventilation.

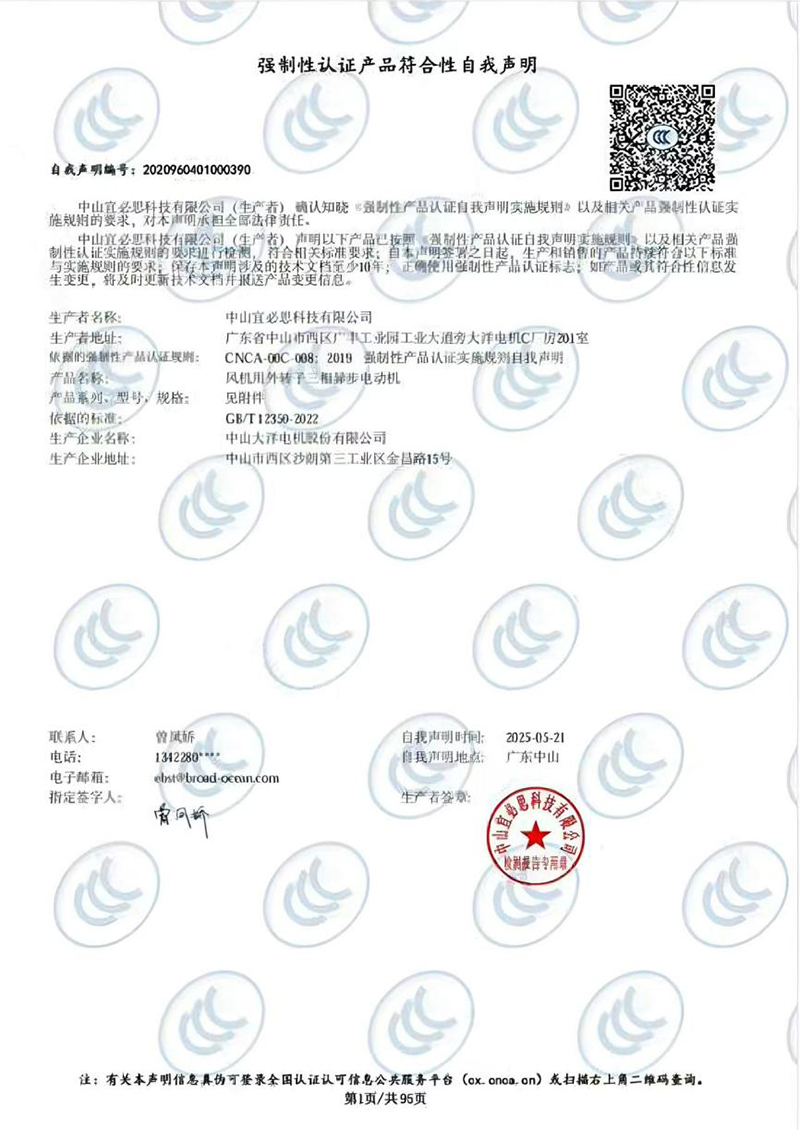

CCC Certification
Complies with China's mandatory product certification standards, suitable for the axial fan. It fully meets electrical safety and EMC requirements, ensuring safer use and adapting to various domestic compliant scenarios such as household air conditioning and range hoods.

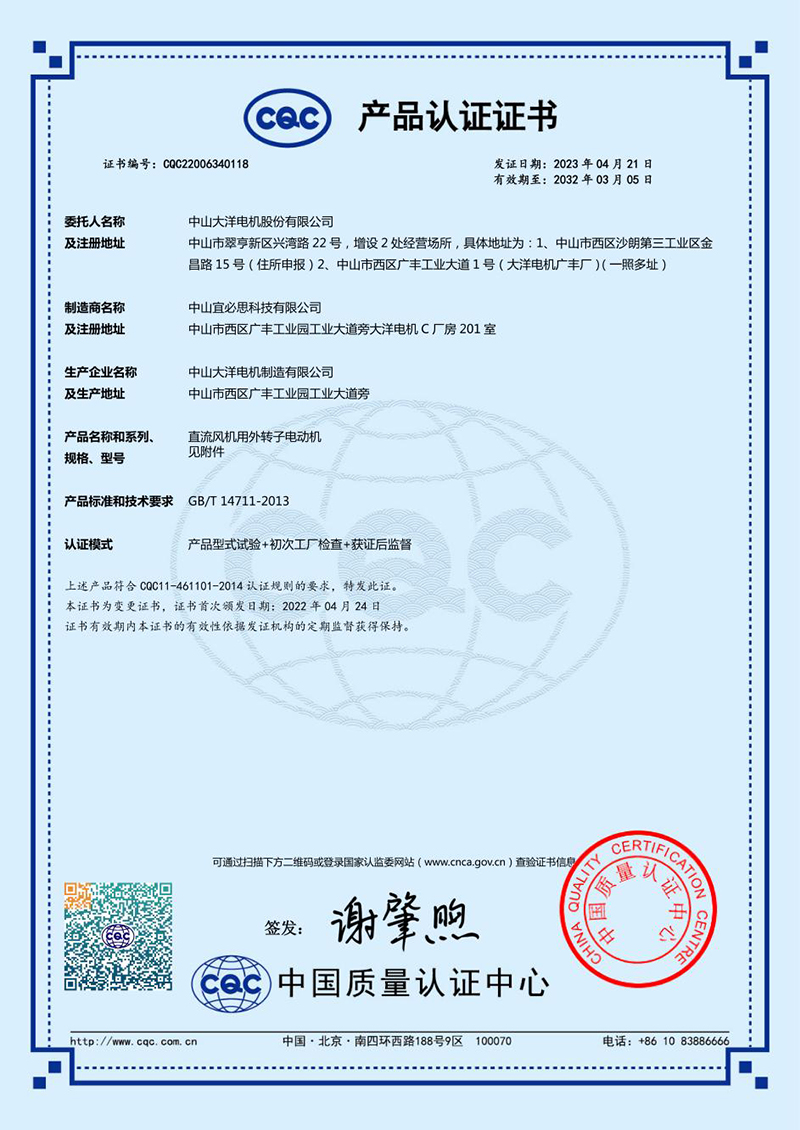

CQC Certification
Certified by the China Quality Certification Center (CQC), strict testing comprehensively controls the performance and quality of the axial fan, demonstrating its reliable product quality and being suitable for core scenarios such as household ventilation and fresh air purification.

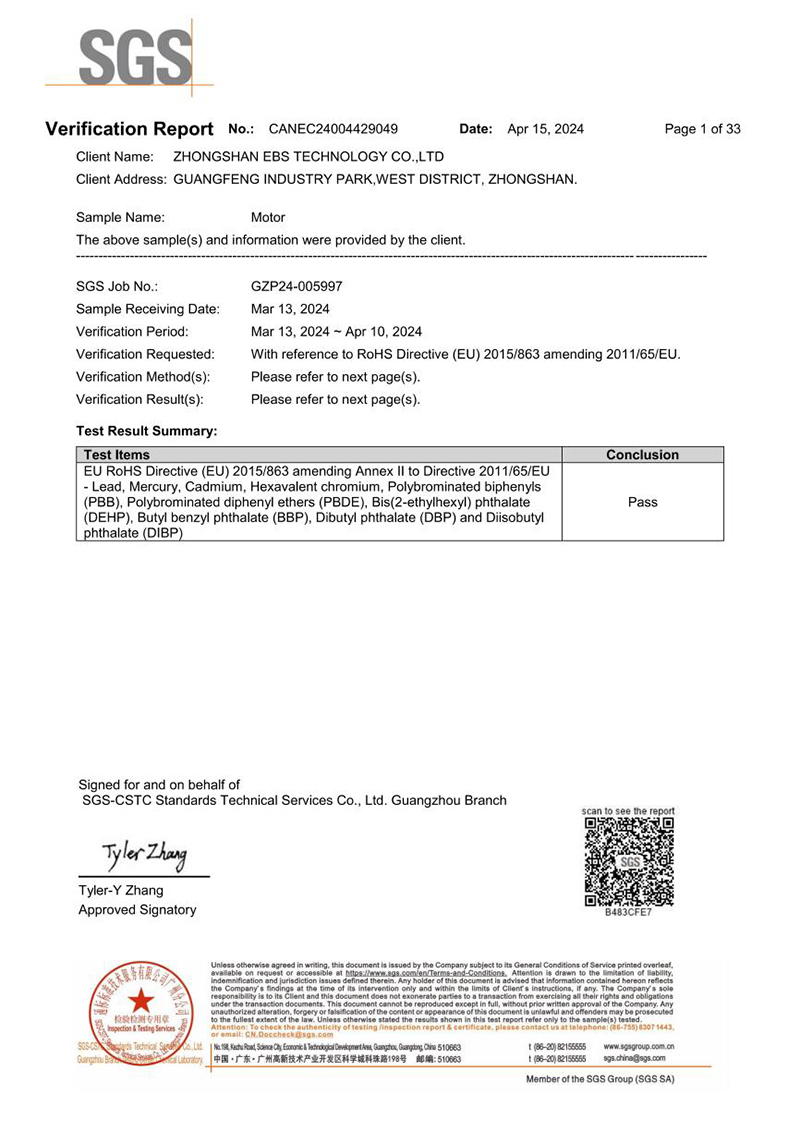

RoHS Certification
Complies with EU RoHS environmental standards, strictly restricts the content of harmful substances, suitable for the axial fan. It is green and pollution-free, adapting to strict environmental scenarios such as household use, high-end cleanliness and medical care, and protecting the safety of the use environment.

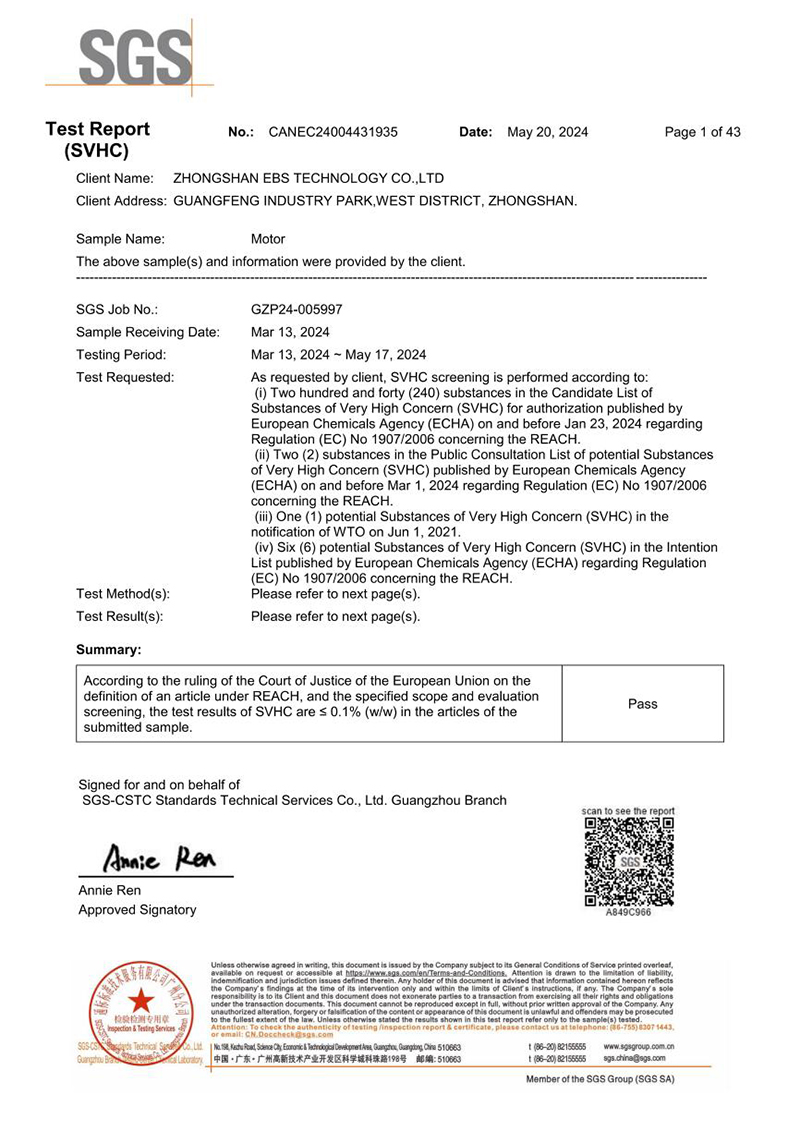

Reach Certification
Certified by the EU REACH regulation, it fully controls the risks of chemical substances in the product, suitable for axial fan, ensuring compliant export and widely adapting to various global application scenarios such as household and civil ventilation.
FAQ |
Q2: What are the core advantages of this fan?
A2: There are 4 core advantages: ① High efficiency and energy saving, adopting ternary flow CFD fluid simulation technology to optimize the impeller, combined with a high-efficiency motor; ② Low noise and quiet, the blade angle and line type are adapted to the ternary flow field, ensuring lower noise under the same air volume; ③ High reliability, the motor has F-class insulation, and has passed 3 months of 60℃ high-temperature test and 40,000 hours of life test; ④ Rich models, suitable for multi-scenario needs.
Q3: Which application scenarios are EBST axial fans mainly suitable for?

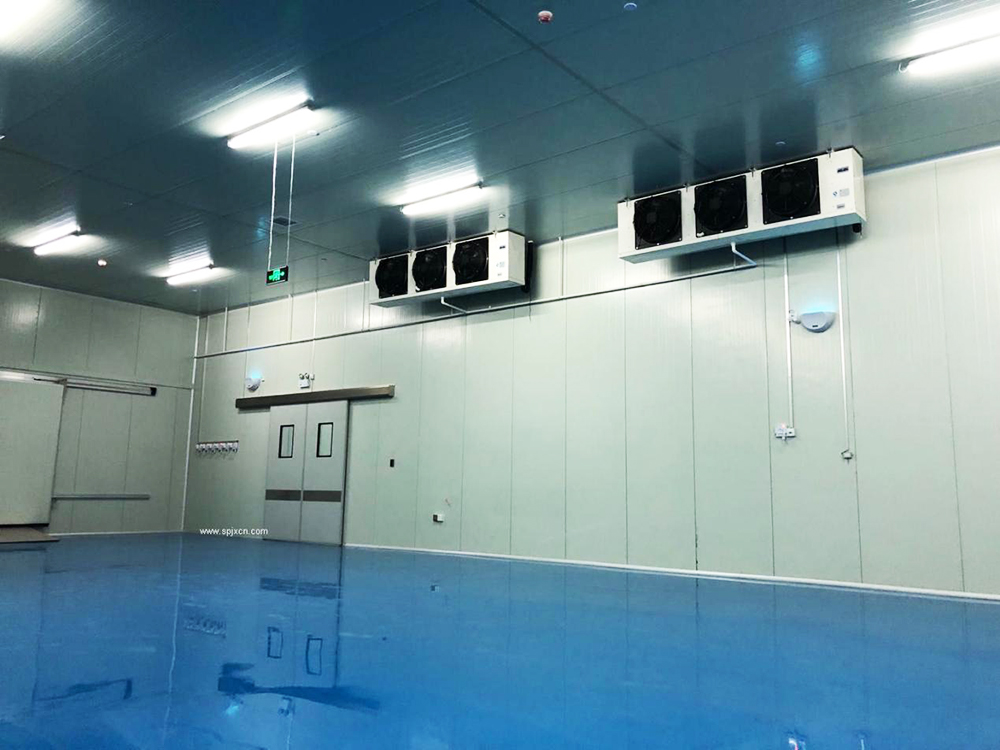

A3: It is widely suitable for 8 core scenarios, namely: heat pump equipment, ventilation & air exchange, cold chain logistics, industrial equipment heat dissipation, IDC small cabinets, high-voltage inverter cabinets, energy storage systems, and rail transit.
Q4: What is the main role of the fan in heat pump equipment and energy storage systems?

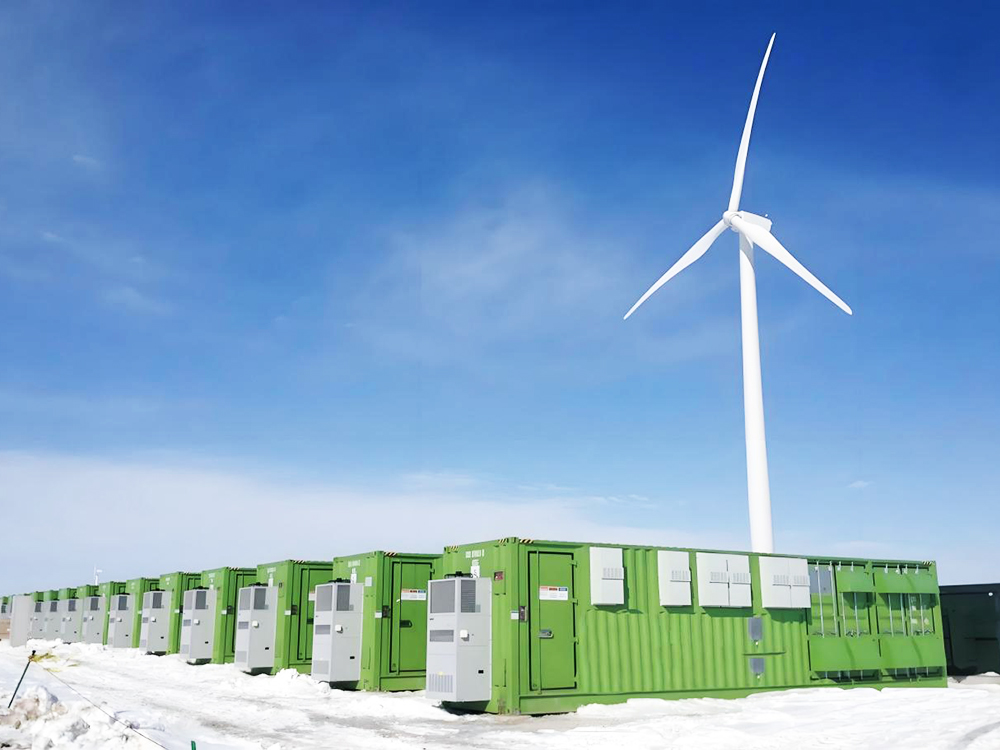

A4: ① Heat pump equipment: It dissipates heat for air energy and commercial heat pump units, takes away the waste heat of compressors and heat exchangers, stabilizes the heating/cooling efficiency of the units, and adapts to high and low temperature working conditions; ② Energy storage systems: It provides temperature control and heat dissipation for lithium battery energy storage cabinets and energy storage containers, balances the temperature of battery modules, and suppresses the risks of heat accumulation and thermal runaway.
Q5: What is the core role of the fan in the IDC small cabinet scenario?
A5: It operates with low noise and long-term stability, timely discharges the accumulated heat of chips and lines inside the cabinet, and ensures the 7×24-hour continuous and stable operation of data equipment.
Q6: Which authoritative certifications have EBST axial fans passed?
A6: It has passed 6 core certifications in total, namely: UL Certification, CE Certification, CCC Certification, CQC Certification, RoHS Certification, and Reach Certification, covering the main global market access, safety and environmental protection standards.
Q7: What market needs do UL Certification and CE Certification correspond to respectively?
A7: ① UL Certification: An authoritative international safety certification that meets the standards of the North American and global high-end markets, suitable for scenarios such as household air conditioning and fresh air purification; ② CE Certification: Complies with EU LVD (Low Voltage Directive) and EMC (Electromagnetic Compatibility Directive), has the qualification for EU market access, and helps the smooth global circulation of products.
Q8: What are the core roles of RoHS Certification and Reach Certification?
A8: ① RoHS Certification: Complies with EU environmental protection standards, strictly restricts the content of harmful substances, and is suitable for strict environmental scenarios such as household use, high-end cleanliness and medical care; ② Reach Certification: Certified by the EU REACH regulation, controls the risk of chemical substances in products, ensures compliant export of products, and is suitable for multiple global scenarios.
Q9: What is the difference between CCC Certification and CQC Certification?
A9: ① CCC Certification: China's Compulsory Product Certification, which ensures that the electrical safety and electromagnetic compatibility performance of the fan meet the standards, and is suitable for domestic compliant scenarios such as household air conditioning and range hoods; ② CQC Certification: Certified by the China Quality Certification Center, it controls the performance and quality of products through strict testing, demonstrates product reliability, and is suitable for core scenarios such as household ventilation and fresh air purification.
Q10: Is the fan suitable for household scenarios? What specific household equipment can it be used for?
A10: It is suitable for household scenarios and can be used for household air conditioners, fresh air purification equipment, range hoods, etc. Relevant certifications (CCC, RoHS, etc.) ensure safe and environmentally friendly household use.
Q11: What special advantages does the fan have in the high-voltage inverter cabinet scenario?
A11: It provides professional heat dissipation for high-power heating components in high-voltage inverters and electrical control cabinets, has excellent temperature resistance and insulation performance, can adapt to the harsh enclosed environment of electrical cabinets, eliminates electrical faults caused by high temperature, and improves the safety of the power distribution system.
