[ High Efficiency ] High strength impeller optimized by ternary flow CFD fluid simulation technology, reasonably designed flow runner combined with ultra-efficient motor create the high efficiency of the fan.
[ Low Noise ] The designer closely combines aerodynamics and sound source, and makes the blade angle and blade pattern fully adapt to the ternary flow field, which always ensures lower noise at the same air volume.
[ High Reliability ] Motors have F class insulation, and been tested for 3 months of 60℃ high temperature test and 40,000 hours of life test, which ensure worse-free quality.
[ Wide Application ] The products is used wherever outstanding performance is required, for example, heat pump, ventilation, cold chain, equipment cooling, IDC small cabinet, high voltage inverter cabinet, energy storage, rail transit and more.
[ Variety of Models ] Available in dimensions of : 180mm~305mm, this allows for air flow rates of up to 3150m3/h and static pressure of up to 500Pa.
| Quantity: | |
|---|---|

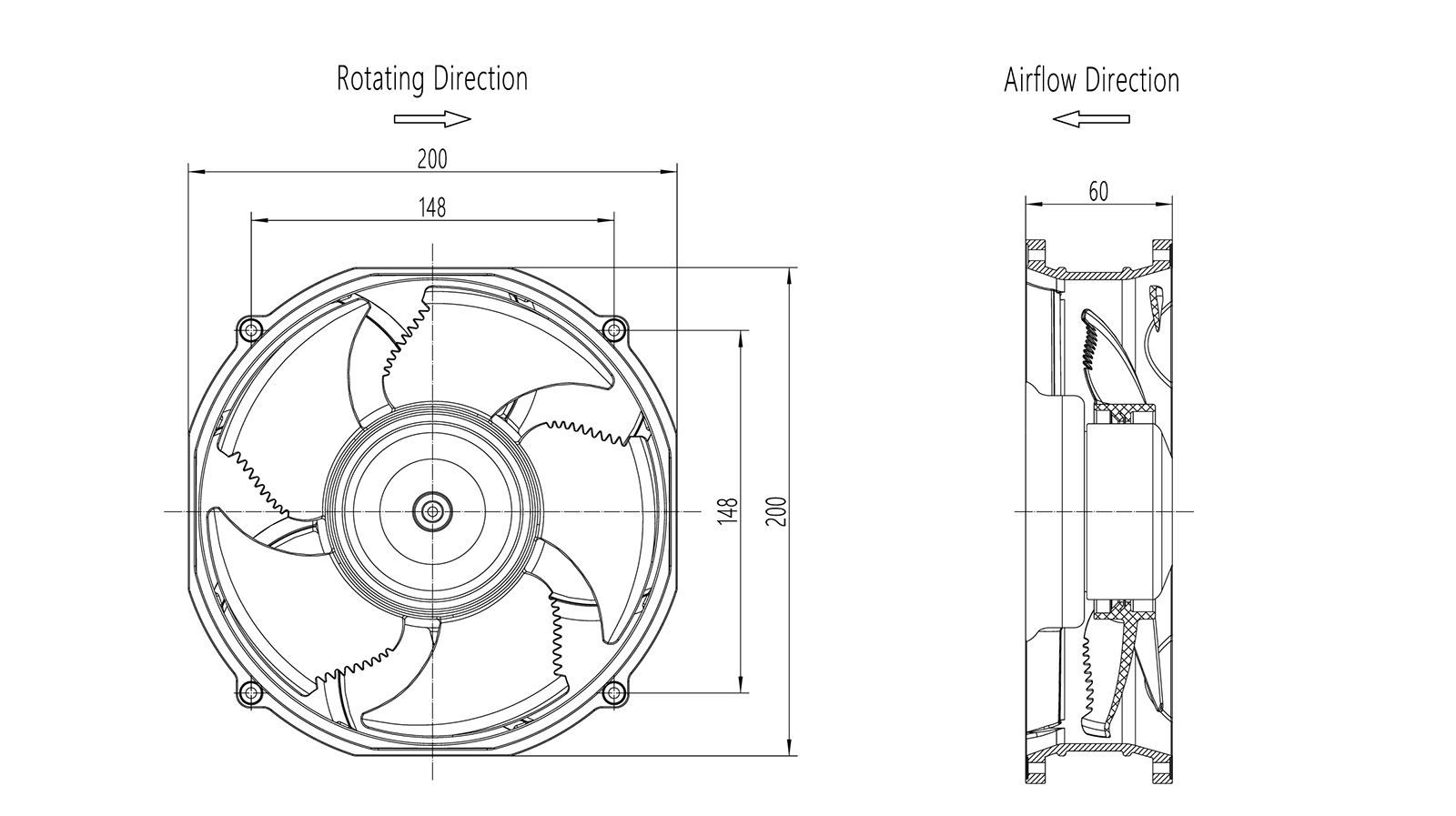

A180P.D002
EBST
A180P.D002
Product Parameters |
Material: | Impeller:Nylon with Glass Fiber |
Direction of rotation: | Clockwise, seen on rotor |
| Control input: | 0-10VDC/PWM |
Type of protection: | IP 20 |
Insulation class: | F |
Bearing: | Maintenance-free Ball bearings |
Approval: | CCC |
Amb.Temp: | -25~+60℃ |
| Model | Curve | Voltage [V] | Max Current [A] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] |
A180P.D002 | A | 48 | 4.7 | 5900 | 227 | 1335 | 78 |
 | / | Ps [Pa] | Airflow [m3/h] | Speed [rpm] | Power [W] | |
A | ① | 1102 | 10703 | 2423 | 5330 | |
② | 1201 | 10258 | 2419 | 5261 | ||
③ | 1301 | 9591 | 2411 | 5261 | ||
④ | 1405 | 8839 | 2411 | 5286 | ||
| B | ⑤ | 900 | 9974 | 2211 | 3953 | |
| ⑥ | 1000 | 9066 | 2165 | 3970 | ||
| ⑦ | 1101 | 8282 | 2159 | 3974 | ||
| ⑧ | 1201 | 7439 | 2166 | 3977 | ||

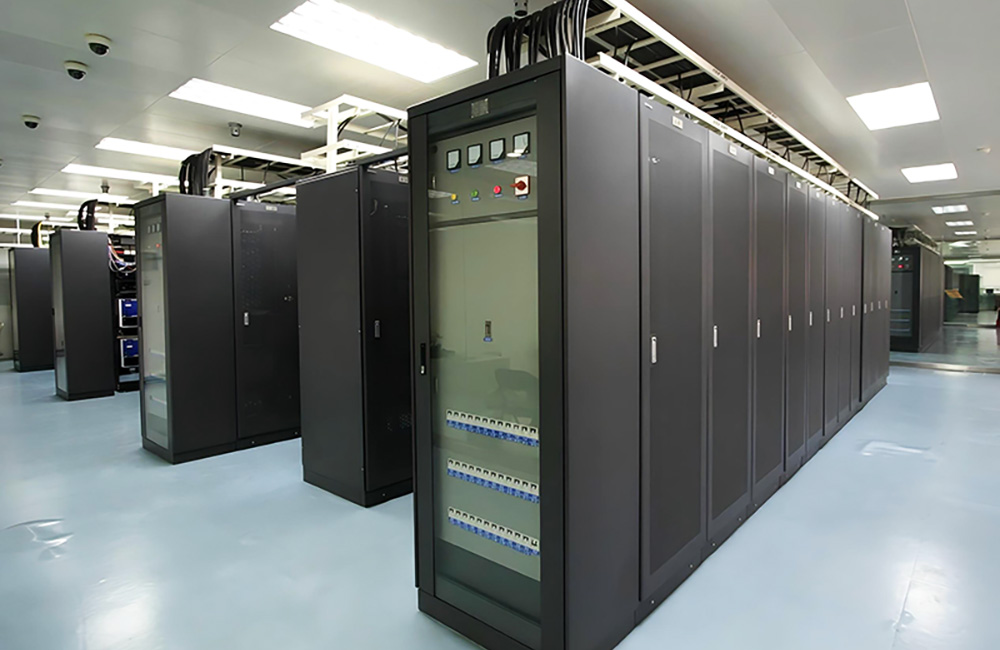

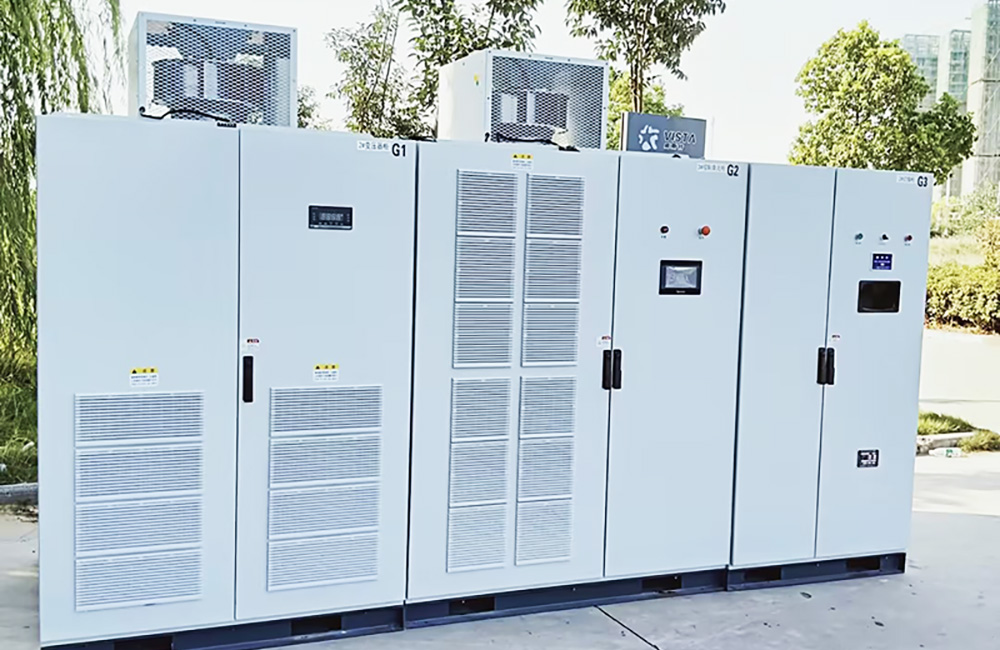

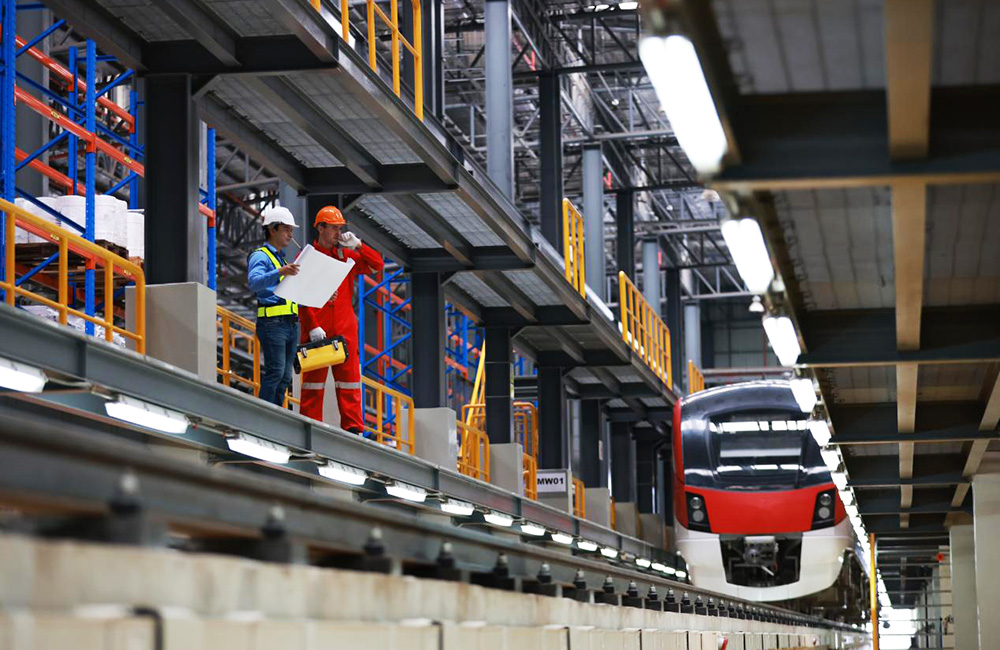

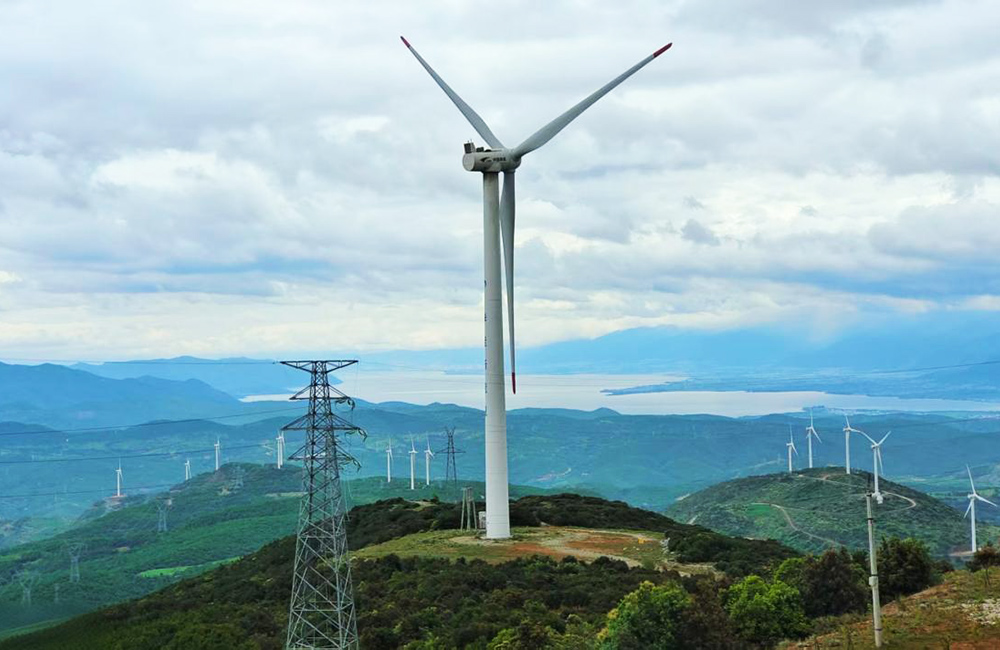

Application Scenarios |
Product Certificate |
Supported by multiple authoritative certifications, compliant and reassuring, building a solid line of quality for the EC630 backward centrifugal fan and adapting to global multi-scenario application needs.
UL Certification
Certified by the international authoritative UL safety mark, the DC180 axial fan delivers stable performance and long service life, complying with stringent standards for North American and global high-end markets.
CE Certification
Compliant with EU Low Voltage Directive (LVD) and EMC directives, the DC180 axial fan is qualified for EU market access, enabling smoother global application.
CCC Certification
Complies with China's mandatory product certification standards; the DC180 axial fan fully meets electrical safety and EMC requirements, ensuring safer operation and adapting to various domestic compliant scenarios.
CQC Certification
Certified by the China Quality Certification Center, the DC180 axial fan undergoes strict testing to control performance and quality, fully demonstrating its reliable product strength.
RoHS Certification
Compliant with EU RoHS environmental directives, it strictly restricts hazardous substances; the DC180 axial fan is green and low-carbon, suitable for strict environmental scenarios such as clean rooms and medical equipment.
Reach Certification
Certified under EU REACH regulations, it fully controls chemical substance risks; the DC180 axial fan ensures compliant exports and easily adapts to various global market applications.
FAQ |
Q1: What are the core differences between the DC180 axial fan, ordinary AC axial fans, and centrifugal fans?
A: Compared with AC fans, the DC180 DC model supports PWM speed control, low power consumption, fast start/stop response, and wide-temperature operation. Compared with centrifugal fans, the axial-flow structure features large air volume, low static pressure, and space-saving installation. It is suitable for direct exhaust heat dissipation in cabinets and equipment, but not for high-pressure air supply scenarios.
Q2: Does the fan have locked-rotor and overload protection? How is its operation stability?
A: Equipped with a standard DC brushless motor driver, the fan features built-in locked-rotor protection, overload protection, over-voltage and under-voltage protection to prevent motor burnout under abnormal conditions. With a ball bearing design, it has a long service life for continuous operation and is suitable for 7×24-hour uninterrupted working scenarios.
Q3: What is the operating temperature range of the DC180 axial fan?
A: The normal operating temperature range is -25℃ to +60℃, enabling wide-temperature operation.
