| Quantity: | |
|---|---|

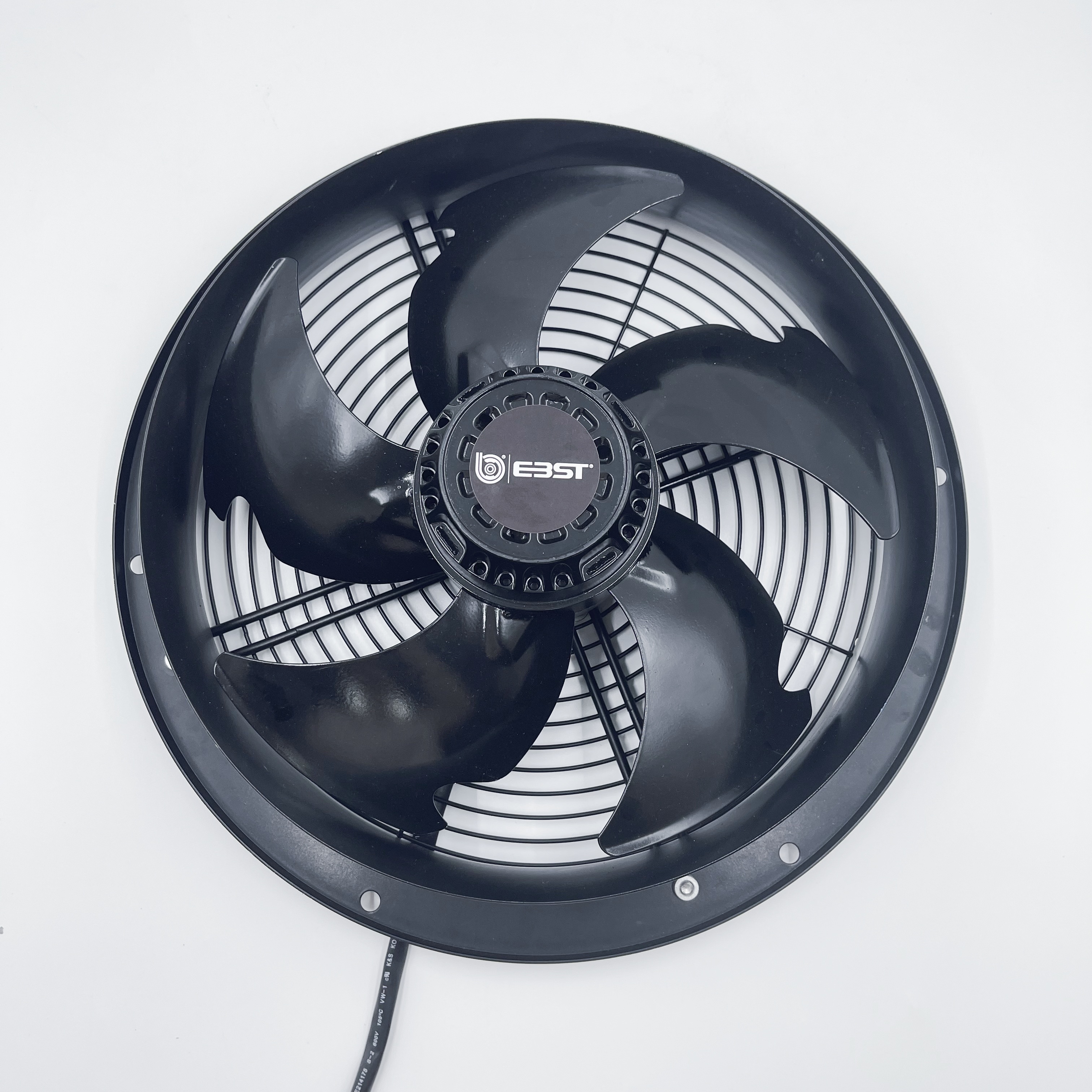

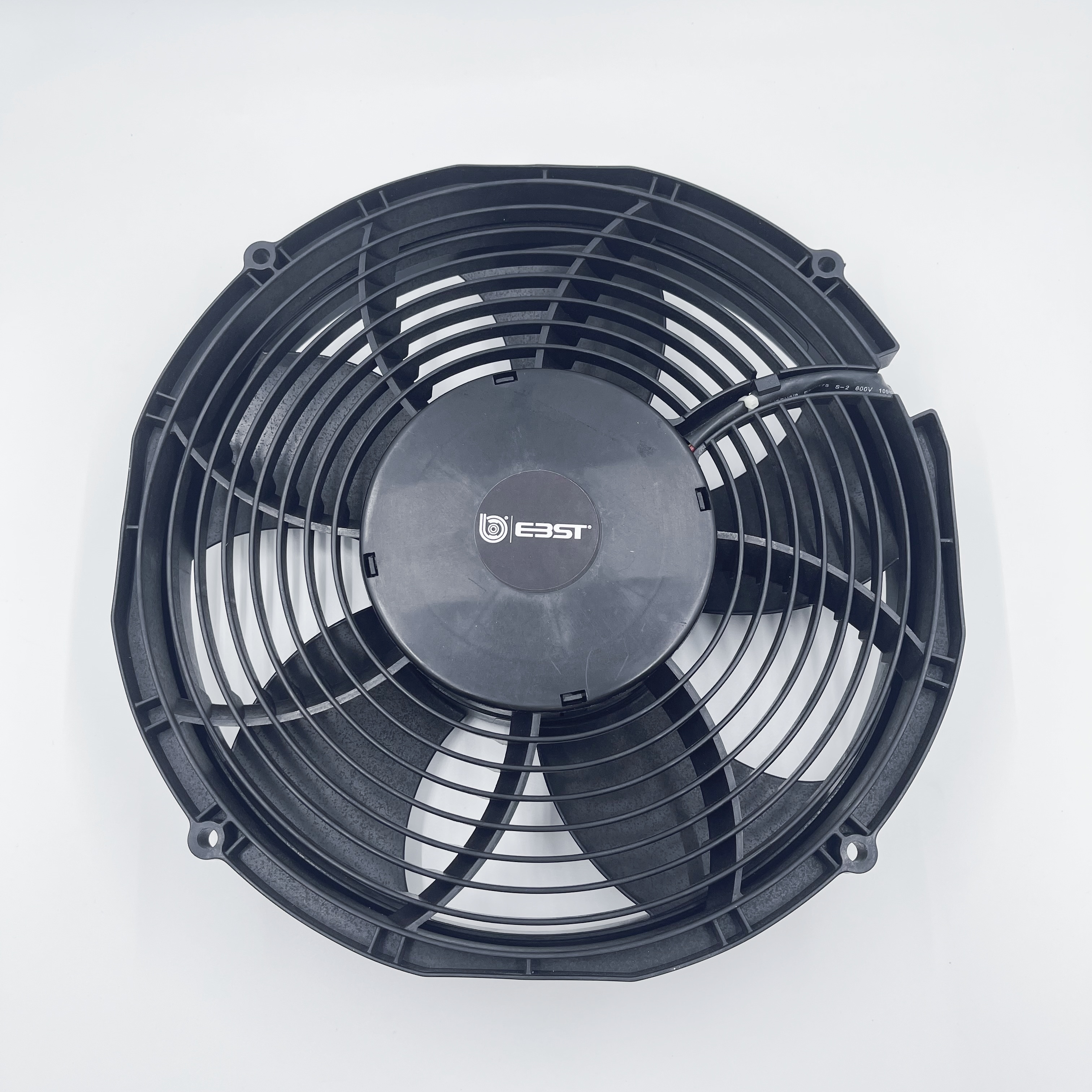

A305P.D002
EBST
A305P.D002
Material: | Impeller:Nylon with Glass Fiber |
Direction of rotation: | Clockwise, seen on rotor |
Control input: | 0-10VDC |
Type of protection: | IP 67 |
Insulation class: | F |
Bearing: | Maintenance-free Ball bearings |
Approval: | CCC |
Amb.Temp: | -25~+60℃ |
Model | Curve | Voltage [V] | Max Current [A] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] |
A305P.D002 | A | 24 | 12.5 | 3205 | 300 | 2810 | 72 |
 | Ps [Pa] | Airflow [m3/h] | Speed [rpm] | Power [W] | ||
A | ① | 200 | 2130 | 3344 | 293 | |
② | 225 | 2000 | 3330 | 295 | ||
③ | 250 | 1835 | 3310 | 295 | ||
④ | 275 | 1655 | 3280 | 298 | ||
Powered by 24V DC, it delivers a maximum airflow of up to 2810m³/h with stable airflow output even under high static pressure, ideal for ventilation and heat dissipation in high-load equipment and large spaces.
Supports 0-10VDC precise speed regulation, enabling on-demand matching of working conditions, balancing heat dissipation efficiency and energy saving, and adapting to multi-scenario requirements.
Features IP67 high protection rating for dust and water resistance, suitable for harsh environments such as humidity and dust. Equipped with glass fiber-reinforced nylon impeller + maintenance-free ball bearings, Class F insulation, stable operation in a wide temperature range of -25℃~+60℃, and CCC certified for compliance.
Operates at a noise level of only 72dB(A) even at high airflow, suitable for noise-sensitive scenarios such as computer rooms, industrial equipment, and energy storage systems.
Adopts standard circular mounting dimensions with a compact structure, enabling efficient replacement of old units and mass deployment. The 24V low-voltage DC design is compatible with multiple scenarios including vehicle-mounted, new energy, communication, and energy storage systems.

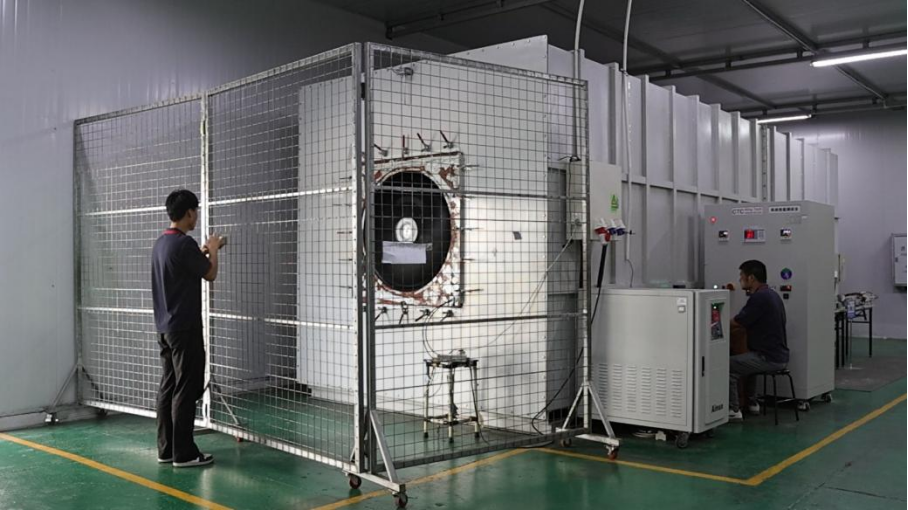

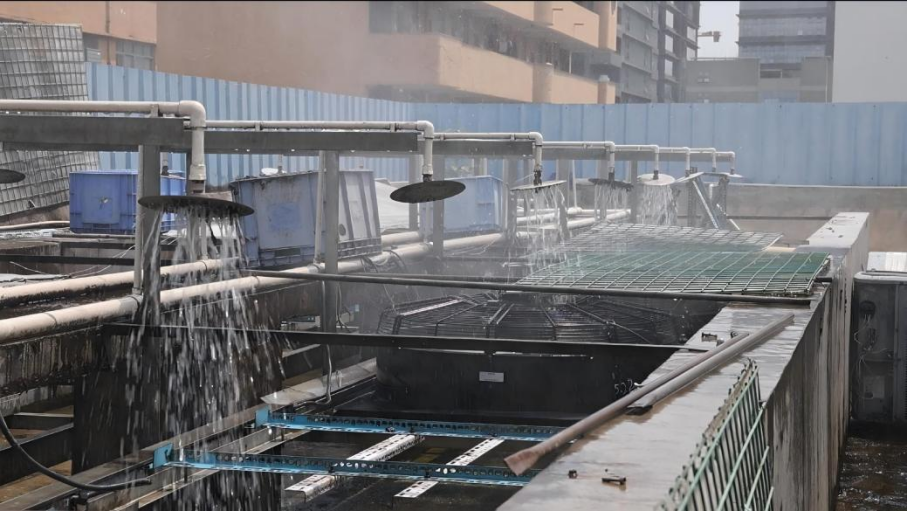

Laboratory wind tunnel | Outdoor rain test |
 |  |

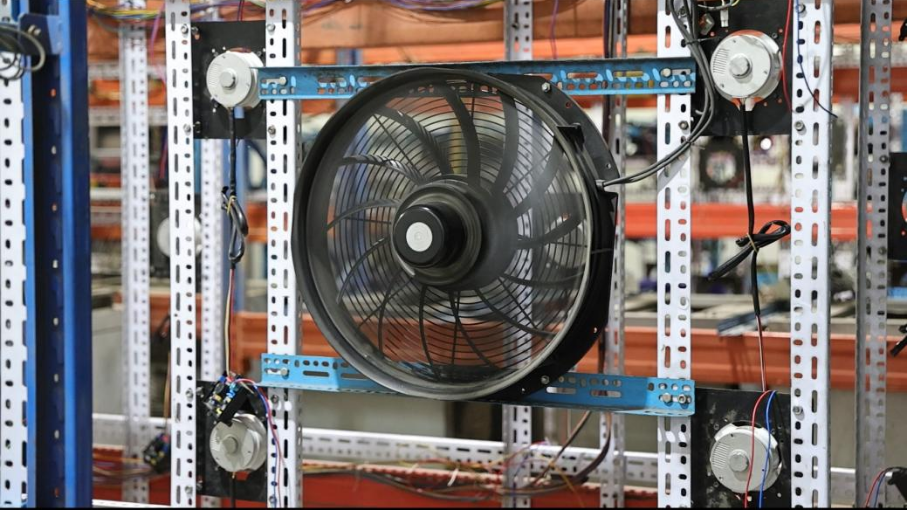

High temperature capacitance test | Durability Test |
 |  |
What is the supply voltage and maximum airflow of this fan?
Powered by 24V DC, the maximum airflow reaches 2810m³/h with stable output under high static pressure.
Does it support speed control? What is the speed control method?
It supports 0-10VDC precise speed control, which can match working conditions on demand to save energy.
What is the protection rating? Can it be used in harsh environments?
With IP67 protection rating, it is dustproof and waterproof, suitable for humid, dusty and other harsh environments.
What is the operating noise level? Is it suitable for noise-sensitive places?
The operating noise is only 72dB(A) even at high airflow, ideal for equipment rooms, energy storage and other quiet-required scenarios.
What is the operating temperature range and insulation class?
It can run stably in -25℃~+60℃ and adopts Class F insulation for long-term durability.
Is installation convenient? What are the main application scenarios?
Standard circular mounting size for easy replacement and mass deployment. Widely used in vehicle, new energy, communication, energy storage and other fields.
