φ200mm A200P.A005 AC Axial Fan

Dual Frequency & Powerful Airflow
Low Noise & Energy Efficient with Flexible Control
Industrial Grade & Reliable Quality
Easy Installation & Wide Compatibility

Availability:

Quantity:



Inquiry Add to Basket

Model:
A200P.A005
Brand:
EBST
Code:
A200P.A005

1

Material:	Impeller:Nylon with Glass Fibe
Direction of rotation:	Anticlockwise, seen on rotor
Control input:	Motor wiring speed regulation
Type of protection:	IP 23
Insulation class:	F
Bearing:	Maintenance-free Ball bearings
Approval:	CCC
Amb.Temp:	-25~+65℃

Model

Curve

Voltage

[V]

Frequency

[Hz]

Speed

[rpm]

Max Power

[W]

Max Airflow

[m³/h]

Noise

[dB(A)]

A200P.A005

A

230

50

2680

67

893

63

B

230

60

3044

85

1019

66

		P_s [Pa]	Airflow [m³/h]	Speed [rpm]	Power [W]
A	①	40	779	2628	63.8
	②	60	711	2607	65.2
	③	70	658	2590	65.9
	④	80	591	2576	66.5
B	⑤	40	902	2960	79.3
	⑥	60	840	2920	81
	⑦	80	760	2872	83.2
	⑧	100	631	2828	84.9

DIMENSION

Core advantage

1.Dual Frequency & Powerful Airflow

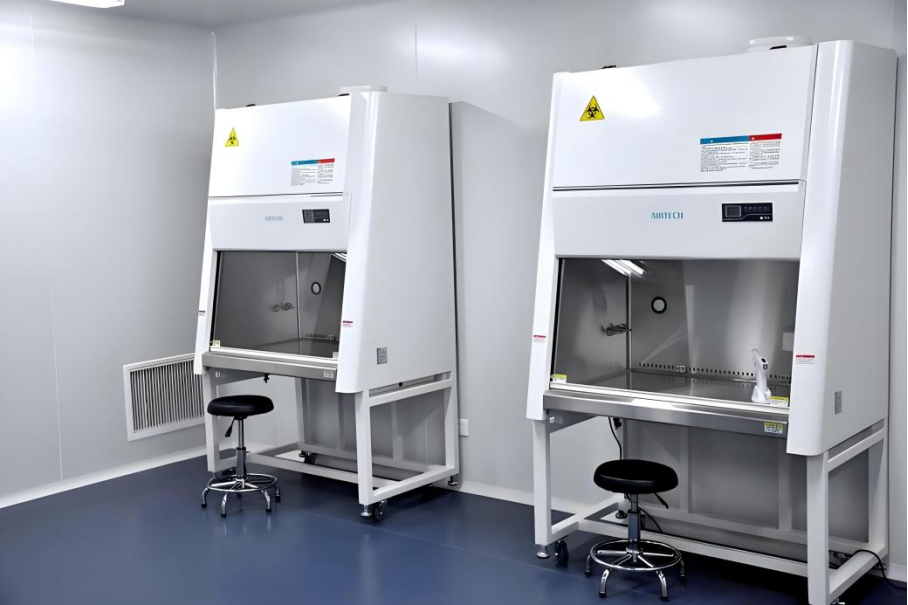

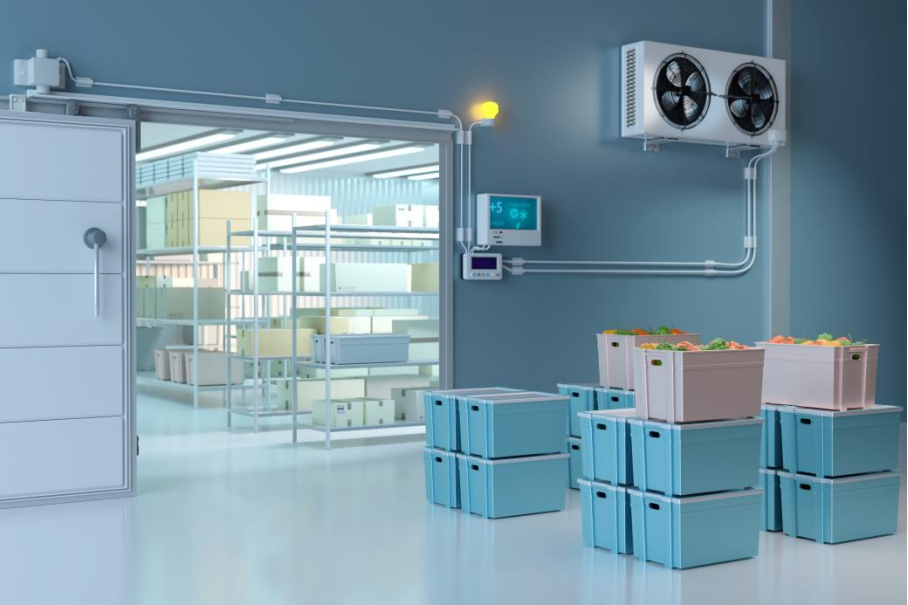

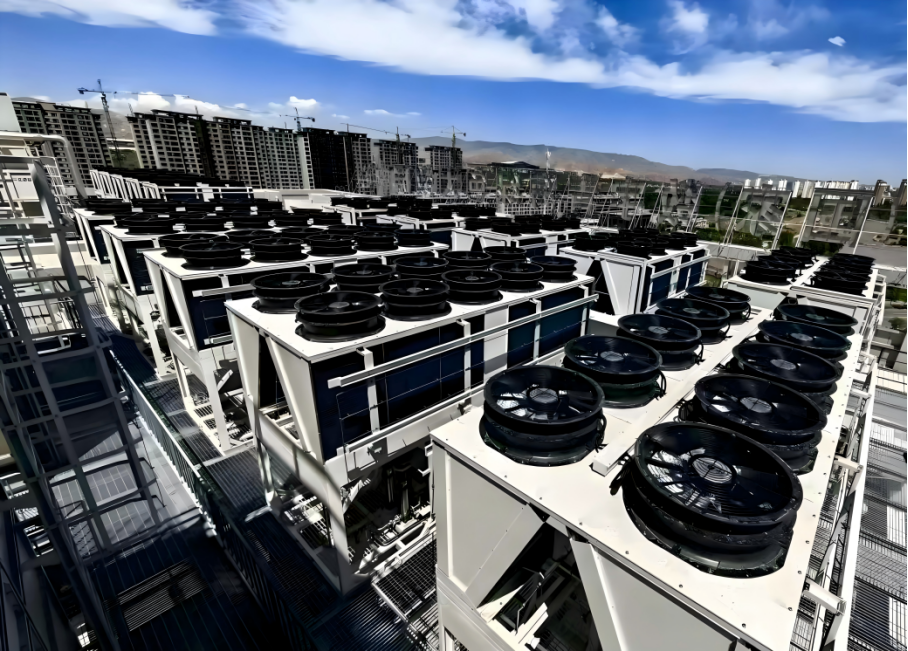

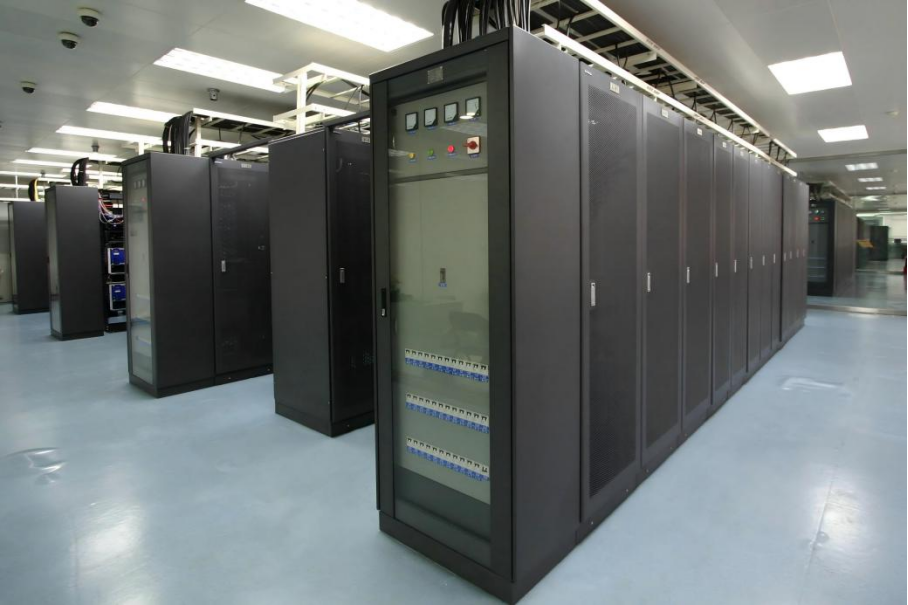

Dual curves for 50Hz/60Hz, delivering maximum airflow up to 1019m³/h with stable static pressure, suitable for ventilation and heat dissipation in various scenarios.

2.Low Noise & Energy Efficient with Flexible Control

Noise level as low as 63dB(A) and maximum power only 85W. Features motor speed regulation via wiring, enabling energy saving based on actual demand.

3.Industrial Grade & Reliable Quality

Equipped with glass fiber reinforced nylon impeller and maintenance-free bearings. Boasts IP23 protection, Class F insulation, and wide temperature operation from -40°C to 65°C, certified with CCC.

4.Easy Installation & Wide Compatibility

Directly driven by 230V mains power. Adheres to standard mounting dimensions, allowing replacement without re-drilling holes for efficient deployment.
