φ630mm-E005/E004 EC Backward-curved Centrifugal Fan

[ High Efficiency ] Aluminum alloy impeller optimized by ternary flow CFD fluid simulation technology, reasonably designed flow runner combined with ultra-efficient EC motor create the high efficiency of the fan.

[ Low Noise ] The designer closely combines aerodynamics and sound source, and makes the blade angle and blade pattern fully adapt to the ternary flow field, which always ensures lower noise at the same air volume.

[ High Reliability ] Motors have IP54 waterproof and dust proof protection, F class insulation, and been tested for 3 months of 60℃ high temperature test and 40,000 hours of life test, which ensure worse-free quality.

[ Accurate Intelligent Control ] The fan adopts efficient EC motor and supports various control modes such as 0~10V / PWM / RS485 to accurately meet the ventilation needs of different period of time.

[ Wide Application ] The products is used wherever outstanding performance is required, for example, IDC small cabinet, high voltage inverter cabinet, energy storage charging pile, commercial air conditioning, rail transit and more.

[ Variety of Models ] Available in dimensions of : 280mm，320mm，355mm，400mm，450mm，520mm, 560mm, 630mm, this allows for air flow rates of up to 20100m3/h and static pressure of up to 1500Pa.

Availability:

Quantity:



Inquiry Add to Basket

Model:
B630M.E005/E004
Brand:
EBST
Code:
B630M.E005/E004

Product Description

Product Parameters

Material:	Impeller: Aluminum alloy 5052
Direction of rotation:	Clockwise, seen on rotor
Control input:	0-10VDC/PWM
Type of protection:	IP 54
Insulation class:	F
Bearing:	Maintenance-free Ball bearings
Approval:	CCC
Amb.Temp:	-25~+60℃

Model

Curve

Voltage

[V]

Frequency

[Hz]

Speed

[rpm]

Max Power

[W]

Max Airflow

[m³/h]

Noise

[dB(A)]

B630M.E005

A

380

50/60

1380

3850

20100

87.2

B630M.E004

B

380

50/60

1260

2970

18330

83.4

		P_s [Pa]	Airflow [m³/h]	Speed [rpm	Power [W]
A	1	500	14645	1380	3820
	2	600	12965	1380	3850
	3	700	11380	1380	3805
	4	400	13995	1260	2905
B	5	500	12230	1260	2970
	6	600	10020	1260	2840
	7	500	14645	1380	3820
	8	600	12965	1380	3850

Application Scenarios

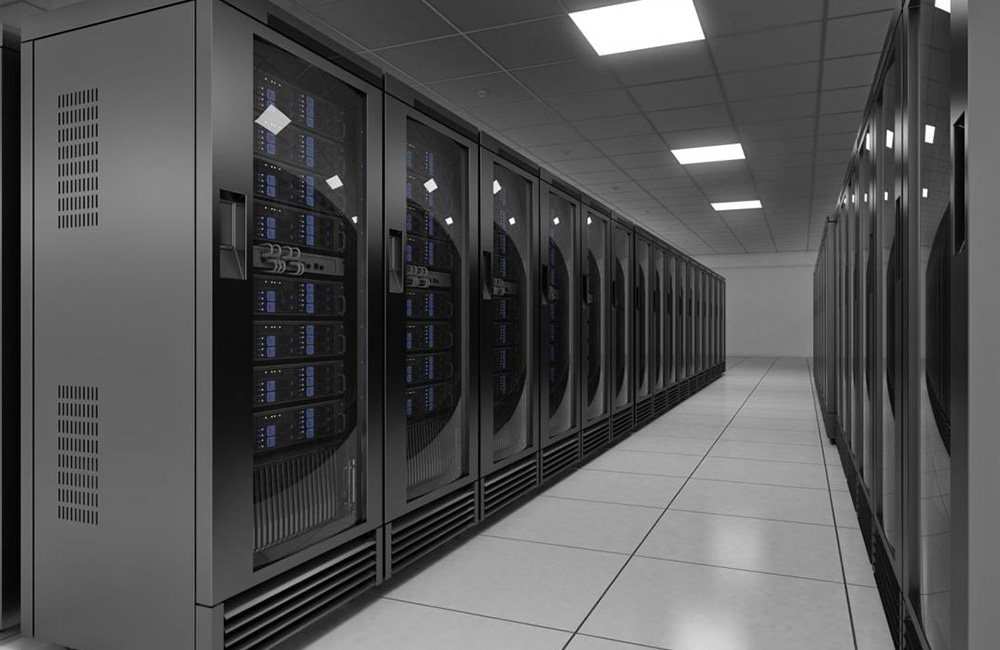

Data Center Application

The EC630 backward curved centrifugal fan is specially designed for cooling in high-density data center rooms. With large air volume and high energy efficiency, it is compatible with precision air conditioners for data centers including in-row, room-level, outdoor unit and small cabinet cooling scenarios. It supports 0–10V/PWM intelligent speed regulation to realize on-demand cooling, significantly reduce PUE, and ensure long-term stable operation of servers.

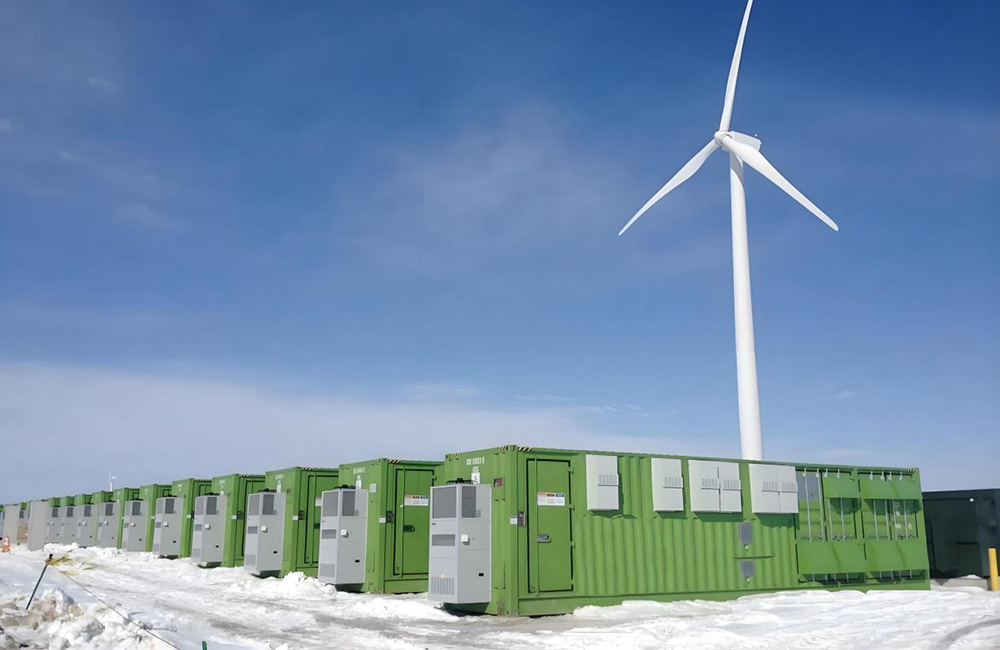

Energy Storage Application

For containerized energy storage and liquid-cooled/air-cooled energy storage power stations, the EC630 provides stable airflow and heat dissipation capacity, and can overcome resistance from battery compartments, air ducts and filters. Featuring wide voltage compatibility, wide operating temperature range and high protection grade, it adapts to harsh outdoor environments, ensures uniform temperature of battery clusters, and improves the safety and service life of energy storage systems.

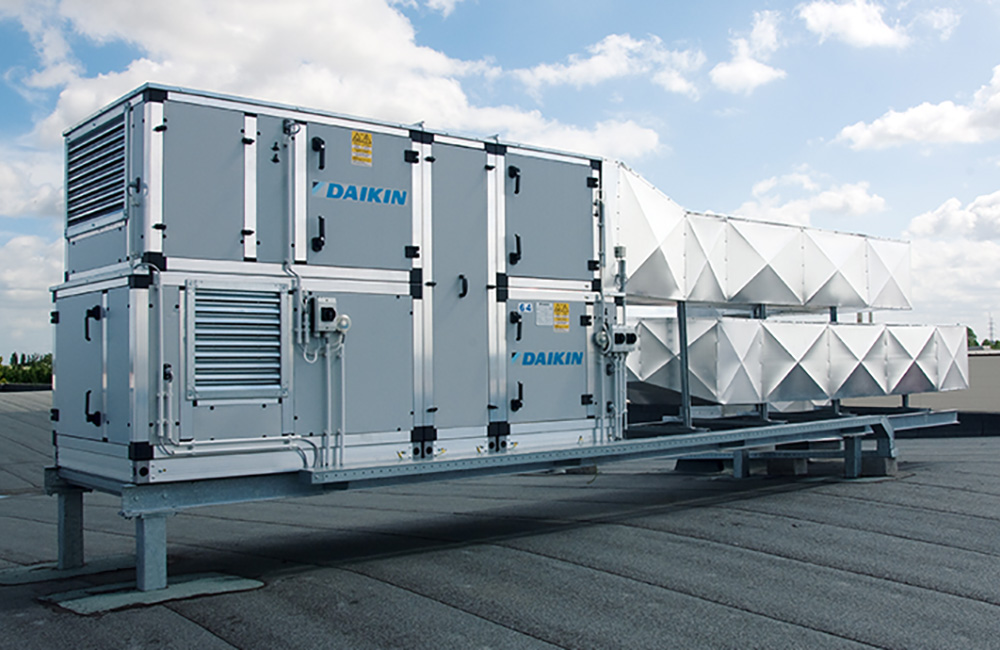

AHU Application

As the core power component of air handling units (AHU) and fresh air units, the EC630 features high-efficiency backward curved impellers, low noise and stable operation. It offers remarkable energy savings compared with traditional fans, and is suitable for HVAC systems in large commercial buildings, hospitals, airports, industrial plants and other venues, meeting the demand for long-term continuous and stable operation.

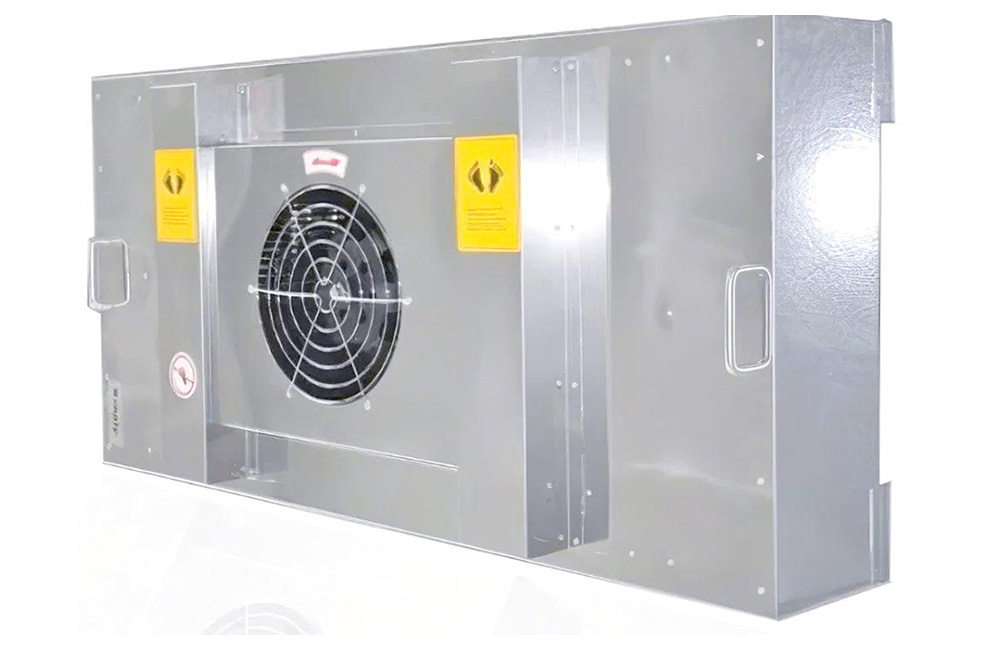

FFU Application

The EC630 can easily overcome filter resistance and provide stable clean airflow for clean rooms, semiconductor workshops, laboratories and other places. It supports precise speed regulation and constant air volume control to ensure stable pressure difference in clean areas, making it an ideal configuration for high-end FFUs and large-scale clean air conditioning systems.

Product Certificate

Supported by multiple authoritative certifications, compliant and reassuring, building a solid line of quality for the EC630 backward centrifugal fan and adapting to global multi-scenario application needs.

UL Certification

Certified by UL authoritative safety mark, EC630 features high reliability and long service life for North American and global high-end markets.

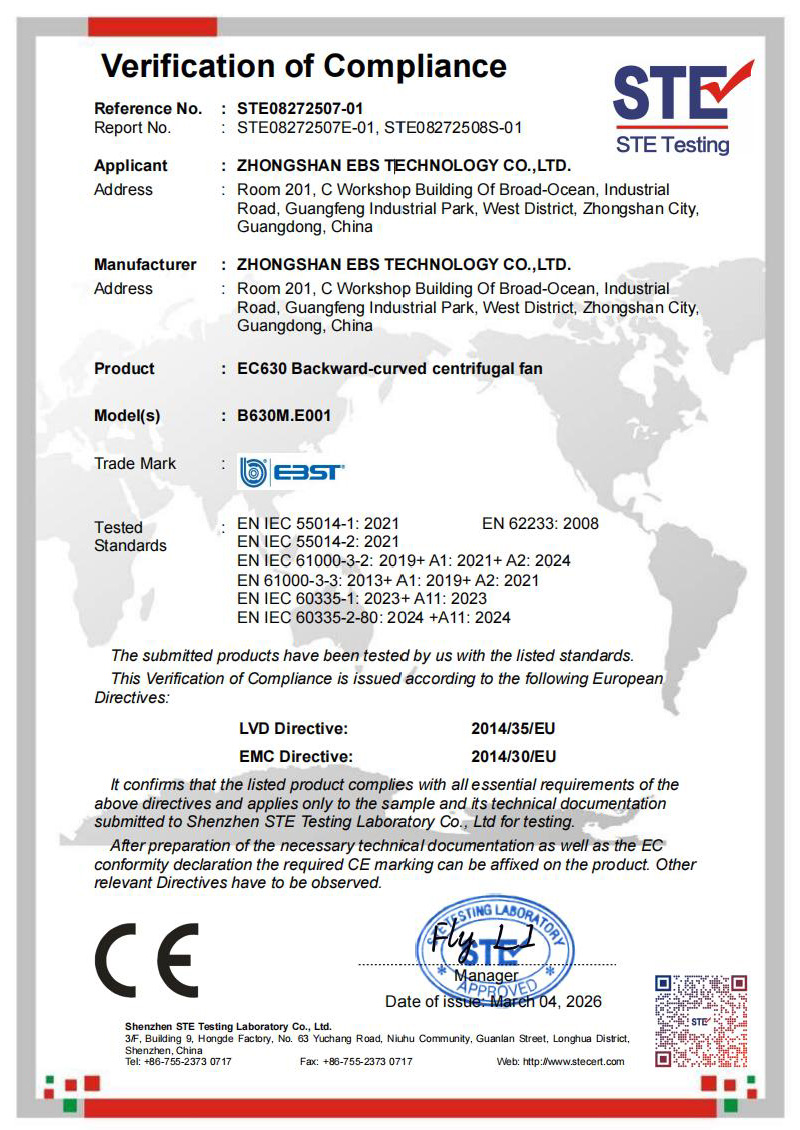

CE Certification

Compliant with EU LVD and EMC directives, EC630 is qualified for EU market access, with smoother global application.

CCC Certification

Complies with China's mandatory product certification standards, suitable for the EC630 backward centrifugal fan, fully meets electrical safety and EMC requirements, safer to use, and adapts to various domestic compliant scenarios.

CQC Certification

Certified by China Quality Certification Center, strict testing controls the performance and quality of the EC630 backward centrifugal fan, demonstrating reliable product quality.

RoHS Certification

Complies with EU RoHS environmental standards, restricts harmful substance content, suitable for the EC630 backward centrifugal fan, green and environmentally friendly, adapting to high-end clean, medical and other strict environmental scenarios.

Reach Certification

Certified by EU REACH regulation, fully controls chemical substance risks, suitable for the EC630 backward centrifugal fan, compliant for export, and adapts to global market applications.

FAQ

Q1: What is the protection rating and temperature range of the fan?

A: The protection rating of the standard model is ≥ IP54, dustproof and waterproof.The normal operating temperature range is -20℃ ~ 60℃, suitable for harsh environments. Customization is available according to your application.

Q2: What about the price, lead time and MOQ?

A: Price depends on model, parameters and order quantity – larger orders enjoy better unit price.Lead time for standard models: 15–30 working days.MOQ: 5 units, small trial orders are supported.

Q3: Do you have third-party test reports and certifications such as CE, UL, 3C?

A: Yes. All fans are certified with 3C.CE and UL certifications are available for export models.All third-party test reports and certification documents can be provided for inspection.
