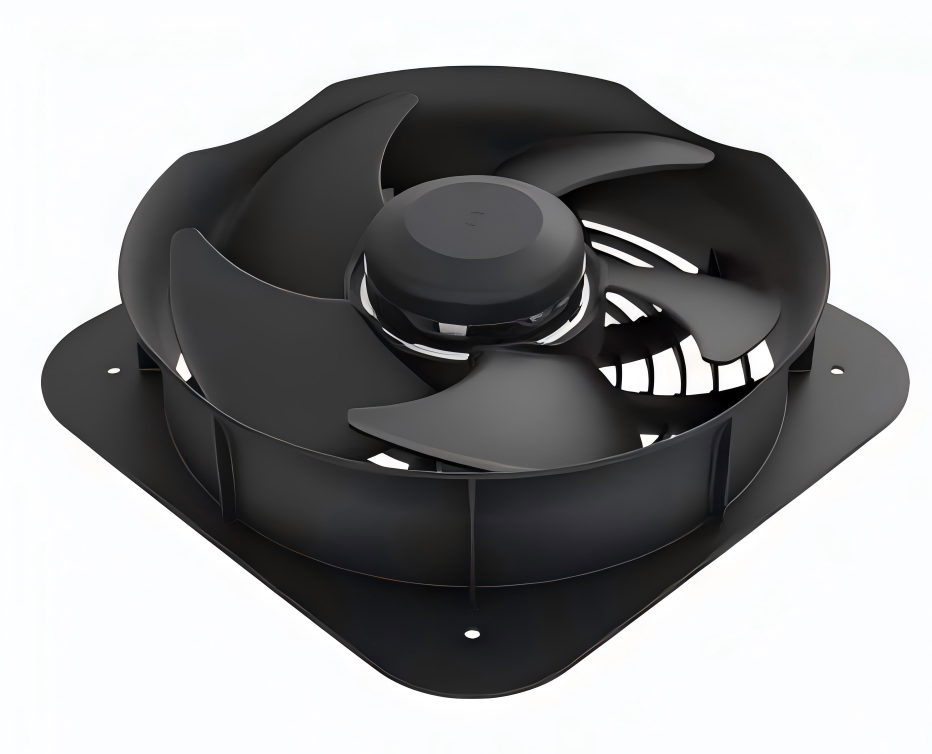

Axial Fan for Small Cabinet Precision Air Conditioner

Model		Voltage [V]	Frequency / Max Current [Hz] / [A]	Speed [rpm]	Max Power [W]	Max Airflow [m3/h]	Noise [dB(A)]
	A180P.D002	48	4.70	5900	227	1335	78
	A200P.A001	220	50	2820	54	865	58
	A200P.D004	48	1.65	3550	79	1076	61

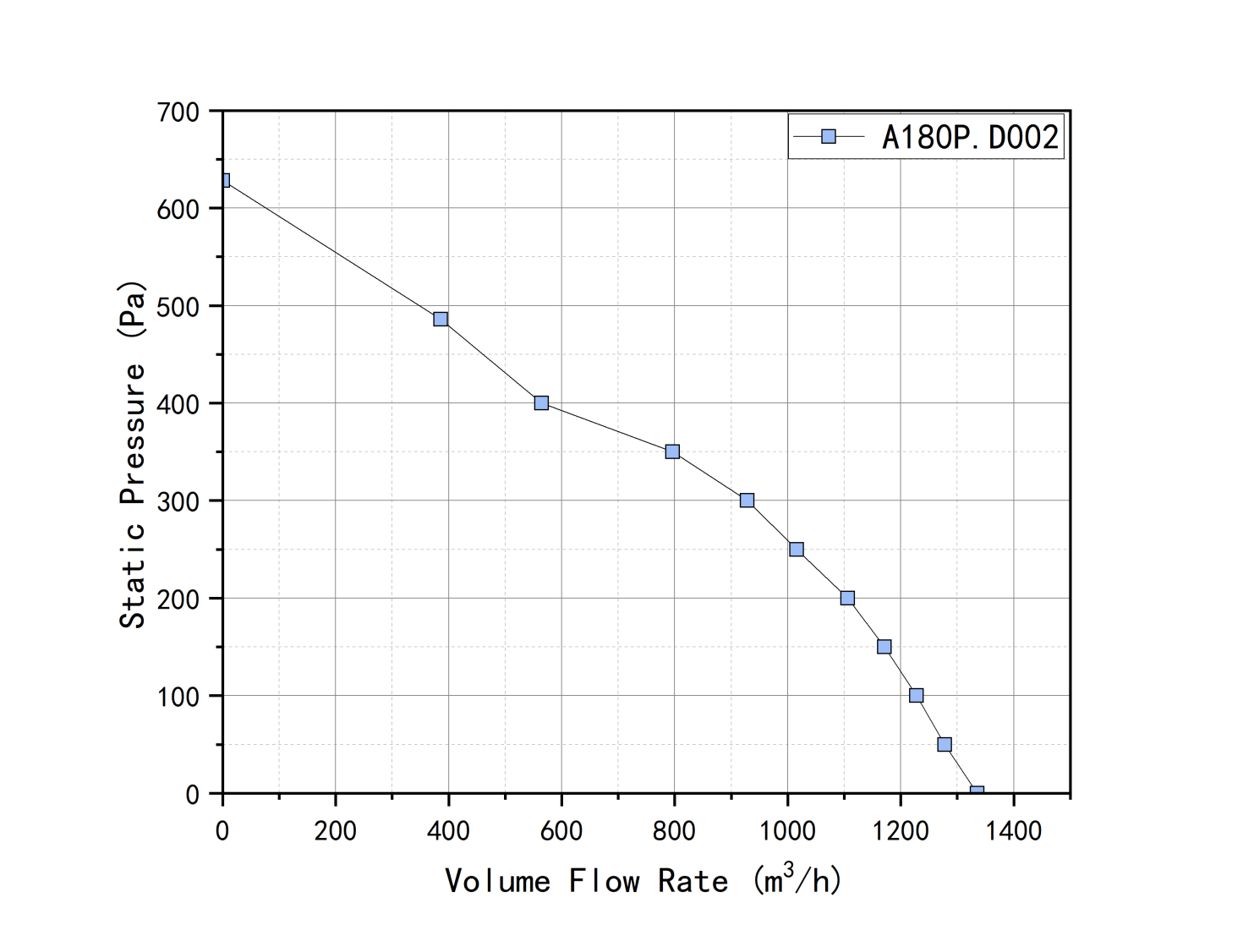

Airflow-static pressure curve(P-Q)

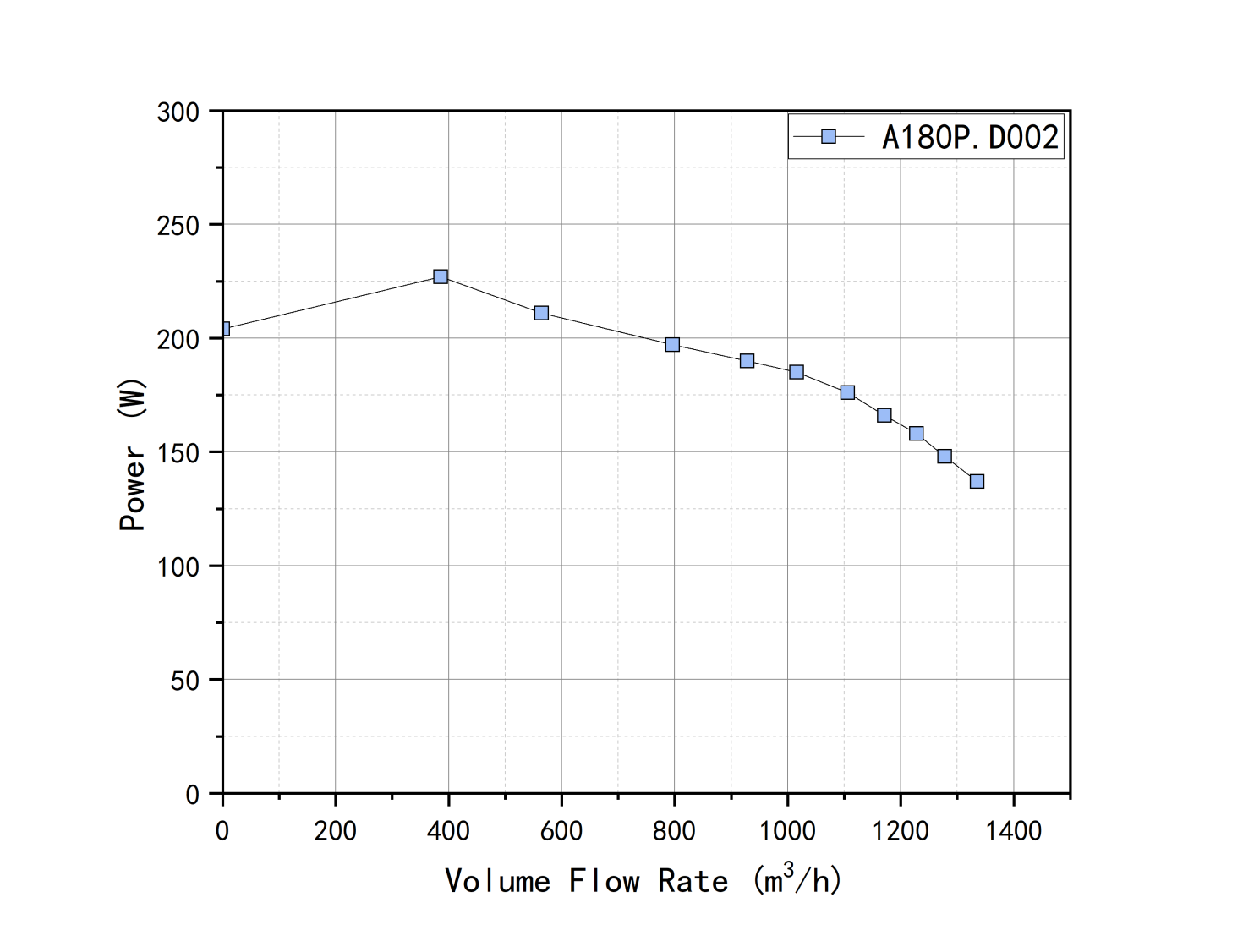

Airflow-power curve(N-Q)

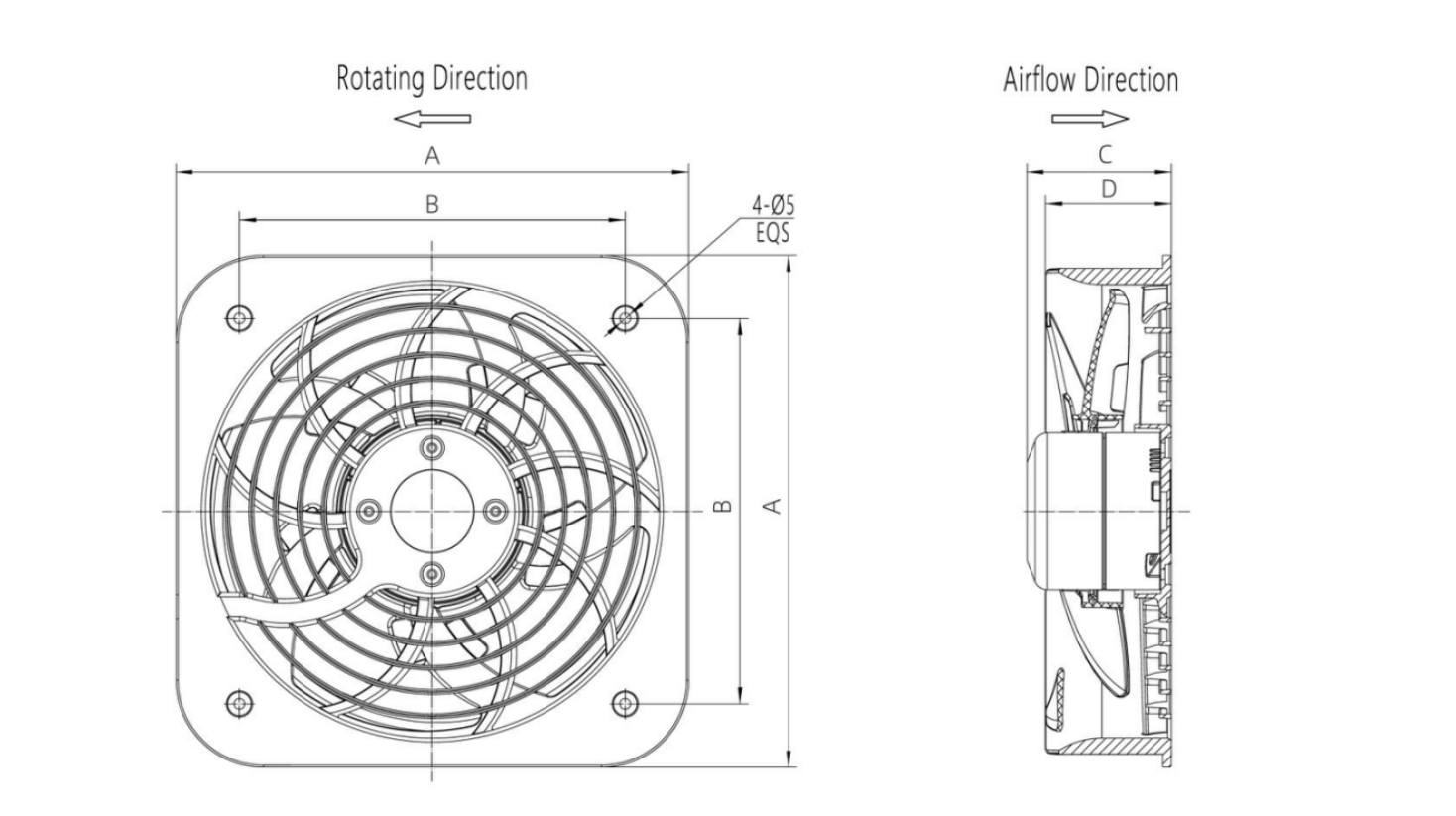

Dimension

A180P.D002

Core advantage

1.Multi-Voltage Compatibility for Full-Scenario Cabinet AC Applications

The series offers both DC 48V and AC 220V versions, supporting different power supply systems for small cabinet precision air conditioners. It can directly adapt to DC-powered telecom cabinets and AC-powered small data center environments without additional power conversion modules, ensuring excellent project adaptability.

2.High-Efficiency Airflow Output to Eliminate Cabinet Hotspots

With a maximum speed of 5900 rpm and airflow ranging from 865 to 1335 m³/h, these axial fans feature direct-blow airflow with strong directionality and penetration. They quickly dissipate heat from cabinet equipment, prevent local hotspots, and maintain uniform, stable temperatures inside the cabinet, ensuring the cooling efficiency of precision air conditioners.

3.High Energy Efficiency & Low Power Consumption for 24/7 Operation

The series delivers outstanding energy efficiency across models. The AC 220V version consumes only 54W at 865 m³/h, while the DC 48V model uses just 79W at 1076 m³/h, significantly reducing energy use compared to traditional axial fans. With demand-based speed regulation, they dynamically match cooling requirements, effectively lowering long-term operating costs.

4.Low-Noise Operation for Quiet Data Center Environments

Through aerodynamic optimization and precision dynamic balancing, noise levels are controlled between 58 and 78 dB(A), with the mainstream AC 220V model operating as quietly as 58 dB(A). They maintain high cooling performance while effectively reducing operational noise, avoiding disturbances to data centers or office areas.

5.Industrial-Grade Durability for Long-Term Cabinet Operation

Constructed with high-temperature, aging-resistant impellers and housings, and equipped with maintenance-free bearings and multi-layer safety protection, these fans withstand fluctuating temperature and humidity in enclosed cabinet environments. Designed for year-round continuous operation, they feature low failure rates and long service life, minimizing downtime and maintenance.

6.Compact & Modular Design for Easy Installation & Maintenance

Featuring a slim, lightweight axial structure, these fans fit easily into cabinet sidewalls, tops, or air conditioning units without complex duct modifications. Standard flanges and quick-connect structures enable fast installation, while removable impellers and filters simplify cleaning and maintenance, effectively reducing labor costs for setup and upkeep.

FAQ

Q1: What power supply options are available for these axial fans? Are they suitable for different types of small cabinets?

A1: This series offers both DC 48V and AC 220V versions, covering the power requirements of both DC-powered telecom cabinets and AC-powered small data center/IT cabinets. No extra power conversion modules are needed, making them highly adaptable for diverse projects.

Q2: How effective is the cooling performance in enclosed cabinets? Can it eliminate local hotspots?

A2: With a maximum speed of 5900 rpm and airflow ranging from 865 to 1335 m³/h, the axial fans deliver strong, directional airflow. Their straight-through design ensures excellent penetration through dense equipment gaps, quickly removing heat and preventing local hotspots to maintain uniform cabinet temperatures.

Q3: What are the power consumption and noise levels during 24/7 continuous operation?

A3: The series features excellent energy efficiency: the AC 220V model consumes only 54W at 865 m³/h, while the DC 48V model uses just 79W at 1076 m³/h. Noise levels are controlled between 58–78 dB(A), with the mainstream AC 220V version as low as 58 dB(A), balancing high airflow with low noise.

Q4: Are these fans durable enough for the harsh, fluctuating environment inside cabinets?

A4: Yes. Built with high-temperature, aging-resistant materials and equipped with maintenance-free bearings and multi-layer safety protection, they withstand the temperature and humidity fluctuations in enclosed cabinets. Designed for year-round continuous operation, they have low failure rates and long service life, minimizing downtime and maintenance.

Q5: Is installation complicated? Do I need to modify the cabinet’s air ducts?

A5: No complex modifications are required. The slim, compact axial design fits directly into cabinet sidewalls, tops, or AC units. Standard flanges and quick-connect structures enable fast installation, and the modular design allows easy removal of impellers and filters for cleaning, reducing maintenance labor costs.
