EBST
Model | Voltage [V] | Frequency [Hz] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] | |
 | A710M.A001 | 380 | 50 | 960 | 980 | 17000 | 72.6 |
A710M.A002 | 380 | 50 | 880 | 775 | 14500 | 71.2 | |
 | A800M.A001 | 380 | 50 | 920 | 2265 | 23300 | 78.9 |
 | A800M.A012 | 380 | 50 | 1100 | 2530 | 20778 | 75 |
 | A800F.E001 | 380 | 50 | 973 | 1800 | 25320 | 69.2 |
 | A800F.E002 | 380 | 50 | 1020 | 2220 | 28000 | 72 |
 | A850N.E002 | 380 | 50 | 1000 | 1875 | 26136 | 72 |
 | A850F.E001 | 40DC | / | 1000 | 1840 | 26122 | 72 |
 | A910F.E002 | 380 | 50 | 1005 | 2295 | 31908 | 75 |
A910F.E001 | 380 | 50 | 983 | 1850 | 27898 | 73 | |
 | A910F.A001 | 380 | 50 | 930 | 1453 | 29267 | 73 |
 | A1000F.E003 | 540 | 50/60 | 720 | 2100 | 30070 | 65 |
 |  |
 |  |
 |  |

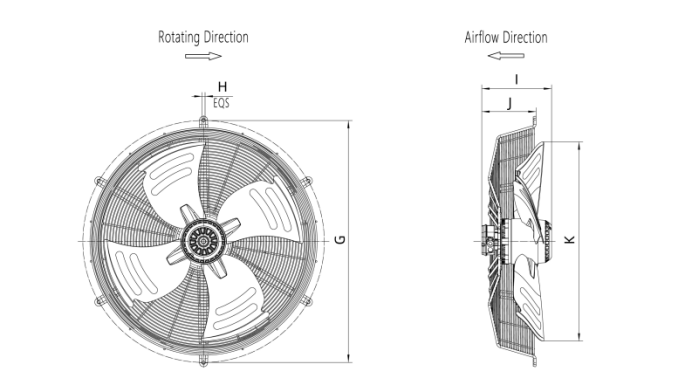

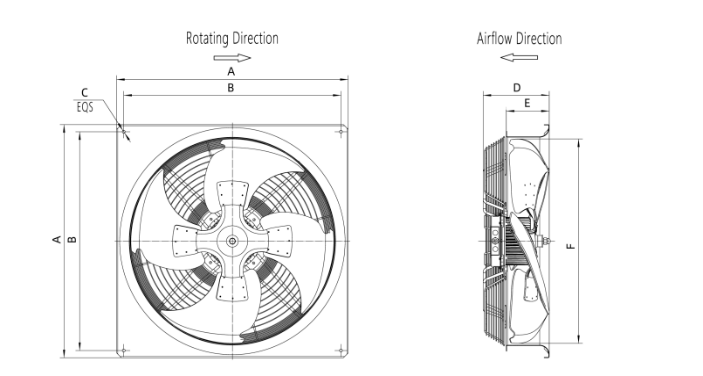

Model | A | B | C | D | E | F | G | H | I | J | k |
A710M.A001 | 850 | 810 | 4 - ∅15 | 250 | 208 | / | 853 | 4 - ∅12 | 248 | 191 | ∅700 |
A710M.A002 | 850 | 810 | 4 - ∅15 | 250 | 208 | / | 853 | 4 - ∅12 | 248 | 191 | ∅700 |
A800M.A001 | 969 | 910 | 4 - ∅15 | 285 | 261 | / | 900 | 6 - ∅12 | 278 | 216 | ∅783 |
A800M.A012 | / | / | / | / | / | / | 960 | 6 - ∅12 | 277 | 216 | ∅783 |
A800F.E001 | 970 | 910 | 4 - ∅15 | 274 | / | / | / | / | / | / | / |
A800F.E002 | 969 | 910 | 4 - ∅15 | 274 | / | ∅850 | / | / | / | / | / |
A850N.E002 | 969 | 910 | 4 - ∅15 | 280 | 180 | ∅853 | / | / | / | / | / |
A910F.E002 | 1080 | 1040 | 12 - ∅14.5 | 306 | / | ∅945 | / | / | / | / | / |
A910F.E001 | 1080 | 1040 | 12 - ∅14.5 | 306 | / | ∅945 | / | / | / | / | / |
A910F.A001 | 1080 | 1040 | 12 - ∅14.5 | 306 | / | ∅945 | / | / | / | / | / |
A1000F.E003 | 1136 | 1085.1 | 12 - ∅12 | 380 | / | ∅1020 | / | / | / | / | / |
Max airflow reaches up to 31908 m³/h, meeting the high-load heat dissipation demands of precision air conditioner external units in data centers. It efficiently removes condensed heat to ensure stable unit operation.
Supports a wide range of voltages including 380V AC / 40V DC / 540V AC, covering mainstream power supply systems in data centers. Some models are compatible with 50/60Hz dual frequency, adapting to diverse regional standards worldwide.
Engineered for low power consumption with high airflow output. For example, Model A910F.A001 delivers 29267 m³/h at only 1453W, significantly lowering data center PUE and operational costs.
Optimized aerodynamic design delivers the lowest noise level of 65 dB(A) (Model A1000F.E003), balancing powerful cooling performance with the quiet environment requirements of modern data centers.
All models are optimized with precision dynamic balance and low temperature rise control, designed for non-stop 24/7 operation. They feature a low failure rate and long service life, minimizing downtime risk and maintenance costs.
The full-size series from A710 to A1000 offers airflow ranging from 14500 to 31908 m³/h, making it compatible with precision air conditioner external units of various power levels.
Specifically designed for outdoor installation, the fans feature rainproof, anti-aging, and anti-corrosion properties to maintain stable performance in complex outdoor environments.
Q1: What is the maximum airflow of this axial fan series? Is it suitable for high-load heat dissipation of data centers?
A1: The maximum airflow reaches 31908 m³/h, and the overall airflow range covers 14500~31908 m³/h. It fully meets the high heat dissipation demand of precision air conditioner outdoor units and ensures stable cooling operation under full load.
Q2: What power specifications are available for the fans?
A2: Multiple voltage options are available, including 380V AC, 40V DC and 540V AC. Some models support 50/60Hz dual frequency, adapting to different power supply standards for domestic and overseas projects.
Q3: About the noise performance during operation?
A3: Adopting optimized aerodynamic blade design, the minimum noise of the series is 65 dB(A). It maintains efficient heat dissipation while controlling operating noise, satisfying the quiet operation requirements of computer rooms and data centers.
Q4: Can these fans run continuously outdoors all year round?
A4: All models are designed for 24/7 non-stop operation. With anti-corrosion, rainproof and anti-aging outdoor-grade structure, it adapts to harsh outdoor working conditions, with low temperature rise and high operational stability.
Q5: Is the product widely compatible with various precision air conditioners?
A5: Complete product specifications from A710 to A1000 are available, with diversified power and airflow options. It can perfectly match mainstream brands and different models of precision air conditioner external units for easy replacement and installation.
