MP-A Series Axial Fan with Metal Impeller 500/630/710/800 AC Axial Fans

[ High Efficiency ] High strength impeller optimized by ternary flow CFD fluid simulation technology, reasonably designed flow runner combined with ultra-efficient motor create the high efficiency of the fan.

[ Low Noise ] The designer closely combines aerodynamics and sound source, and makes the blade angle and blade pattern fully adapt to the ternary flow field, which always ensures lower noise at the same air volume.

[ High Reliability ] Motors have up to IP55 waterproof and dust proof protection, F class insulation, and been tested for 3 months of 65℃ high temperature test and 40,000 hours of life test, which ensure worse-free quality.

[ Wide Application ] The products is used wherever outstanding performance is required, for example, heat pump, ventilation, cold chain, equipment cooling, IDC small cabinet, high voltage inverter cabinet, energy storage, rail transit and more.

[ Variety of Models ] Available in dimensions of : 630mm~1000mm, this allows for air flow rates of up to 30070m3/h and static pressure of up to 300Pa.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Model	Voltage [V]	Frequency [Hz]	Speed [rpm]	Max Power [W]	Max Airflow [m³/h]	Noise [dB(A)]
A500M.A006	460	60	1620	955	9000	72
A500M.A006	400	50	1410	655	8080	69
A630M.A001	230	50	925	785	10500	67.8
A630M.A002	380	50	935	785	10915	68.0
A710M.A001	380	50	960	980	17000	72.6
A710M.A002	380	50	880	775	14500	71.2
A800M.A001	380	50	920	2265	23300	78.9
A800M.A012	380	50	1100	2530	20778	75

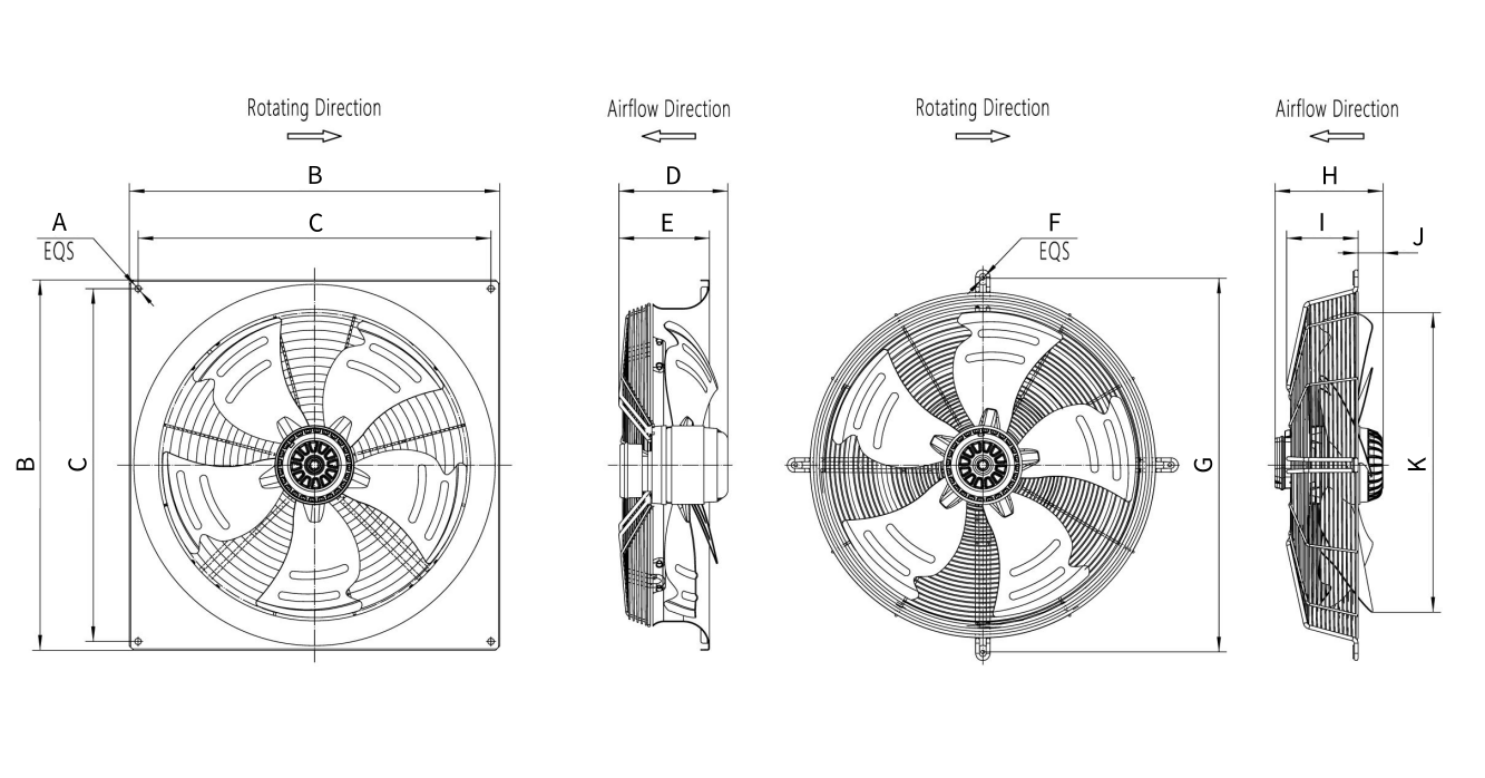

DIMENSION

Model	A	B	C	D	E	F	G	H	I	J	K
A500M.A006	4-Ø11	651	615	197	157	4-Ø9.5	565	197	93	63	Ø497
A630M.A001	4-Ø11	805	750	212	/	4-Ø8.5	750	212	102	61	Ø629
A630M.A002	4-Ø11	805	750	212	/	4-Ø8.5	750	212	102	61	Ø629
A710M.A001 A710M.A002	4-Ø15	850	810	250	208	4-Ø12	853	248	165	57	Ø700
A800M.A001	4-Ø15	969	910	285	261	6-Ø12	900	278	191	62	Ø783
A800M.A012	/	/	/	/	/	6-Ø12	960	277	216	/	Ø783

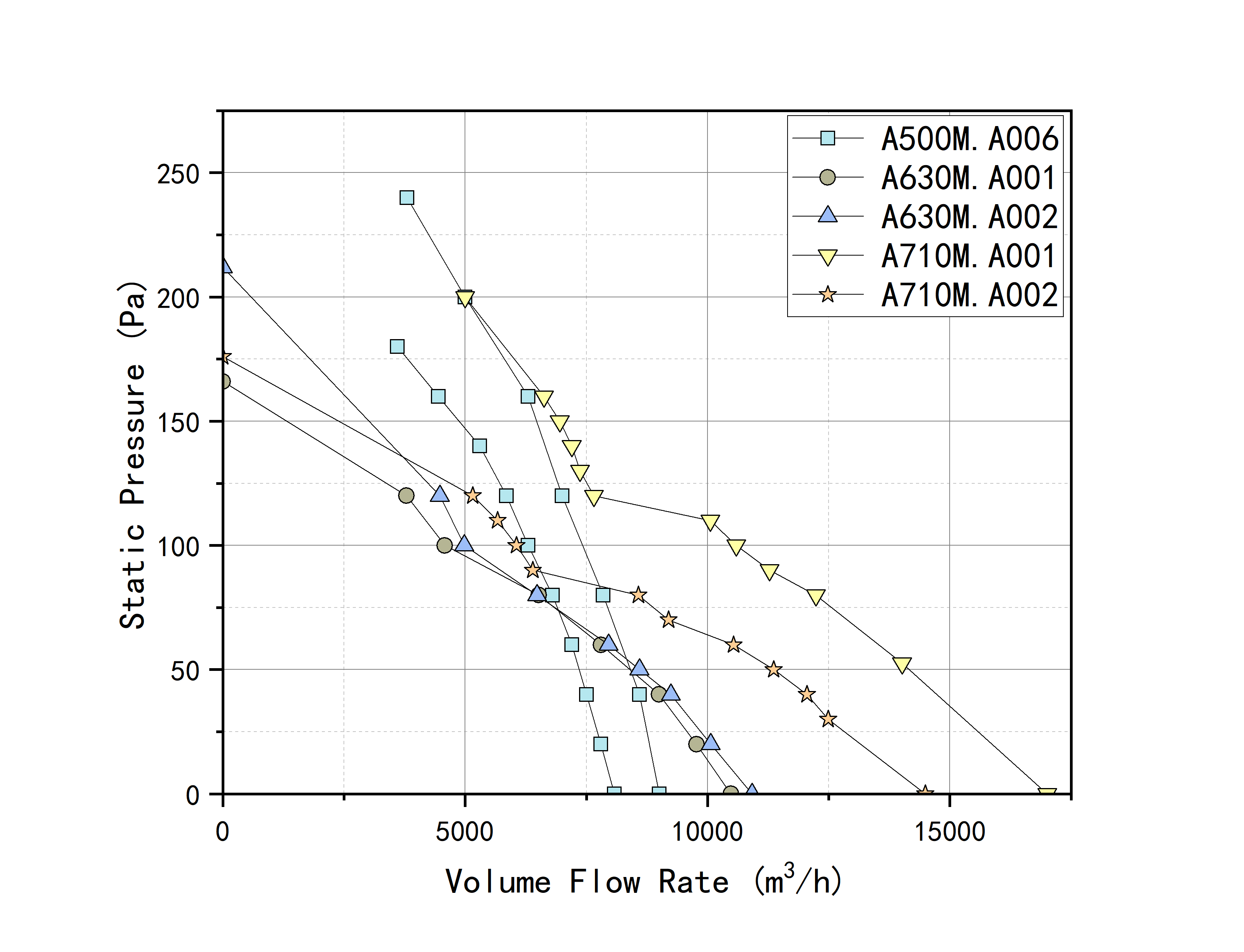

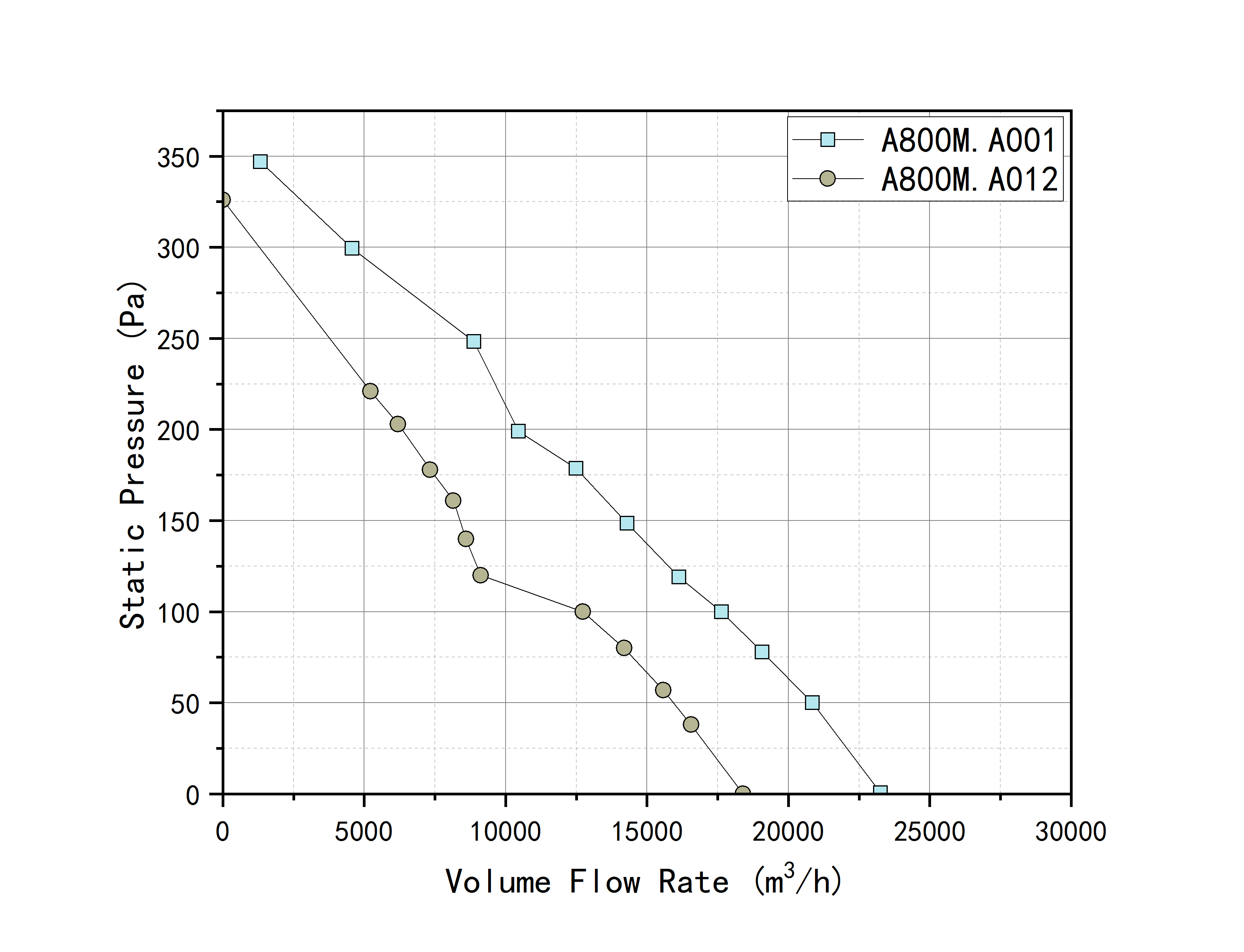

Airflow-static pressure curve (P-Q)

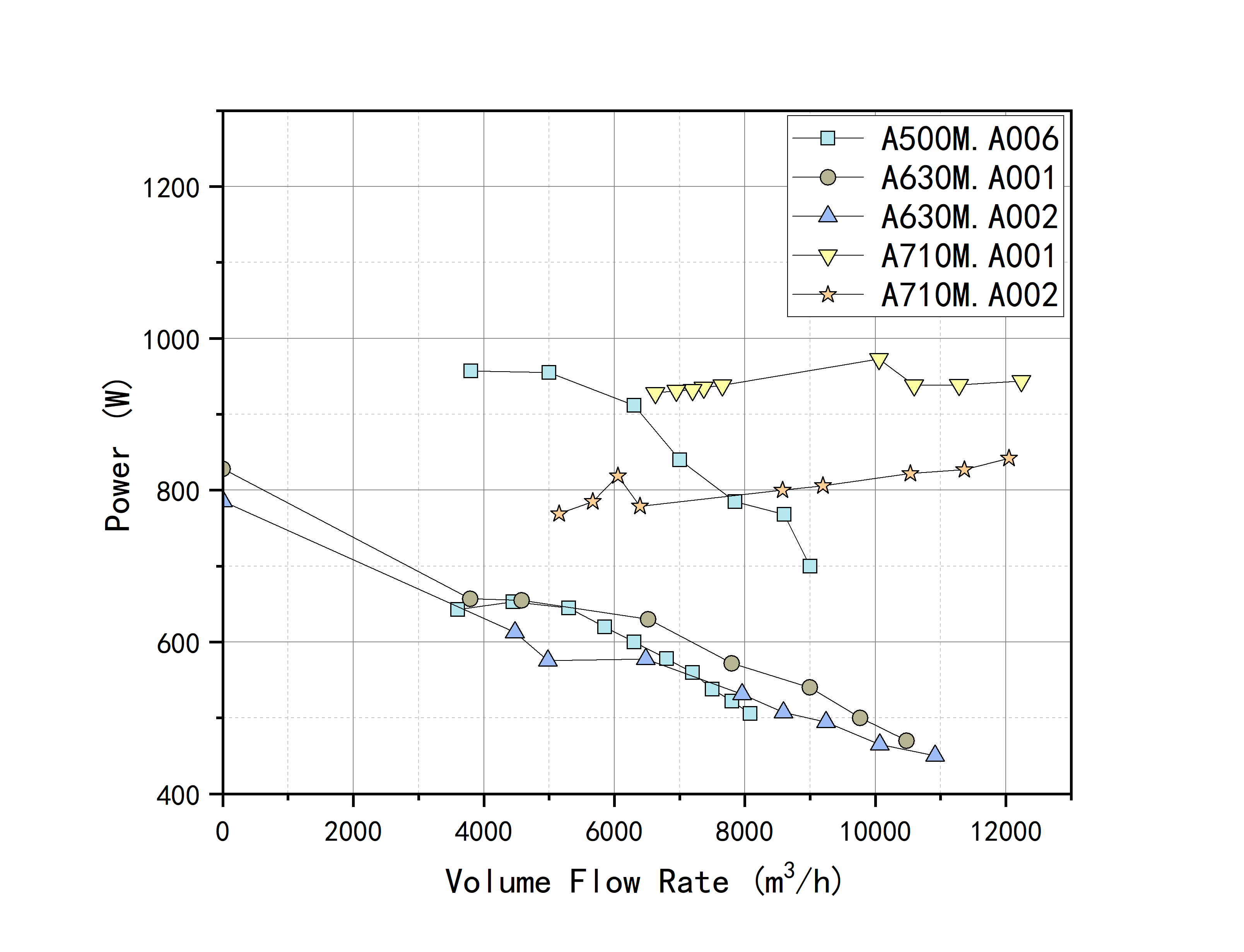

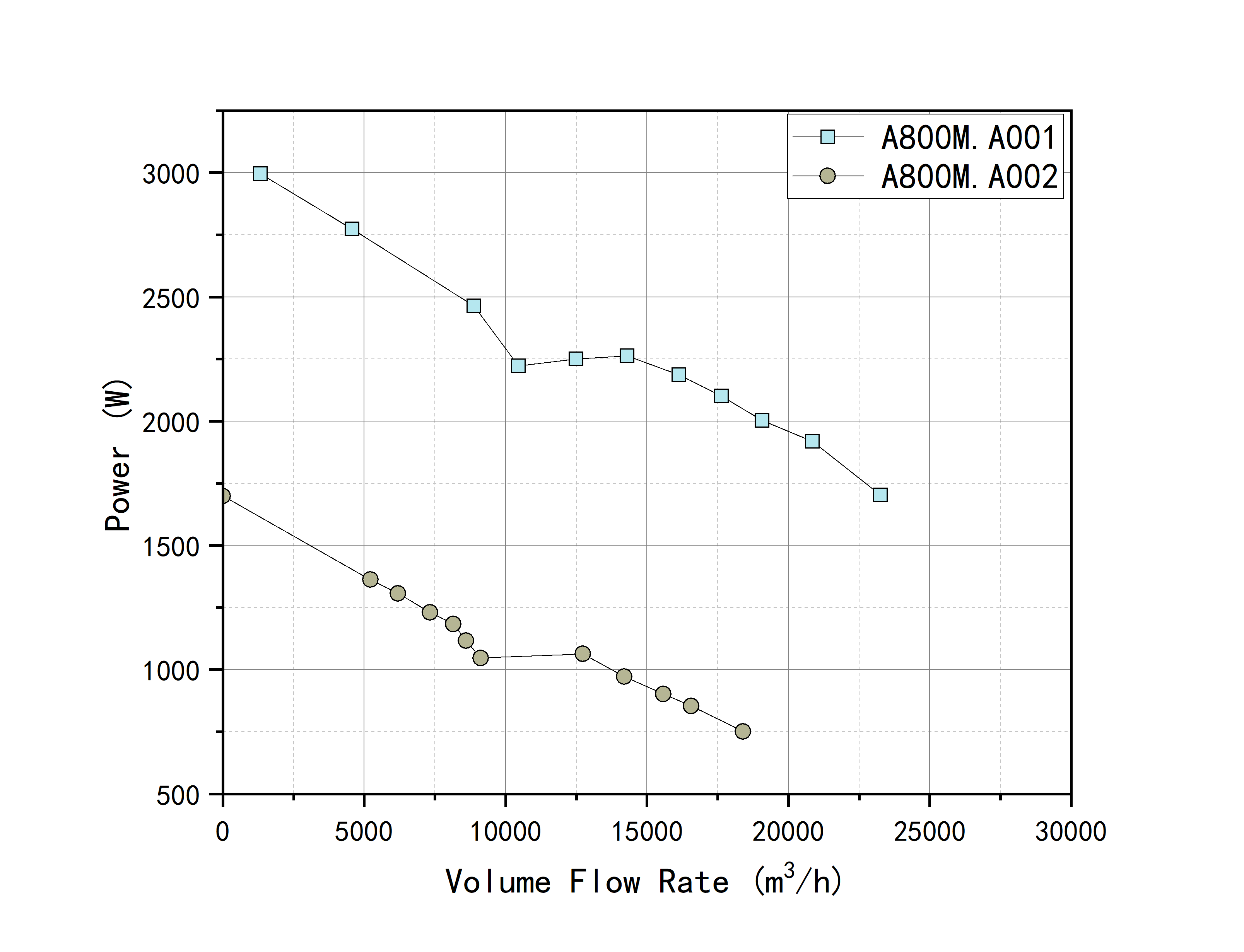

Airflow-power curve (N-Q)

Core Selling Points

1.Extra Large Airflow, Industrial‑grade Powerful Output

Full size range covering 500/630/710/800 mm. Airflow range: 8080–23300 m³/h, with the A800 model reaching a peak of 23300 m³/h.

2.Metal Impeller, Durable and Stable

Adopts metal impeller, featuring high strength, deformation resistance, high temperature resistance and long service life. Stable operation at high speed with no performance degradation under long‑term working conditions.

3.Wide Voltage Compatibility, Industrial Universal

Supports 230V/380V/400V/460V, 50/60Hz, compatible with global power grids. Multiple voltage versions meet the needs of export, domestic factories, equipment rooms and HVAC systems.

4.Low Noise & High Efficiency, Smooth Operation

Optimized aerodynamic structure, noise level 67.8–78.9 dB(A), low noise even at large airflow. Speed 880–1620 rpm, low vibration and stable running.

5.Standardized Installation, Easy Integration

Uniform mounting holes: 4‑Ø11/4‑Ø15/6‑Ø12, standard flange dimensions. Reasonable installation depth for quick connection in replacement or new projects.

6.High Power Stable Output

Power range 655–2530W, suitable for high static pressure and long‑distance air supply. Industrial‑grade heat dissipation and insulation ensure reliable continuous operation.
