| Quantity: | |
|---|---|
Model | Voltage [V] | Frequency [Hz] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] | |
 | A250M.A001 | 400 | 60 | 2945 | 160 | 1794 | 65 |
| | A250M.A002 | 230 | 50 | 2665 | 137 | 1641 | 62 |
 | A300M.A001 | 400 | 50 | 2920 | 390 | 3150 | 68 |
| | A300M.A002 | 230 | 50 | 2740 | 417 | 2950 | 65 |

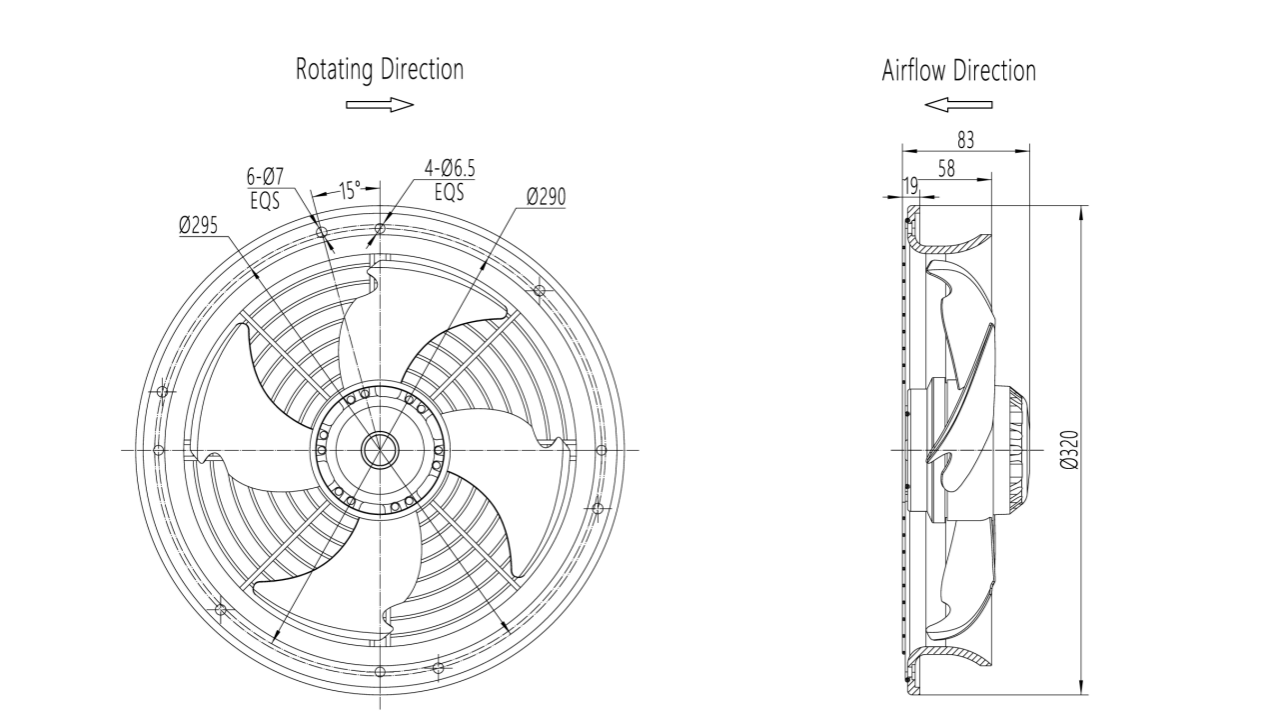

A250M.A001/2 |
 |

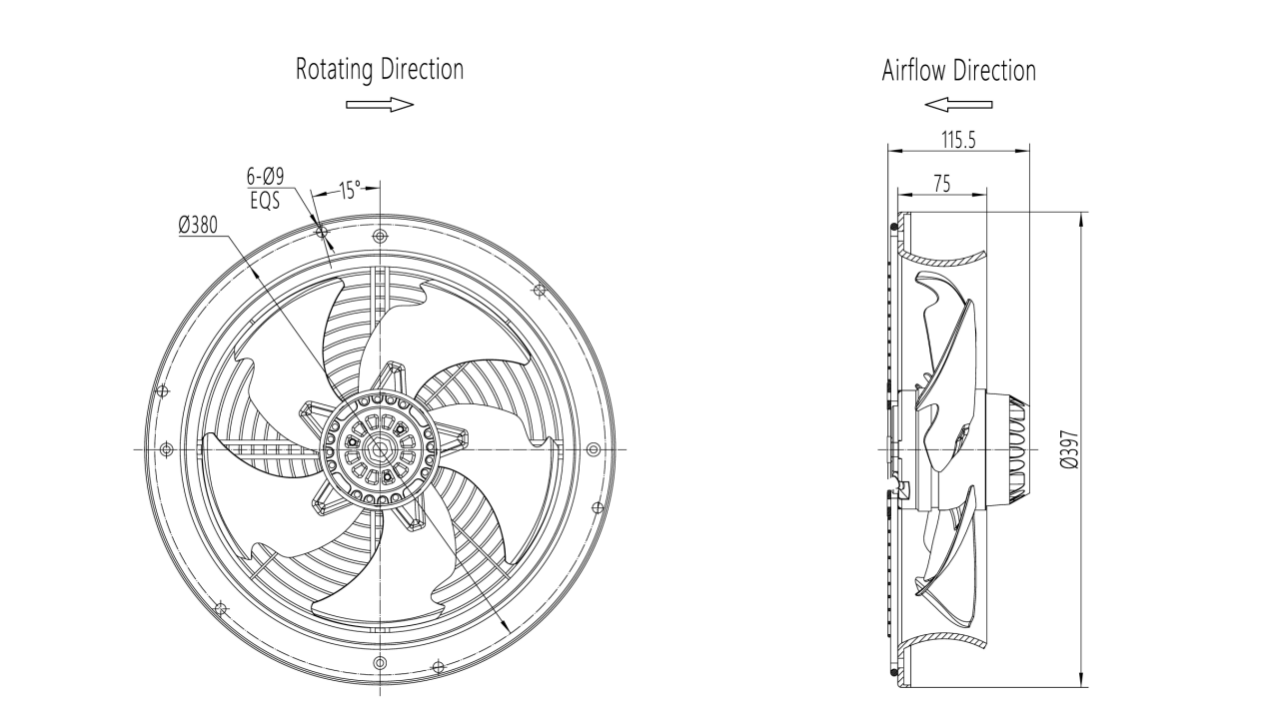

A300M.A001/2 |
 |
This series of axial fans features high airflow, low noise, high efficiency, wide voltage compatibility, and compact structure. Designed for industrial ventilation, equipment cooling, HVAC supporting systems, and other applications, they deliver stable performance, easy installation, and outstanding cost-effectiveness.
1.High Airflow Output, High Ventilation Efficiency
AC250 Series: Maximum airflow 1641–1794 m³/h, ideal for fast ventilation and cooling in small-to-medium spaces.
AC300 Series: Maximum airflow 2950–3150 m³/h, the top choice for powerful exhaust and strong air circulation in large spaces.
2.Low-Noise Operation, Eco-Friendly
Noise level controlled at 62–68 dB(A) across the series. Optimized air duct and impeller design ensure smooth airflow and lower wind noise, suitable for indoor and equipment applications requiring quiet operation.
3.High Efficiency & Energy Saving
Power range: 137–417W. Excellent power control with high airflow, delivering greater energy savings for long-term use.
4.Stable Speed & Strong Power
Speed: 2665–2945 rpm. The motor provides robust output, large airflow, fast response, and consistent, stable performance without degradation.
1.Dual Voltage & Dual Frequency, Globally Compatible
Supports 230V 50Hz / 400V 60Hz dual specifications. Multiple models are available on the same frame, adapting to both domestic and export power grids for flexible selection.
2.Compact Structure & Easy Installation
Standardized dimensions, unified mounting holes, and direct-drive structure enable plug-and-play installation, saving space and construction costs.
1.Mature Aerodynamic Design
Excellent balance of airflow, noise, and power consumption, ensuring stable and reliable long-term operation.
2.Standardized Industrial-Grade Manufacturing
High consistency, suitable for mass matching and replacement.
Industrial plant ventilation, equipment cooling, HVAC, refrigeration units, cabinet cooling, warehouse exhaust, commercial building ventilation, and other scenarios requiring medium-to-high airflow and low noise.
