EBST
Model | Voltage [V] | Frequency [Hz] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] | |
 | A200P.A001 | 220 | 50 | 2820 | 54 | 865 | 58 |
 | A200P.D004 | 48 | 1.65 | 3550 | 79 | 1076 | 61 |

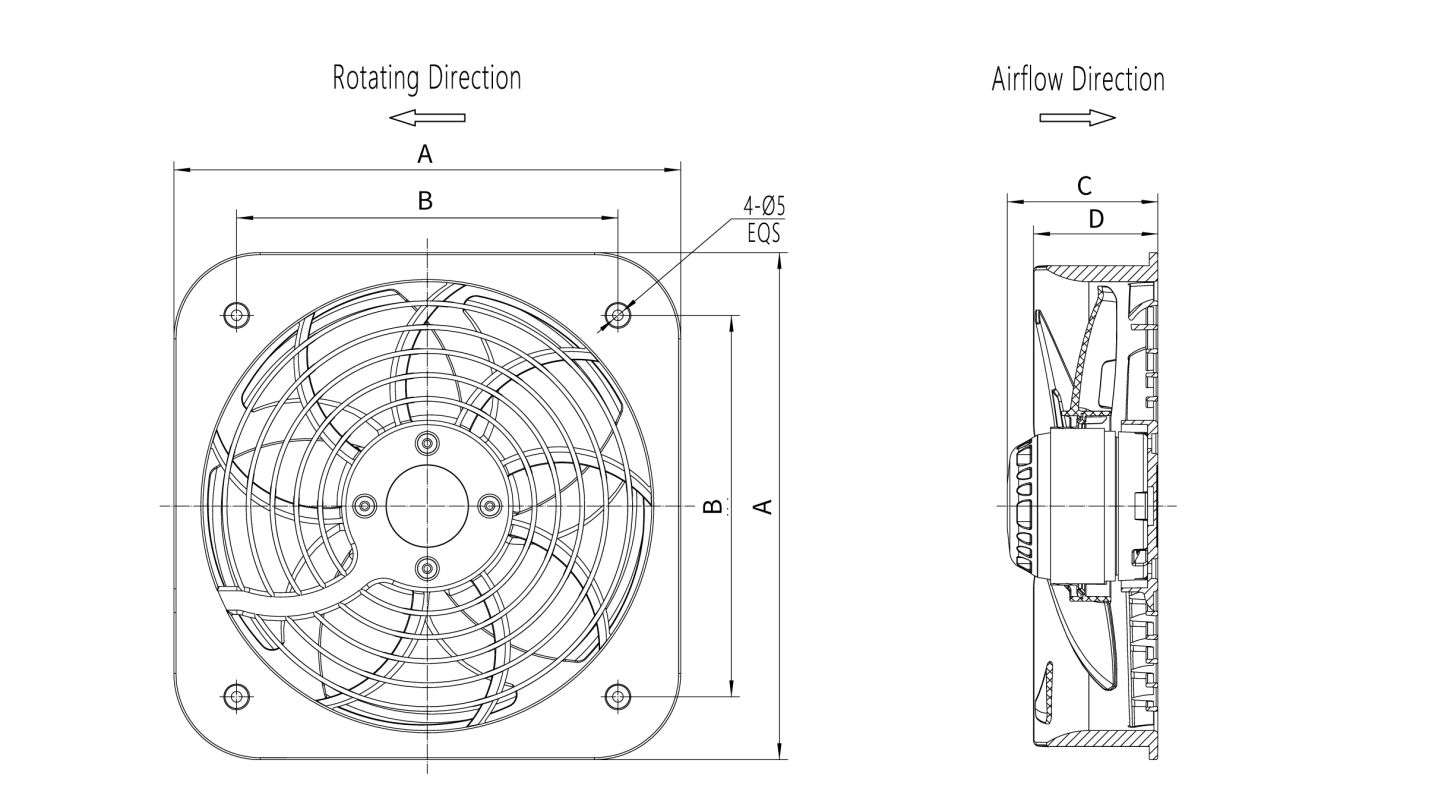

Model | A | B | C | D |
A200P.A001 | 235 | 177 | 70 | 58 |
A200P.D004 | 235 | 177 | 66 | 58 |
The 200mm fan series delivers airflow up to 1076m³/h with stable speed and sufficient static pressure, ensuring long-lasting and efficient ventilation and heat dissipation.
Operating noise as low as 58dB(A) and maximum power only 79W; maintains quiet performance even at high airflow, saving energy during long-term operation.
Available in 220V AC and 48V DC versions, suitable for direct use in mains power, communication, energy storage, vehicle-mounted and other scenarios.
Two models share the same mounting dimensions, feature a compact and flexible structure, allow tool-free hole modification for replacement, and enable efficient mass deployment.
Q: What are the core parameters of A200P.A001 and A200P.D004?
A: A200P.A001 is a 220V/50Hz AC fan with speed 2820rpm, max airflow 865m³/h, max power 54W, noise 58dB(A). A200P.D004 is a 48V/1.65Hz DC fan with speed 3550rpm, max airflow 1076m³/h, max power 79W, noise 61dB(A).
Q: Are the mounting dimensions the same and is replacement easy?
A: The two fans share fully compatible mounting dimensions: A=235, B=177, D=58, only thickness C differs slightly (A001:70, D004:66). They use the same mounting holes, so no re‑drilling is needed for replacement, allowing direct installation and efficient mass deployment.
Q: What are the differences in performance and user experience?

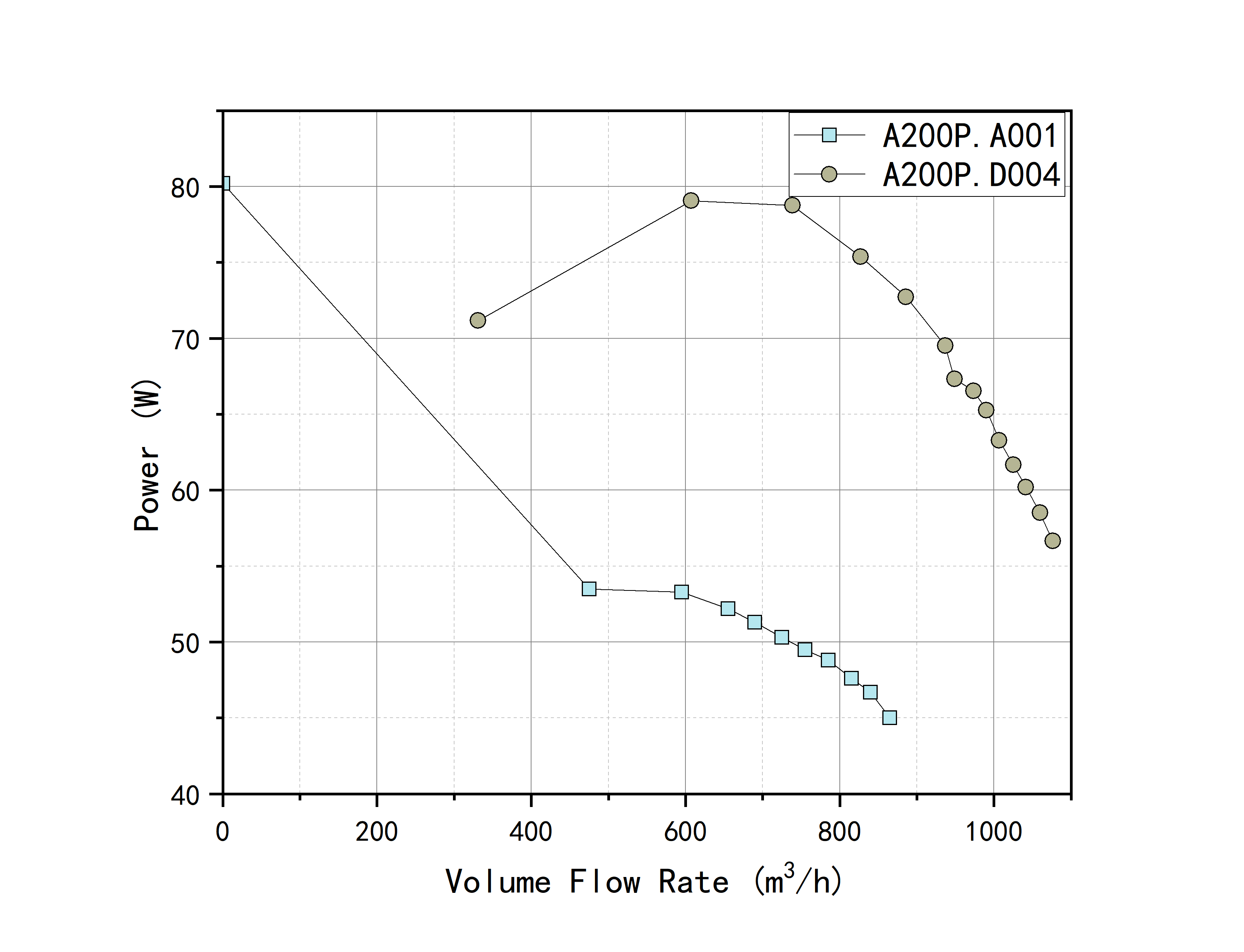

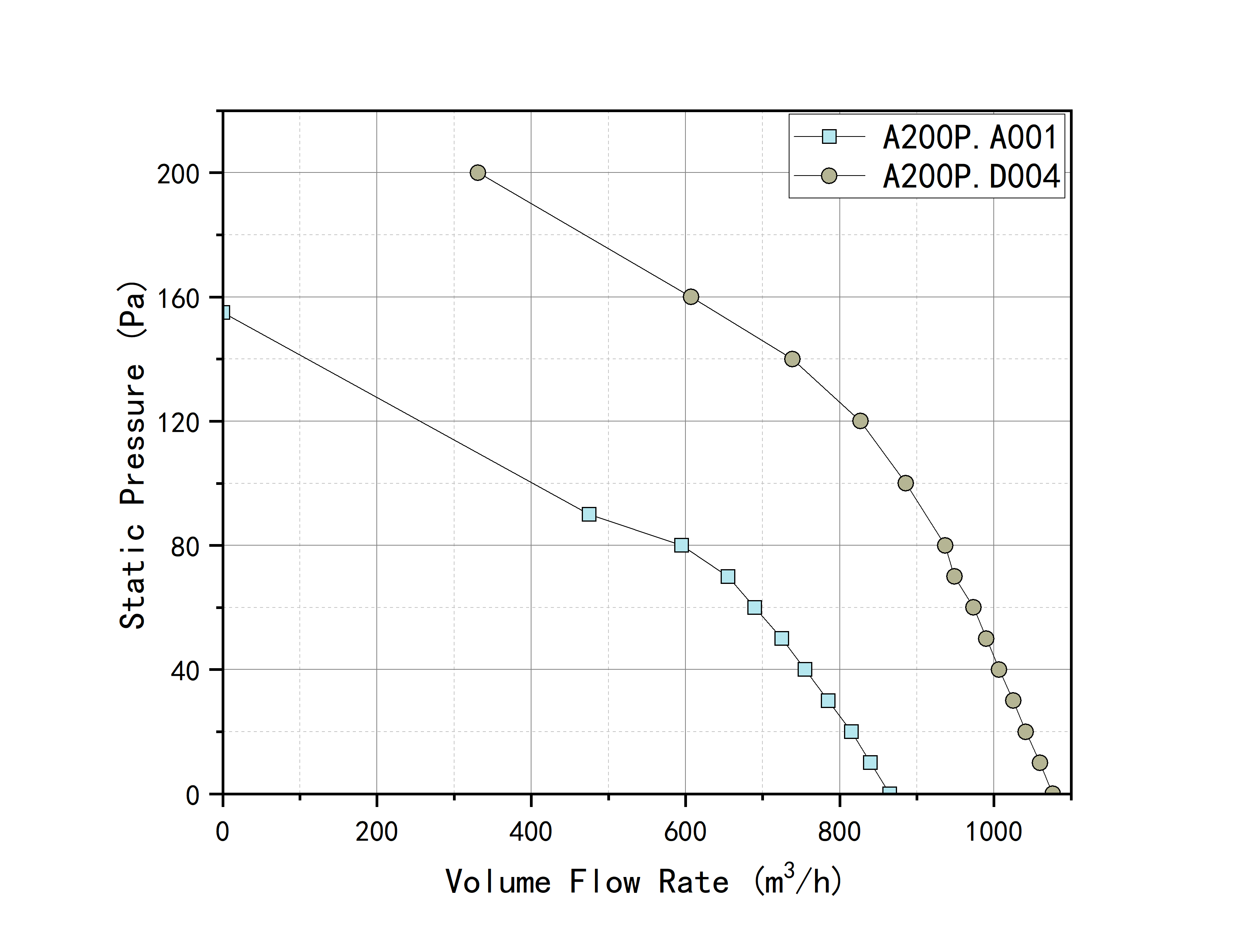

A: A200P.A001 is quieter and more energy‑saving, ideal for noise‑sensitive and power‑saving applications. A200P.D004 has higher speed, larger airflow and higher static pressure, delivering stronger ventilation and heat dissipation. Both are provided with P‑Q (airflow‑static pressure) and N‑Q (airflow‑power) curves for accurate selection.
Q: What applications are the two fans suitable for?
A: The 220V AC model A200P.A001 is designed for general ventilation and heat dissipation with mains power supply. The 48V DC model A200P.D004 is suitable for telecom, energy storage, vehicle‑mounted and industrial DC power scenarios. Dual‑voltage versions cover a wide range of industry requirements.
Q: What are the core selling points of this 200mm axial fan series?
A: ① Strong performance with max airflow up to 1076m³/h; ② Low noise and energy saving, noise as low as 58dB(A) and max power only 79W; ③ Dual‑voltage compatibility (220V AC / 48V DC); ④ Universal mounting, unified dimensions, easy replacement and long‑term stable operation.
