290-A Series Axial Fan with Nylon Impeller

	Model	Voltage [V]	Frequency [Hz]	Speed [rpm]	Max Power [W]	Max Airflow [m3/h]	Noise [dB(A)]
	A290P.A004	220	60	1585	79.8	1751	55
	A290P.D001	48	3.52	2585	169	2482	62

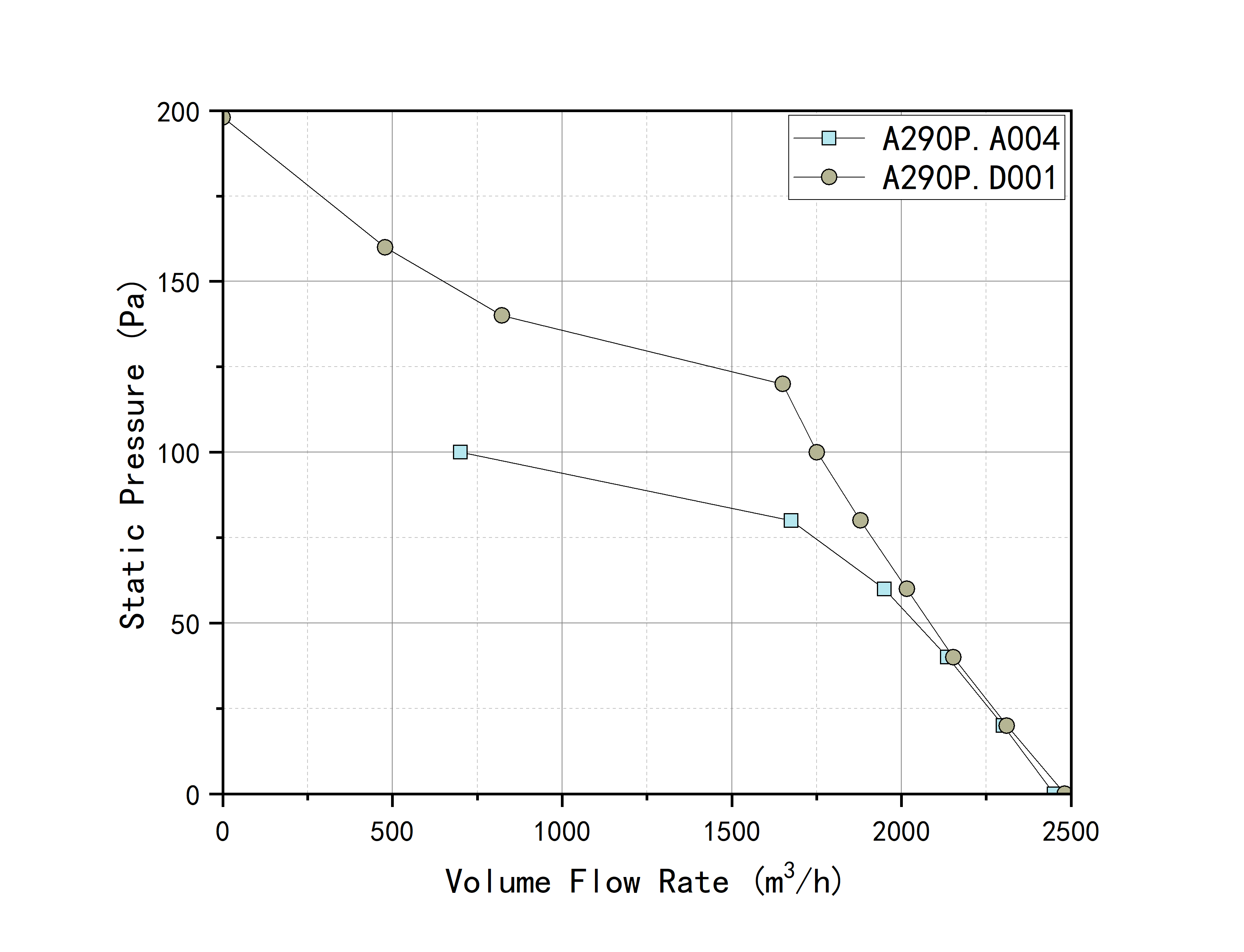

Airflow-static pressure curve (P-Q)

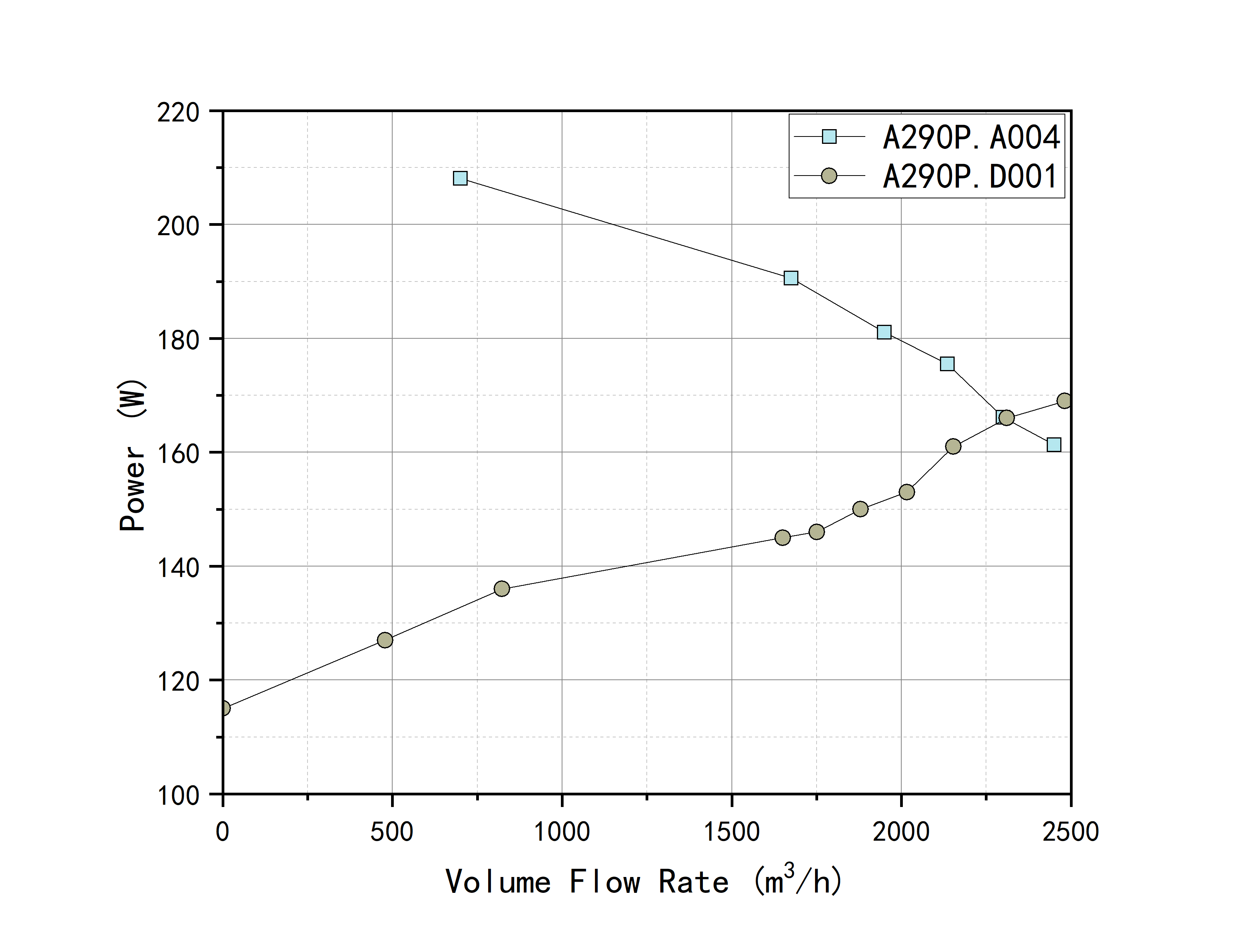

Airflow-power curve (N-Q)

Core Selling Points

1.Extra High Airflow for Stronger Ventilation & Heat Dissipation

Maximum airflow up to 2482m³/h with stable static pressure curve, enabling fast air exchange and cooling for large spaces and high-load equipment.

2.Dual Voltage Options for Wide Application

Available in 220V AC and 48V DC versions, suitable for mains power, industrial, communication, energy storage and vehicle-mounted applications.

3.Low Noise & High Efficiency for Reliable Operation

AC model features noise as low as 55dB(A) for quiet performance; optimized power design ensures energy saving during long-term operation.

4.Universal Installation for Easy Replacement

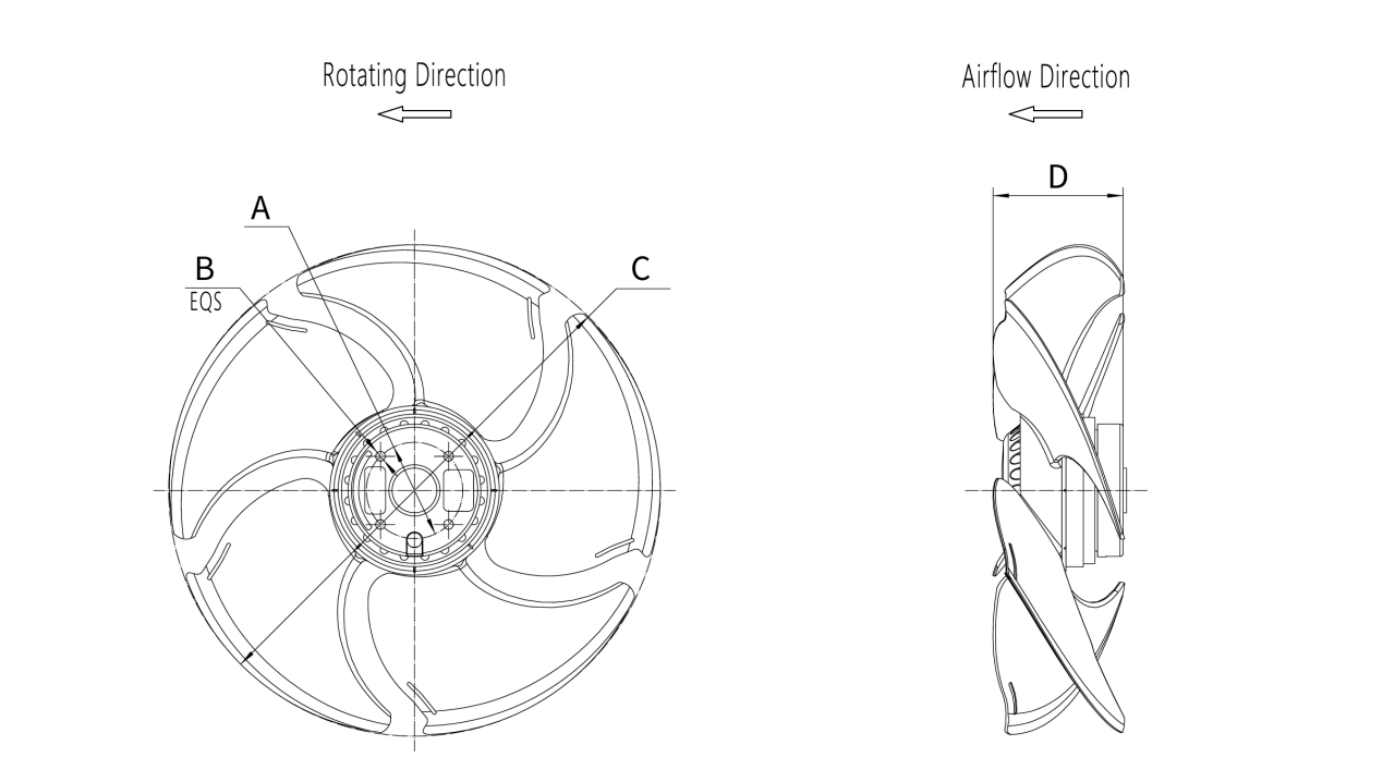

Two models share identical mounting dimensions, center hole and fixing screw holes, allowing replacement without re-drilling and efficient mass deployment.
