[ High Efficiency ] High strength metal impeller optimized by ternary flow CFD fluid simulation technology, reasonably designed flow runner combined with ultra-efficient motor create the high efficiency of the fan.
[ Low Noise ] The designer closely combines aerodynamics and sound source, and makes the blade angle and blade pattern fully adapt to the ternary flow field, which always ensures lower noise at the same air volume.
[ High Reliability ] Motors have IP54 waterproof and dust proof protection, F class insulation, and been tested for 3 months of 65℃ high temperature test and 40,000 hours of life test, which ensure worse-free quality.

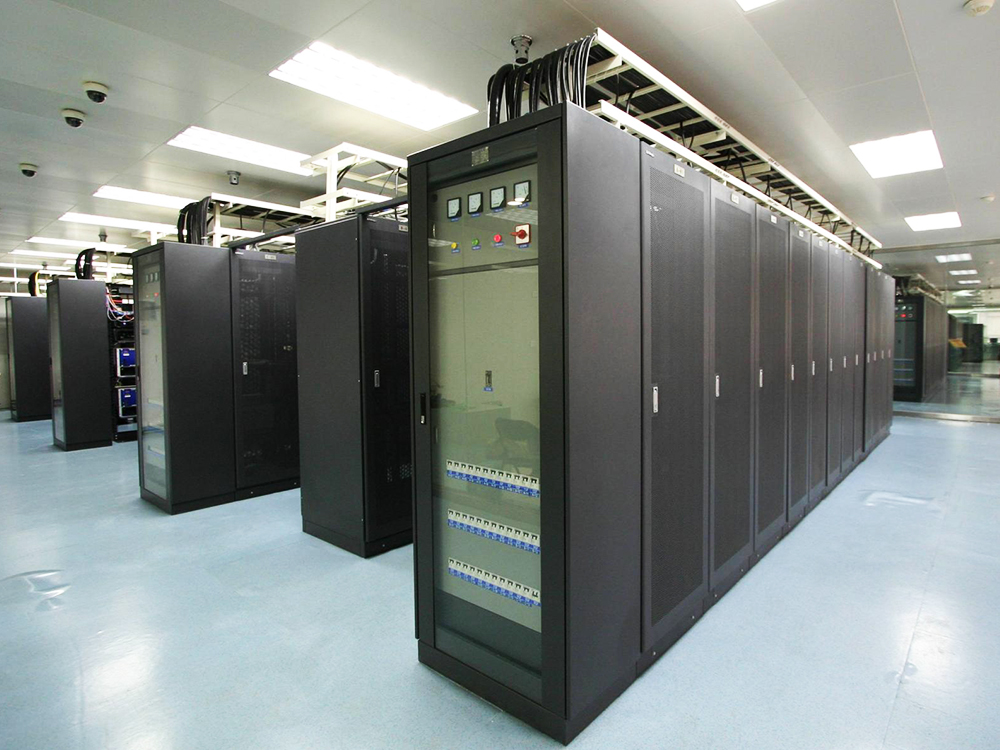

[ Wide Application ] The products is used wherever outstanding performance is required, for example, heat pump, ventilation, cold chain, equipment cooling, IDC small cabinet, high voltage inverter cabinet, energy storage, rail transit and more.
[ Variety of Models ] Available in dimensions of : 350mm~630mm, this allows for air flow rates of up to 17933m3/h and static pressure of up to 300Pa.
| Quantity: | |
|---|---|
A350M.A001 / A002
EBST
A350M.A001 / A002
Product Parameters |
Material: | Impeller: Cold rolled steel |
Direction of rotation: | Clockwise, seen on rotor |
| Control input: | Motor wiring speed regulation |
Type of protection: | IP 54 |
Insulation class: | F |
Bearing: | Maintenance-free Ball bearings |
Approval: | CCC, UL |
Amb.Temp: | -40~+65℃ |
Model | Curve | Voltage [V] | Frequency [Hz] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] |
| A350M.A001 | A | 380 | 50 | 1425 | 185 | 2863 | 62 |
| A350M.A002 | A | 230 | 50 | 1425 | 185 | 2863 | 62 |
 | Ps [Pa] | Airflow [m3/h] | Speed [rpm] | Power [W] | ||
A | ① | 40 | 2360 | 1405 | 125 | |
② | 60 | 1993 | 1393 | 135 | ||
③ | 80 | 1269 | 1386 | 141 | ||
④ | 100 | 1108 | 1373 | 152 | ||
Application Scenarios |
Product Certificate |
UL Certification
Certified by the authoritative international UL safety mark, the axial fan features high reliability and long service life, suitable for household air conditioning, fresh air purification and other scenarios, meeting the standards of North American and global high-end markets.

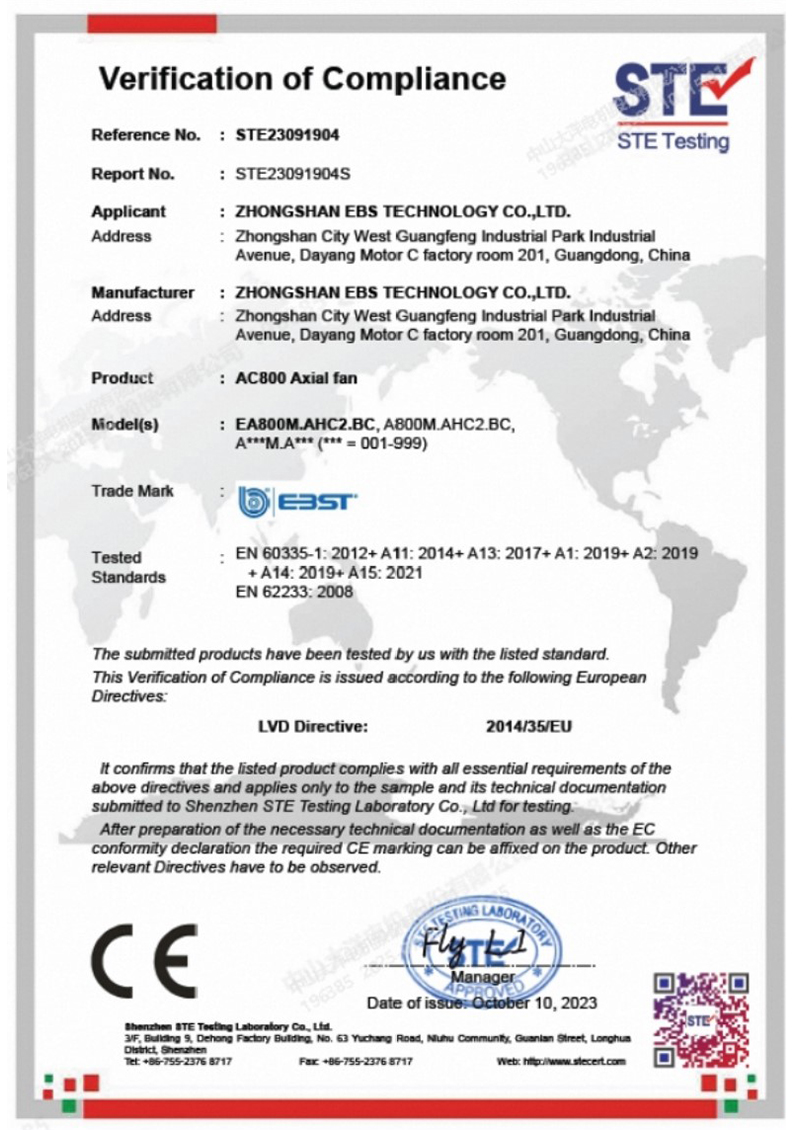

CE Certification
Compliant with EU LVD and EMC directives, the axial fan is qualified for EU market access, enabling smoother global application and suitable for diverse scenarios such as household and civil ventilation.
CCC Certification
Complies with China's mandatory product certification standards, suitable for the axial fan. It fully meets electrical safety and EMC requirements, ensuring safer use and adapting to various domestic compliant scenarios such as household air conditioning and range hoods.
CQC Certification
Certified by the China Quality Certification Center (CQC), strict testing comprehensively controls the performance and quality of the axial fan, demonstrating its reliable product quality and being suitable for core scenarios such as household ventilation and fresh air purification.
RoHS Certification
Complies with EU RoHS environmental standards, strictly restricts the content of harmful substances, suitable for the axial fan. It is green and pollution-free, adapting to strict environmental scenarios such as household use, high-end cleanliness and medical care, and protecting the safety of the use environment.
Reach Certification
Certified by the EU REACH regulation, it fully controls the risks of chemical substances in the product, suitable for axial fan, ensuring compliant export and widely adapting to various global application scenarios such as household and civil ventilation.
FAQ |
Q1: What core advantages do axial fans have to adapt to multiple scenarios?
A1: It has prominent core advantages, including high efficiency and energy saving, low noise and quietness, and high reliability. The impeller is optimized by ternary flow CFD fluid simulation technology, combined with a high-efficiency motor to improve operating efficiency; the blade design is adapted to the ternary flow field, with lower noise under the same air volume; the motor has high protection level and excellent insulation performance, and can adapt to various complex working conditions after strict testing, meeting the needs of multiple scenarios.
Q2: Which authoritative certifications have axial fans passed to ensure compliant use?
A2: It has passed 6 core authoritative certifications, namely UL Certification, CE Certification, CCC Certification, CQC Certification, RoHS Certification, and REACH Certification, covering the main global market access standards, safety standards and environmental protection standards, and can be adapted to various compliant scenarios such as household, industrial and medical, ensuring safe, environmentally friendly and compliant use of the product.

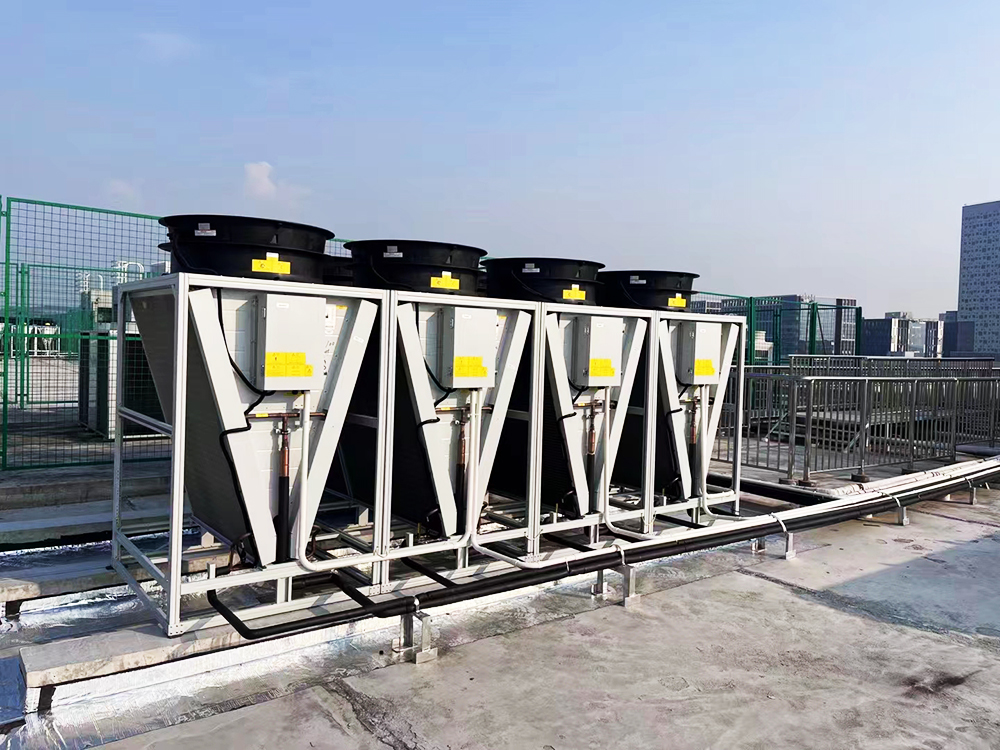

Q3: What is the main role of the axial fan in heat pump equipment?
A3: Suitable for air energy, commercial and industrial heat pump units, it provides efficient heat dissipation for core components such as compressors and heat exchangers, quickly exports waste heat generated during operation, stabilizes the heating and cooling efficiency of the units, adapts to extreme high and low temperature working conditions, and ensures the annual continuous, stable and efficient operation of heat pump units, reducing energy consumption.

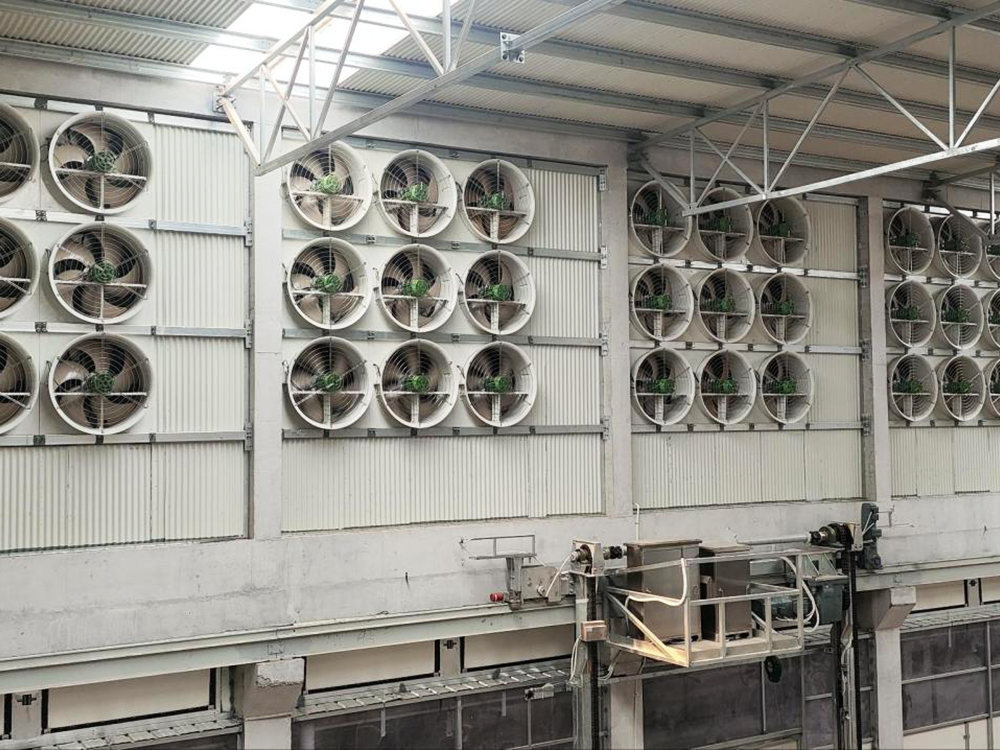

Q4: Which ventilation and air exchange scenarios are axial fans suitable for?
A4: Widely used in building machine rooms, commercial spaces, industrial workshops, civil residences and other scenarios, with the core advantages of large air volume and low noise, it realizes indoor and outdoor air circulation and replacement, quickly discharges turbid air and sends in fresh air, improves air quality in enclosed spaces, enhances air circulation efficiency, and creates a comfortable and clean breathing environment.

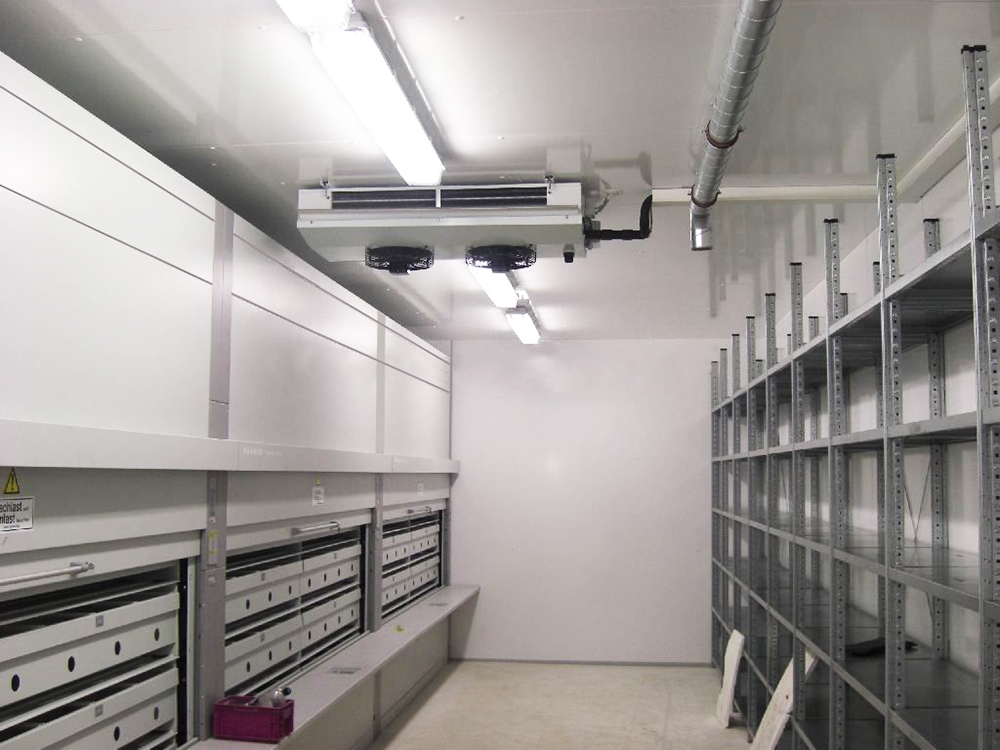

Q5: How do axial fans ensure the freshness of goods in the cold chain logistics scenario?
A5: Suitable for cold storage, refrigerated display cabinets, cold chain transport vehicles, refrigerated containers and other equipment, it is responsible for internal circulating air supply and temperature regulation, accurately maintaining a low-temperature environment, evenly conducting cold, suppressing temperature difference and frost formation, effectively preventing spoilage of fresh, frozen food, temperature-controlled drugs and other goods, ensuring full-process low-temperature preservation, and meeting the strict temperature control needs of the cold chain industry.
Q6: What is the core value of axial fans in the equipment cooling scenario?
A6: Specially provides forced convection heat dissipation for various industrial machines, automation equipment, precision instruments, electrical equipment, etc., quickly dissipates the temperature rise generated by circuits, chips and the body during equipment operation, avoids equipment shutdown, performance degradation or component damage caused by high temperature, extends equipment service life, and ensures long-term stable operation of equipment.

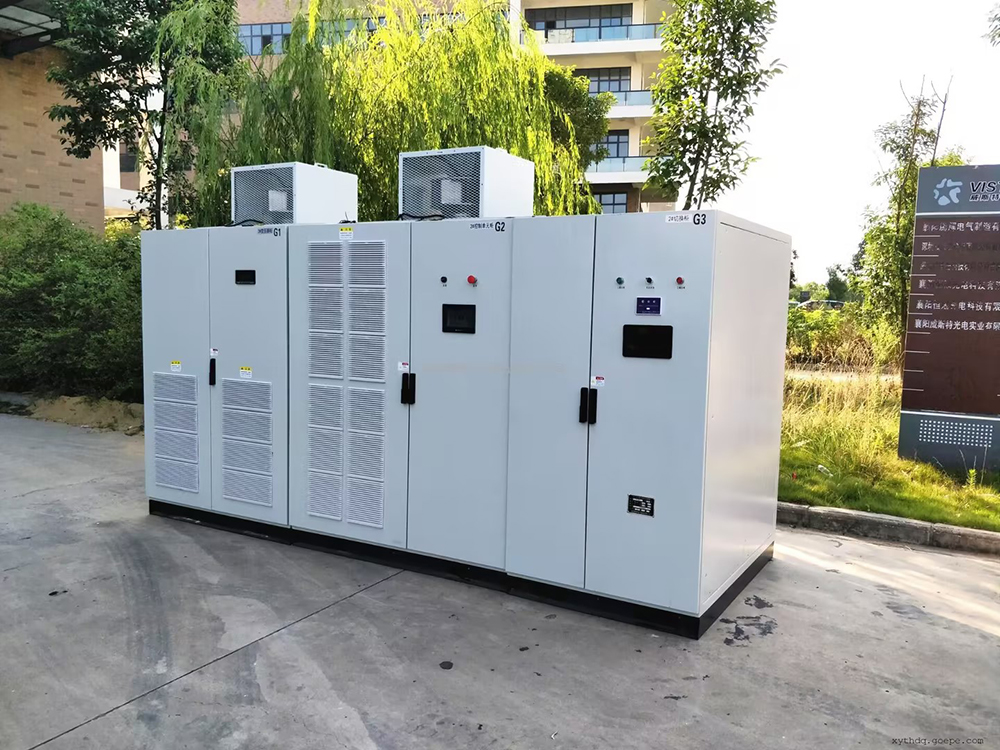

Q7: How do axial fans improve power distribution safety in the high-voltage inverter cabinet scenario?
A7: Provides professional directional heat dissipation for high-power heating components inside high-voltage inverters and electrical control cabinets. The motor has excellent temperature resistance and insulation performance, can adapt to the harsh environment of enclosed, high-temperature and dusty electrical cabinets, effectively eliminates electrical faults such as short circuits and leakage caused by high temperature, and improves the safety and stability of the power distribution system.

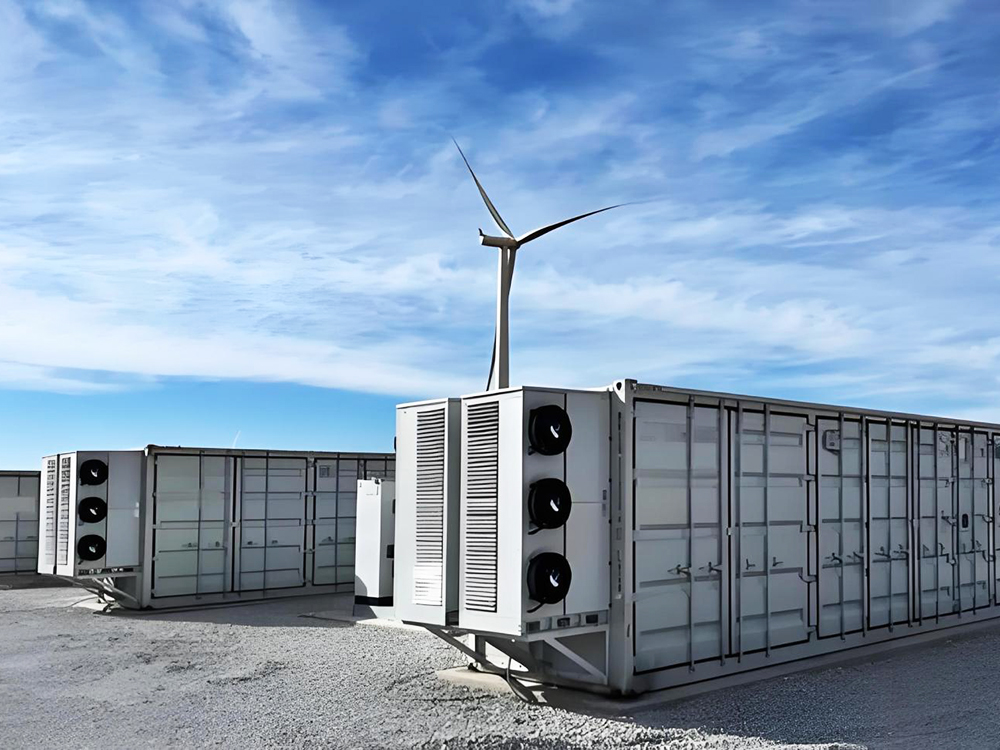

Q8: How do axial fans ensure equipment safety in energy storage systems?
A8: Suitable for lithium battery energy storage cabinets, energy storage containers, energy storage power stations and other equipment, focusing on temperature control and heat dissipation of battery modules, balancing the internal temperature of batteries, suppressing the risks of heat accumulation and thermal runaway, adapting to the all-weather and high-load operation conditions of energy storage systems, building a solid safety protection bottom line for energy storage equipment, and ensuring stable and efficient operation of energy storage systems.

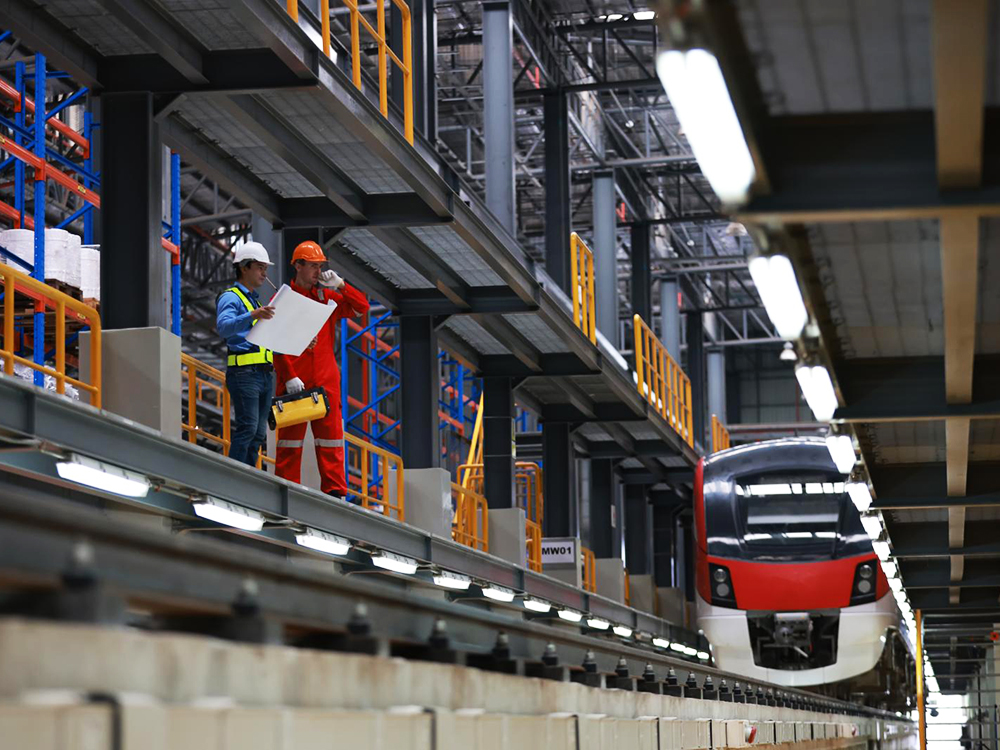

Q9: What are the core advantages of axial fans adapted to the rail transit scenario?
A9: Supporting on-board electrical equipment, air conditioning units, signal control systems, traction converters, etc. in rail transit, it has the advantages of shock resistance, weather resistance and anti-interference, can adapt to complex on-board working conditions such as jolting, wide temperature fluctuations and dust during driving, provides stable ventilation and heat dissipation services, and meets the strict safety and reliability standards of the rail transit industry.
