Are you tired of replacing burnt-out motors and dealing with inefficient airflow systems that drain your operational budget? Choosing the wrong ventilation equipment does more than just inflate energy bills. From a practical engineering standpoint, unexpected motor overloads can completely ruin your critical machinery. This inevitably leads to catastrophic facility downtime.
Fortunately, upgrading your air-moving apparatus can solve these persistent pressure problems. A Backward-curved Centrifugal Fan is specifically engineered to handle high-resistance environments without stalling. In this technical guide, we will break down the precise mechanics behind their operation. You will explore their key industrial benefits and learn exactly how to specify the right unit for your next commissioning project.
Before diving into the detailed fluid dynamics, here is a brief overview of the core concepts surrounding this specific air movement technology:
Design Definition: This blower utilizes an impeller where the blades curve away from the direction of rotation. This optimizes the aerodynamic flow path and reduces turbulence.
High Efficiency: They are engineered for maximum energy conservation. This makes them the preferred choice for complex systems demanding high static pressure.
Non-Overloading Curve: The power consumption naturally peaks and then declines as airflow increases. This crucial feature prevents motor burnout during sudden system pressure drops.
Primary Applications: They excel in commercial HVAC systems, clean rooms, telecom cooling, and heavy-duty industrial ventilation.
Technological Synergy: Integrating a backward-curved impeller with an Electronically Commutated (EC) motor yields unprecedented energy savings and precise speed control.
Looking at the current industrial landscape, there is a massive shift in how facility managers approach air handling. Driven by stringent global energy regulations—such as the ErP (Energy-related Products) directives in Europe and aggressive carbon-reduction goals worldwide—outdated, power-hungry blowers are rapidly becoming obsolete. The market is aggressively phasing out traditional AC forward-curved fans. Instead, the industry standard has pivoted toward aerodynamic impellers paired with smart motors. This transition is not just about regulatory compliance; it is about drastically lowering the Total Cost of Ownership (TCO) for 24/7 commercial operations.
To make informed procurement decisions, you must grasp the fundamental mechanics of the components. A backward-curved centrifugal blower is a specialized classification of fans. It is designed to generate highly stable, high-pressure airflow with minimal mechanical energy loss.

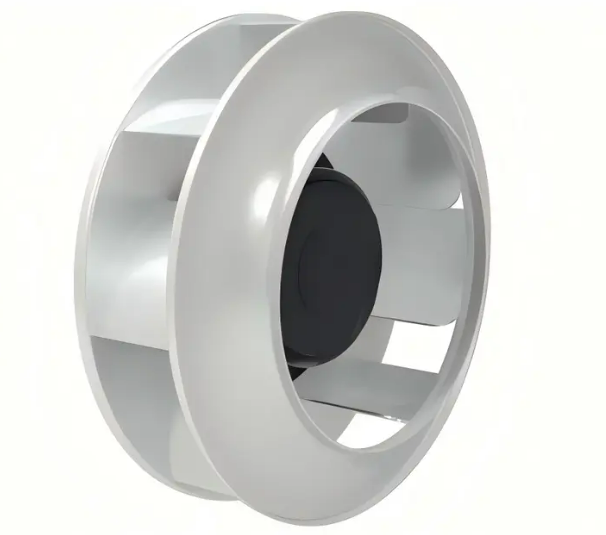

The physical structure of the impeller dictates its ultimate performance capabilities. A standard wheel consists of three primary structural components: the central hub, the robust backplate, and the strategically angled blades.
The defining characteristic lies entirely in the blade geometry. Unlike forward-curved models that act like scoops to cup the air, these blades tilt away from the direction of the fan wheel's rotation. Consequently, this curvature allows the blades to slice cleanly through the air stream. By doing so, it significantly reduces aerodynamic drag.
Material selection plays a critical role in the structural integrity of the unit. Common manufacturing materials include:
Engineered Plastics (e.g., PA66): Often reinforced with fiberglass. These are lightweight, highly resistant to mild corrosion, and ideal for compact cooling units.
Aluminum: Provides an exceptional strength-to-weight ratio. This reduces the mechanical load on the motor bearings.
Galvanized or Stainless Steel: Utilized primarily for heavy-duty industrial applications involving extreme durability or high operating temperatures.
The airflow trajectory here is fundamentally different from a standard axial fan. Air is drawn into the unit axially, flowing straight into the center eye of the spinning impeller. The rotational kinetic energy then exerts a powerful centrifugal force on the air molecules. This force accelerates the air outward, pushing it radially toward the edges. Because the blades curve backward, the air is discharged with slightly lower velocity but significantly higher static pressure.
Understanding the operational mechanics requires a brief look into fluid dynamics. The impressive efficiency of these units is not accidental. It is the direct result of precise mathematical engineering.
Static pressure is simply the resistance to airflow within a closed system. It is caused by ductwork friction, dense HEPA filters, dampers, and complex heat exchangers. To move air effectively, a fan must generate enough static pressure to overcome this inherent resistance.
When the impeller rotates, the unique convex angle of the blades minimizes the boundary layer separation of the air. According to Bernoulli's principle, reducing this turbulence allows for a highly efficient conversion of kinetic energy into potential energy (static pressure). As the air glides along the convex side of the blade, it accelerates smoothly. This makes the unit exceptionally capable of pushing high volumes of air through extensive commercial duct networks.
For facility engineers, the "non-overloading" power curve is arguably the most critical commercial benefit. In fluid dynamics, a fan's power consumption is intrinsically tied to the volume of air it moves. Imagine a scenario where a technician accidentally leaves a large duct access door open. In a forward-curved fan, this sudden drop in system resistance causes airflow to skyrocket, leading to a blown fuse or a melted motor.
In contrast, a backward-curved unit possesses a self-protecting characteristic. The required motor power increases as airflow increases—but only up to a specific engineered point. Once it reaches its peak efficiency threshold, the power requirement actually begins to drop off. You do not need to purchase an oversized, expensive motor just to account for potential pressure drops.
When selecting ventilation equipment, the most common dilemma is choosing between a forward-curved and a backward-curved impeller. While both move air radially, their performance metrics and physical behaviors are vastly different.
Below is a comprehensive comparative breakdown to assist in your technical decision-making process.
Feature / Metric | Backward-curved Centrifugal Fan | Forward-curved Centrifugal Fan |
|---|---|---|
Blade Geometry | Blades curve away from rotation, slicing air | Blades curve toward rotation, cupping air |
Peak Efficiency | High (Typically 70% - 85%) | Moderate (Typically 55% - 65%) |
Static Pressure | High to Very High | Low to Medium |
Power Curve | Non-overloading (peaks and drops) | Overloading (rises continuously) |
Motor Sizing | Matched to peak power (cost-effective) | Must be oversized for safety margins |
Self-Cleaning | Excellent (dust slides off convex blades) | Poor (dust accumulates in blade cups) |
The visual distinction is immediately apparent. A forward-curved impeller resembles a hamster wheel, generating high airflow at low speeds but creating significant internal turbulence. Conversely, the backward-curved wheel features fewer, larger, and much more robust blades shaped to minimize air separation.
Operational Expenditure (OPEX) is a primary concern in systems running 24/7. Because forward-curved fans generate more turbulence, a large portion of electrical energy is wasted as heat and acoustic noise. The backward-curved design optimizes the fluid flow path entirely, routinely achieving mechanical efficiencies of up to 85%. Over a single year, this translates into massive reductions in electrical consumption.
Investing in this specific architecture provides empirical advantages that directly impact system longevity and maintenance schedules.
Modern ventilation networks are becoming increasingly complex. To improve indoor air quality (IAQ), facilities are upgrading to denser MERV 13 or HEPA filters. These fans are specifically engineered to thrive in these high-pressure environments. They maintain a stable, high-volume airflow against steep system resistance without stalling or surging.
Furthermore, industrial exhaust systems often deal with airstreams containing dust or slight moisture. Forward-curved blades tend to trap dirt like a shovel, which unbalances the wheel and leads to premature bearing failure. The convex shape of a backward-curved blade naturally resists material buildup. Centrifugal force causes dust to simply slide off the surface, ensuring the impeller remains perfectly balanced.
While physical geometry dictates how air moves, the motor determines overall electrical efficiency. Historically, fans were driven by standard AC induction motors. Adjusting their speed required external Variable Frequency Drives (VFDs), which often introduced electrical noise and mechanical stress.
Electronically Commutated (EC) motors represent the absolute pinnacle of current drive technology. They are brushless DC motors featuring onboard electronics to convert AC grid power internally. This eliminates mechanical friction and allows for precise, stepless speed control.
Pairing an aerodynamic impeller with an EC motor creates a highly synergistic system. For modern applications requiring strict energy compliance, integrating an EC Backward-curved Centrifugal Fan is the objective engineering standard. When system resistance changes—such as a filter slowly filling with dust—an EC motor can automatically adjust its RPM to maintain constant airflow.
Procuring the correct equipment requires more than just matching physical dimensions. It demands a thorough analysis of aerodynamic requirements and environmental operating conditions.

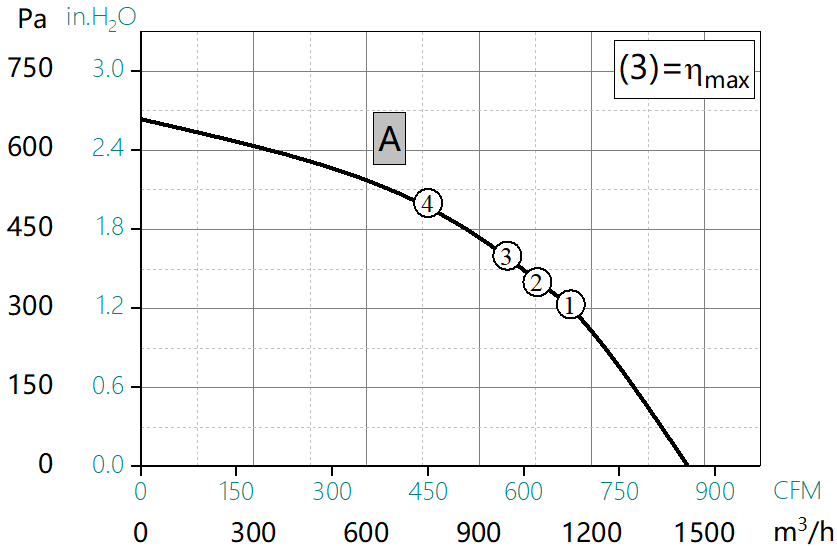

The fundamental step is determining your duty point. This is the exact intersection where the fan's performance curve meets your system's resistance curve. First, calculate the required volume of air (CFM or m³/h). Next, evaluate the total system static pressure, including friction from ductwork, filters, and louvers. Ensure your operating point falls near the peak of the manufacturer's efficiency curve to avoid aerodynamic instability.
Physical constraints within the equipment cabinet dictate sizing. These fans are highly versatile because they can operate efficiently as "plug fans" without a heavy scroll housing. When designing compact equipment, engineers look for standardized dimensions that offer high output.
For instance, specifying a standard 225mm EC backward-curved centrifugal fan provides an optimal balance between physical footprint and aerodynamic performance. In practical field applications, a quality 225mm unit featuring a PA66 fiberglass-reinforced impeller and an integrated 230V EC motor can deliver around 1100 to 1200 m³/h at speeds up to 2700 RPM. This specific configuration usually supports 0-10V or PWM stepless speed control, making it incredibly easy to integrate into modern BMS (Building Management Systems).
Always verify the Ingress Protection (IP) rating. If the unit will be exposed to moisture or heavy dust, select a model rated IP54 or IP55 to protect the sensitive internal electronics.
Choosing the right ventilation equipment ensures system reliability, prevents catastrophic motor overloads, and drastically reduces facility energy consumption. The unique blade geometry provides the high static pressure necessary for complex, modern ductwork and dense filtration.
Upgrading your infrastructure with a modern high-efficiency backward-curved centrifugal fan that utilizes EC motor technology is the ultimate way to future-proof your system. This powerful combination maximizes mechanical efficiency while keeping long-term operational costs strictly minimized. If you are looking to upgrade your HVAC, telecom cooling, or industrial ventilation systems, evaluate your specific airflow needs carefully and explore the high-performance solutions available at EBST Fans to find the perfect fit for your project.
Yes, they are frequently utilized without a traditional scroll housing. In these configurations, they are commonly known as plug fans or plenum fans. Instead of relying on a tight housing to direct the air, the fan pressurizes the entire cabinet it is installed within. This approach saves significant physical space in Air Handling Units and allows for multiple ductwork connections to be drawn from a single pressurized compartment.
While both operate on very similar aerodynamic principles, the distinction lies in the blade geometry. Backward-inclined fans feature flat, straight blades that are simply tilted away from the direction of rotation. Conversely, backward-curved fans feature blades with a distinct, engineered aerodynamic curve. This curved profile allows the air to glide over the surface with much less turbulence, resulting in higher operational efficiency and a lower acoustic signature.
Acoustic performance is always relative to the operating point and system resistance. While any industrial blower operating at maximum RPM generates some noise, these specific fans are generally much quieter than forward-curved models in high-static-pressure environments. Their aerodynamic blade design significantly reduces air turbulence, a primary source of broadband noise. When paired with a modern EC motor, electrical humming is also virtually eliminated.
The non-overloading characteristic acts as a vital, built-in safety mechanism. In a fan with an overloading curve, if system resistance suddenly drops, the airflow increases rapidly, causing the motor to draw excess current until it overheats. Because a backward-curved fan's power requirement naturally peaks and then decreases as airflow reaches its maximum, it ensures the motor remains within its safe electrical limits regardless of sudden pressure changes.
Speed control depends entirely on the motor type. Traditional AC motors require external Variable Frequency Drives (VFDs) or phase-cut controllers to modulate speed, which can be bulky and inefficient. However, modern units equipped with EC (Electronically Commutated) motors have built-in microprocessors. These can be easily controlled using a simple 0-10V analog signal, PWM (Pulse Width Modulation), or Modbus RTU, allowing for seamless, stepless speed adjustment directly from a control board.
While they possess excellent self-cleaning properties that prevent light dust from accumulating on the blades, they are generally not recommended for heavy material handling or intense dust collection (like wood chips or heavy metal shavings). For environments with heavy particulates, a specialized radial blade (paddle wheel) fan is typically required. However, for general industrial exhaust with fine airborne dust, backward-curved impellers perform exceptionally well.
