Are your industrial ventilation systems bleeding money? High-pressure environments eat standard fans alive. Wrong equipment choices inevitably cause system overloads, premature motor failures, and exorbitantly high operational costs. To mitigate these risks, facility managers and system designers must look toward optimized aerodynamic solutions.
In this engineering guide, we break down the mechanics behind these highly efficient devices. We will explore their distinct structural types, operational benefits, and specific real-world applications. By the end, you will have a clear, actionable blueprint for making the right equipment selection.
Engineering Efficiency: These units dominate the manufacturing and HVAC industries due to their superior aerodynamic yield and non-overloading power curve.
Structural Distinction: The blades sweep away from the direction of rotation. This geometry handles high static pressure environments with ease.
Motor Integration: Available in AC, DC, and EC configurations. Modern DC and EC setups offer advanced PWM speed control, drastically cutting energy use during partial loads.
Broad Applications: They are the backbone of thermal management in data centers, telecommunications, AHUs, and industrial cleanrooms.
Selection Criteria: Proper specification requires matching the fan's performance curve to the system's exact resistance (CFM vs. Static Pressure).
At its core, this impeller is a highly specialized mechanical device built to move air against heavy resistance. The defining physical characteristic lies in the blade design: they curve away from the direction the fan wheel rotates. This unique geometric configuration fundamentally alters how the equipment interacts with the air. Instead of prioritizing massive, low-pressure volume, it focuses on high efficiency and intense pressure generation.
To fully grasp the utility of these devices, you need to look closely at centrifugal aerodynamics. As the motorized impeller spins, air is drawn in axially straight through the center hub. The kinetic energy generated by the rotating blades then forces the air outward radially, expelling it at a 90-degree angle to the intake.
Specifically, the backward sweep allows the air to glide along the blade surface with minimal turbulence. This smooth transition converts kinetic energy into static pressure highly efficiently. Because the air is not aggressively "scooped" and thrown forward, aerodynamic drag plummets. Consequently, the unit pushes through severe system resistance—like thick HEPA filters, winding ductwork, or dense electronic components—while maintaining stable airflow.
One of the absolute biggest engineering advantages here is the "non-overloading" characteristic. In practical terms, the maximum power consumed by the motor occurs near its point of peak aerodynamic efficiency.
Imagine a scenario where a system experiences a sudden drop in static pressure. Perhaps a technician removes a primary filter, or a large duct blows open. A standard forward-curved fan would immediately draw excessively more air, causing the motor current to spike and potentially melt the windings. In contrast, the power requirement of a backward-curved design naturally decreases or plateaus as airflow increases beyond the peak point. It essentially protects itself. This self-limiting trait ensures the motor will not overload during unpredictable pressure shifts, providing exceptional safety in volatile industrial settings.
The performance profile of any centrifugal blower relies heavily on the motor driving it. Engineers typically select between three main motor technologies based on power availability, thermal loads, and control requirements.
AC (Alternating Current): The traditional standard. They are robust and simple to wire directly to mains power. However, they lack the energy efficiency of modern counterparts and offer limited speed control without expensive variable frequency drives (VFDs).
DC (Direct Current): Highly efficient and built for dynamic, variable speed control. Operating on lower voltages (like 24V or 48V), they are inherently safer and ideal for compact electronics. For instance, when engineers face strict spatial constraints in telecom cabinets, integrating a specialized 160mm DC backward-curved centrifugal fan provides the perfect balance. These specific units often deliver upwards of 600 Pa of static pressure while utilizing PWM inputs for precise thermal tracking.
EC (Electronically Commutated): The premium standard for commercial air movement. They combine the convenience of AC power input with the high efficiency of a brushless DC motor. By converting AC to DC internally, integrated electronics monitor and adjust speed with extreme precision, yielding massive energy savings.

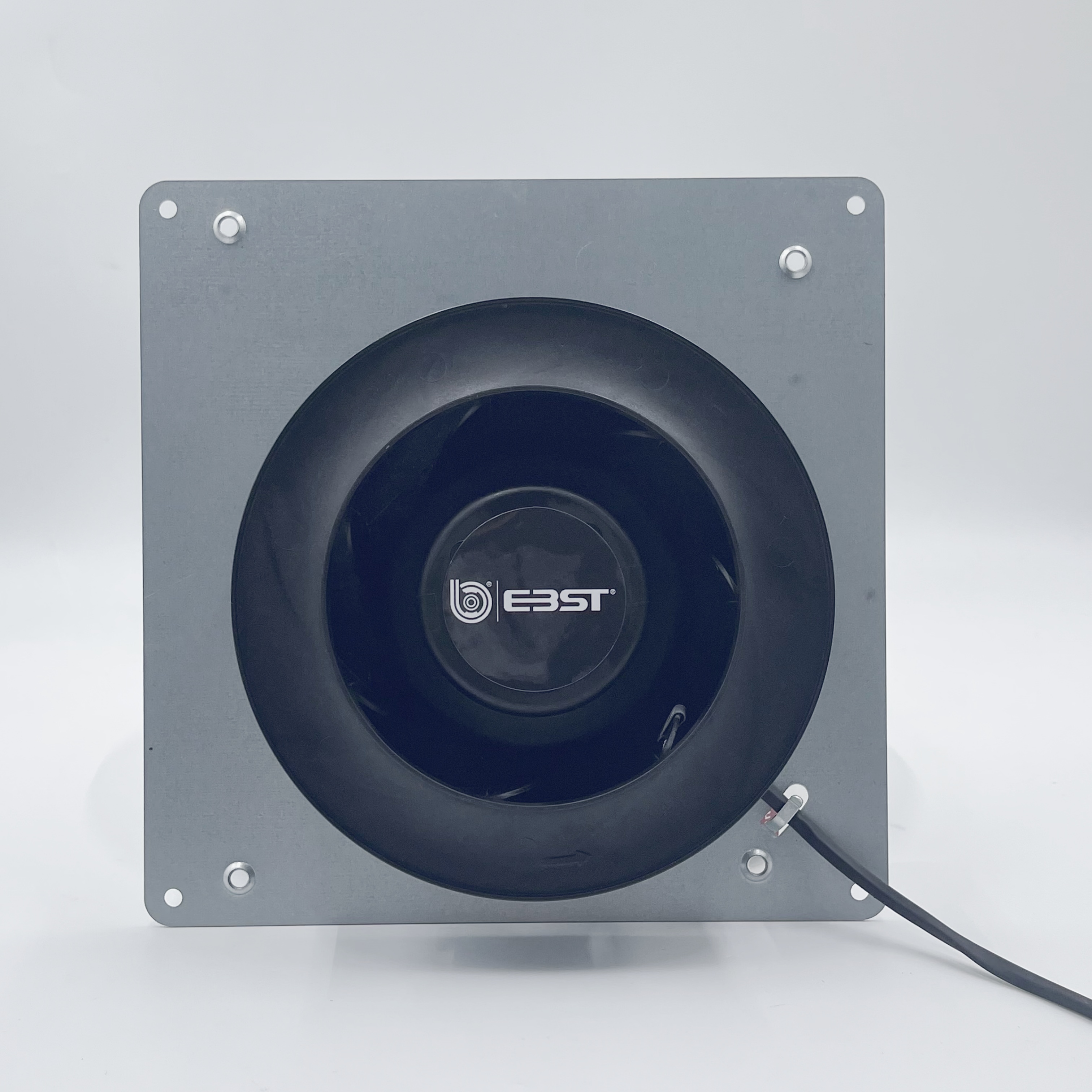

The housing and intake design dictate the deployment strategy.
Single Inlet: Air is drawn from only one side. These are typically deployed where air must be pulled from a specific source or ducted directly into the center of the housing.
Double Inlet: Featuring a wider impeller and open on both sides, air enters from two directions simultaneously. This effectively doubles the volumetric capacity, making them highly suitable for large-scale air handling units (AHUs).
Furthermore, the physical enclosure drastically changes how the fan is installed.

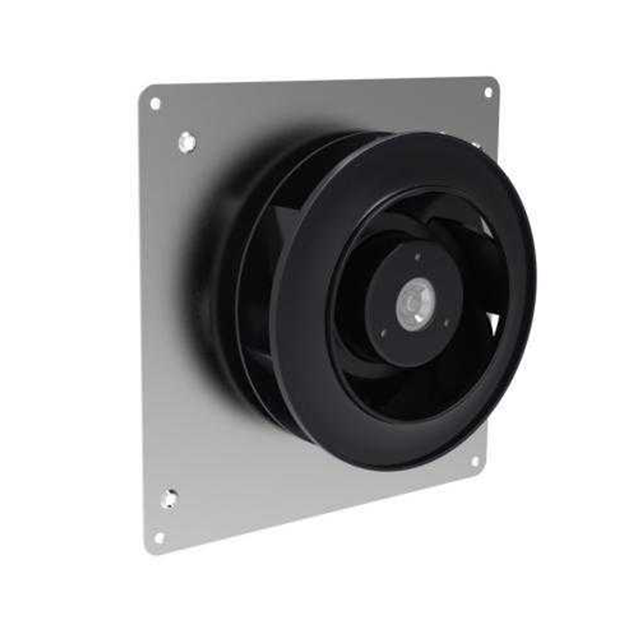

Motorized Impellers (Plug Fans): Many modern units ditch the traditional scroll housing entirely. The motor integrates directly into the impeller hub. These "plug fans" pressurize the entire cabinet they sit in, allowing air to exit in 360 degrees. This saves massive amounts of space.
Housed Fans: When highly directional airflow is mandatory, the impeller sits inside a scroll housing. The housing collects the radially expelled air and forces it into a single discharge duct, maximizing static pressure for long duct runs.
Choosing between these two designs depends entirely on system impedance. Neither is universally "better," but their performance profiles are vastly different. To make specification easier, reference the comparison below.
Feature | Forward-Curved Fans | Backward-Curved Fans |
|---|---|---|
Blade Design | Many shallow blades curving toward rotation. | Fewer, longer blades sweeping away from rotation. |
Aerodynamic Efficiency | Lower (typically 55% - 65%). | Higher (often reaching 80% - 85%). |
Static Pressure Handling | Poor. Performance drops sharply under resistance. | Excellent. Built to push through dense filters and tight spaces. |
Power Curve | Overloading. Amp draw spikes if pressure drops. | Non-overloading. Motor protects itself from current spikes. |
Best Application | Low-pressure residential HVAC, simple blowers. | Data centers, cleanrooms, industrial filtration, telecom. |
The primary driver for rapid adoption in industrial settings is ROI through energy savings. The sweeping blade design minimizes boundary layer separation and aerodynamic stall. By converting mechanical energy into air pressure with minimal turbulence, these units directly slash electricity costs. When paired with EC or DC motors, the efficiency gains compound, helping facilities crush strict environmental quotas.
As detailed earlier, the self-limiting power curve is a massive operational safety net. Facility engineers do not need to oversize the motor to account for potential drops in system resistance. If ductwork is accidentally disconnected, the motor will not draw excessive current. This prevents catastrophic failures and saves money on initial electrical sizing.
The ability to function as unhoused plug fans provides immense layout flexibility. Without a bulky scroll housing, a compact backward-curved centrifugal fan can slide into incredibly tight enclosures, such as under-floor cooling plenums in server rooms. The air discharges evenly, pressurizing the cabinet and allowing for multiple duct take-offs from a single chamber.
Industrial air is dirty. It is full of dust, grease, and particulate matter. Forward-curved blades act like little cups, trapping debris, which leads to imbalance and severe vibration. Fortunately, the sweeping profile of backward-curved blades makes them inherently self-cleaning. Centrifugal force naturally flings dust along the blade surface and out of the impeller, drastically extending maintenance intervals.
We are currently witnessing an aggressive shift in global thermal management strategies. As artificial intelligence (AI) and edge computing drive data center rack densities to unprecedented thermal loads—often exceeding 40kW per rack—legacy cooling methods are becoming obsolete. The market demand for compact, high-static-pressure cooling solutions is skyrocketing.
Furthermore, stringent regulatory frameworks, such as the Energy-related Products (ErP) directive in Europe, are effectively forcing manufacturers to abandon inefficient AC induction motors. The industry is rapidly standardizing on advanced Direct Current (DC) and EC technologies. Today's system architects aren't just buying fans; they are sourcing IoT-capable air movement modules. These smart units provide real-time RPM feedback and dynamically adjust to thermal sensors via PWM control, minimizing carbon footprints while maximizing critical uptime.
The digital economy runs hot. Server racks and telecom cabinets generate intense heat within highly restricted physical footprints. Forcing air through densely packed motherboards requires massive static pressure. To solve this, a high-quality DC backward-curved centrifugal fan is frequently integrated directly into precision air conditioning (PAC) units and server chassis, ensuring stable thermal management without draining facility power.
In commercial heating and cooling, these units are the absolute standard for Air Handling Units (AHUs). They deliver the brute force necessary to push conditioned air through miles of ductwork, VAV boxes, and secondary filtration banks. They are also mandatory in Heat Recovery Ventilators (HRVs), where overcoming the severe resistance of the heat exchange core is critical.
Cleanrooms require HEPA or ULPA filters, which present a massive wall of airflow resistance. These impellers are deployed in Fan Filter Units (FFUs) to maintain the strict pressure cascades required to keep contaminants out. Similarly, in industrial dust collection, they provide robust suction without the blades becoming fouled by heavy particulates.
Selecting air movement equipment is not a guessing game. Engineers must analyze specific performance metrics to ensure the chosen unit operates at its peak efficiency point. A mismatched fan leads to noise, wasted energy, and early failure.
The fundamental starting point is calculating your required airflow (CFM or CMH) and the system's static pressure (measured in Pascals or inches of water gauge). Static pressure is the total resistance caused by filters, heat sinks, and ductwork.
You must consult the manufacturer's performance graph. This plots airflow on the X-axis against pressure on the Y-axis. Your system's impedance curve must intersect the fan's performance curve squarely within its optimal efficiency zone.
Physical space dictates the final choice, especially in electronics cooling. The footprint of the impeller and the depth of the motor assembly must fit the enclosure without choking the air intake. In high-density environments, opting for a motorized plug fan provides greater mounting flexibility and reduces the overall footprint of the cooling module.
The motor driving the impeller dictates your operational costs. For applications requiring variable speed control to track fluctuating heat loads, DC and EC motors are non-negotiable.
Choose AC motors only for basic, continuous-run applications where initial capital is the strict limiting factor.
Choose DC motors for telecom, battery-operated systems, or PCB cooling requiring precise PWM speed control in a low-voltage environment.
Choose EC motors for large commercial AHUs demanding maximum energy efficiency and strict compliance with global energy regulations.
While the backward-sweeping design is largely self-cleaning, routine maintenance is still mandatory for industrial longevity. A structured preventative schedule prevents unexpected downtime.
Execute a comprehensive inspection bi-annually. Verify the structural integrity of the blades, checking for micro-fractures. Bearing health is your most critical mechanical checkpoint. Listen for high-pitched whining or grinding, which indicates failing lubrication. In addition, monitor the motor's amp draw. A steady, creeping increase in amperage over time is a major red flag, usually suggesting increased mechanical friction or boundary layer disruption from stubborn dirt.
If particulate matter does accumulate, it alters the aerodynamic profile and causes rotational imbalance. Clean carefully. Use compressed air or a soft-bristled brush to dislodge dry dust. Never use high-pressure water sprays on standard units, as water will bypass the motor's bearing seals and destroy the electronics.
Understanding the mechanics of high-efficiency air movement is vital for modern facility management. The non-overloading traits of these impellers ensure highly reliable operation, protecting your infrastructure from catastrophic failures during unexpected pressure drops.
Investing in modern, variable-speed models yields excellent long-term financial returns. They drastically lower energy costs while extending maintenance intervals. Don't guess with your thermal management. To ensure maximum performance and longevity, evaluate your impedance curves carefully and explore customized solutions—like the 160mm DC backward-curved centrifugal fan—at EBST Fans to perfectly match your system's exact aerodynamic demands.
While it is electrically possible to wire a motor backward, doing so is an engineering disaster. The aerodynamic profile is specifically engineered to sweep backward relative to rotation, compressing air smoothly. If run in reverse, the blunt trailing edges smash against the air. This results in a massive reduction in airflow, zero static pressure capability, and a severe spike in noise and motor heat.
This refers to a built-in safety characteristic of the power curve. The maximum electrical power required by the motor happens near its peak aerodynamic efficiency. If system resistance suddenly drops (e.g., a filter is removed), airflow increases, but the motor's power draw actually plateaus or decreases. It will not draw excessive current and burn itself out, unlike forward-curved fans.
Static pressure is calculated by adding up the resistance of every component in the airstream. You must look at the manufacturer data sheets for your filters, heating coils, dampers, and the friction loss of your ductwork at your target CFM. The sum of these resistance values (usually measured in Pascals or in. w.g.) equals your total system static pressure.
When operating within specified temperature and humidity ranges, a high-quality DC brushless unit typically lasts between 40,000 to 70,000 hours (roughly 4.5 to 8 years of continuous 24/7 operation). The limiting factor is almost always the dual ball bearings. Routine cleaning and avoiding ambient temperatures above the motor's rating will maximize this lifespan.
No. Unlike forward-curved fans that rely entirely on a scroll housing to generate pressure, backward-curved impellers are highly versatile. They operate exceptionally well as unhoused "plug fans." In this setup, they draw air in axially and exhaust it radially 360 degrees, pressurizing the entire cabinet or plenum chamber they are installed inside.
DC brushless motors utilize permanent magnets, completely eliminating the energy losses associated with magnetizing the rotor in an AC induction motor. This means significantly lower power consumption and less internal heat. Furthermore, DC motors easily integrate with PWM signals, allowing your system's motherboard to dynamically speed up or slow down the fan based on real-time temperature data.
