Specifying the wrong air movement equipment is a costly error that haunts a facility's entire lifespan. Selecting an incompatible fan profile often triggers severe system inefficiencies, excessive acoustic noise, or catastrophic motor failure. Imagine getting a 3 AM alert. A primary filter was removed during a sloppy maintenance shift. Suddenly, system resistance drops, causing the blower to draw massive excess current and trip the main breaker. In industrial applications where uptime is the ultimate metric, these unexpected failures translate directly into thousands of dollars lost in downtime, emergency maintenance, and hardware replacement.
Centrifugal blowers serve as the undisputed workhorses of ventilation across both commercial HVAC and heavy industrial sectors. Mechanically, they pull air into the center of a rotating impeller. Centrifugal force then propels that air outward through an aerodynamic scroll housing. While this fundamental operating principle remains constant, the specific geometry of the wheel dictates the equipment's performance, peak efficiency, and ideal application. Today, mechanical engineers primarily specify two prominent blade designs: backward-curved and forward-curved configurations.
This technical guide provides a deep-dive comparison between these two dominant designs. By analyzing their distinct fluid dynamics, power curves, and efficiency ratings, we will equip you to make an evidence-based decision. You will learn exactly how to match the right impeller profile to your specific installation footprint, static pressure demands, and long-term operational budget.
A properly specified backward-curved centrifugal fan delivers exceptional energy efficiency and effortlessly handles high static pressure environments.
Backward-leaning designs feature a vital "non-overloading" power curve. This physically protects motors from unexpected burnout during sudden ductwork fluctuations.
Forward-curved fans (commonly called squirrel cage blowers) boast a highly compact footprint. They operate extremely quietly at lower pressure levels.
Selecting the appropriate unit requires hard data. You must accurately calculate your required Airflow (CFM/CMH) and System Static Pressure (SP).
When evaluating long-term operating expenses (OPEX) for continuous 24/7 operations, energy efficiency metrics heavily favor the backward-curved geometry.

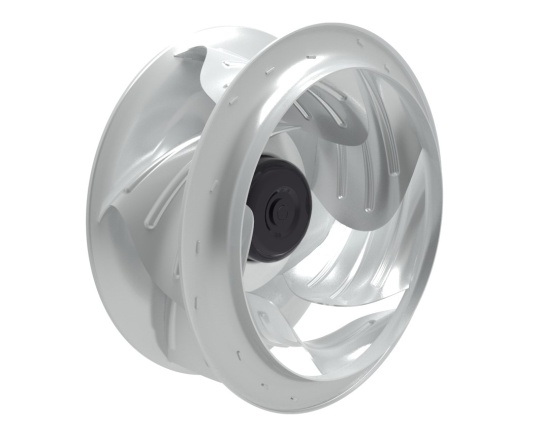

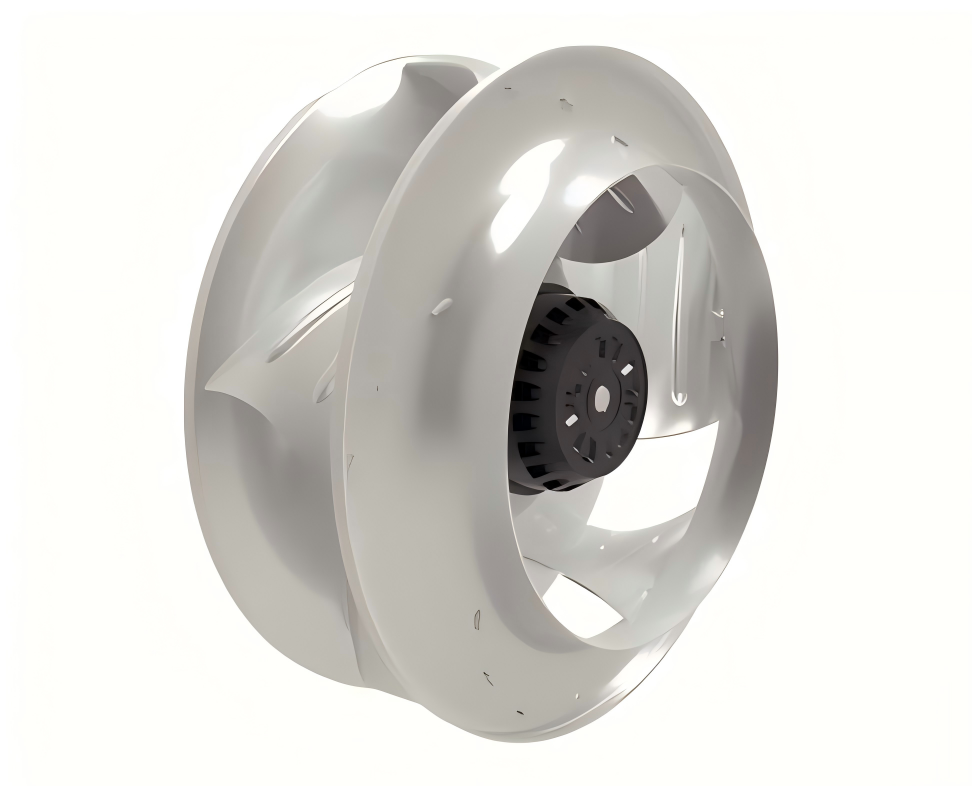

This type of fan is a highly engineered mechanical device specifically designed to push air against severe system resistance. The defining physical characteristic of this unit is its blade geometry. The blades tilt or curve away from the direction of the fan wheel’s rotation. This specific aerodynamic profile allows the air stream to slide smoothly along the blade face. The result? A highly efficient transfer of kinetic energy. Because the air is not aggressively scooped, the velocity leaving the impeller is lower. This drastically reduces internal turbulence and boosts overall aerodynamic efficiency.
One of the most critical engineering advantages of this design is its "non-overloading" power curve. In fluid dynamics, brake horsepower (BHP) changes based on the volume of air moved. As airflow increases and system resistance decreases, the motor power requirement will rise to a specific peak point. After hitting that peak, the power demand actually drops off.
Consequently, even if the system static pressure suddenly plummets—perhaps a duct bursts, or a technician leaves a large access door wide open—the motor will not draw excessive current. The motor remains fundamentally protected from overloading and burning out. This guarantees stable, safe operation across a highly variable range of industrial conditions.
To understand how this translates to real-world performance, look at standard industrial specifications. For example, units like the BM-A Series offer impeller diameters spanning from 280mm up to 560mm. These specific dimensions cater to a massive range of industrial demands.
High Operating Speeds: These impellers rotate at higher RPMs to achieve the desired airflow compared to other centrifugal models.
Exceptional Energy Efficiency: They consistently operate at peak mechanical efficiencies ranging from 70% to 85%. This significantly lowers electrical power consumption over continuous duty cycles.
Robust AC Motor Integration: Utilizing heavy-duty AC motors ensures long-term durability. Constructed from heavy-gauge steel, aluminum, or reinforced composites, they easily survive harsh, demanding industrial environments.
In contrast, a forward-curved centrifugal fan is purpose-built for moving massive volumes of air at relatively low static pressures. Mechanically, the numerous shallow blades curve toward the direction of the wheel’s rotation. Because the impeller contains dozens of small blades closely spaced together, the HVAC industry universally calls it a "squirrel cage" blower. This design aggressively scoops the air. It imparts a very high tangential velocity to the air stream, relying heavily on the surrounding scroll housing to convert that kinetic energy into usable static pressure.
Unlike its backward-curved counterpart, this fan possesses an "overloading" power curve. For a facility manager, this represents a significant operational risk if not properly monitored. As system static pressure decreases, the fan naturally moves a much higher volume of air. Because the power requirement continuously and linearly rises with increased airflow, a sudden drop in system resistance invites disaster.
Without proper variable frequency drives (VFDs) or strict motor protection circuits, that same open access door mentioned earlier will force the fan to move more air than the motor is rated to handle. The motor will over-amp, rapidly overheat, and eventually fail.
Lower Operating Speeds: They achieve high airflow volumes at significantly lower rotational speeds. This naturally reduces mechanical wear on bearings and shafts.
High Volume at Low Pressure: They excel at delivering massive amounts of airflow strictly within systems where static pressure remains below 2 to 3 inches of water gauge (in. w.g.).
Compact Footprint: The design allows for a much smaller physical housing and lightweight construction. This saves valuable installation space inside packaged air handlers.
To facilitate a quick technical evaluation for system designers, the table below outlines the primary operational differences between the two fan types. Use this as a baseline checklist before finalizing your equipment schedule.
Feature / Specification | Backward-curved Centrifugal Fan | Forward-curved Centrifugal Fan |
|---|---|---|
Blade Geometry | Curves away from rotation | Curves toward rotation |
Peak Efficiency | High (70% - 85%) | Moderate (55% - 65%) |
Power Curve | Non-overloading (Motor safe) | Overloading (Risk of burnout) |
Static Pressure | Medium to High (Ideal for resistance) | Low to Medium (Minimal resistance) |
Operating Speed | High RPM | Low RPM |
Physical Footprint | Larger housing and wheel | Compact and lightweight |
When evaluating long-term operational expenses (OPEX), the backward-leaning blade provides a definitive financial advantage. Industrial operations running continuous 24/7 processes require equipment that minimizes electrical consumption. Because this aerodynamic design converts mechanical energy to static pressure more efficiently within the impeller itself, it wastes far less energy as heat and turbulence. Over a five-year lifespan, a 15% to 20% gain in mechanical efficiency translates into massive reductions in annual electricity costs. This easily offsets any higher initial capital expenditure.
System resistance dictates your fan selection. Period. Forward-curved fans are structurally optimized for high-volume delivery where ductwork is minimal and pressure drops are negligible. However, modern commercial and industrial systems rarely look like that. They utilize dense HEPA filters, extensive duct networks, and complex cooling coils. This creates severe static pressure. Backward-curved blades are aerodynamically engineered to push air forcefully through these high-resistance barriers without experiencing aerodynamic stall.
Looking at the broader industrial ventilation landscape, a definitive regulatory shift is reshaping how engineers specify equipment. Driven by global carbon reduction mandates and stringent energy directives, facility managers face mounting pressure to slash power consumption.
This trend rapidly accelerates the phase-out of traditional, lower-efficiency forward-curved blowers in medium-to-large commercial setups. Instead, the industry leans heavily toward non-overloading geometries. Upgrading to optimized aerodynamic profiles is no longer just a structural choice; it is a compliance necessity. Engineers now default to high-efficiency backward-curved units to future-proof continuous-duty systems and meet aggressive ESG (Environmental, Social, and Governance) targets.
Understanding the inherent strengths and limitations of each design ensures you do not over-engineer or under-spec your ventilation networks.
Pros: Industry-leading energy efficiency drastically lowers OPEX. The non-overloading power curve guarantees motor safety regardless of ductwork changes or filter loading. Heavier construction materials withstand continuous, brutal duty cycles. Furthermore, the blade geometry naturally resists the accumulation of light dust and moisture.
Cons: Requires a larger physical installation footprint for the scroll housing. Complex blade manufacturing increases the initial purchase price. Higher operating speeds may require more frequent vibration monitoring and precision balancing.
Pros: A highly compact size makes them ideal for tight installation spaces and OEM packaged equipment. Simpler manufacturing processes keep them highly budget-friendly. Low rotational speeds result in excellent acoustic performance for quiet indoor spaces.
Cons: Lower overall aerodynamic efficiency makes them entirely unsuitable for continuous industrial use. The overloading power curve demands strict system pressure maintenance to avoid motor burnout. The tightly spaced, cupped blades easily trap grease and debris, leading to severe performance drops if not cleaned regularly.
Selecting the correct centrifugal fan is a rigorous engineering process. Guesswork leads to inadequate ventilation, excessive noise, or premature equipment failure. Stop relying on rule-of-thumb estimates. Follow these standard engineering steps to lock in your exact requirements.
First, determine the exact volume of air needed for your specific space. This is measured in Cubic Feet per Minute (CFM) or Cubic Meters per Hour (CMH). For general space ventilation, use the Air Changes per Hour (ACH) method: multiply the total volume of the room by the required ACH, then divide by 60. For industrial exhaust, airflow calculations must be based on the capture velocity required to safely remove specific fumes or heat from machinery.
Static pressure is the total resistance to airflow caused by the physical components of your system. Every piece of ductwork, elbow, transition, damper, and filter creates friction. You must calculate the total pressure drop across the entire network. If the calculated static pressure is high (typically above 2.5 to 3 in. w.g.), upgrading to a BM-A Series Backward-curved Centrifugal Fan is strictly required. Attempting to force a squirrel cage blower into a high-resistance system will choke the airflow and eventually kill the motor.
Beyond theoretical performance, the physical environment dictates fan construction. Evaluate the air density, which fluctuates based on altitude and temperature. Moving 150°F air requires entirely different motor horsepower calculations than moving 60°F air. Additionally, assess the presence of particulate matter. While neither fan is a true material-handling radial blower, backward-leaning blades handle light dust and continuous operation significantly better.
Because of their robust construction, high efficiency, and ability to overcome severe system resistance, these units are the absolute standard for demanding commercial and industrial environments. Ideal use cases include:
Industrial Ventilation and Exhaust Systems: Factories require the continuous extraction of welding fumes, chemical vapors, and ambient heat through extensive, highly restrictive duct networks.
Data Center Cooling: Server farms demand ultra-reliable, high-pressure airflow to push cold air through raised floors and dense server racks without the risk of motor overloading.
Air Pollution Control: Systems utilizing deep-bed carbon filters or wet scrubbers create massive static pressure drops that only backward-curved impellers can efficiently overcome.
Conversely, forward-curved fans are purpose-built for environments where space is at a premium, system resistance is exceptionally low, and acoustic comfort is the top priority. Ideal use cases include:
Residential Furnaces and Air Handlers: Home HVAC systems utilize short duct runs and low-MERV filters. This perfectly aligns with the low-pressure, high-volume output of squirrel cage blowers.
Fan Coil Units (FCUs): Commercial office buildings rely on compact blowers hidden within tight ceiling spaces to quietly distribute conditioned air.
Clean, Low-Pressure Ventilation: Packaged rooftop units (RTUs) where strict physical space constraints make larger fan wheels unfeasible.
Ultimately, choosing the right centrifugal fan depends entirely on your system's resistance and available installation space. Forward-curved fans work best for compact, low-pressure, and clean-air environments where quiet operation is desired. In contrast, backward-curved configurations are the undisputed champions of high-efficiency, high-pressure, and heavy-duty applications.
Evaluate your specific system requirements, calculate your static pressure carefully, and weigh long-term energy costs. If you are designing a high-resistance industrial system, do not compromise on efficiency. Explore robust solutions and find the exact dimensions and motor specifications for your next installation by reviewing a high-quality backward-curved centrifugal fan from EBST Fans today.
Yes. They are significantly better at handling light dust and airborne particulates than forward-curved models. The backward-facing blade shape naturally prevents heavy material accumulation. However, for severe material handling applications (like moving heavy sawdust or industrial waste), dedicated radial blade fans are the optimal choice.
This is almost always due to an unexpected drop in system static pressure. Common culprits include running the equipment with the ductwork disconnected, removing dense filters, or leaving access panels open. Because forward-curved fans have an "overloading" power curve, a drop in pressure causes the fan to move far too much air. This forces the motor to draw excess electrical current, rapidly leading to overheating and burnout.
It depends entirely on the application parameters. At low pressures and low speeds, forward-curved fans are generally quieter. However, as pressure requirements increase, forward-curved blowers become highly turbulent and noisy. At high speeds and elevated pressures, a backward-curved fan operates much more smoothly. Its aerodynamic design generates far less turbulent noise, making it the quieter option for heavy-duty industrial applications.
AC motors are incredibly durable, highly cost-effective, and excellent for applications requiring consistent, single-speed operation in harsh environments (like the AC280-560mm series). EC (Electronically Commutated) motors offer advanced variable speed control and superior energy efficiency, but they require a significantly higher upfront investment. Your choice should be dictated by your budget and whether your process requires constant or variable airflow.
Backward-curved fans are vastly superior for variable speed applications. Their higher peak mechanical efficiency (often exceeding 80%) combined with a non-overloading power curve makes them highly responsive to Variable Frequency Drives (VFDs). When you reduce the speed to match lower airflow demands, the energy savings are substantial and immediate.
Static pressure represents the physical resistance your fan must overcome to move air. If your system has extensive ductwork, HEPA filters, or cooling coils, the resistance is high. Forward-curved fans lack the aerodynamic force to push through high resistance and will stall. You must select a backward-curved fan to generate the necessary pressure without overloading the motor.
