Are your commercial HVAC systems wasting valuable energy? High static pressure often overloads standard fan motors unexpectedly. This leads to costly downtime and maintenance nightmares. For engineers and facility managers, balancing the demand for aggressive air movement with acoustic restrictions and energy limits is a daily challenge.
A backward-swept impeller design prevents these critical issues without risking motor burnout. In this comprehensive guide, we will break down the underlying mechanics of this essential technology. By comparing alternative designs, exploring modern motor integrations, and looking at real-world sizing, we aim to provide the technical clarity necessary to support your next purchasing decision.
High Efficiency: These units offer some of the highest aerodynamic efficiencies among all centrifugal designs, significantly slashing operational energy costs.
Non-Overloading Power Curve: The motor remains protected from overloading even if system resistance unexpectedly drops to zero. This ensures long-term operational safety.
Superior for High Pressure: Engineered specifically for restrictive environments, such as complex ductwork networks, cooling coils, or HEPA-filtered cleanrooms.
EC Technology Integration: Pairing these impellers with Electronically Commutated (EC) motors unlocks unmatched energy savings and precise variable speed control.
Low Maintenance: The backward-tilted blade geometry naturally resists dust accumulation, making them highly reliable in particulate-heavy industrial settings.

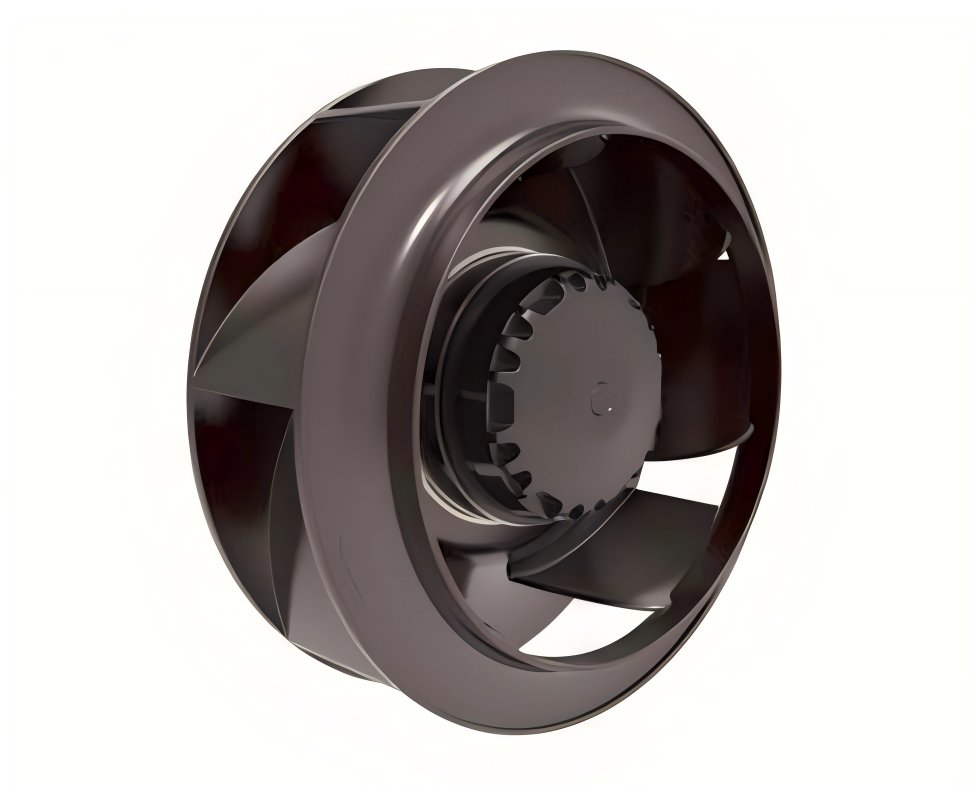

A Backward-curved Centrifugal Fan is a highly specialized mechanical device crafted to move air or other gases efficiently against severe system resistance. Unlike standard residential box fans that merely circulate free air, these industrial-grade components prioritize static pressure generation alongside aerodynamic stability. They serve as the mechanical backbone for modern commercial ventilation, air handling units (AHUs), and precision data center cooling systems.
The secret lies entirely in the impeller geometry. As the name explicitly states, the blades tilt away from the direction of the fan wheel’s rotation. If you observe the impeller spinning, the outer edge of each blade trails noticeably behind its inner edge.
Typically, these impellers feature between 8 to 16 blades. Aerodynamic engineers calculate the precise number and spacing to strike a perfect balance between airflow volume and acoustic dampening. The structural shape of the blades varies based on target efficiency and manufacturing budgets:
Flat Blades: Often referred to as backward-inclined, these are straightforward to manufacture. They provide solid, reliable performance for standard commercial applications.
Curved Blades: By introducing a distinct 3D arc to the blade profile, air glides much more smoothly across the surface. This dramatically reduces turbulent eddies and increases overall efficiency.
Airfoil Blades: Representing the pinnacle of fluid engineering, these blades mimic the cross-section of an airplane wing. They deliver the highest possible aerodynamic efficiency and the lowest noise levels.
For facility managers, the "non-overloading" power curve is arguably the most critical engineering advantage. It acts as a massive safety and cost-saving feature. With many traditional forward-curved designs, if the system resistance (static pressure) suddenly vanishes—perhaps a maintenance worker removes a dense filter—the volume of air moved (CFM) spikes rapidly. This forces the motor to draw excessive electrical current, leading to rapid overheating and catastrophic burnout.
This specific backward-swept geometry behaves entirely differently. Its brake horsepower (BHP) curve peaks near the middle of its operational range, then gradually declines as airflow reaches absolute maximum. Imagine a scenario on the job site where a plenum door is accidentally left wide open. System pressure drops to zero. Instead of frying the electrical components, the motor simply will never draw more power than its designated peak. Consequently, engineers can size the motor exactly for this peak power, eliminating the expensive practice of buying oversized motors just to cover worst-case operational anomalies.
Looking at current HVAC industry trajectories, there is a pronounced regulatory push toward decarbonization and stringent energy compliance. Directives like the European ErP (Energy-related Products) and updated US DOE standards are forcing a massive hardware evolution. Market analyses reveal a rapidly accelerating phase-out of legacy belt-driven systems in favor of direct-drive motorized impellers.
Facilities are increasingly retrofitting existing air handling units with high-efficiency centrifugal solutions to meet ESG (Environmental, Social, and Governance) goals. The trend heavily favors eliminating scroll housings entirely. Instead, engineers are deploying bare motorized impellers as "plug fans" inside pressurized plenums. This architectural shift not only reclaims valuable mechanical room footprint but also drastically reduces the parasitic energy losses associated with belt friction and restrictive volute casings.
Delivering consistent performance in demanding environments requires mastering fundamental fluid dynamics. By optimizing how kinetic energy transforms into static pressure, these systems improve total system airflow while aggressively minimizing wasted electrical energy.
The core working principle relies heavily on centrifugal force. Air is drawn axially straight into the center of the spinning impeller, commonly known as the "eye." Once trapped inside the wheel, the rapid rotation catches the air, accelerating it radially outward toward the perimeter.
Because the blades lean away from the rotation, the absolute velocity of the air leaving the impeller is relatively low compared to forward-cupping designs. This lower discharge velocity is a massive advantage. High-velocity air is inherently turbulent, chaotic, and difficult to push through tight spaces. By discharging the air at a lower velocity but packing it with higher static pressure, BN-A Series backward-curved centrifugal fans minimize energy lost to internal friction. For instance, whether you are utilizing a compact 133mm unit or a robust 250mm model, this smooth, forceful conversion allows the air to penetrate dense heating coils and extensive duct runs effortlessly.
Turbulence is the ultimate enemy of both electrical efficiency and acoustics in HVAC engineering. When air separates abruptly from a poorly designed fan blade, it creates stalling pockets. These manifest physically as wasted heat energy and excessive low-frequency rumbling.
The swept-back profile guarantees a smooth airflow transition across the entire length of the blade surface, significantly reducing boundary layer separation. While it is true that these units typically operate at higher rotational speeds (RPM) than their forward-curved counterparts, their superior aerodynamics generate far less chaotic turbulence. In high-pressure scenarios, this stable airflow is acoustically preferable, producing a cleaner sound profile that is much easier to attenuate with standard duct insulation.

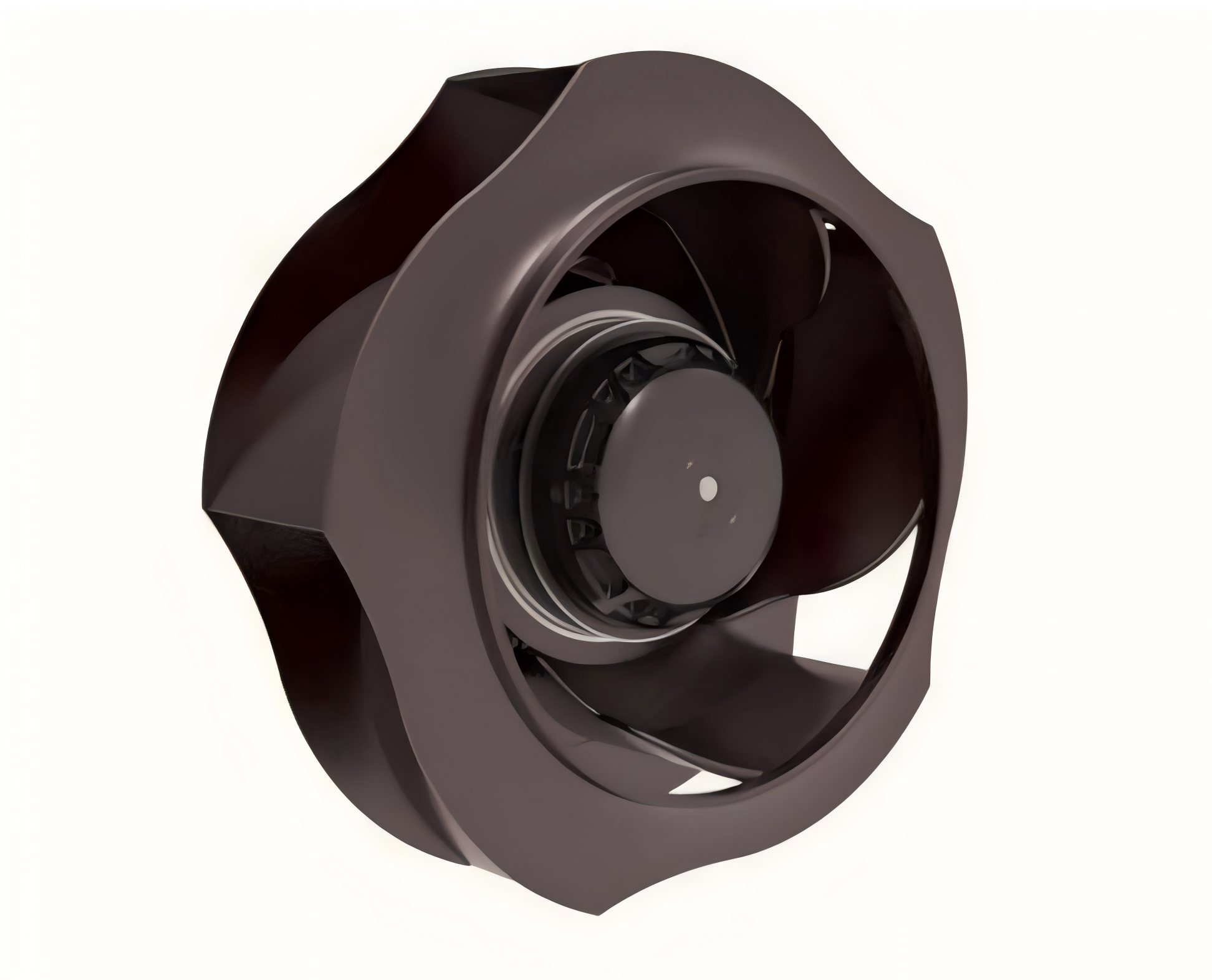

When designing an industrial ventilation system, mechanical engineers constantly face the decision between backward-curved and forward-curved technologies. Understanding the empirical differences between these two designs is paramount for specifying the correct equipment.
The most immediate visual contrast is the blade orientation. Forward-curved fans—often dubbed "squirrel cage" fans due to their tightly packed, shallow blades—curve toward the direction of rotation. They function like tiny scoops, catching the air and hurling it forward at high velocity. They excel at moving massive volumes of air, but only at low static pressures. In contrast, the backward-swept design features fewer, much larger blades that push firmly against the air, spinning faster to generate raw pressure.
Efficiency dictates operating costs. It's that simple. Thanks to the highly favorable aerodynamic profile, backward-swept models are generally 15% to 20% more efficient than forward-curved alternatives. In a commercial facility running ventilation 24/7, this double-digit efficiency gain translates to thousands of dollars in reduced utility bills.
Industrial air is rarely pristine. Facilities like commercial kitchens, textile plants, or manufacturing floors deal with constant airborne particulates. The tight spacing and cupped shape of forward-curved blades create dead-air pockets that rapidly trap grease, lint, and dust. This build-up throws the wheel out of balance and demands grueling, frequent cleaning schedules.
Furthermore, the open geometry and backward tilt of the competing design make it largely self-cleaning. As the wheel spins, centrifugal force combined with the smooth blade surface prevents debris from adhering. This natural shedding ability drastically reduces maintenance downtime.
Feature | Backward-Curved Centrifugal | Forward-Curved Centrifugal |
|---|---|---|
Blade Orientation | Tilted away from rotation | Tilted toward rotation |
Typical Speed (RPM) | High | Low |
Static Pressure | Very High | Low to Medium |
Efficiency | High (up to 85%) | Lower (typically 55-65%) |
Motor Overload Risk | None (Non-overloading curve) | High (Overloads if pressure drops) |
Dust Accumulation | Low (Self-cleaning tendency) | High (Requires frequent cleaning) |
Beyond comparing centrifugal types, engineers must often choose between axial and centrifugal airflow patterns. This fundamental choice dictates the entire physical architecture of the HVAC system.
The primary dividing line is the presence of system resistance. Axial fans move air parallel to the motor shaft, much like an airplane propeller. They are phenomenal at displacing massive volumes of air, but only when resistance is negligible. They are perfect for warehouse wall exhaust fans or cooling towers. Yet, the moment air must be forced through dense HEPA filters or chilled water coils, axial fans stall out. Centrifugal designs step in to provide the necessary brute-force pressure to overcome these severe obstacles without losing airflow.
Historically, centrifugal blowers required large, bulky scroll housings (volutes) to collect the air and funnel it into a duct. Modern industrial design has revolutionized this by utilizing motorized impellers as "plenum fans." Operating without a scroll housing, the fan sits directly inside the pressurized chamber of an AHU. This configuration eliminates cumbersome duct transitions. It allows air to discharge in a 360-degree radial pattern, offering unparalleled architectural flexibility for creating compact, high-performance equipment.
What makes a good fan great? The motor driving it. An EC (Electronically Commutated) motor is a highly advanced, brushless direct current (DC) motor that incorporates built-in electronics to convert alternating current (AC) utility power into DC power internally. An integrated circuit board precisely controls the commutation based on the exact microscopic position of the rotor. This eliminates the physical wear of traditional carbon brushes and avoids the magnetic slip losses inherent in standard AC induction motors.
When you pair a highly efficient aerodynamic impeller with an EC motor, the resulting unit becomes an absolute powerhouse of control. Traditional AC setups require bulky, expensive Variable Frequency Drives (VFDs) to alter their speed, often losing significant efficiency at lower RPMs. EC motors feature native 0-10V or PWM variable speed control right out of the box. A building management system can seamlessly ramp the fan up or down to match real-time occupancy demands. Upgrading to EC technology can yield additional energy savings of 30% to 50%, typically paying for the initial hardware cost within two years.
Because of their unique combination of high pressure, structural safety, and self-cleaning tendencies, these fans serve as the technology of choice for several critical industries:
HVAC and Air Handling Units (AHUs): Utilized extensively as plug fans, they provide continuous building ventilation, easily overcoming the static drag of heating coils, cooling fins, and extensive building ductwork.
Data Center Cooling: Computer Room Air Conditioning (CRAC) units demand precision. These fans generate the intense pressure necessary to force icy air under raised floors and up through the densely packed hot aisles of modern server racks.
Cleanrooms and HEPA Filtration: Pharmaceutical labs and semiconductor fabs require ultra-clean environments. Pushing air through tightly woven HEPA or ULPA filters causes massive pressure drops, a challenge this fan geometry handles effortlessly.
Telecommunications: 5G base stations and outdoor electronic cabinets generate intense localized heat. High-pressure capabilities ensure cooling air penetrates deep into the heat sinks of densely packed microprocessors.
Selecting the appropriate air movement equipment requires a systematic, data-driven approach. Because these components are deeply integrated into larger systems, an incorrect specification leads to underperformance, structural vibration, or premature mechanical failure. Use the following operational parameters to evaluate your needs before contacting a supplier.
The foundational step is defining your exact aerodynamic footprint. You must calculate two primary metrics: volumetric airflow (measured in CFM or m³/h) and total system resistance (measured in inches of water gauge or Pascals). Every ventilation network possesses a unique "system curve," representing the pressure required to push air through internal obstacles. As airflow increases, resistance increases exponentially.
Engineers must plot this system curve against the manufacturer’s published fan performance curve. The exact intersection is your "operating point." A properly sized unit will have its peak efficiency zone aligned closely with this dot on the graph.
The ambient physical environment dictates the chemical and structural composition of the fan blades. For standard commercial HVAC, cleanrooms, or telecom cabinets, Polyamide (Plastic/PA66) is lightweight, corrosion-resistant, and dampens acoustic vibrations. For marine environments or data centers, Aluminum Alloy offers excellent strength-to-weight ratios and thermal conductivity. For heavy industrial ventilation, Galvanized Steel provides high structural integrity.
Specifically, matching the physical dimensions to the enclosure is critical. For instance, integrating an AC133-250mm Backward-curved Centrifugal Fan into your system requires ensuring adequate clearance between the fan's radial exhaust and the nearest cabinet wall—typically a distance of at least half the diameter of the impeller. Insufficient clearance chokes the airflow and entirely negates the high-efficiency benefits of the design.
Your control requirements and facility infrastructure will dictate the motor type. Traditional AC motors are highly dependable and budget-friendly. For systems requiring constant, unvarying airflow, AC provides a highly stable and cost-effective solution. DC motors are reserved primarily for mobile or telecom applications running on battery banks. EC motors are the premium choice for variable speed demands, strict energy compliance, and automated BMS integration.
The backward-curved centrifugal fan stands as the ultimate engineering solution for high-efficiency, high-pressure air movement. By fundamentally altering how kinetic energy is converted into static pressure, it handles severe system resistance without ever threatening to overload the motor. Whether you are outfitting a sprawling commercial AHU or a hyper-dense data center, this technology ensures stable, quiet, and reliable operation. Evaluate your precise airflow and static pressure needs today, and invest in a fan architecture designed to pay for itself through reduced maintenance and lower utility costs.
Ready to upgrade your system's efficiency? Explore the high-performance backward-curved centrifugal fan series and find the exact specifications for your next project at EBST Fans.
No, it does not strictly require a traditional scroll housing. While they can certainly be mounted inside a volute to direct air in a single, focused direction, they are incredibly effective when utilized as "plug fans" or "plenum fans." In this setup, the motorized impeller operates completely bare inside a sealed AHU cabinet. It exhausts air radially in a 360-degree pattern, pressurizing the entire internal space, which then naturally forces the air down the connected ductwork. This housing-free approach saves massive amounts of physical space and simplifies routine maintenance.
In high-static-pressure applications, they generally produce a much more favorable acoustic profile. While it is true they spin at higher RPMs, their optimized aerodynamic blade design allows air to slide off the trailing edges smoothly. This minimizes stalling and air separation—the primary culprits behind low-frequency structural vibration and rumbling noise. The noise they do generate tends to be higher in frequency, making it significantly easier to muffle using standard acoustic foam or duct liners.
Yes, they are highly capable of thriving in environments with moderate airborne particulate matter. Because the blades tilt away from the rotation, they do not "cup" the air. As the wheel spins at high velocity, centrifugal force naturally flings dust, grease, and dirt off the smooth blade surfaces. This makes the unit largely self-cleaning. Conversely, forward-curved fans easily trap lint and debris, requiring constant cleaning to prevent severe imbalance.
While often used interchangeably in casual industry chatter, they refer to two distinct manufacturing geometries that share the same non-overloading electrical traits. A "backward-inclined" fan features flat, straight blades that are simply tilted backward. A "backward-curved" fan features blades that possess a distinct, engineered 3D arc or airfoil shape. The curved design is aerodynamically superior, offering slightly higher static efficiency and quieter operation, though it is generally more complex and expensive to produce than the flat inclined version.
Speed control depends entirely on the motor type attached to the impeller. If you are using a standard AC induction motor, you will need to install a Variable Frequency Drive (VFD) to adjust the frequency of the electrical power. However, if the fan is equipped with an EC (Electronically Commutated) motor, speed control is built-in. You can easily adjust the RPM using a simple 0-10V DC control signal, a PWM (Pulse Width Modulation) signal, or via Modbus communication directly from your Building Management System (BMS).
When properly sized and maintained, a high-quality unit can operate continuously for 40,000 to over 70,000 hours (roughly 5 to 8 years of 24/7 operation). The limiting factor is rarely the impeller itself, but rather the motor bearings. Because the backward-curved design naturally sheds dust and resists falling out of balance, the bearings experience far less mechanical stress and vibration compared to forward-curved alternatives. Ensuring the fan operates within its designed temperature range and keeping the ambient environment reasonably free of corrosive chemicals will maximize its service life.
