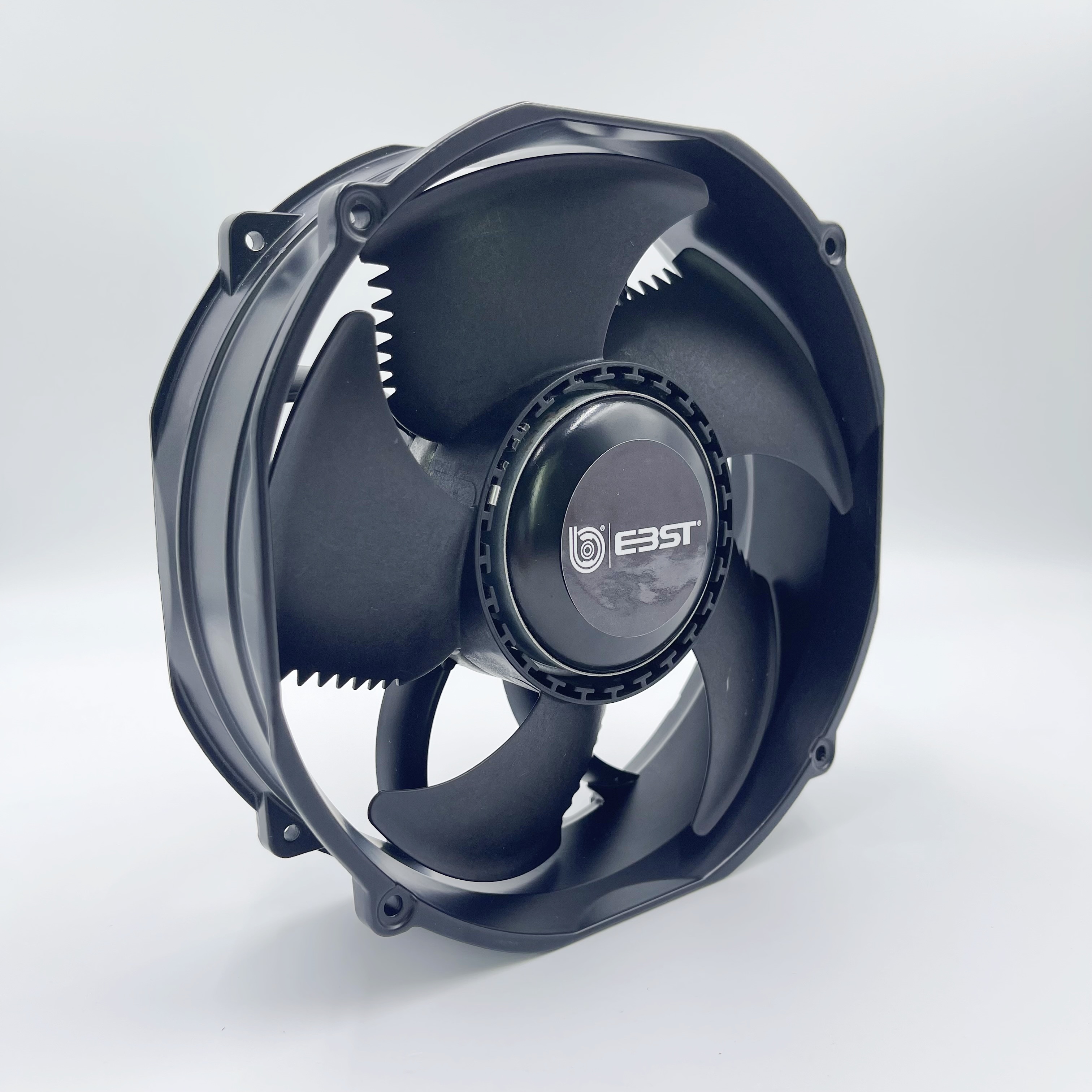

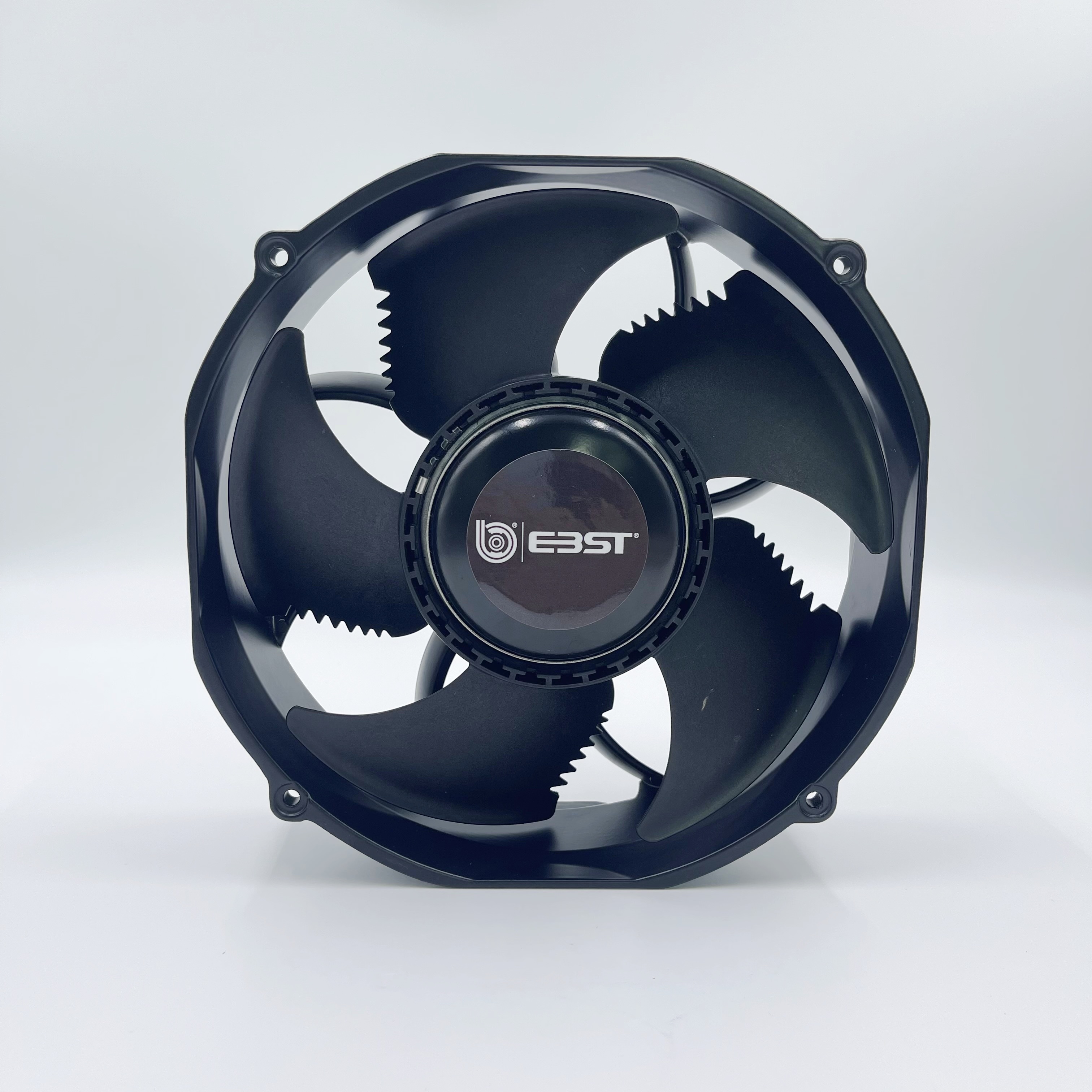

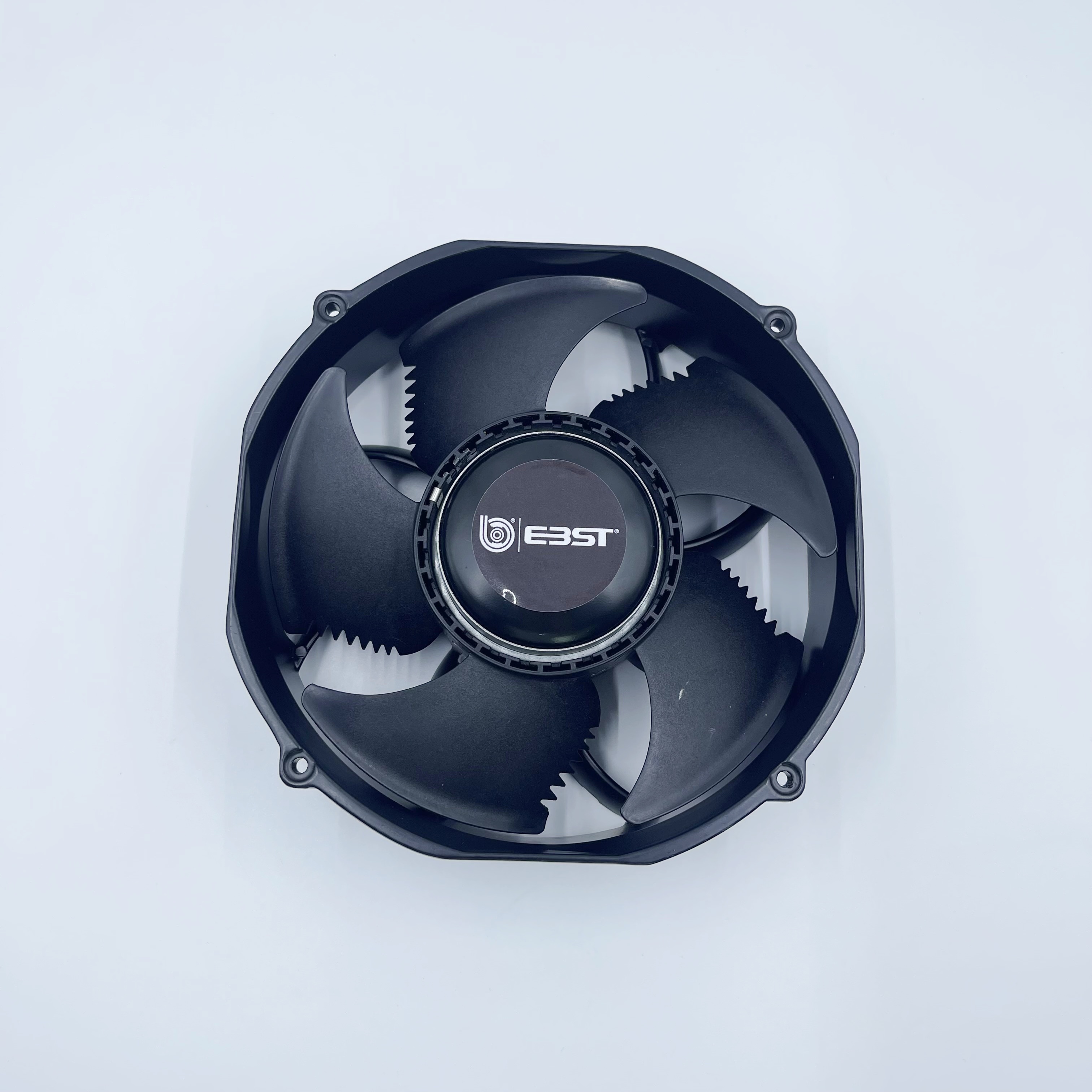

180/200-D Series Axial Fan with Nylon Impeller

	Model	Curve	Voltage [V]	Max Current [A]	Speed [rpm]	Max Power [W]	Max Airflow [m3/h]	Noise [dB(A)]
	A180P.D002	A	48	4.70	5900	227	1335	78
	A200P.D011	A	48	1.5	3605	72	1070	61

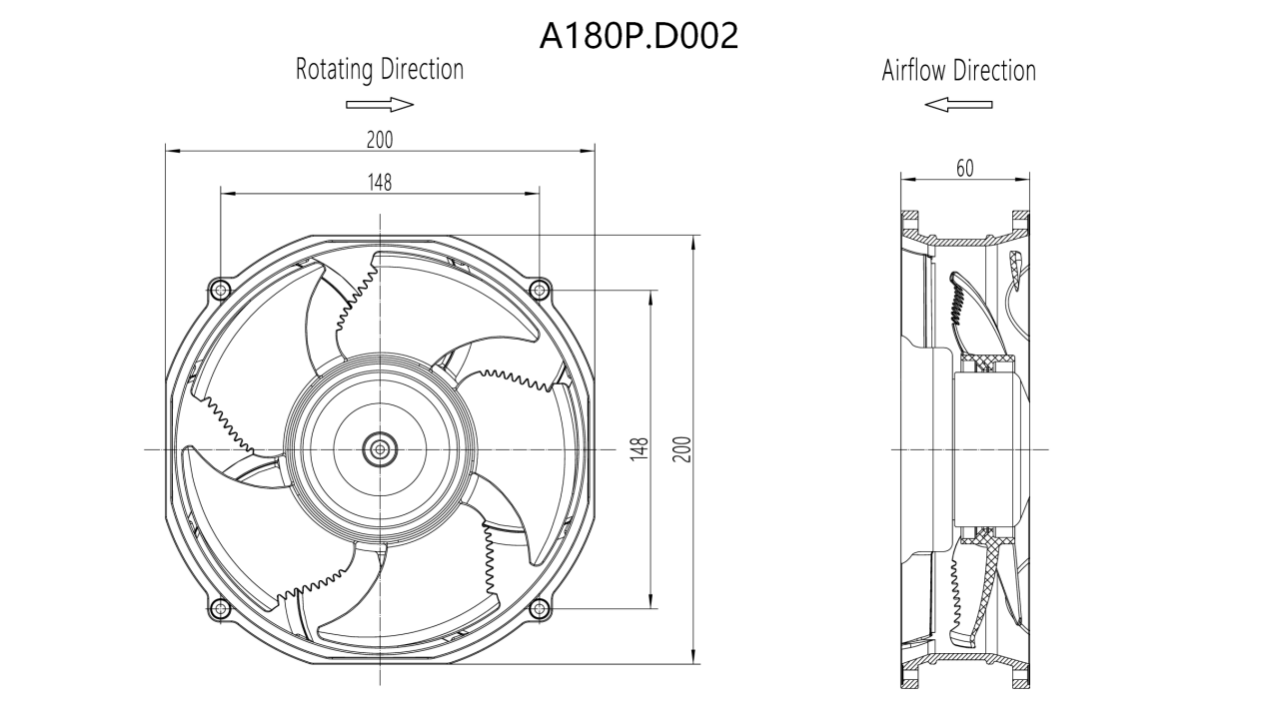

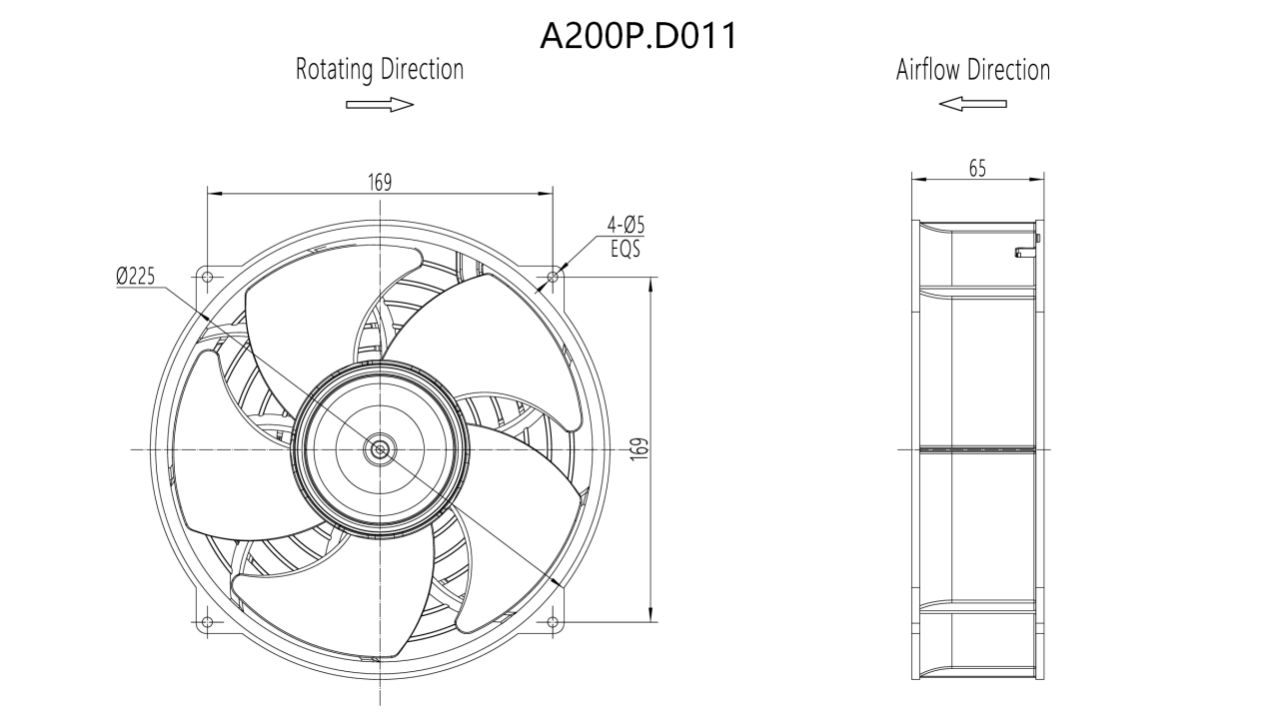

DIMENSION

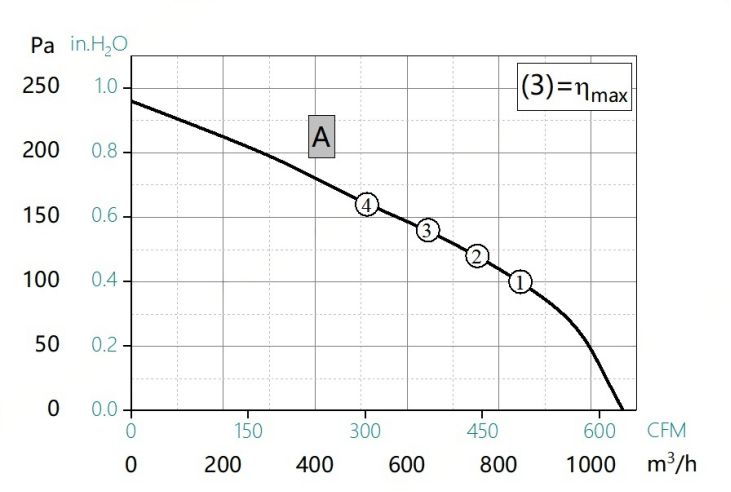

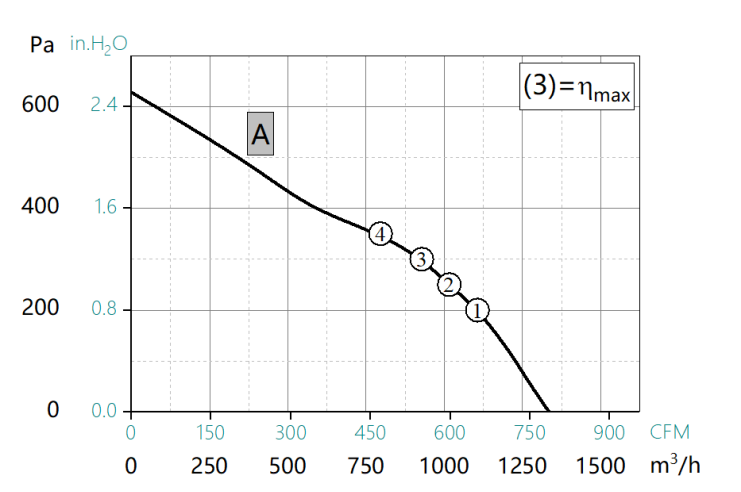

Airflow-static pressure curve (P-Q)

A180P.D002	A200P.D011

Core Selling Points

1.Exclusive 48V DC, Wide Application

Powered by 48V DC across the series, suitable for communication cabinets, energy storage systems, industrial equipment, vehicle‑mounted and other DC‑powered scenarios, safe and stable.

2.Strong Airflow, High Heat Dissipation Efficiency

A180P.D002 delivers airflow up to 1335m³/h and A200P.D011 up to 1070m³/h, with smooth static pressure curves for fast heat dissipation and ventilation of high‑load equipment.

3.Industrial‑Grade Specifications, High Durability

Supported by high current and designed with high rotational speed, it meets heat dissipation requirements in harsh industrial environments and offers long service life.
