As general mechanical equipment, industrial fans are widely applied in major energy-intensive industries including iron and steel, non-ferrous metals, chemical engineering, building materials and power generation. Statistics show fan systems account for 15% of total global industrial energy consumption and over 10% of China’s industrial electricity use, with an annual power consumption of about 3 trillion kWh. The energy efficiency of fan systems directly determines the carbon emission reduction results of the industrial sector, making them a critical technical tool for delivering the "carbon peaking and carbon neutrality" strategic goals.
 |  |
At present, the overall operating efficiency of industrial fans in China remains relatively low. Measured data indicates only 12% of fans operate at an efficiency above 80%, while 60% run below 60%. In high-energy-consuming sectors such as aluminum processing and iron and steel, some outdated fans only achieve an efficiency of 50%–70%, a 20 to 40 percentage point gap compared with new high-efficiency fans (85%–91% efficiency), which represents enormous energy-saving potential.
1.Three-Dimensional Flow Impeller Technology

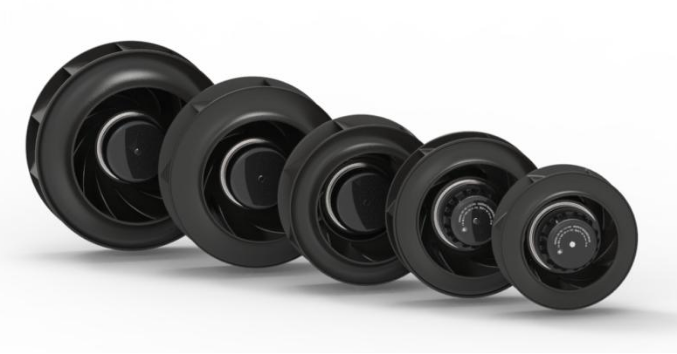

Adopting 3D twisted blade designs to effectively reduce eddy current losses, this technology boosts efficiency by 8% to 10%. It has been widely deployed on dust removal fans in the iron and steel industry, with measured current reductions reaching 32%.

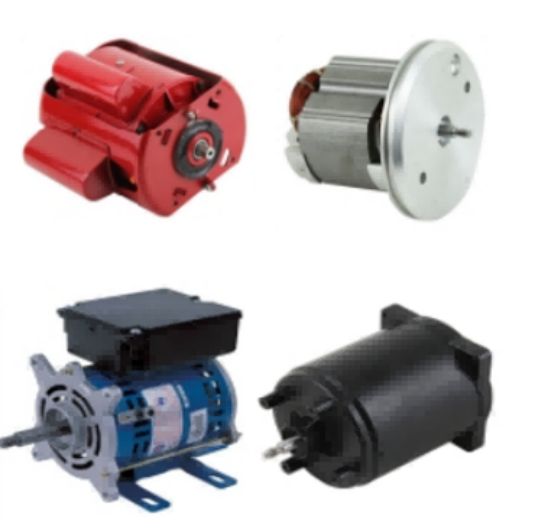

2.Permanent Magnet Synchronous Motors
These motors deliver efficiency exceeding 90%. Under partial load conditions, their energy efficiency is 20% to 30% higher than traditional asynchronous motors, with excellent adaptability to variable frequency speed regulation.
3.Air Bearing Technology
Featuring contact-free suspension design to drastically cut frictional losses, this technology lifts overall energy efficiency by 30% to 50%, suitable for continuous operation scenarios such as sewage aeration.

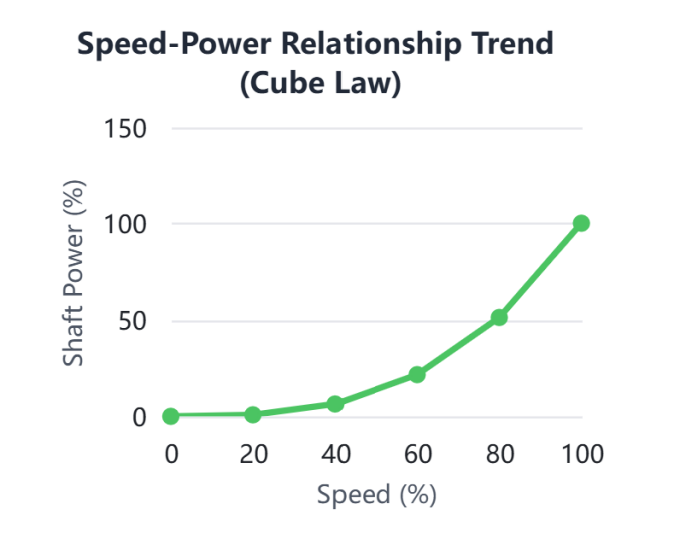

Based on the fundamental law of fluid machinery that shaft power is proportional to the cube of rotational speed, a 20% reduction in rotational speed can cut energy consumption by 49%. This renovation solution is easy to implement with clear energy-saving effects, and typical projects see a payback period of less than 2 years.
1.Pipe Network System Optimization
Following the design principle of "short, straight and thick", the number of elbows shall be rationally controlled, the curvature radius shall be no less than 5 times the pipe diameter, the flow velocity inside stations shall be limited to within 5 m/s, and system pressure drop shall be controlled below 10%. Replacing traditional tree-shaped pipe networks with annular ones can cut leakage losses significantly. After implementation at one project, the leakage rate dropped from 25% to 5%, delivering an annual power-saving rate of 15%.

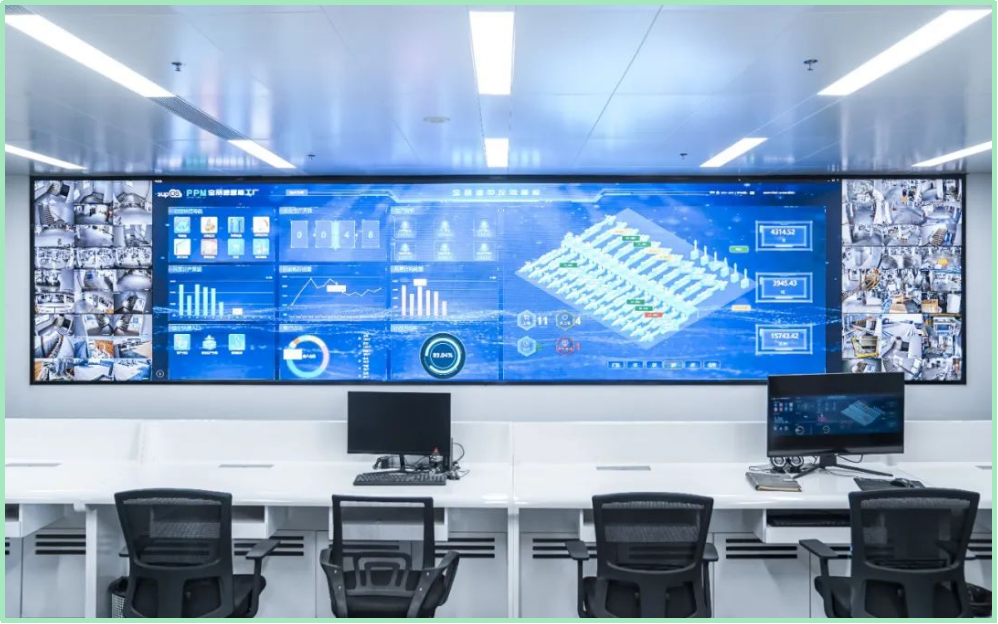

2.Intelligent Joint Control Technology
An AI dynamic pressure regulating system is introduced to match load demands in real time, keeping pressure fluctuations within ±0.01 MPa and raising equipment loading rate to 95%.
3.Digital Energy Efficiency Management
A real-time monitoring system is established in compliance with GB/T 45785-2025 standards to realize dynamic specific power monitoring and graded energy efficiency management.
The Comprehensive Work Plan for Energy Conservation and Emission Reduction during the 14th Five-Year Plan clearly stipulates that by 2025, China’s energy consumption per unit GDP shall drop by 13.5% compared with 2020, and carbon dioxide emissions per unit GDP shall fall by 18%. High-efficiency fan technologies are included in the National Catalogue of Recommended Industrial Energy-Saving Technologies and Equipment as a key promotion priority.
National Standards: Standards including GB/T 1236 Industrial Fans – Performance Testing Using Standardized Test Ducts drive graded energy efficiency management.
International Standards: EU standards such as EN50598 mandate carbon footprint disclosure for fans, creating reverse pressure through international competition.
Energy Efficiency Classes: IE3 and IE4 high-efficiency motors are gradually replacing low-efficiency IE1 products, with continuously rising market penetration.
Industry forecasts predict that by 2030, China’s market scale for fan energy-saving renovation will exceed 50 billion RMB, contributing 15% of total industrial carbon emission reductions. If high-efficiency fans account for 30% of total installations, annual carbon dioxide emission reductions will surpass 160 million tons, equivalent to planting 9 billion trees in ecological benefits.
Through the collaborative path of "technological innovation – system optimization – policy implementation", industrial fan energy saving has become a core pillar driving the green and low-carbon transformation of the industrial sector. Enterprises should incorporate fan energy-saving renovation into their medium- and long-term development strategies to fully unlock energy efficiency dividends and contribute to the timely delivery of the "dual carbon" goals.
Note: This paper is compiled based on public policy documents and industrial technical materials, for technical exchange and reference only.
