30% IDC Energy Goes To Fans, Retrofit for Million Annual Savings

Is your data center PUE up to standard, yet power bills remain sky-high? The culprit may lie in your fans.

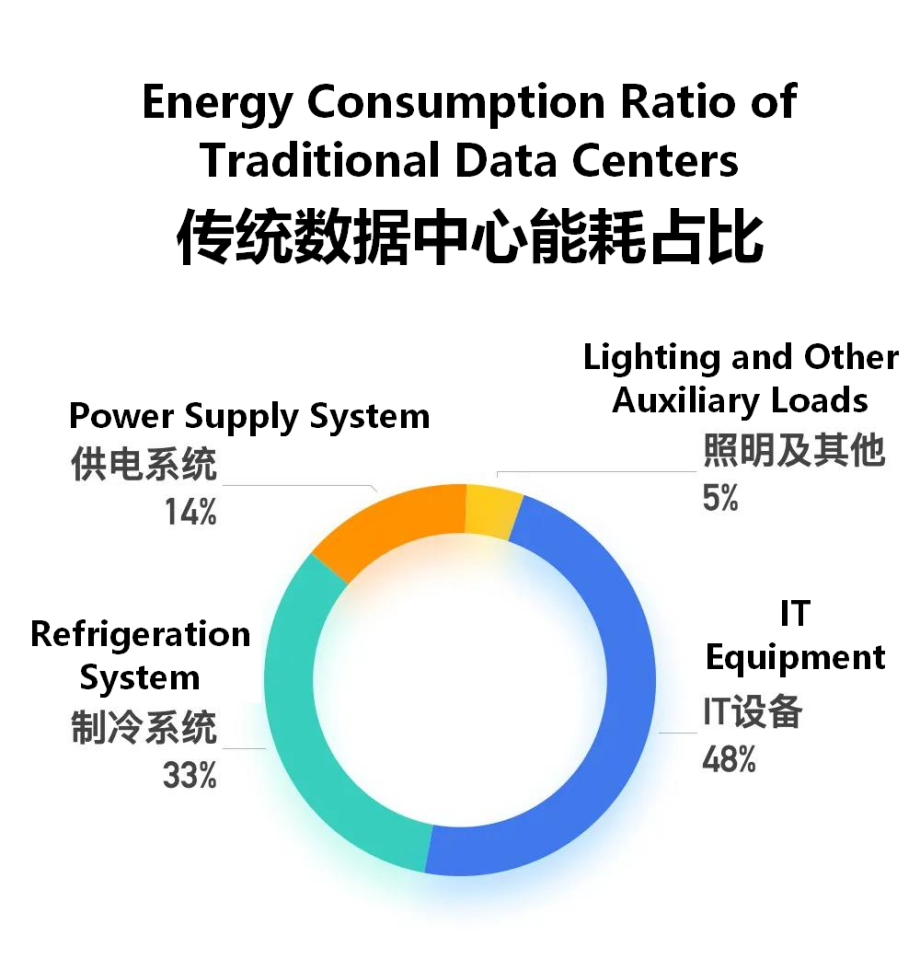

Fans serve as core equipment for air circulation and heat exhaust within data center cooling systems. Industry research shows that conventional AC fans consume up to 30% of energy in CRAC units, ranking as the third-largest power consumer after IT hardware and compressors.

Many operators overlook the hidden energy cost of fans after finishing PUE optimization. Meeting PUE targets does not equal optimal electricity expenditure. Once PUE drops from 1.6 to 1.3, further PUE reduction yields diminishing returns. Fan retrofitting, by contrast, delivers a low-cost, high-return energy-saving solution.

I. Why Are Conventional AC Fans So Energy-Consuming?

Traditional AC fans suffer from three critical drawbacks:

1.Constant-speed operation

Fans run at full speed regardless of load conditions, wasting over 50% electricity under light loads.

2.Rough control logic

Only full-on or full-off modes are available without precise speed regulation, generating redundant cooling and unnecessary power loss.

3.Low energy efficiency

Low motor efficiency and heavy mechanical losses lead to annual power consumption of hundreds of thousands kWh per single fan.

II. EC Fans: No Room Renovation, Simply Replace Fans for 30%-60% Energy Savings

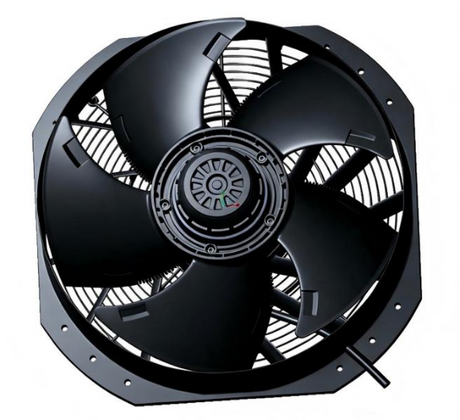

What is an EC Fan?

EC fans adopt permanent magnet brushless DC motor and intelligent closed-loop control technology. Linked with the data center environment via 0-10V signals or Modbus protocols, they support stepless speed regulation from 0 to 100% with a response time far less than 1 second.

Three Core Advantages of EC Fans:

1.Dramatically Improved Energy Efficiency: 30%–60% power savings, up to 70% under certain operating conditions

In accordance with the fan affinity laws, fan power is proportional to the cube of rotational speed. When speed drops to 80%, power consumption falls to 51.2%.

Field test case: AC fan power 24kW → EC fan power 16.5kW, saving over RMB 100,000 in electricity fees per unit annually.

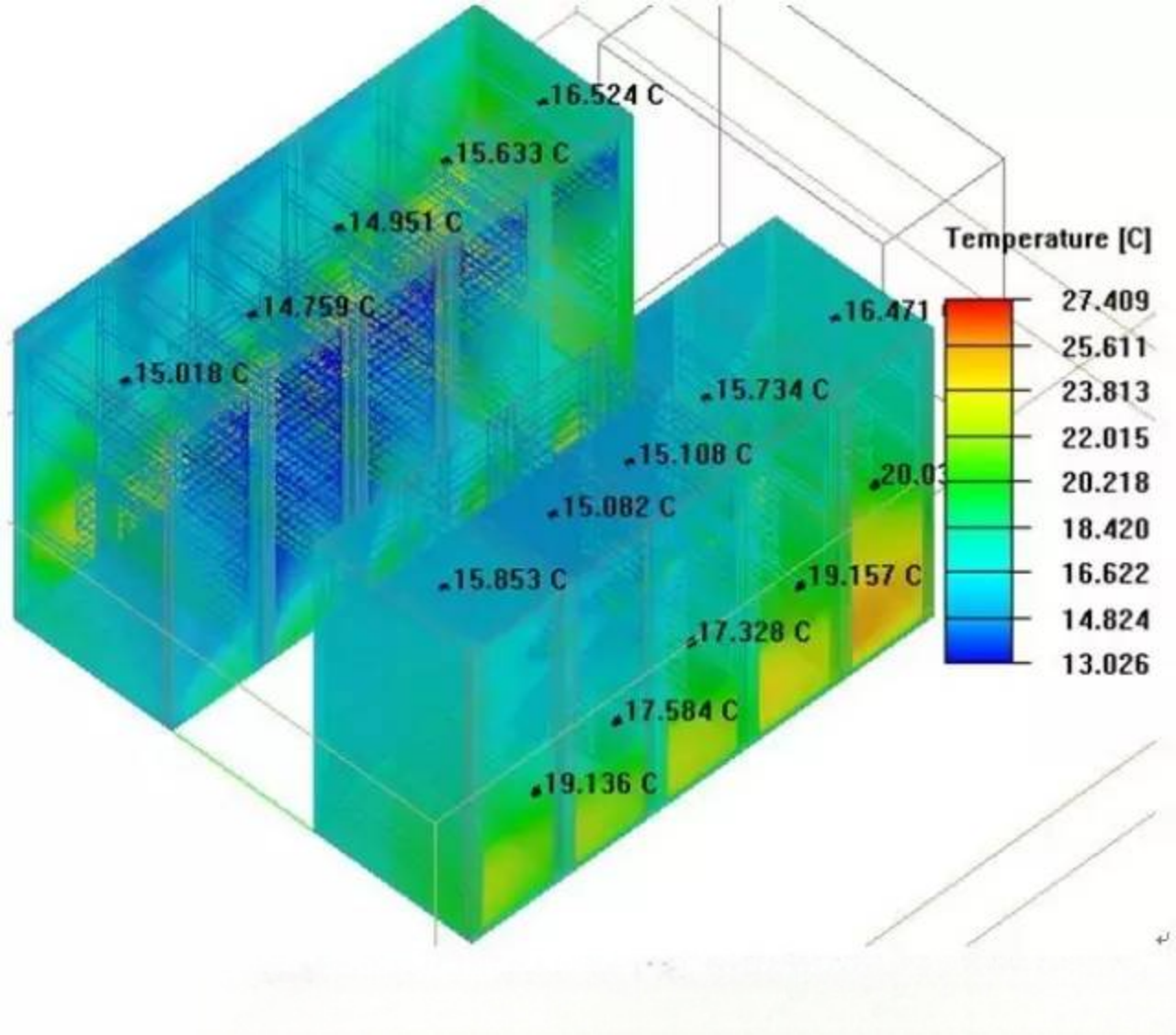

2.Precise Temperature Control: Narrow room temperature difference down to ±0.8℃

Intelligently senses load fluctuations and supplies air on demand to eliminate energy waste.

Equipment failure rate reduced by 40%, with MTBF (Mean Time Between Failures) exceeding 60,000 hours.

3.Maintenance-free Design: Over 50% Reduction in Operation & Maintenance Costs

Without carbon brush wear and tear, annual maintenance expenses are drastically cut.

Modular retrofitting enables complete replacement and commissioning within several hours without disrupting business operations.

III. Real-World Case: Annual Electricity Savings of Millions, Payback Period Within 1 Year

Case 1: Air Conditioning Energy-Saving Retrofit for a Large-Scale Data Center

Return on Investment: The equipment cost is fully recovered within one year through energy savings, with long-term operation and maintenance costs cut by over 50%.

Case 2: Fan Retrofit for a Financial Data Center

After renovation, the operating power consumption of fans is reduced by 50%. Each air handling unit saves RMB 28,000 in electricity expenses every year, while cutting annual CO₂emissions by 23.6 tons, supporting the enterprise’s green transition.

IV. Why Take Action Now?

1.Policy Incentives: Ever-tightening mandatory PUE benchmarks

• Hong Kong: All new large-scale data centers built after 2026 must maintain a PUE below 1.25

• Germany: Data centers commissioned after 2026 are required to hit a PUE of 1.2

• Mainland China: Nodes under the East Data, West Computing initiative demand a PUE far below 1.25; first-tier cities require a PUE below 1.3

2.Cost-driven factor: Surging electricity prices deliver extremely high ROI for fan retrofits

Calculated based on a data center equipped with 100 fans:

• Annual electricity savings per unit: RMB 100,000 – 240,000

• Total annual savings for 100 units: RMB 10 million – 24 million

• Payback period of renovation investment: 0.6 – 1.5 years

3.Mature Technology: EC Fans Widely Deployed in Commercial Scenarios

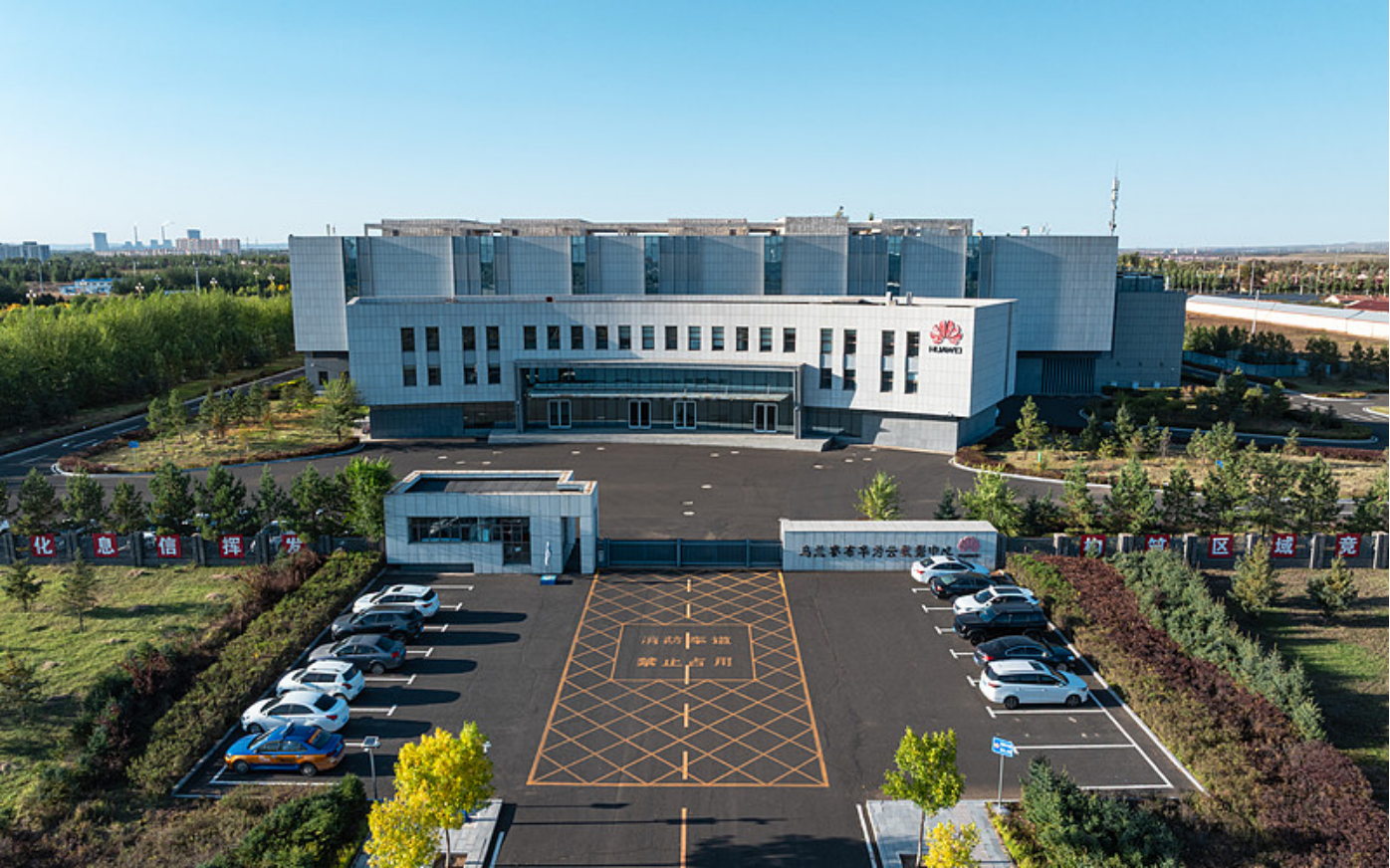

Leading enterprises including Huawei, Tencent and Alibaba have fully adopted EC fan technology in their data centers. For instance, the Ulanqab Data Center of Huawei utilizes high-efficiency fan systems, achieving an annual average PUE as low as 1.15 and saving 4.91 million kWh of electricity per year.

V. How to Carry Out Fan Energy-Saving Retrofit?

Step 1: Energy Consumption Audit

Precisely measure power consumption, running hours and load curves of existing fans

Prioritize fans with high energy consumption

Step 2: Solution Design

Select matching EC fan models (centrifugal fans / axial fans)

Design intelligent control strategies (temperature linkage, load linkage, group control linkage)

Step 3: Modular Replacement

Construction without system shutdown; single-unit retrofit takes only several hours

Compatible with existing air ducts and control systems

Step 4: Intelligent Operation & Maintenance

Connect to DCIM platform for real-time fan efficiency monitoring

AI predictive maintenance with early fault warning

When your data center hits a PUE optimization bottleneck, fan retrofitting becomes the most cost-effective cost-cutting solution. No large-scale overhaul of room structures or business downtime is required. Simply upgrade conventional AC fans to intelligent EC fans to achieve the following benefits:

✅ 30%–60% energy saving

✅ Annual electricity savings reaching millions of RMB

✅ Full investment payback within one year

✅ 40%–70% reduction in failure rate

✅ Additional PUE reduction of 0.1–0.2

Against the backdrop of dual carbon goals and green computing development, energy-saving fan retrofitting is no longer an optional upgrade, but a mandatory measure.

Note: This paper is compiled based on public policy documents and industrial technical materials, for technical exchange and reference only.
