EBST
Photo | Model | Voltage [V] | Frequency / Max Current [Hz] / [A] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] |
 | B355M.D001 | 48 | 5.0 | 1550 | 240 | 2960 | 71 |
 | B355M.E001 | 230 | 50/60 | 2055 | 645 | 3915 | 74 |
 | B400M.E004 | 230 | 50/60 | 1520 | 650 | 5215 | 75 |
 | B400M.E009 | 380 | 50/60 | 2060 | 1480 | 6700 | 77 |
 | B400M.E021 | 380 | 50/60 | 2745 | 3585 | 8305 | 85 |
B400M.E019 | 380 | 50/60 | 2405 | 2700 | 7485 | 81 | |
 | B450M.E001 | 380 | 50/60 | 1725 | 1340 | 7455 | 79 |
 | B450M.E009 | 380 | 50/60 | 2550 | 5350 | 15202 | 95 |
 |  |  |
 |  |  |

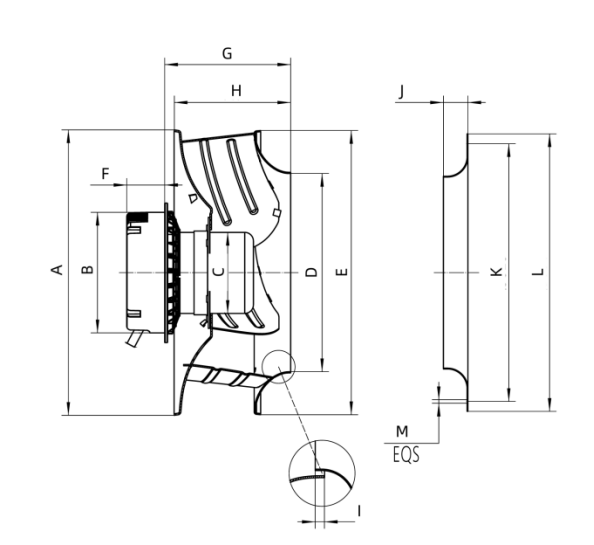

Model | A | B | C | D | E | F | G | H | I | J | k | L | M |
B355M.D001 | ∅360 | / | ∅102 | ∅250 | ∅358 | / | 162 | 147 | 4 | 31 | ∅325 | ∅350 | 6 - ∅4.5 |
B355M.E001 | ∅360 | ∅152 | ∅102 | ∅250 | ∅358 | 56 | 159 | 147 | 4 | 31 | ∅325 | ∅350 | 6 - ∅4.5 |
B400M.E004 | ∅420 | ∅152 | ∅102 | ∅300 | ∅420 | 56 | 194 | 181 | 10 | 65.5 | ∅345 | ∅370 | 4- ∅4.5 |
B400M.E009 | ∅420 | ∅166 | ∅138 | ∅300 | ∅420 | 75.8 | 195 | 181 | 10 | 65.5 | ∅345 | ∅370 | 4- ∅4.5 |
B400M.E021 | ∅460 | ∅226 | ∅188 | ∅326 | ∅475 | 100 | 300 | 245.5 | 10 | 51 | ∅245 | ∅450 | 4- ∅10.5 |
B400M.E019 | ∅460 | ∅226 | ∅188 | ∅326 | ∅475 | 100 | 300 | 245.5 | 10 | 51 | ∅245 | ∅450 | 4- ∅10.5 |
B450M.E009 | / | ∅231 | ∅188 | ∅360 | / | 100 | 322 | 257 | 10 | 72 | ∅445 | ∅480 | 6 - ∅9 |
B450M.E001 | ∅465 | ∅166 | ∅138 | ∅300 | ∅465 | 75.6 | 233.5 | 206 | 10 | 70 | ∅425 | ∅450 | 6 - ∅9 |
Dual EC/DC Drive：Offers EC intelligent speed regulation and DC direct drive options. Low operation loss realizes outstanding energy saving, perfectly fitting energy-efficient operation of air conditioners.

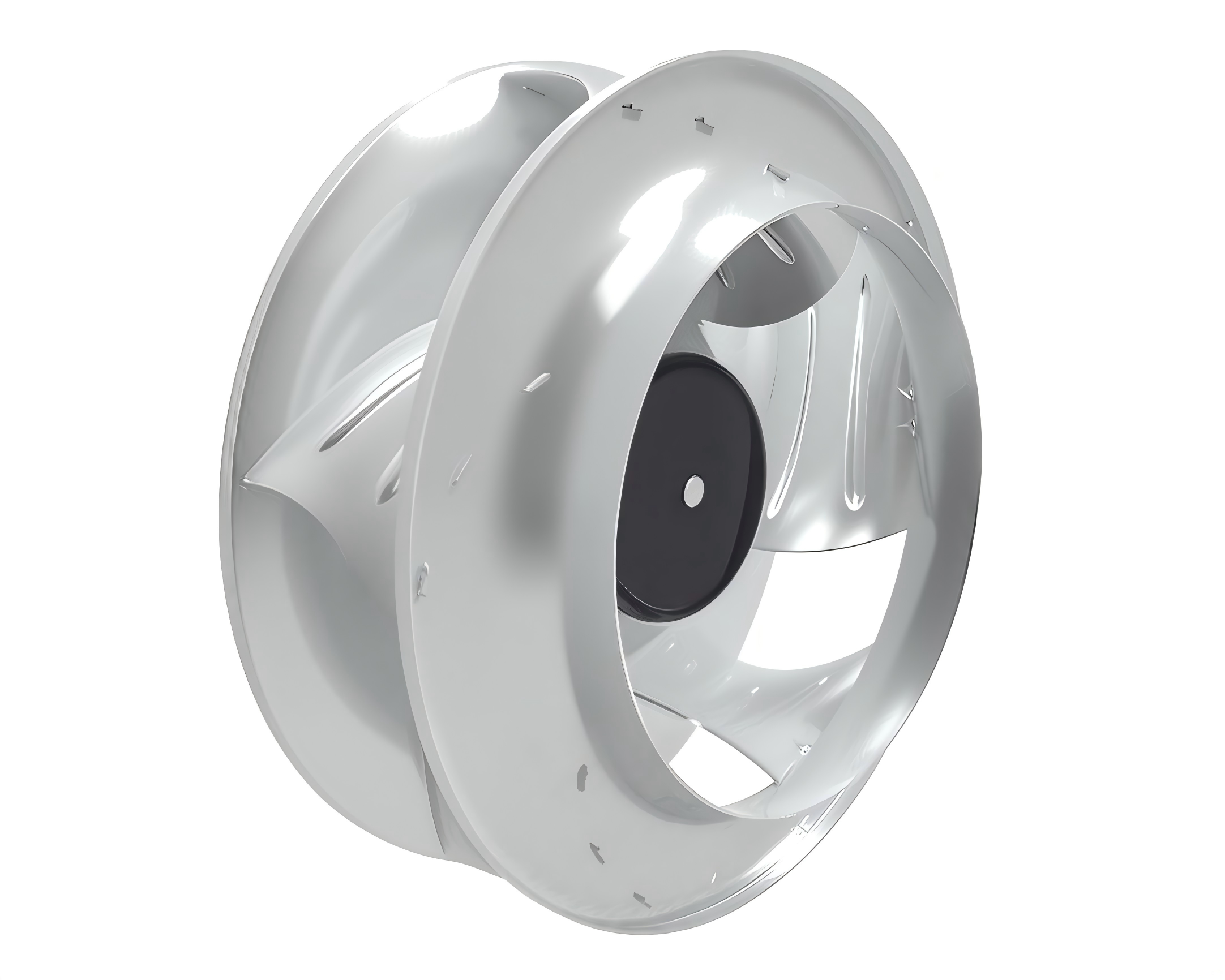

All-metal Impeller：Features high structural strength and rigidity. The fan wheel resists deformation, runs steadily at high speed for a long time and enjoys a longer service life.
Diversified Sizes：Complete series of 355/400/450mm models are available. It matches various row-based air conditioners with different air volume and static pressure requirements for flexible selection.
Centrifugal Air Duct Design：Delivers high static pressure and concentrated airflow, realizing targeted short-distance air supply for row-based air conditioners and boosting heat exchange efficiency in data centers.
High Air Volume：Effectively dissipates heat for dense server cabinets, eliminates local hotspots and keeps equipment running at a constant temperature.
Smooth Airflow：Minimizes air turbulence and running noise to create a quieter operating environment.
Heat & Aging Resistant Impeller：Outperforms plastic impellers in heat resistance and airflow impact resistance, suitable for long-term high-temperature operating environment inside air conditioners.
Vibration & Loosening Resistance：Optimized dynamic balance ensures no obvious vibration during prolonged continuous operation and reduces failure risks.
Dustproof & Durable Structure：Compact and fully enclosed design prevents dust accumulation, maintains stable performance and extends maintenance cycles.
Intelligent Speed Regulation：Supports stepless speed adjustment and signal linkage. It works with the air conditioner temperature control system to adjust speed on demand for higher temperature control accuracy.

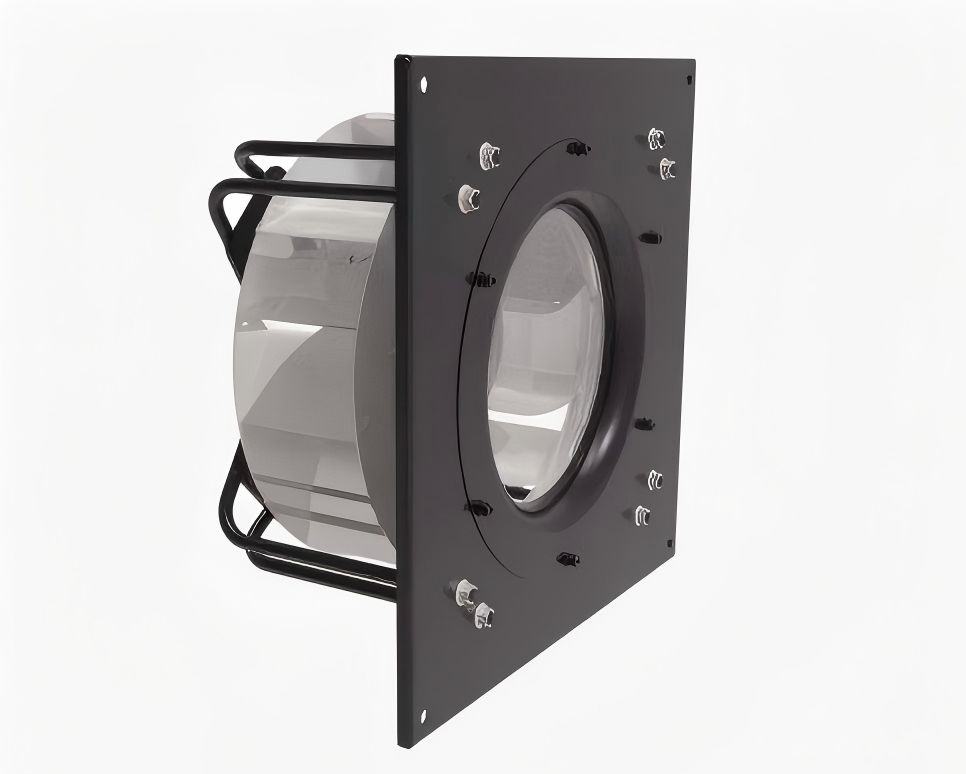

Standardized Design：Universal mounting holes and dimensions ensure great compatibility with mainstream row-based precision air conditioners for easy installation and replacement.
Low Failure Rate：The combination of high-quality motor and metal impeller simplifies maintenance and greatly reduces downtime risks of data centers.

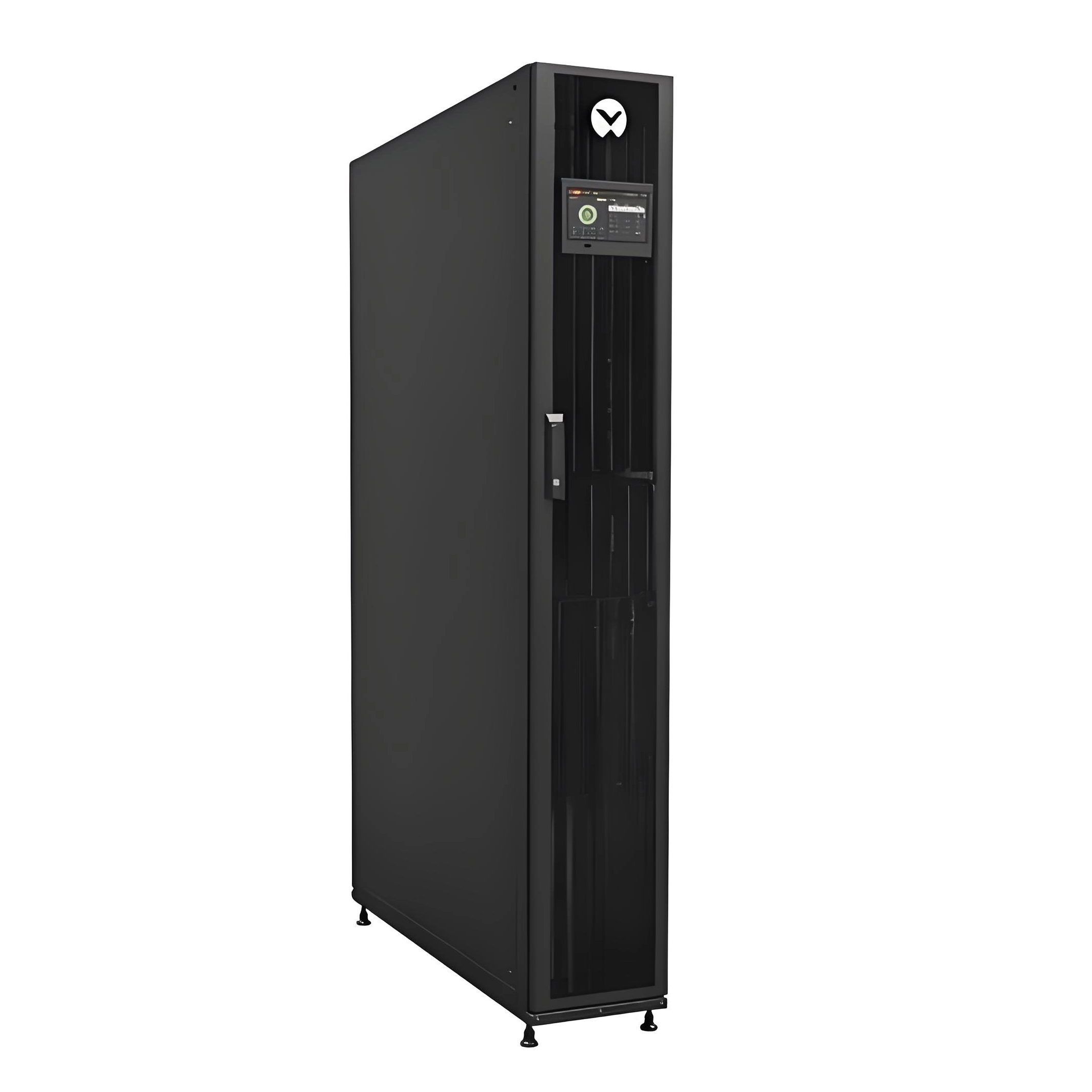

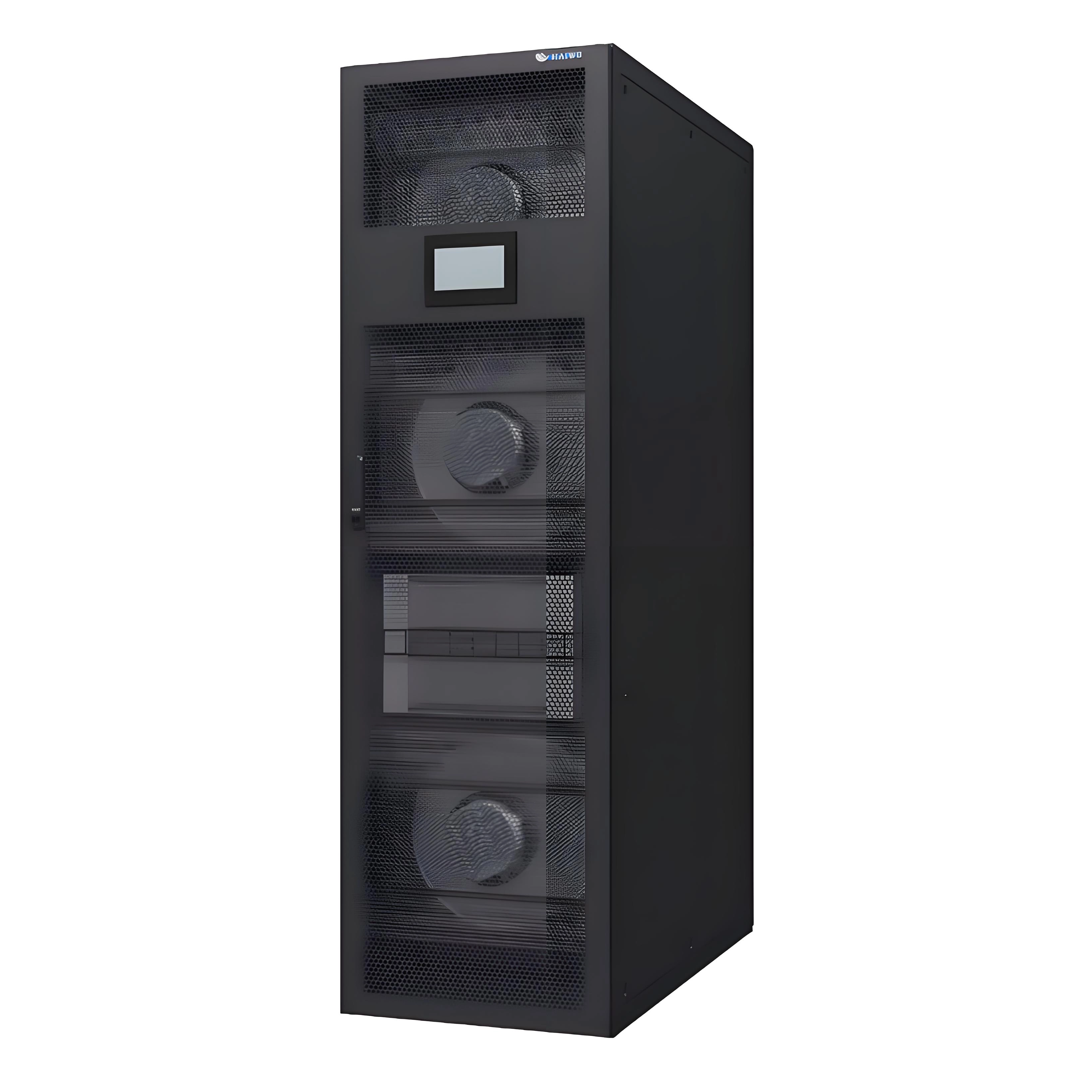

Custom-developed for row-based air conditioners in data centers. It fully meets three core demands: short-distance in-row air supply, high-density heat dissipation and 24/7 non-stop operation, acting as a highly reliable supporting fan for data center temperature control systems.
