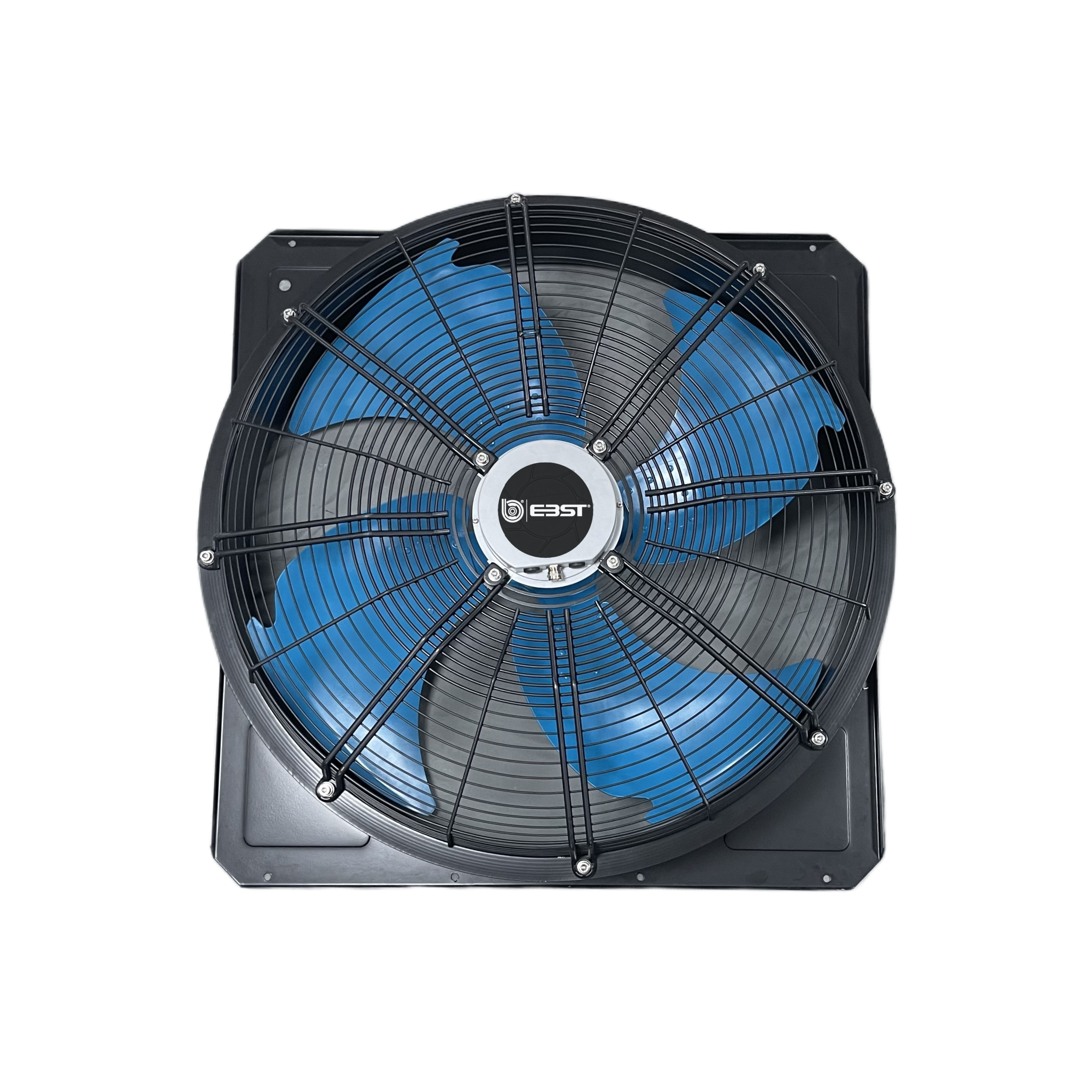

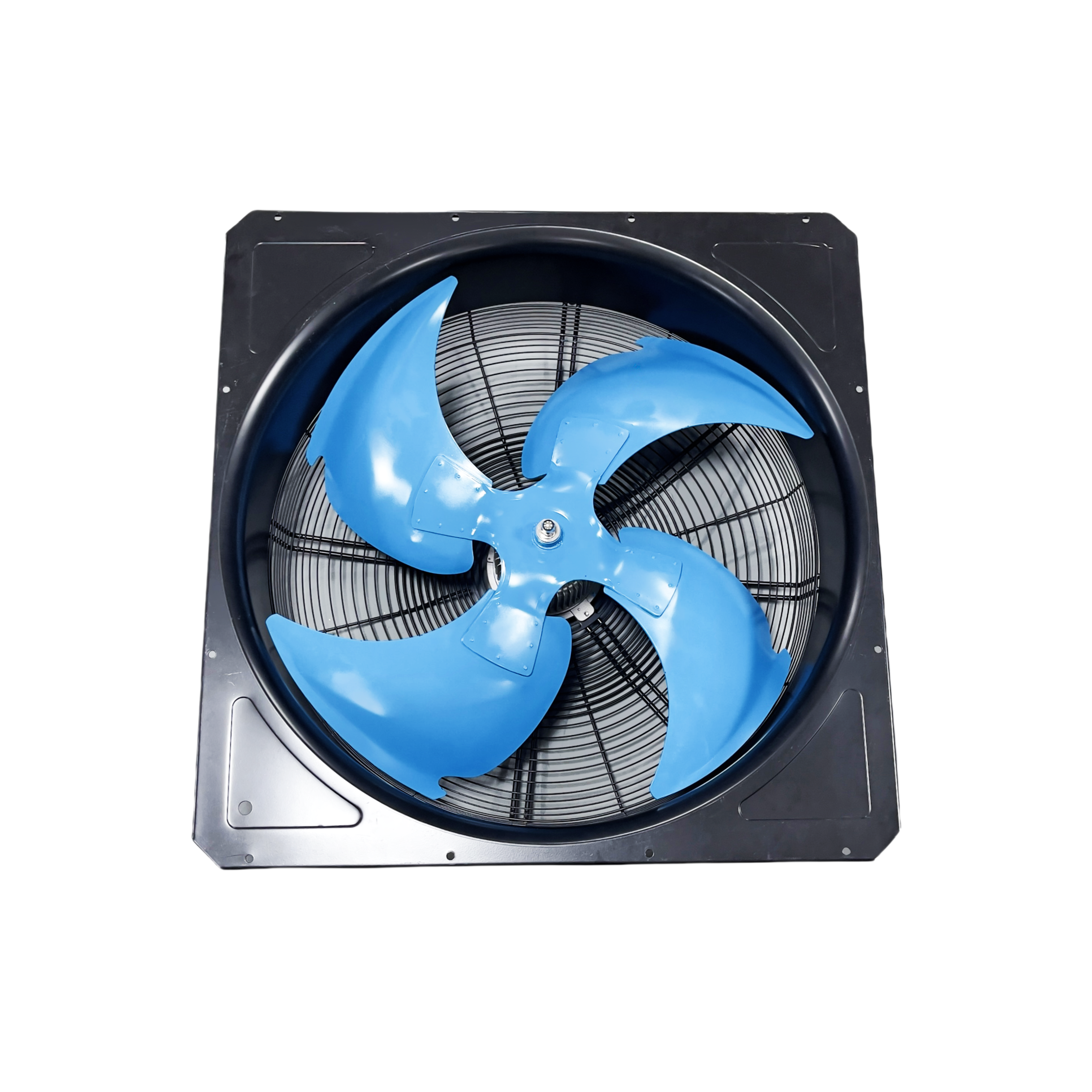

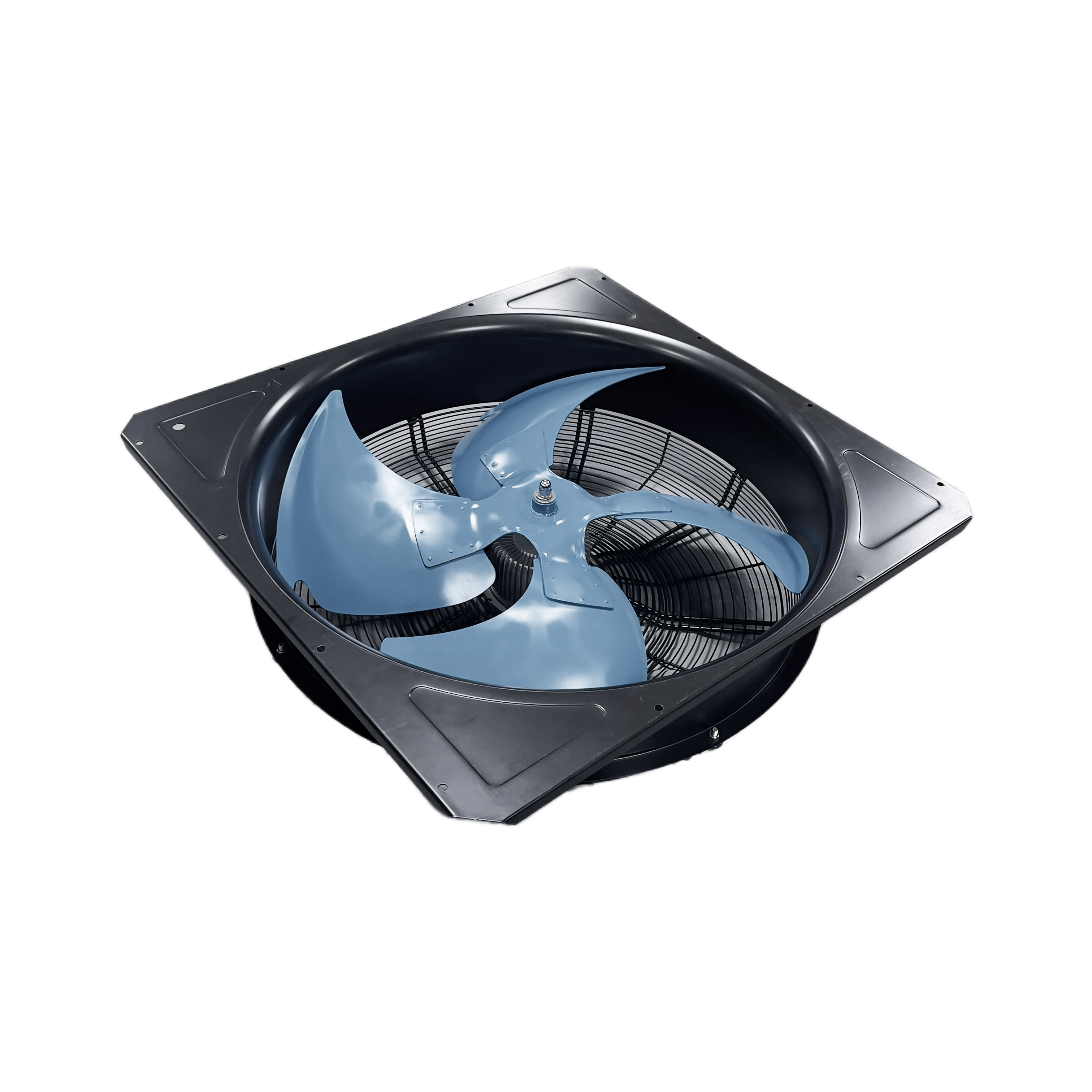

Φ800mm A800N.E001 EC Axial Fan

[ High Efficiency ] High strength impeller optimized by ternary flow CFD fluid simulation technology, reasonably designed flow runner combined with ultra-efficient motor create the high efficiency of the fan.

[ Low Noise ] The designer closely combines aerodynamics and sound source, and makes the blade angle and blade pattern fully adapt to the ternary flow field, which always ensures lower noise at the same air volume.

[ High Reliability ] Motors have up to IP55 waterproof and dust proof protection, F class insulation, and been tested for 3 months of 65℃ high temperature test and 40,000 hours of life test, which ensure worse-free quality.

[ Wide Application ] The products is used wherever outstanding performance is required, for example, heat pump, ventilation, cold chain, equipment cooling, IDC small cabinet, high voltage inverter cabinet, energy storage, rail transit and more.

[ Variety of Models ] Available in dimensions of : 630mm~1000mm, this allows for air flow rates of up to 30070m3/h and static pressure of up to 300Pa.

Availability:

Quantity:



Inquiry Add to Basket

Model:
A800N.E001

Product Description

Model

Voltage

[V]

Frequency

[Hz]

Speed

[rpm]

Max Power

[W]

Max Airflow

[m³/h]

Noise

[dB(A)]

A800N.E001

380

50/60

973

1800

25320

69.2

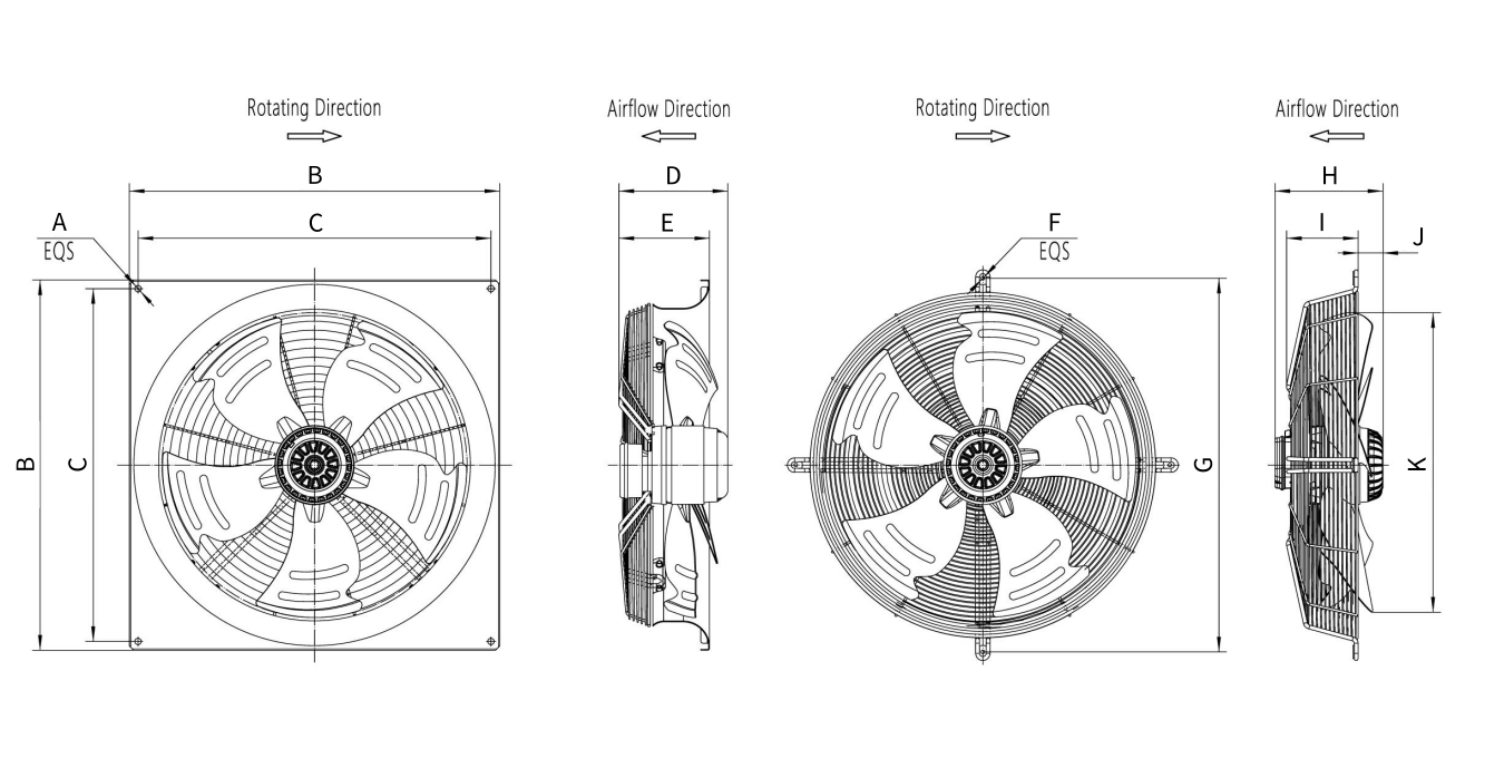

DIMENSION

Model	A	B	C	D	E	F	G	H	I	J	K
A800N.E001	4-Ø15	969	910	270	/	/	/	/	/	/	Ø850

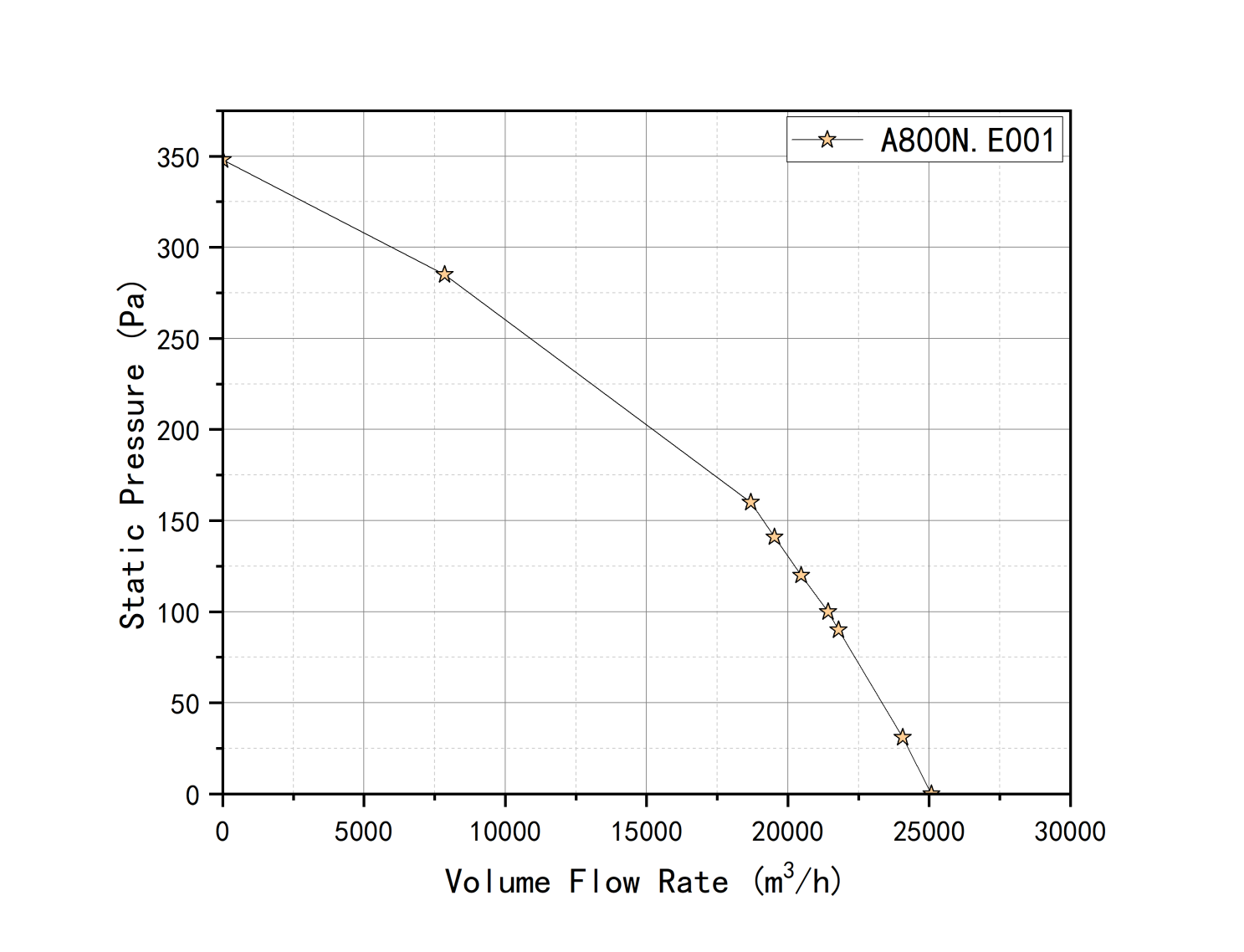

Airflow-static pressure curve (P-Q)

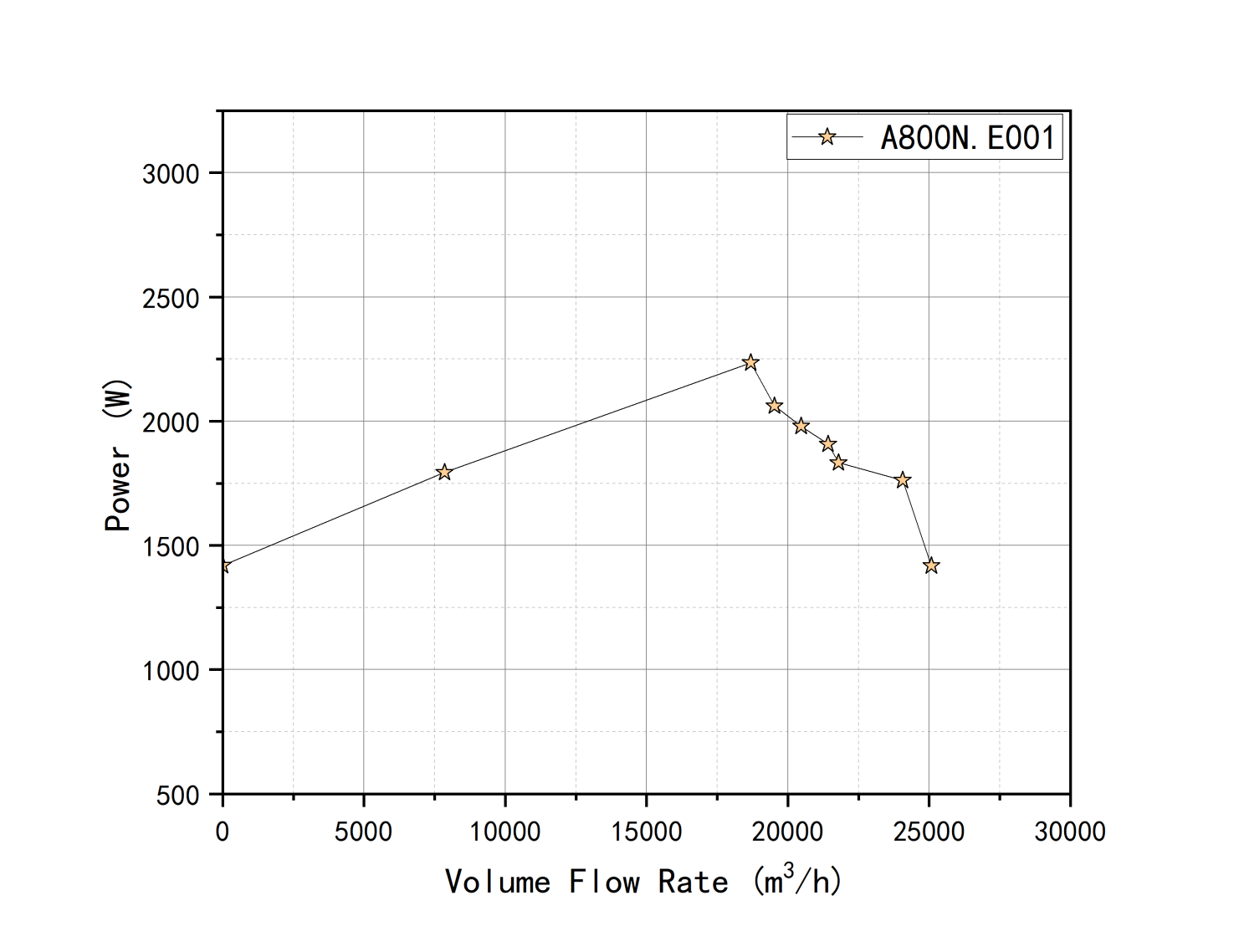

Airflow-power curve (N-Q)

Core Selling Points

1.High Airflow Output: Maximum airflow reaches 25320m³/h, delivering high ventilation efficiency to meet the needs of large spaces and heavy ventilation requirements.

2.High Power & Strong Performance: Maximum power of 1800W, providing sufficient power with stable and reliable operation.

3.Wide Voltage Compatibility: Supports 380V at 50/60Hz dual frequency, adapting to various power grid environments.

4.Low Noise Operation: Noise level as low as 69.2dB(A), remaining relatively quiet even at high airflow.

5.Stable & Efficient Speed: Rated speed of 973rpm, balancing airflow and energy consumption for smooth running.

6.Standardized Installation Design: Clear dimensional specifications (e.g., impeller diameter Ø850, mounting holes 4-Ø15), enabling easy installation and strong universality.
