[ High Efficiency ] High strength impeller optimized by ternary flow CFD fluid simulation technology, reasonably designed flow runner combined with ultra-efficient motor create the high efficiency of the fan.
[ Low Noise ] The designer closely combines aerodynamics and sound source, and makes the blade angle and blade pattern fully adapt to the ternary flow field, which always ensures lower noise at the same air volume.
[ High Reliability ] Motors have up to IP55 waterproof and dust proof protection, F class insulation, and been tested for 3 months of 65℃ high temperature test and 40,000 hours of life test, which ensure worse-free quality.
[ Wide Application ] The products is used wherever outstanding performance is required, for example, heat pump, ventilation, cold chain, equipment cooling, IDC small cabinet, high voltage inverter cabinet, energy storage, rail transit and more.
[ Variety of Models ] Available in dimensions of : 630mm~1000mm, this allows for air flow rates of up to 30070m3/h and static pressure of up to 300Pa.
| Quantity: | |
|---|---|
Product Parameters |
Material: | Impeller: Nylon with Glass Fiber |
Direction of rotation: | Clockwise, seen on rotor |
Control input: | Motor wiring speed regulation |
Type of protection: | IP 66 |
Insulation class: | F |
Bearing: | Maintenance-free Ball bearings |
Approval: | RoHS/Reach |
Amb.Temp: | -40~ +60°C |
Model | Curve | Voltage [V] | Frequency [Hz] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] |
A960F.E001 | A | 380 | 50/60 | 1150 | 2109 | 34525 | / |

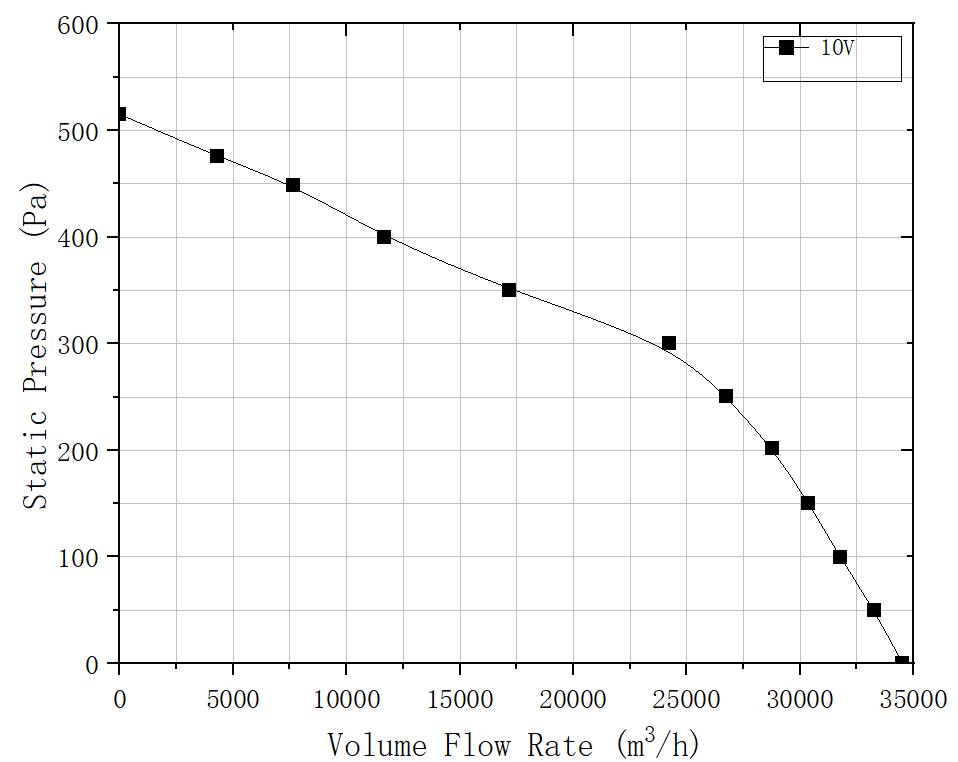

 | S.P Pa | Air Flow m3/h | Power W | Speed r/min |
0.0 | 34525 | 2109.0 | 1150 | |
49.9 | 33263 | 2346.0 | 1150 | |
99.7 | 31767 | 2688.0 | 1150 | |
150.2 | 30384 | 3004.0 | 1150 | |
201.7 | 28786 | 3297.0 | 1150 | |
250.2 | 26746 | 3509.0 | 1150 | |
300 | 24239 | 3727.0 | 1150 | |
350.0 | 17197 | 3462.0 | 1065 | |
399.6 | 11666 | 3368.0 | 1030 | |
448.9 | 7669 | 3156.0 | 947 | |
475.5 | 4303 | 3100.0 | 916 | |
515.1 | 0 | 2824.0 | 833 |

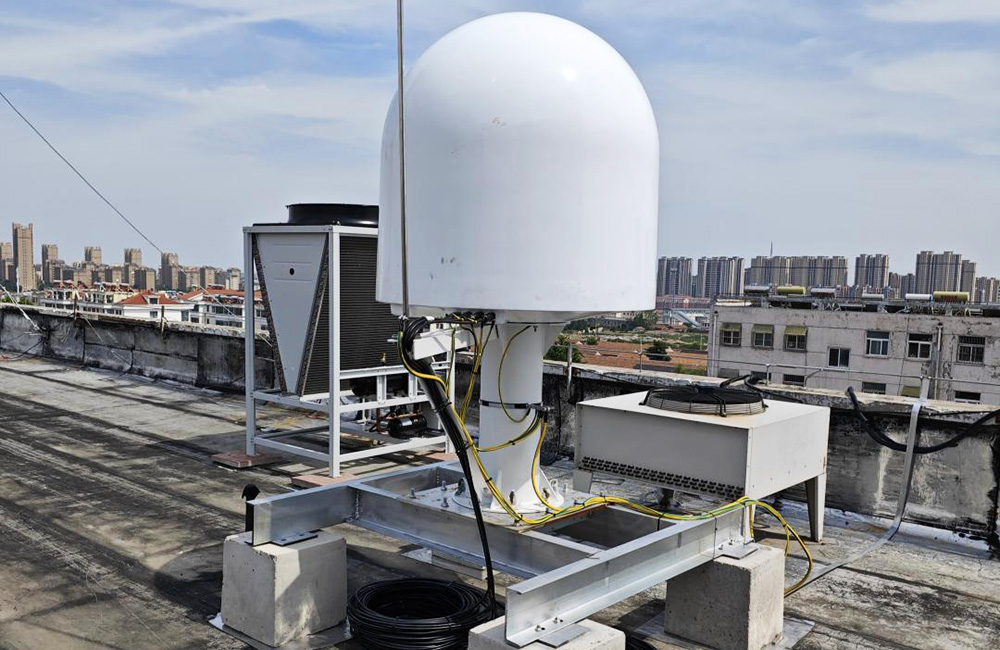

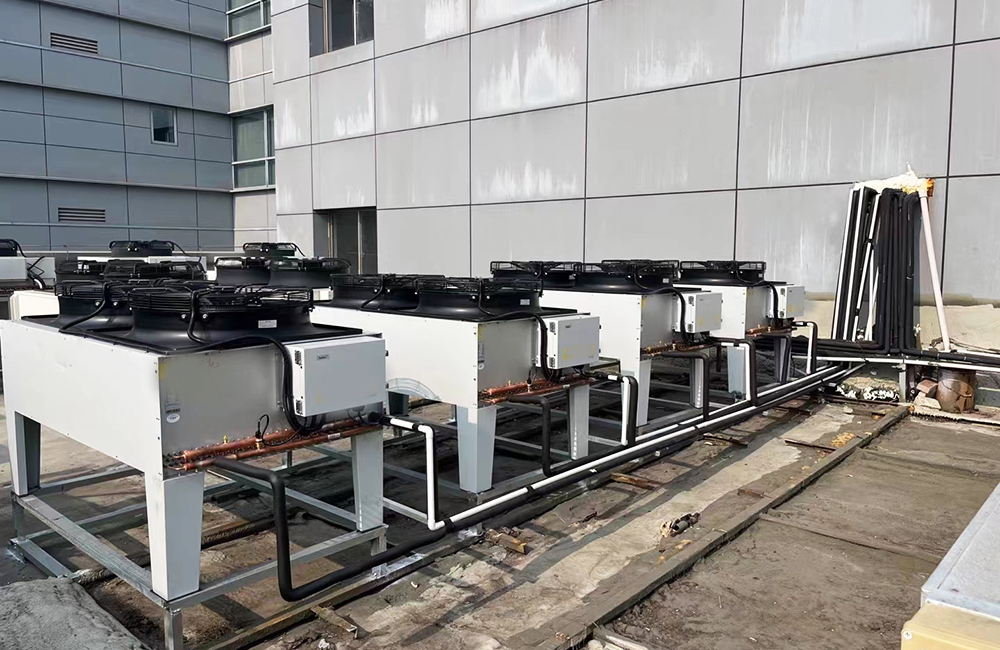

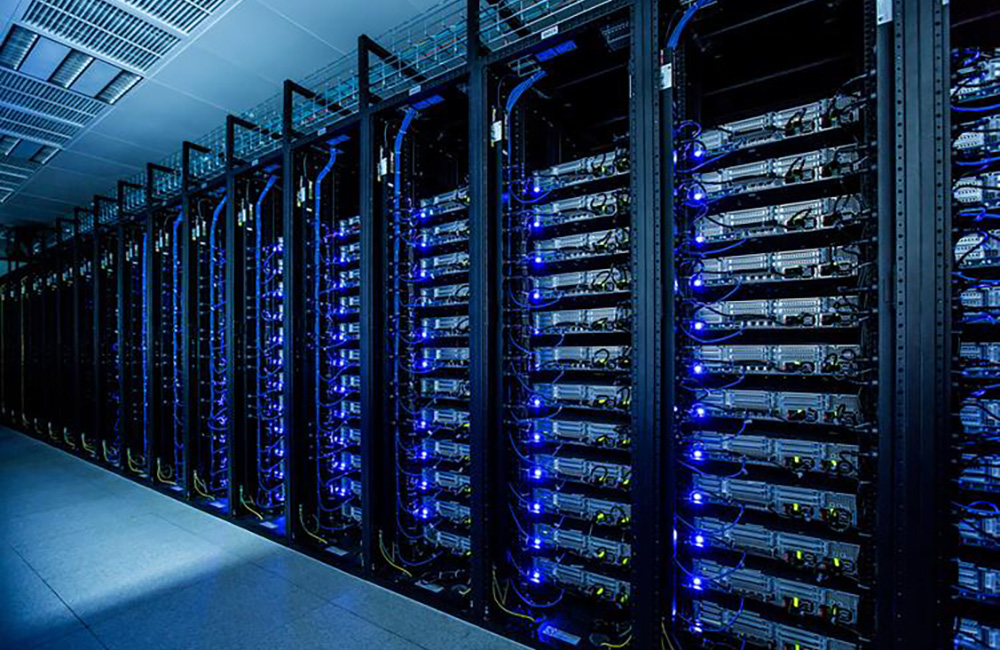

Application Scenarios |
Product Certificate |

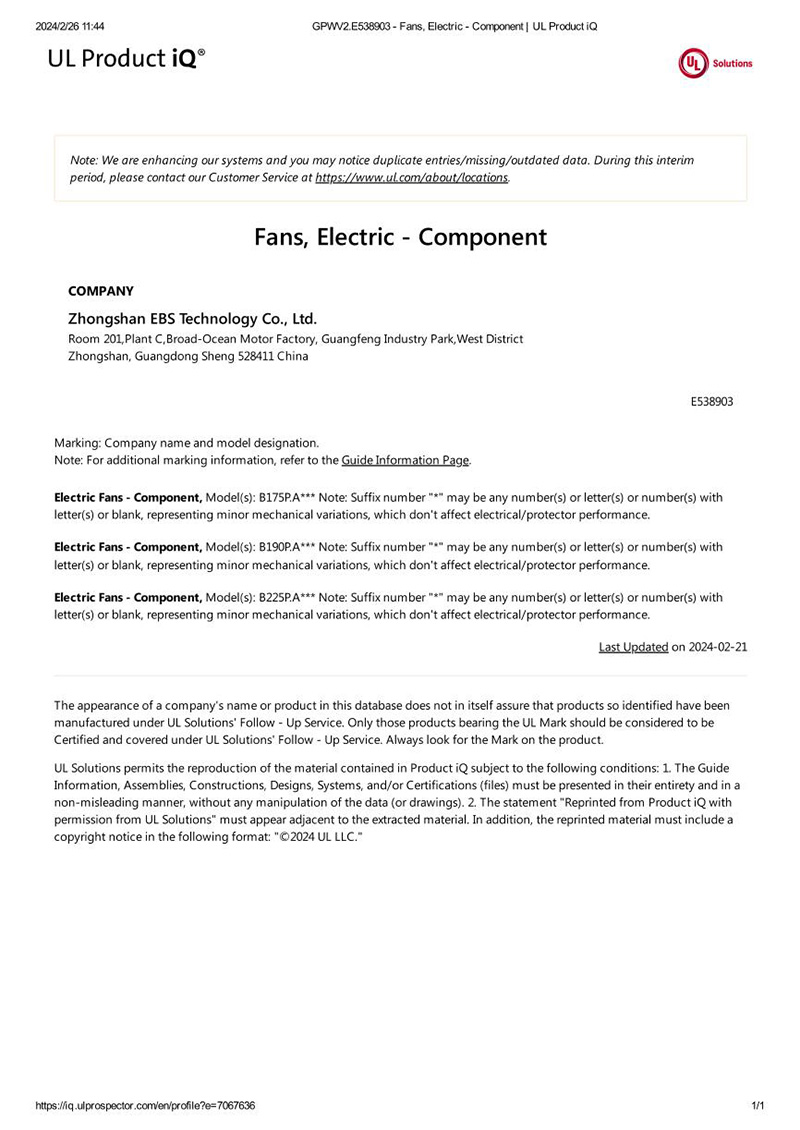

UL Certification
Certified by the authoritative international UL safety mark, the EC960 axial fan boasts high reliability and long service life, fully complying with the market access standards of North America and global high-end markets, laying a solid safety and compliance foundation for overseas exports.

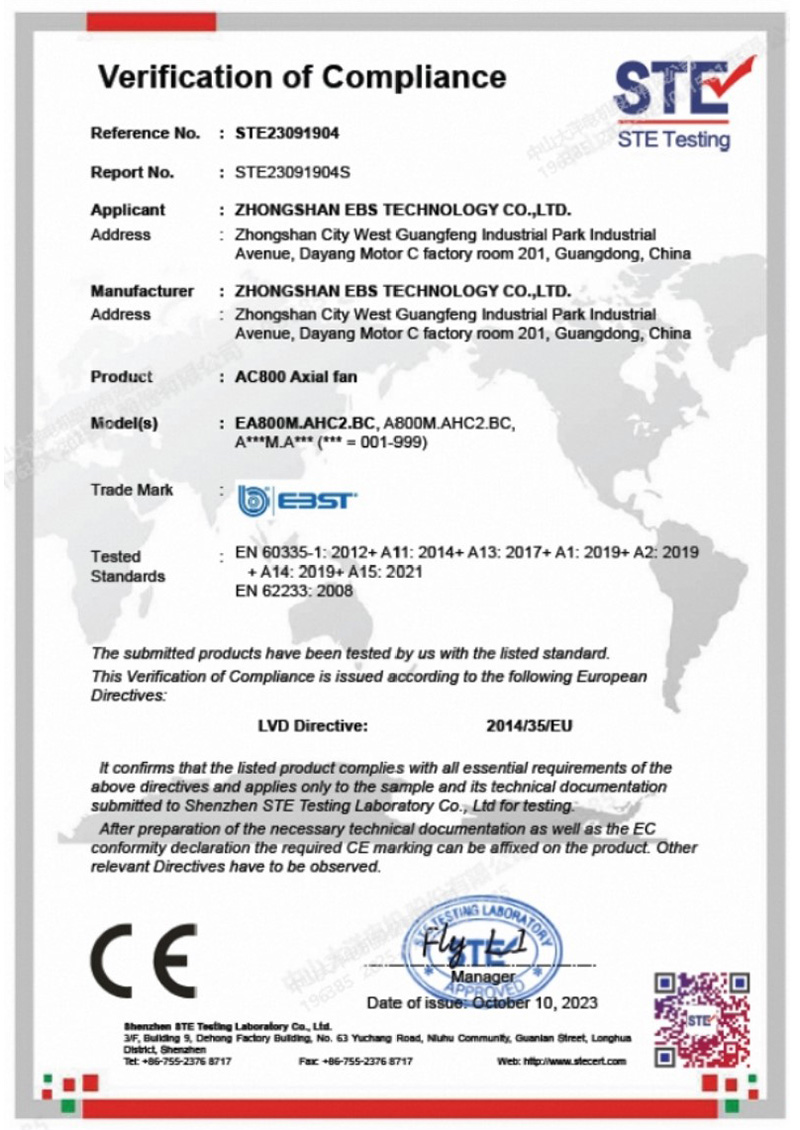

CE Certification
Strictly compliant with the EU Low Voltage Directive (LVD) and Electromagnetic Compatibility Directive (EMC), the EC960 axial fan has successfully obtained EU market access qualification, facilitating smooth cross-border customs clearance and efficiently covering the global sales network.
CCC Certification
Fully compliant with all standards of China's Compulsory Product Certification, the EC960 axial fan meets national specifications for electrical safety and EMC indicators, ensuring safe and compliant operation in various domestic scenarios such as data centers, communication base stations and industrial workshops for secure use.

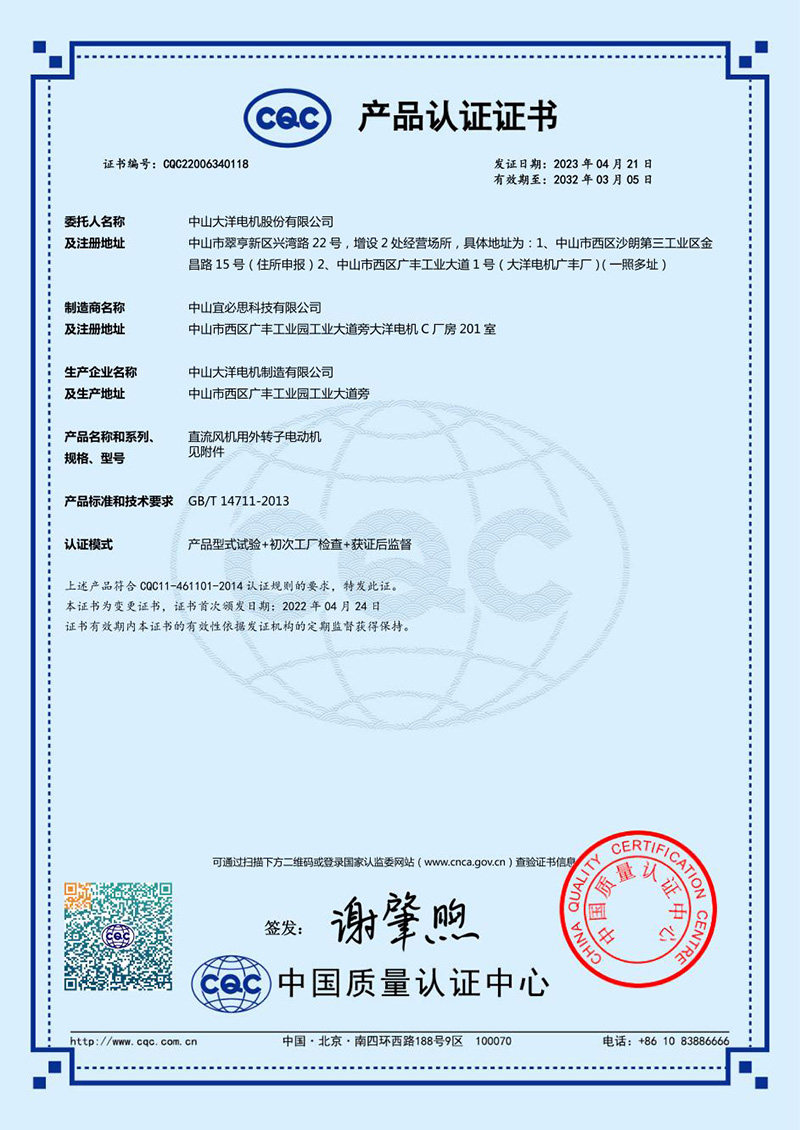

CQC Certification
Awarded the authoritative certification by China Quality Certification Center, the EC960 axial fan has passed numerous strict tests to comprehensively control its performance and quality, intuitively demonstrating its core strength of stability and durability, and gaining high recognition and trust from the domestic market.

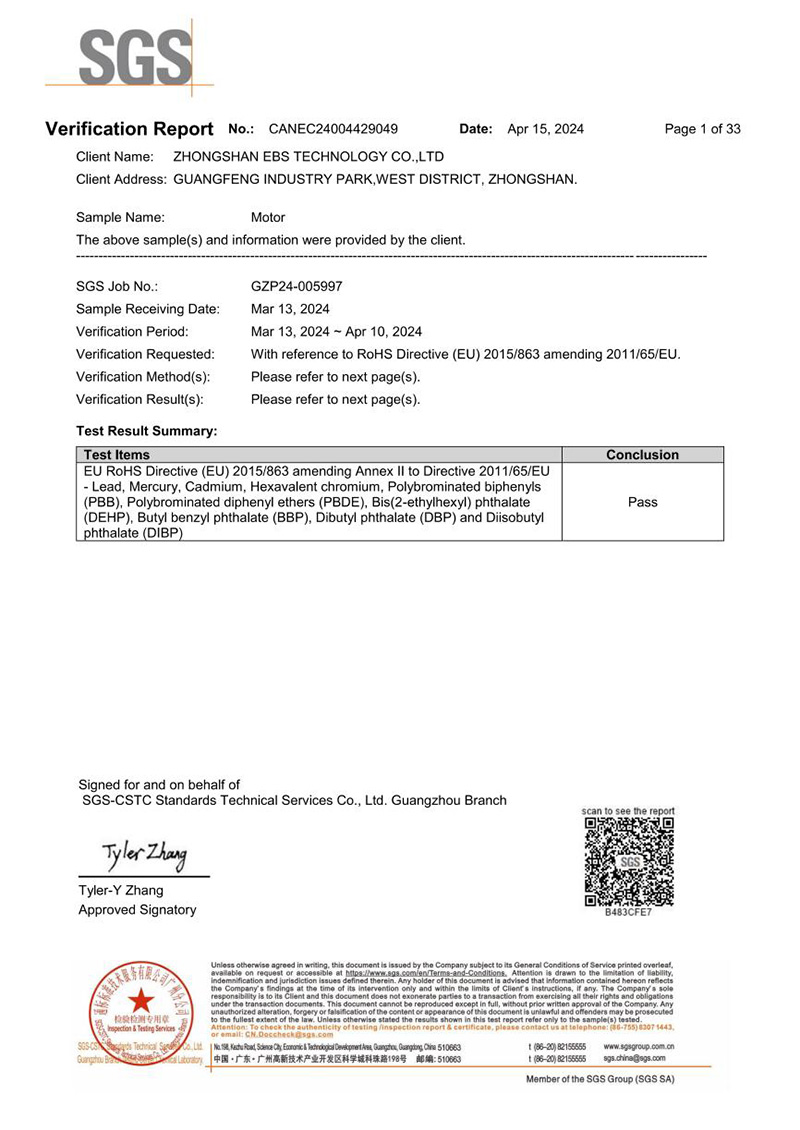

RoHS Certification
Compliant with the EU RoHS environmental directives, the EC960 axial fan strictly controls the content of hazardous substances such as lead and mercury, with outstanding green environmental protection features, and can be seamlessly adapted to strict environmental scenarios including high-end clean rooms, medical equipment and precision laboratories.

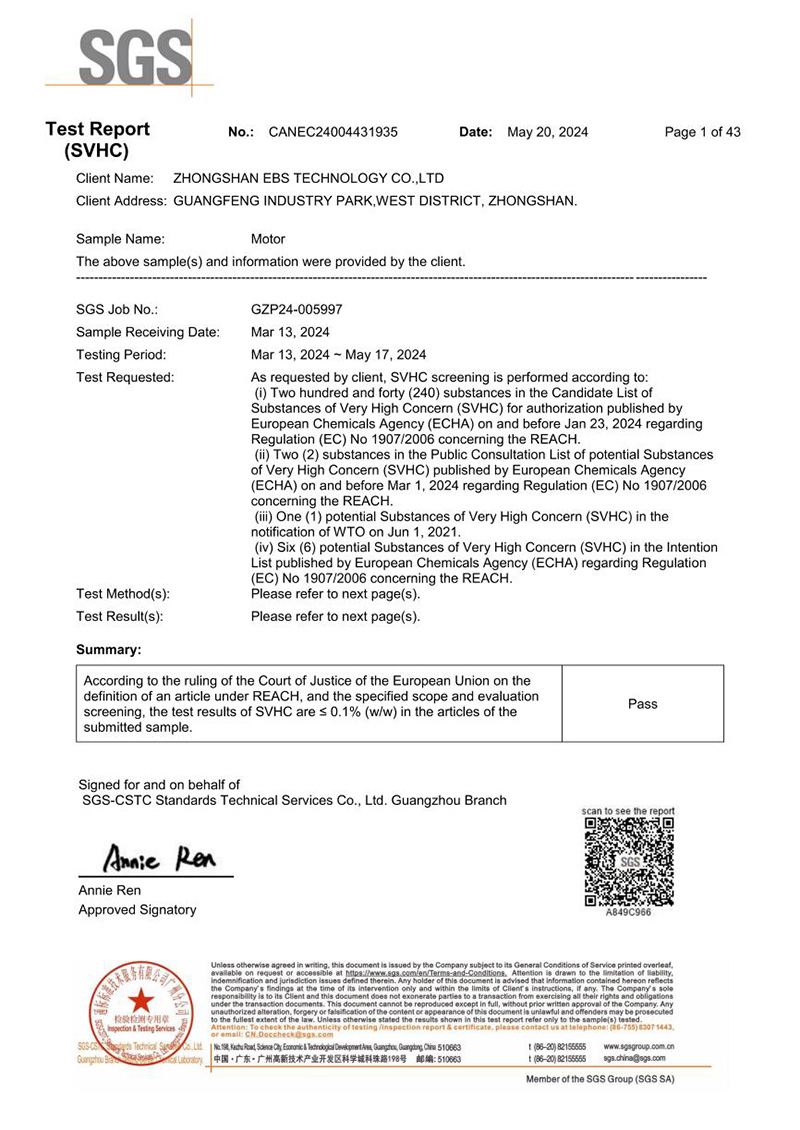

Reach Certification
Authoritatively certified under EU REACH regulations, the EC960 axial fan realizes full-dimensional closed-loop control of chemical substance risks, fully guaranteeing compliant product export and meeting the stringent compliance application requirements of different regional markets worldwide.
FAQ |
Q1: What type of fan is the EC960 axial fan, and what are its core advantages?
A: The EC960 is an axial fan equipped with a high-efficiency EC electronically commutated motor. It features large air volume, low power consumption, low noise, stepless speed regulation, and long service life. Compared with traditional AC fans, it offers intelligent speed control, higher energy efficiency, and more stable operation, making it suitable for high-precision cooling and ventilation applications.
Q2: What is the applicable voltage range of the EC960 axial fan?
A: The product supports wide voltage compatibility and can work with standard mains voltages. Customized specifications are available for different regional markets. It also carries CE, UL and other certifications to meet power supply requirements worldwide.
Q3: What are the protection rating and operating environment requirements of this fan?
A: The EC960 axial fan features a high-protection design, suitable for harsh conditions such as outdoor installations, industrial environments, and equipment rooms. It can withstand high and low temperatures, and is dustproof and waterproof. Its anti-corrosion structure also enables it to operate reliably in humid and mildly corrosive environments.

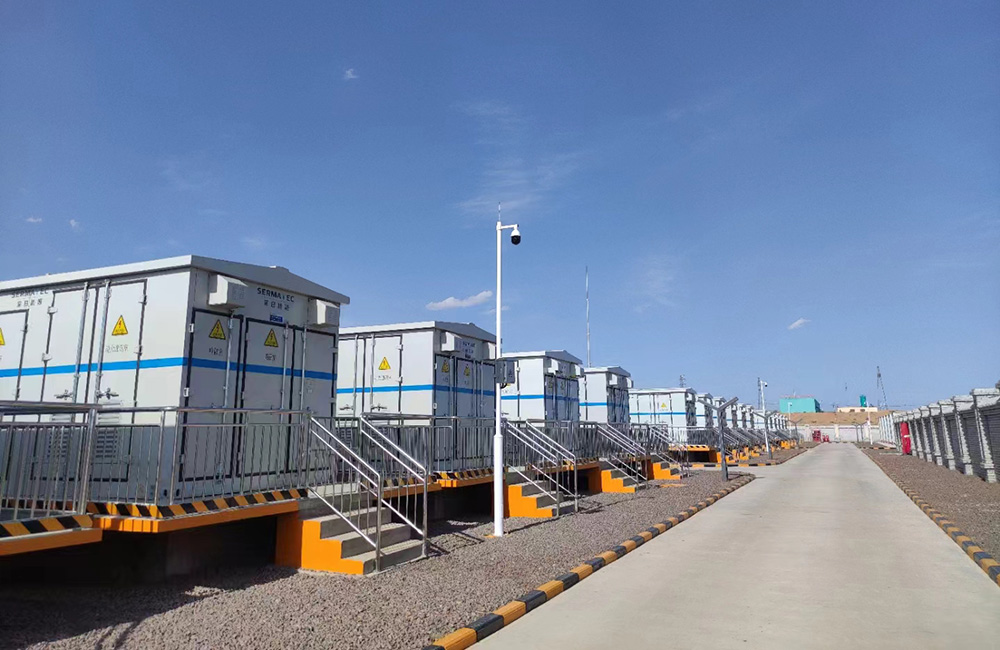

Energy Storage Systems & New Energy Equipment Cooling
