φ245mm DC Backward-curved Centrifugal Fan

[ High Efficiency ] Composite material impeller optimized by ternary flow CFD fluid simulation technology, reasonably designed flow runner combined with ultra-efficient DC motor create the high efficiency of the fan.

[ Low Noise ] The designer closely combines aerodynamics and sound source, and makes the blade angle and blade pattern fully adapt to the ternary flow field, which always ensures lower noise at the same air volume.

[ High Reliability ] Motors have F class insulation, and been tested for 3 months of 60℃ high temperature test and 40,000 hours of life test, which ensure worse-free quality.

[ Accurate Intelligent Control ] The fan adopts efficient DC motor and supports various control modes such as 0~10V / PWM to accurately meet the ventilation needs of different period of time.

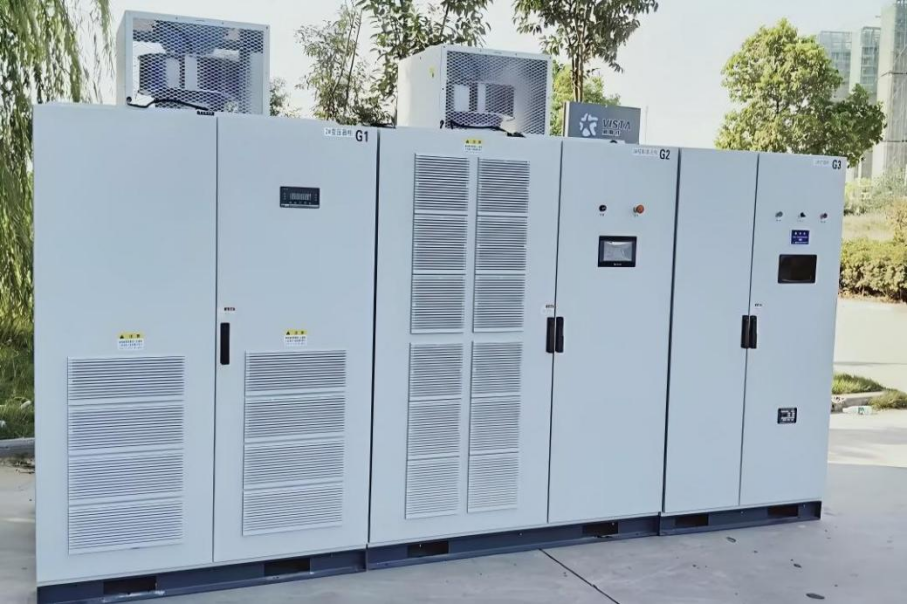

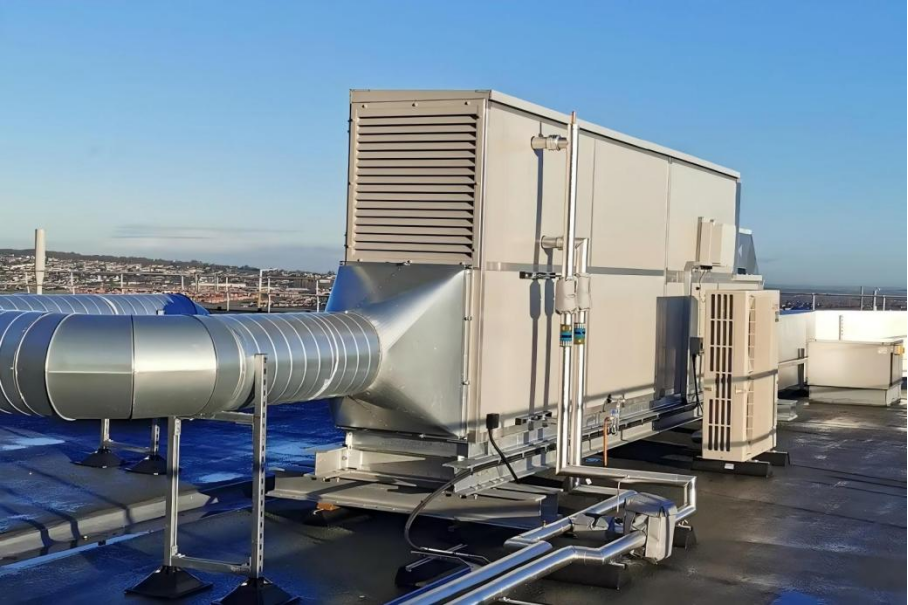

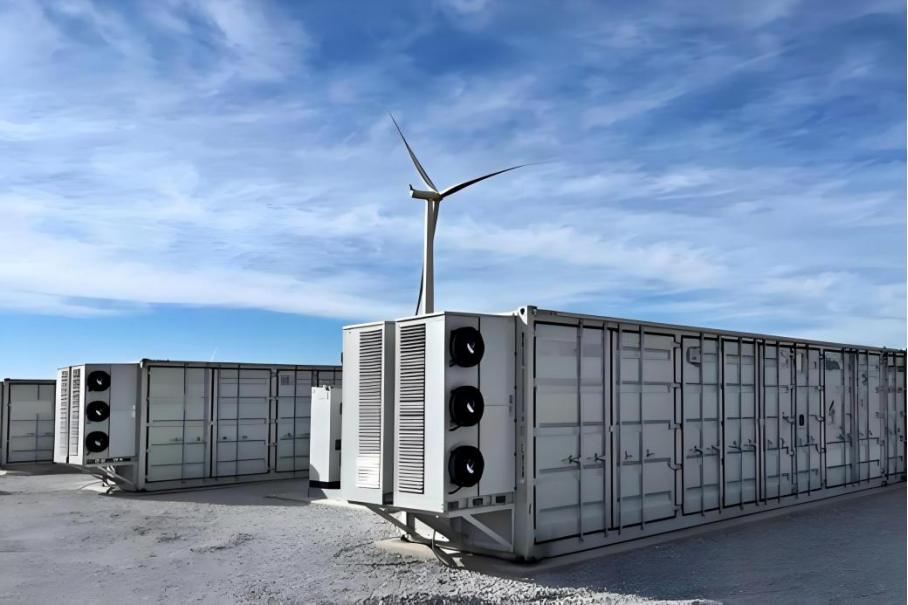

[ Wide Application ] The products is used wherever outstanding performance is required, for example, AHU, FFU, IDC small cabinet, high voltage inverter cabinet, energy storage charging pile, commercial air conditioning, rail transit and more.

[ Variety of Models ] Available in dimensions of : 113mm~355mm, this allows for air flow rates of up to 2960m3/h and static pressure of up to 800Pa.

Availability:

Quantity:



Inquiry Add to Basket

Model:
B245P.D001
Brand:
EBST
Code:
B245P.D001

Material:	Impeller : reinforced plastics
Direction of rotation:	Clockwise, seen on rotor
Control input:	0-10VDC/PWM
Type of protection:	IP 44
Insulation class:	F
Bearing:	Maintenance-free Ball bearings
Approval:	CCC
Amb.Temp:	-25~+60℃

Model

Curve

Voltage

[V]

Max Current

[A]

Speed

[rpm]

Max Power

[W]

Max Airflow

[m³/h]

Noise

[dB(A)]

B245P.D001

A

48

1.13

1800

54.3

896

54

		P_s [Pa]	Airflow [m³/h]	Speed [rpm]	Power [W]
A	①	60	802	1808	52.3
	②	100	686	1747	54.3
	③	150	535	1751	51.5
	④	200	389	1797	52.4

Material:	Impeller : reinforced plastics
Direction of rotation:	Clockwise, seen on rotor
Control input:	0-10VDC/PWM
Type of protection:	IP 44
Insulation class:	F
Bearing:	Maintenance-free Ball bearings
Approval:	CCC
Amb.Temp:	-25~+60℃

Model

Curve

Voltage

[V]

Max Current

[A]

Speed

[rpm]

Max Power

[W]

Max Airflow

[m³/h]

Noise

[dB(A)]

B245P.D001

A

48

1.13

1800

54.3

896

54

		P_s [Pa]	Airflow [m³/h]	Speed [rpm]	Power [W]
A	①	60	802	1808	52.3
	②	100	686	1747	54.3
	③	150	535	1751	51.5
	④	200	389	1797	52.4

Core Selling Points

I. Core Technology & Performance Advantages

High-Efficiency Aerodynamic Design：Equipped with backward-curved impellers, the fan features smoother airflow channels, significantly reducing eddy current and energy loss, and delivering substantial energy savings during long-term operation.

Stable Operation Across a Wide Range：Boasts a non-overloading power curve with minimal power fluctuation when system resistance changes, offering a high safety margin for motor load. It is ideal for complex working conditions such as Variable Air Volume (VAV) systems, ensuring enhanced operational stability and reliability.

Powerful Core Parameters：With a rated voltage of 48V, a maximum airflow of 896m³/h, and a maximum power of 54.3W, it delivers outstanding airflow performance among models of the same specification, efficiently meeting air supply and heat dissipation requirements in medium-to-high resistance scenarios.

II. Intelligent Control & Compatibility

Precise Speed Regulation：Supports 0-10VDC wide-range speed control, enabling on-demand matching of airflow and static pressure to accurately adapt to air delivery needs under different working conditions, and is compatible with automation systems such as smart buildings and HVAC.

Wide Temperature Resistance：Operates stably in extreme high and low temperature environments with a working temperature range of -25℃~+60℃, suitable for applications in cold storage, outdoor equipment, industrial production lines, and other scenarios.

III. Quality & Durability

Long-Life Maintenance-Free Bearings：Fitted with maintenance-free ball bearings, it reduces mechanical wear and maintenance frequency, significantly extending the service life of the equipment and lowering long-term operation and maintenance costs.

Reliable Protection Rating：With an IP44 protection rating for effective dust and splash water resistance, and a Class F insulation level for excellent high-temperature resistance, it is suitable for a variety of harsh industrial and commercial environments.

Authoritative Certification Guarantee：Certified by CCC, complying with domestic industry standards, it guarantees compliant quality and can be directly applied to supporting various compliant equipment.

IV. Installation & Scenario Adaptability

Compact Modular Design：The compact structure and standardized installation dimensions make it suitable for built-in installation in fan boxes, air conditioning units, purification equipment, and other devices, saving installation space.

Low-Noise Operation：The backward-curved impeller design, combined with DC brushless technology, results in an operating noise level of only 54dB(A) with minimal airflow disturbance, making it ideal for noise-sensitive environments such as hospitals, office buildings, and hotels.
