φ113mm DC Backward-curved Centrifugal Fan

			Ps [Pa]	Airflow [m3/h]	Speed [rpm]	Power [W]
	A	①	20	212	4800	22.2
		②	60	194	4800	22.8
		③	100	171	4800	23.0

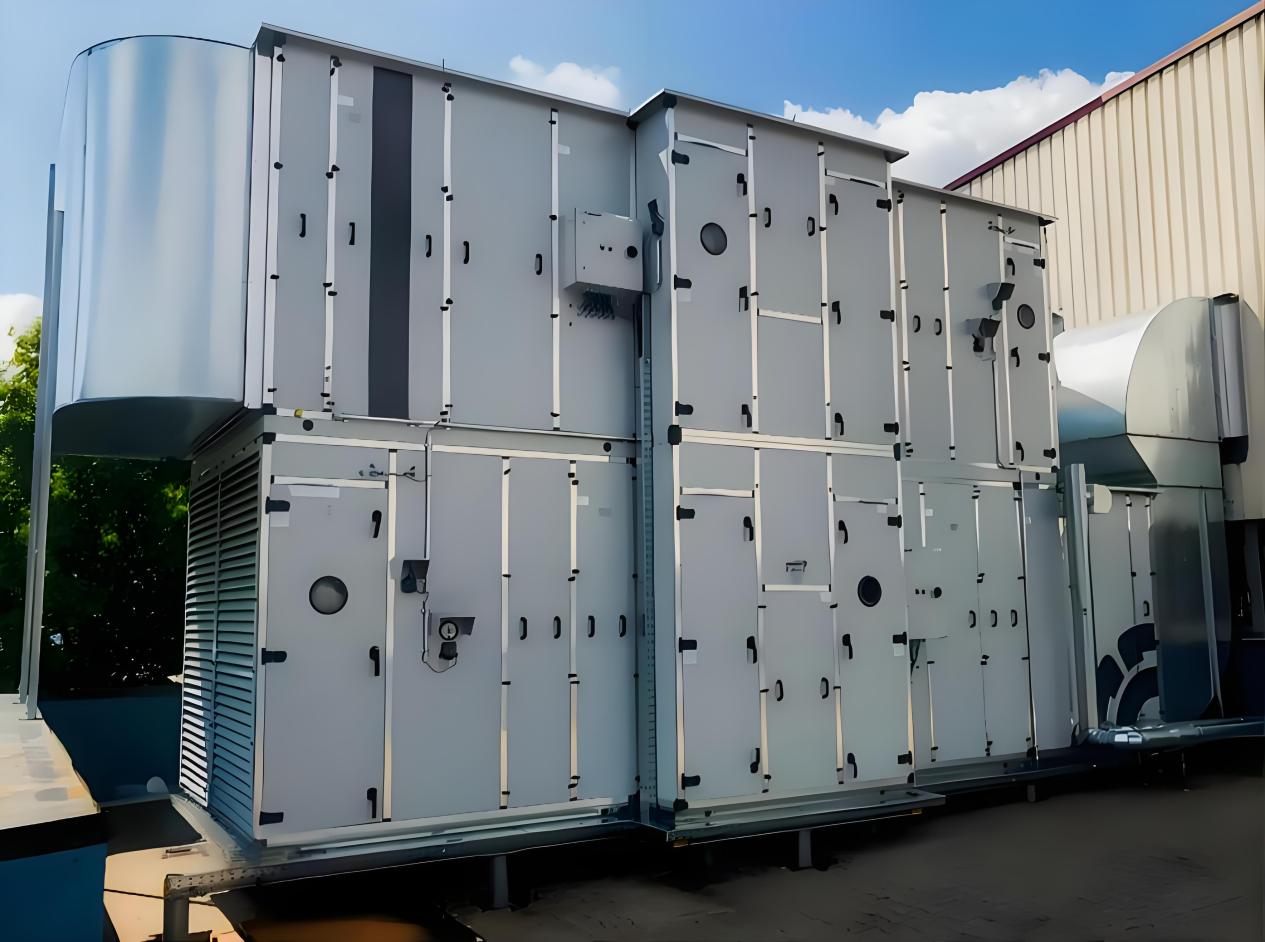

Air Handling Units (AHU)

As the core power component of the air handling unit (AHU), the EBST DC backward centrifugal fan drives the mixing, heat exchange and delivery of fresh and return air. Through efficient air flow organization, it ensures the unit stably outputs clean and constant-temperature air under different loads. It is widely used in large central air conditioning systems such as commercial buildings, hotels and hospitals.

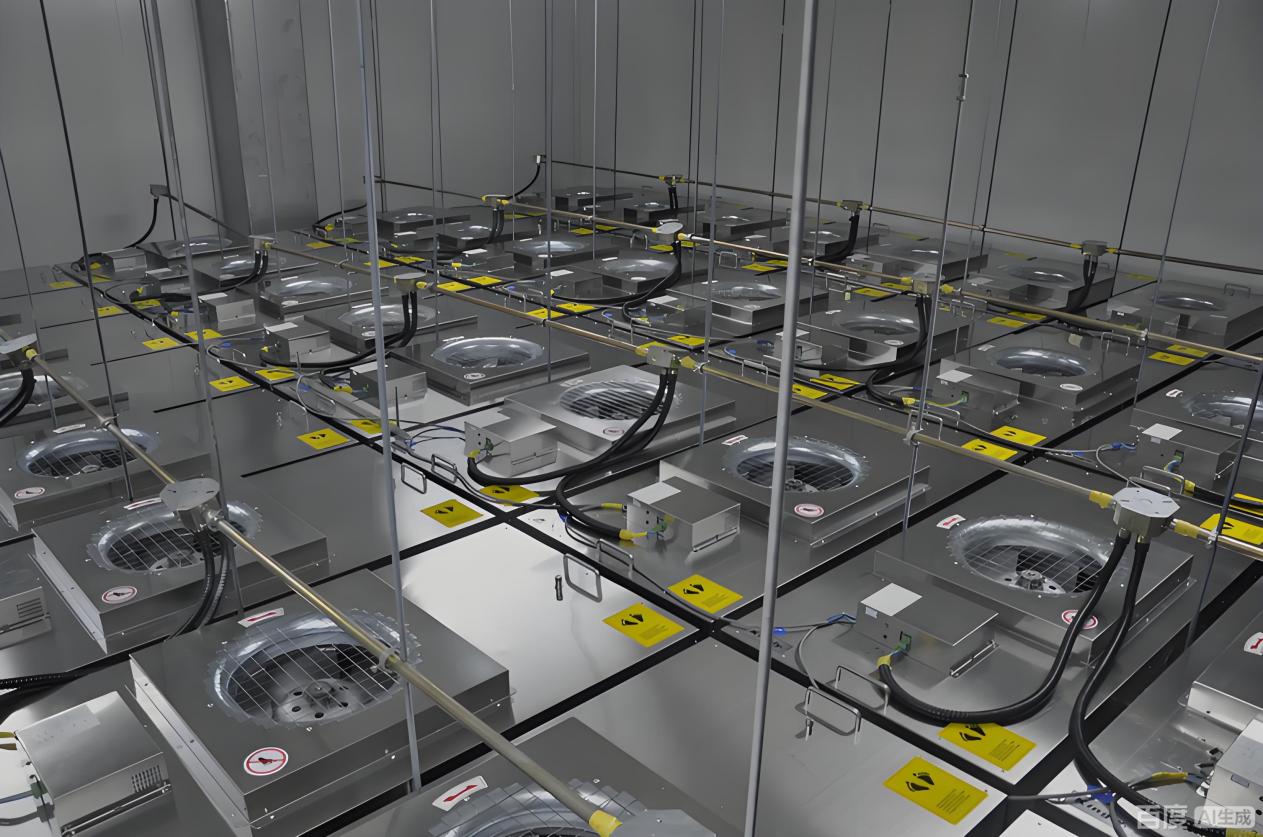

Fan Filter Units (FFU)

Suitable for scenarios with extremely high air cleanliness requirements such as clean rooms, laboratories and electronic workshops, the EBST DC backward centrifugal fan provides stable and low-disturbance clean air flow for FFUs. Combined with high-efficiency filters, it effectively intercepts micron-level particles, ensuring the dust-free environment and product quality in workshops/laboratories.

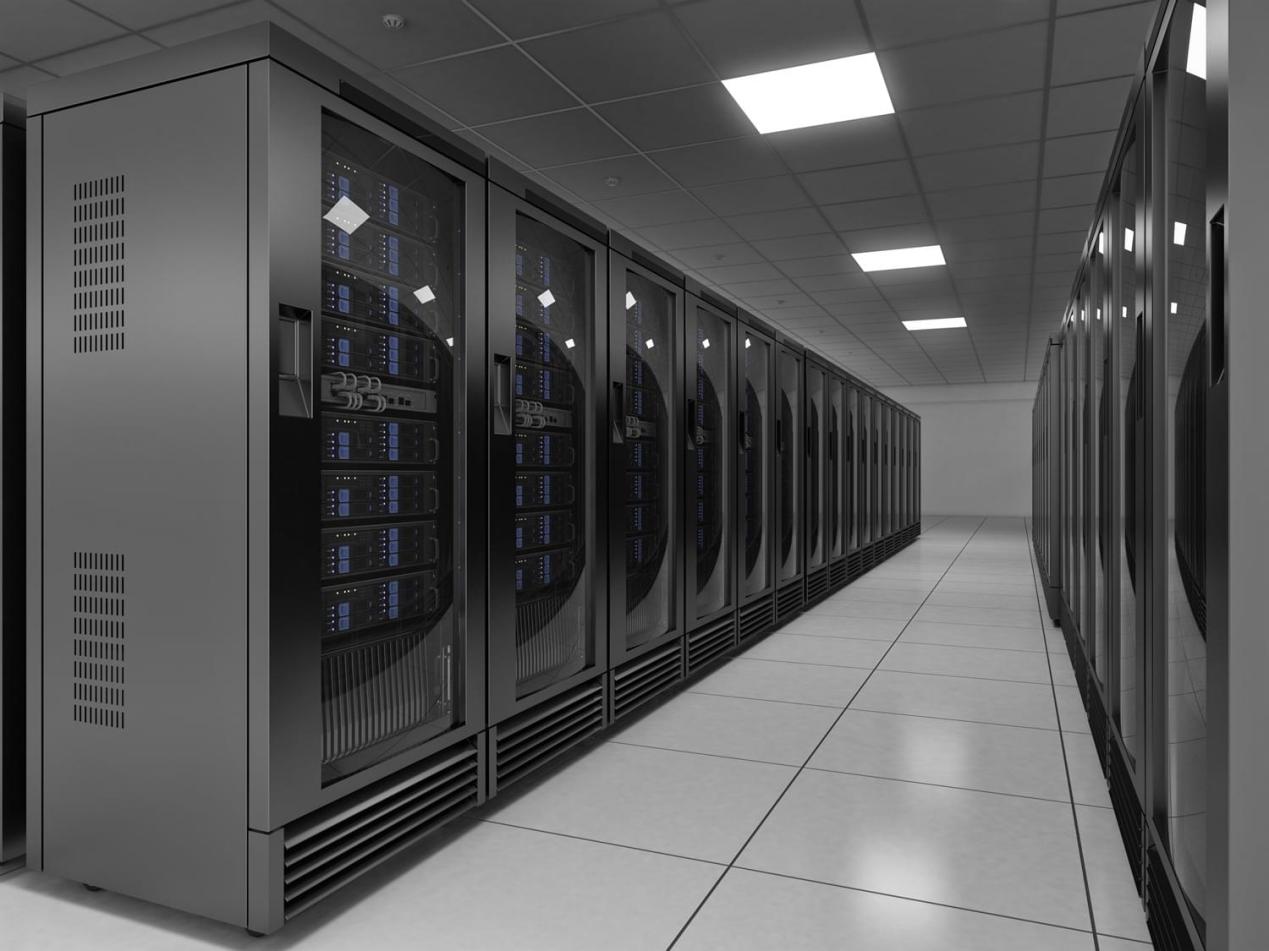

Internet date center

Aiming at the high-density heat dissipation demand of small data center (IDC) cabinets, this fan quickly dissipates a large amount of heat generated by the operation of core equipment such as servers and switches in the cabinet through efficient centrifugal pressure output. It maintains the equipment in the optimal working temperature range, avoids performance degradation or failure caused by overheating, and ensures the continuity of data transmission and storage.

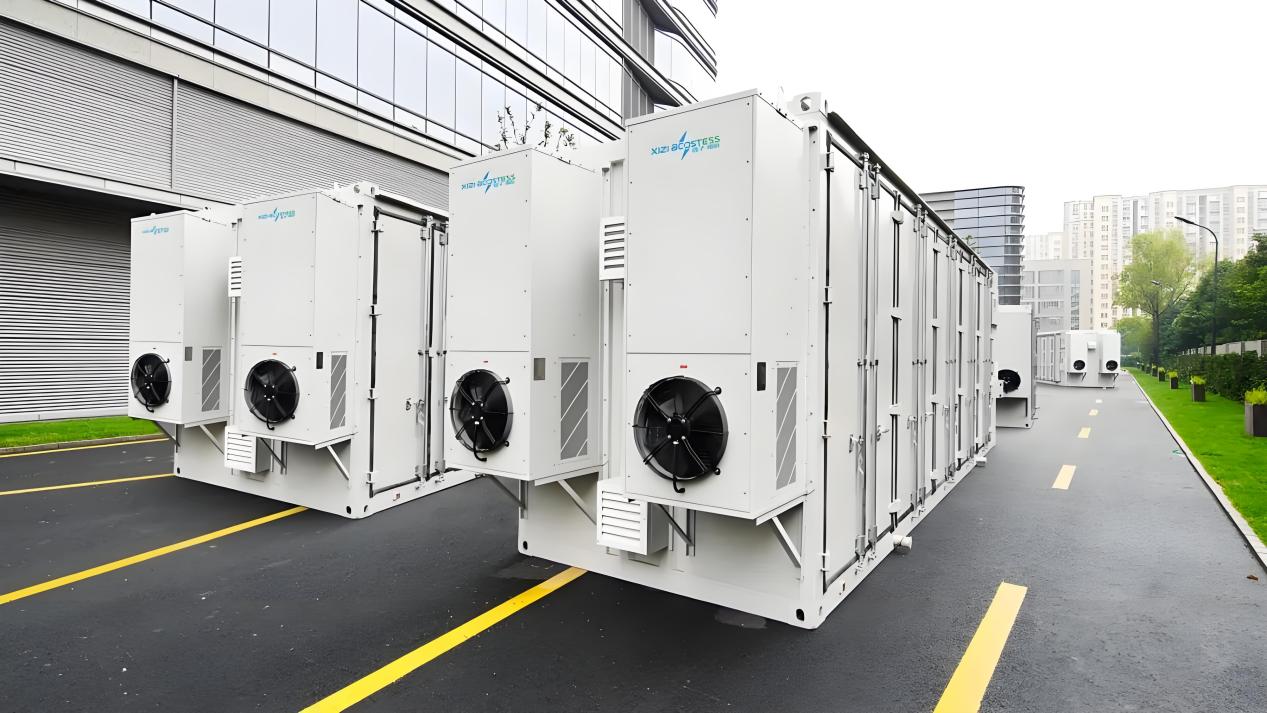

High-Voltage Inverter Cabinets

The IGBT modules, inverters and other components in the high-voltage inverter cabinet release a lot of heat during operation. The EBST DC backward centrifugal fan forces the air circulation in the cabinet with precise air volume and pressure, quickly dissipates the heat and keeps the temperature in the cabinet uniform. It prevents components from aging and breakdown due to high temperature, ensuring the stable operation and long service life of the inverter system.

UL Certification

Certified by UL authoritative safety mark, the DC backward centrifugal fan features high reliability and long service life, meeting the standards of the North American and global high-end markets.

CE Certification

Compliant with EU LVD and EMC directives, the DC backward centrifugal fan is qualified for EU market access, enabling smoother global application.

CCC Certification

Complies with China's mandatory product certification standards, suitable for the DC backward centrifugal fan, fully meets electrical safety and EMC requirements, safer to use, and adapts to various domestic compliant scenarios.

CQC Certification

Certified by China Quality Certification Center, strict testing controls the performance and quality of the DC backward centrifugal fan, demonstrating its reliable product quality.

RoHS Certification

Complies with EU RoHS environmental standards, restricts harmful substance content, suitable for the DC backward centrifugal fan, green and environmentally friendly, and adapts to high-end clean, medical and other strict environmental scenarios.

Reach Certification

Certified by EU REACH regulation, fully controls chemical substance risks, suitable for the DC backward centrifugal fan, compliant for export, and adapts to global market applications.

Q1：What are the core advantages of the DC backward centrifugal fan?

A1: There are 5 core advantages: ① High efficiency and energy saving: composite material impeller optimized by ternary flow CFD fluid simulation technology, combined with ultra-efficient DC motor to improve operation efficiency; ② Low noise operation: blade angle and blade type adapt to ternary flow field, with lower noise at the same air volume; ③ High reliability: motor adopts F-class insulation, passing 3-month 60℃ high temperature test and 40,000-hour life test; ④ Accurate intelligent control: supports multiple control modes such as 0~10V/PWM to meet ventilation needs at different times; ⑤ Green and compliant: passes multiple international and domestic certifications, suitable for high-end environmental scenarios.

Q2：What are the main application scenarios of the DC backward centrifugal fan?

A2: It is widely used in various scenarios with strict performance requirements, including Air Handling Unit (AHU), Fan Filter Unit (FFU), small data center cabinets, high-voltage inverter cabinets, energy storage charging piles, commercial air conditioning, and rail transit fields, which can meet different needs such as ventilation, heat dissipation and clean air supply.

Q3：Which certifications has the DC backward centrifugal fan passed? Which markets is it suitable for?

A3: It has passed multiple authoritative certifications and is suitable for multiple global markets: ① UL certification: meets the safety standards of the North American and global high-end markets; ② CE certification: complies with EU LVD and EMC directives, with EU market access qualification; ③ CCC certification: complies with China's mandatory product certification, suitable for various domestic compliant scenarios; ④ CQC certification: tested by China Quality Certification Center, demonstrating reliable product quality; ⑤ RoHS certification: complies with EU environmental standards, suitable for high-end clean, medical and other environmental scenarios; ⑥ REACH certification: certified by EU regulations, compliant for export to global markets.

Q4：What are the models and specifications of the DC backward centrifugal fan?

A4: The product dimensions cover 113mm~355mm, with a maximum air volume of up to 2960m³/h and a maximum static pressure of up to 800Pa. There are various models to adapt to the air volume and pressure requirements of different scenarios.

Q5：What precautions should be taken when installing the DC backward centrifugal fan?

A5: There are 3 core precautions for installation: ① The installation position must be flat and firm to avoid vibration during fan operation, which affects the service life; ② The air duct connection must be tightly sealed to prevent air leakage, and the weight of the air duct should not directly act on the fan casing; ③ Sufficient maintenance space should be reserved during installation for subsequent maintenance, and ensure that the air inlet and outlet of the fan are not blocked to ensure smooth air flow.

Q6：What work should be done for the daily maintenance of the DC backward centrifugal fan?

A6: The key points of daily maintenance are 3 points: ① Regularly clean the dust and debris on the fan impeller and casing to avoid dust accumulation affecting air volume and operation efficiency; ② Regularly check the motor operation status, check for abnormal noise, overheating, etc., and troubleshoot in time; ③ After long-term shutdown, first check whether the fan components are intact, and put them into use after normal trial operation to avoid faults caused by component aging.
