[ High Efficiency ] Composite material impeller optimized by ternary flow CFD fluid simulation technology, reasonably designed flow runner combined with ultra-efficient motor create the high efficiency of the fan.
[ Low Noise ] The designer closely combines aerodynamics and sound source, and makes the blade angle and blade pattern fully adapt to the ternary flow field, which always ensures lower noise at the same air volume.
[ High Reliability ] Motors have F class insulation, and been tested for 3 months of 65℃ high temperature test and 40,000 hours of life test, which ensure worse-free quality.
[ Accurate Intelligent Control ] The fan has efficient AC/EC/DC motor for option and supports various control modes such as motor wiring regulation / 0~10V / PWM / RS485 to accurately meet the ventilation needs of different period of time.
[ Wide Application ] The products is used wherever outstanding performance is required, for example, household air conditioning, ventilation, fresh air purification, range hood and other household appliances, rail transit and more.
[ Variety of Models ] Available in dimensions of : 120mm~180mm, this allows for air flow rates of up to 958m3/h and static pressure of up to 800Pa.
| Quantity: | |
|---|---|
F120P.A001
EBST
F120P.A001
Product Parameters |
Material: | Impeller: Nylon with Glass Fiber |
Direction of rotation: | Clockwise, seen on rotor |
| Control input: | Motor wiring speed regulation |
Type of protection: | IP 23 |
Insulation class: | F |
Bearing: | Maintenance-free Ball bearings |
Approval: | CCC |
Amb.Temp: | -40~+55℃ |
Model | Curve | Voltage [V] | Frequency [Hz] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] |
F120P.A001 | A | 230 | 50 | 1750 | 62 | 268 | 59 |
| B | 230 | 50 | 1300 | 46 | 198 | 53 |
 | Ps [Pa] | Airflow [m3/h] | Speed [rpm] | Power [W] | ||
A | ① | 75 | 228 | 1972 | 58.5 | |
② | 100 | 218 | 2026 | 57.6 | ||
| ③ | 150 | 194 | 2176 | 55.8 | ||
| ④ | 50 | 177 | 1573 | 44.5 | ||
⑤ | 75 | 169 | 1678 | 43.8 | ||
⑥ | 100 | 160 | 1812 | 42.7 | ||

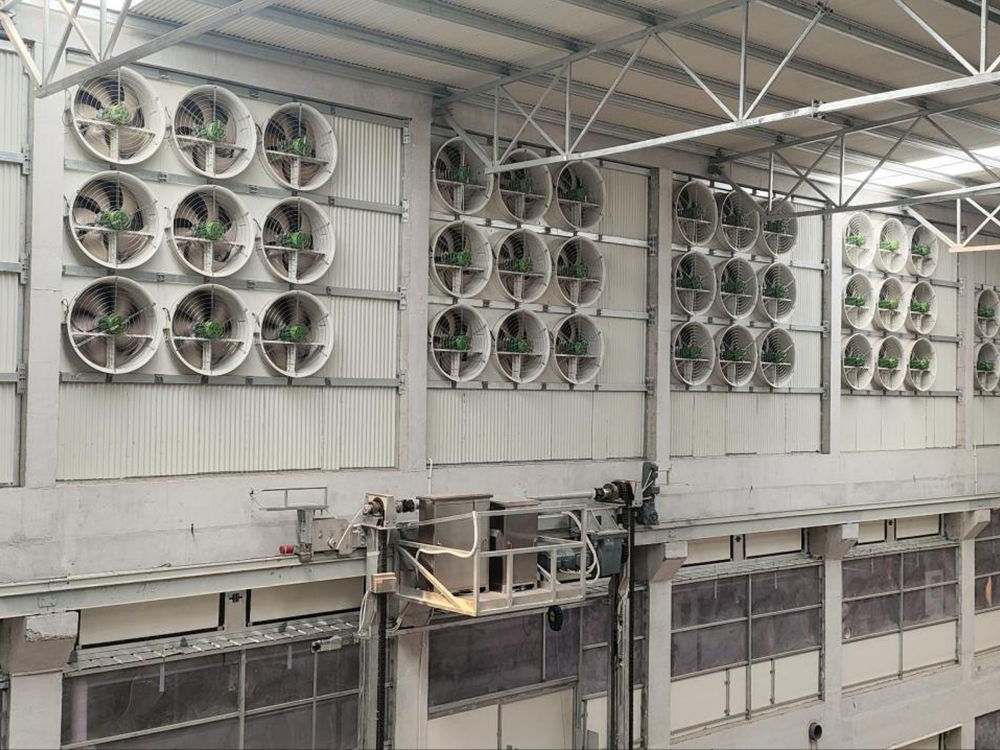

Application Scenarios |
Product Certificate |
UL Certification
Certified by UL authoritative safety mark, the AC forward curved centrifugal fan features high reliability and long service life, suitable for household air conditioning, fresh air purification and other scenarios, meeting the standards of North American and global high-end markets.

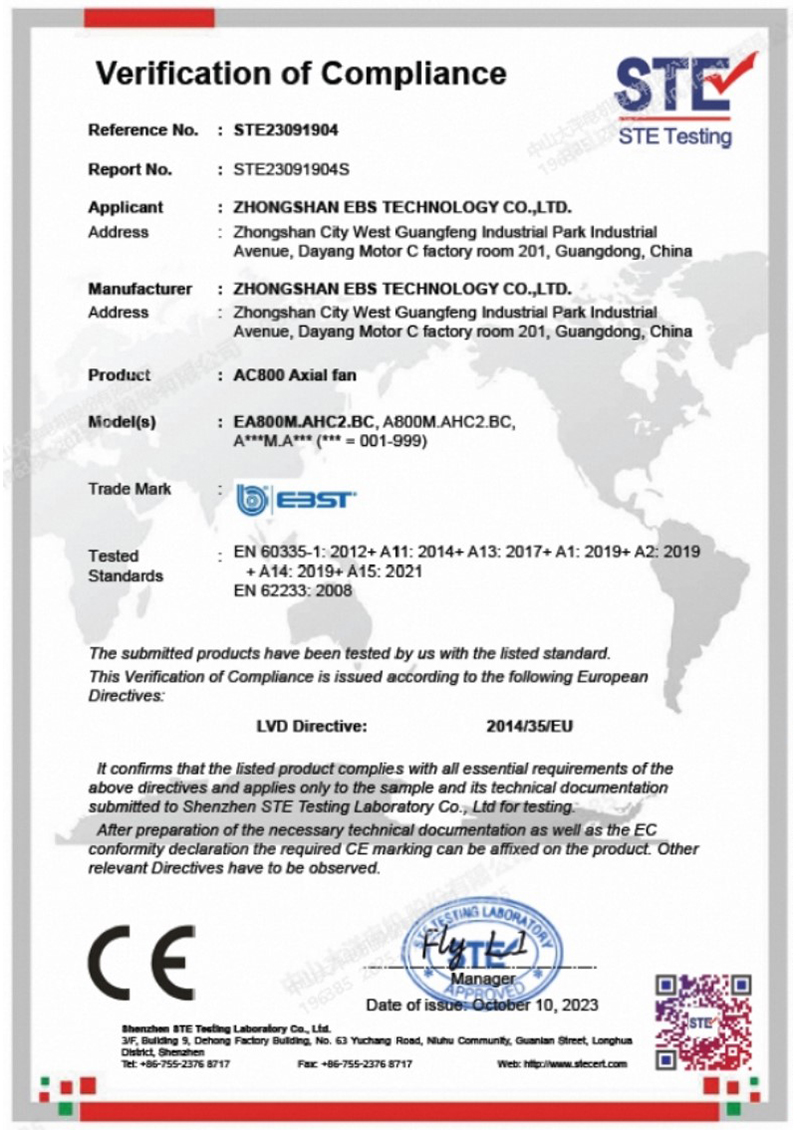

CE Certification
Compliant with EU LVD and EMC directives, the AC forward curved centrifugal fan is qualified for EU market access, suitable for household and civil ventilation scenarios, with smoother global application.
CCC Certification
Complies with China's mandatory product certification standards, suitable for the AC forward curved centrifugal fan, fully meets electrical safety and EMC requirements, safer to use, and adapts to various domestic compliant scenarios such as household air conditioning and range hoods.
CQC Certification
Certified by China Quality Certification Center, strict testing controls the performance and quality of the AC forward curved centrifugal fan, suitable for household ventilation, fresh air purification and other scenarios, demonstrating reliable product quality.
RoHS Certification
Complies with EU RoHS environmental standards, restricts harmful substance content, suitable for the AC forward curved centrifugal fan, green and environmentally friendly, adapting to strict environmental scenarios such as household use and high-end cleanliness, protecting home health.
Reach Certification
Certified by EU REACH regulation, fully controls chemical substance risks, suitable for the AC forward curved centrifugal fan, compliant for export, and adapts to the application of global household and civil ventilation scenarios.
FAQ |
Q1: Which authoritative certifications has the AC forward curved centrifugal fan passed?
A1: The AC forward curved centrifugal fan has passed a number of international and domestic authoritative certifications, including UL certification, CE certification, CCC certification, CQC certification, RoHS certification and Reach certification, fully covering core requirements such as safety, compliance and environmental protection, and adapting to markets in various regions around the world.
Q2: Which application scenarios is the AC forward curved centrifugal fan mainly suitable for?
A2: It is mainly suitable for core scenarios such as household air conditioning (split, cabinet, wall-mounted indoor units), indoor ventilation & air exchange, whole-house fresh air purification (fresh air systems, fresh air fans, purifiers), kitchen range hoods, and can also be adapted to small commercial ventilation equipment, civil purification units and other scenarios.
Q3: What problems can the AC forward curved centrifugal fan solve in the household ventilation & air exchange scenario?
A3: In the household ventilation & air exchange scenario, the fan can quickly discharge indoor polluted air, peculiar smells and harmful gases, and at the same time introduce outdoor fresh air, effectively improving the air quality of confined spaces, relieving indoor stuffiness and oppression, and enhancing home comfort.

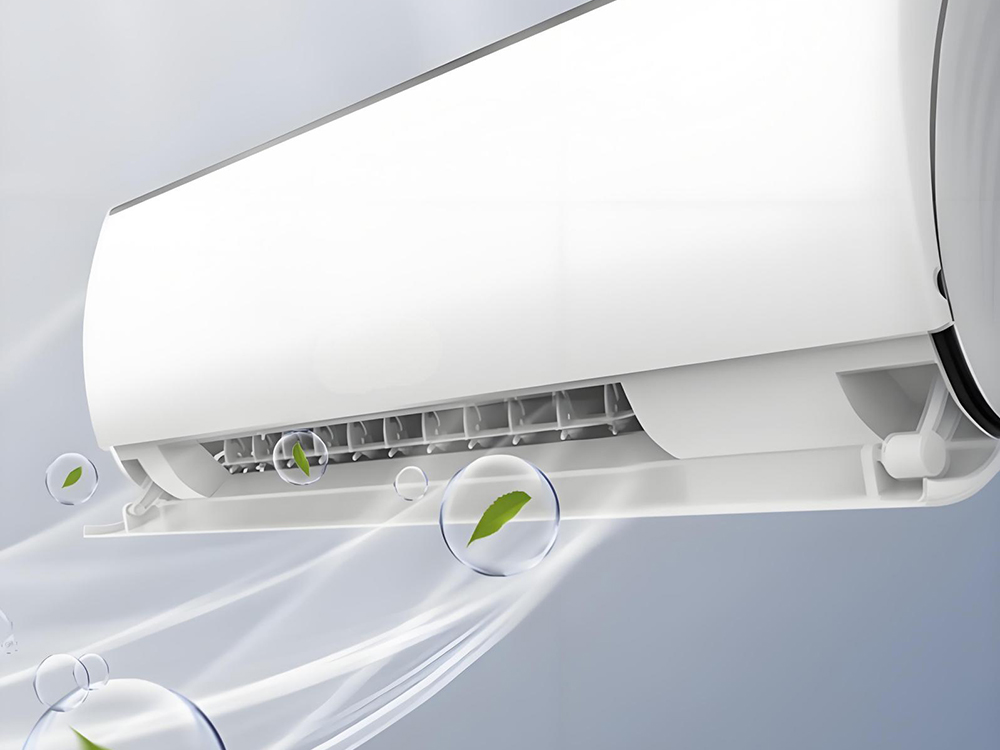

Q4: What role does the AC forward curved centrifugal fan play when adapted to household air conditioning?
A4: When adapted to the indoor unit of household air conditioning, the fan is mainly responsible for indoor air circulation and heat exchange, helping the air conditioner achieve efficient cooling or heating, making the indoor temperature distribution more uniform, reducing the energy consumption of air conditioner operation, and improving the air conditioning use experience.

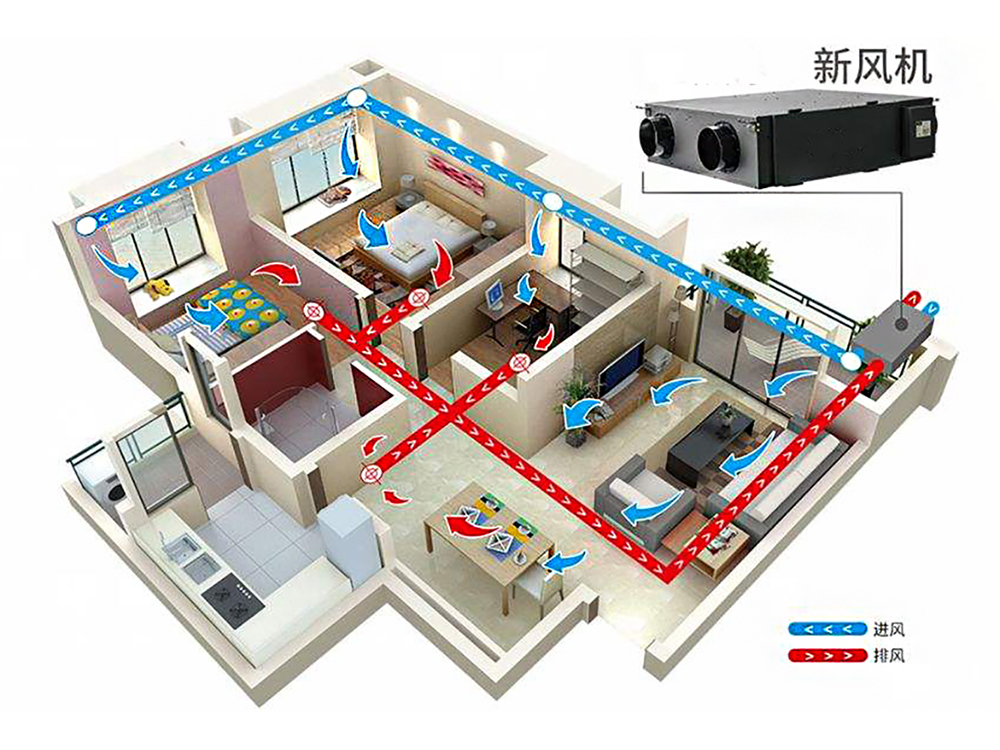

Q5: How does the AC forward curved centrifugal fan work with fresh air equipment in the fresh air purification scenario?
A5: In the fresh air purification scenario, as the core power component of fresh air equipment, the fan promotes outdoor air to pass through the filtering and purification module of the equipment, sends clean air into the room, and at the same time discharges harmful gases such as formaldehyde and carbon dioxide in the room, continuously maintaining fresh indoor air.

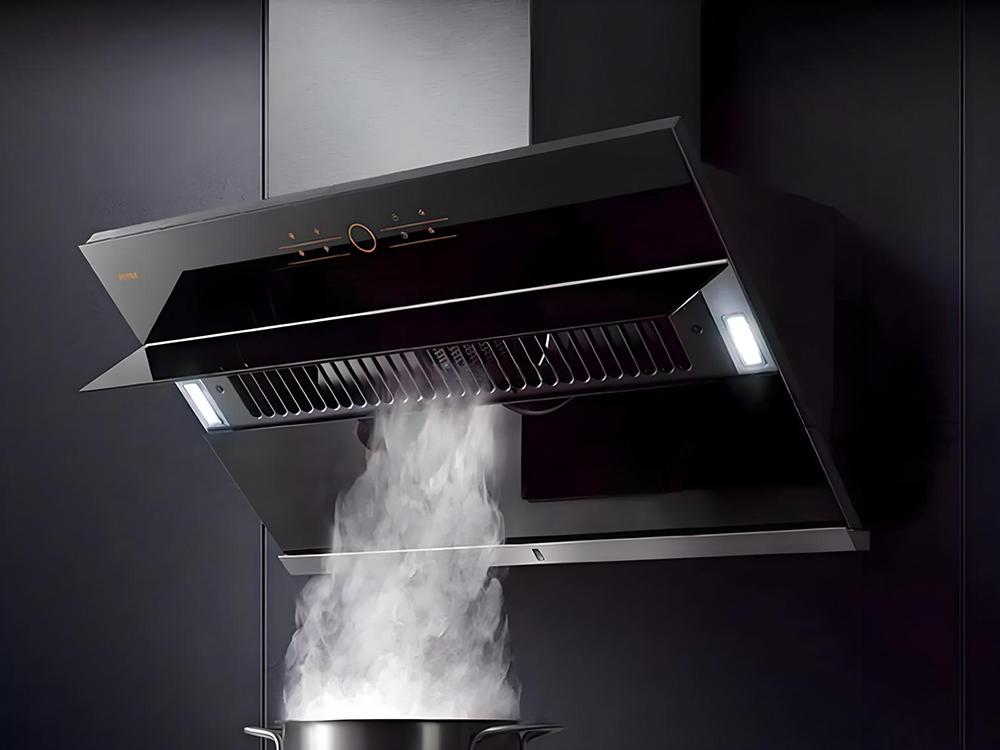

Q6: What are the advantages of the AC forward curved centrifugal fan when adapted to range hoods?
A6: When adapted to household range hoods, with strong wind pressure and stable air volume, the fan can quickly suck away oil fumes, oil fume particles and cooking odors generated during cooking, avoid oil fumes from spreading to other indoor areas, and keep the kitchen and home environment clean.
Q7: What are the considerations for selecting the model of the AC forward curved centrifugal fan in different application scenarios?
A7: The fan size ranges from 120mm to 180mm, and the corresponding model can be selected according to the air volume and static pressure requirements of different scenarios: small-size models can be selected for small equipment such as household air conditioners and desktop fresh air fans; for scenarios requiring large air volume such as range hoods and whole-house fresh air systems, suitable large-size models can be selected (maximum air volume up to 958m³/h, maximum static pressure up to 800Pa).
