[ High Efficiency ] Composite material impeller optimized by ternary flow CFD fluid simulation technology, reasonably designed flow runner combined with ultra-efficient motor create the high efficiency of the fan.
[ Low Noise ] The designer closely combines aerodynamics and sound source, and makes the blade angle and blade pattern fully adapt to the ternary flow field, which always ensures lower noise at the same air volume.
[ High Reliability ] Motors have F class insulation, and been tested for 3 months of 65℃ high temperature test and 40,000 hours of life test, which ensure worse-free quality.
[ Accurate Intelligent Control ] The fan has efficient AC/EC/DC motor for option and supports various control modes such as motor wiring regulation / 0~10V / PWM / RS485 to accurately meet the ventilation needs of different period of time.
[ Wide Application ] The products is used wherever outstanding performance is required, for example, household air conditioning, ventilation, fresh air purification, range hood and other household appliances, rail transit and more.
[ Variety of Models ] Available in dimensions of : 120mm~180mm, this allows for air flow rates of up to 958m3/h and static pressure of up to 800Pa.
| Quantity: | |
|---|---|
F160M.A003
EBST
F160M.A003
Product Parameters |
Material: | Impeller: Galvanized sheet steel |
Direction of rotation: | Clockwise, seen on rotor |
| Control input: | Motor wiring speed regulation |
Type of protection: | IP 23 |
Insulation class: | F |
Bearing: | Maintenance-free Ball bearings |
Approval: | CCC |
Amb.Temp: | -40~+65℃ |
Model | Curve | Voltage [V] | Frequency [Hz] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] |
F160M.A003 | A | 380 | 50 | 2080 | 240 | 615 | 66 |
 | Ps [Pa] | Airflow [m3/h] | Speed [rpm] | Power [W] | ||
A | ① | 250 | 465 | 2360 | 186 | |
② | 300 | 440 | 2350 | 179 | ||
③ | 350 | 385 | 2395 | 170 | ||
④ | 400 | 340 | 2450 | 158 | ||

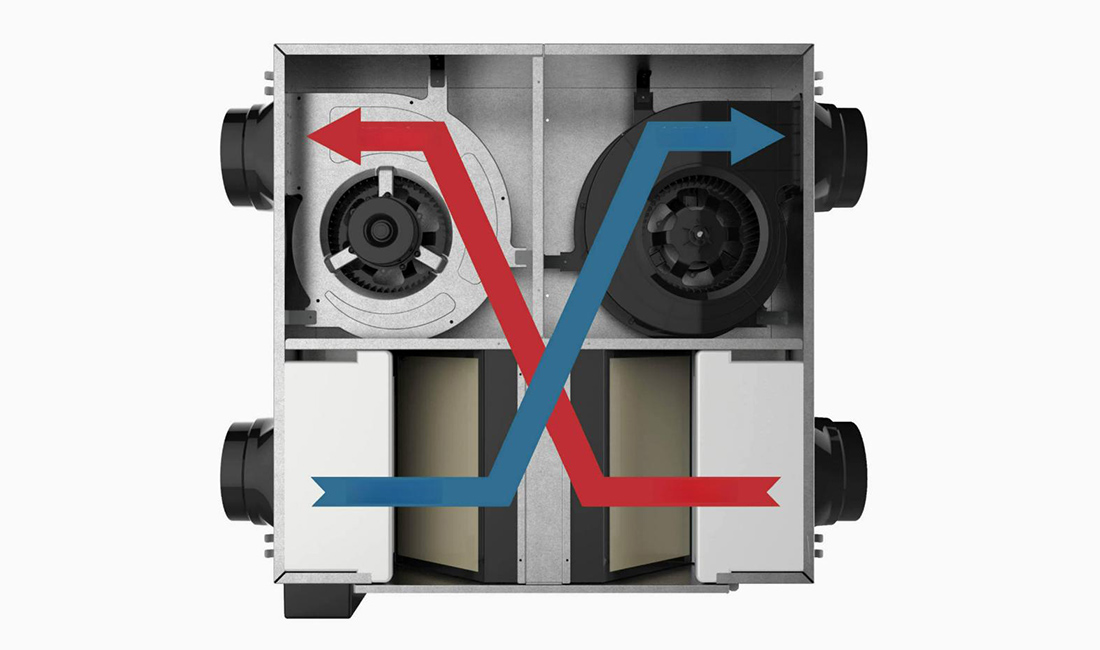

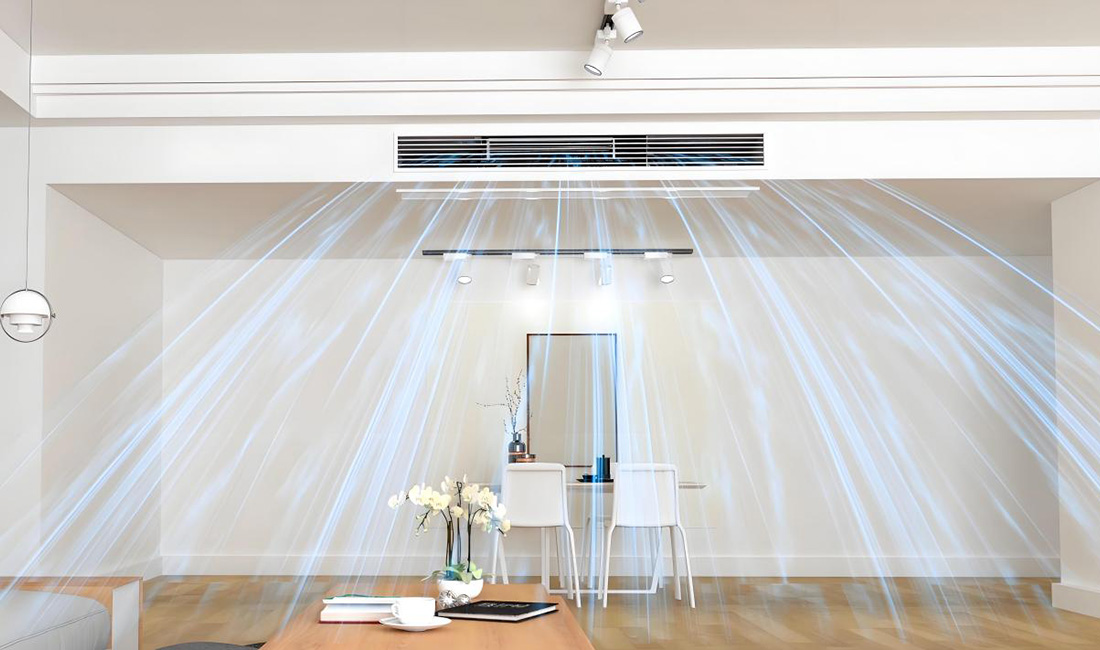

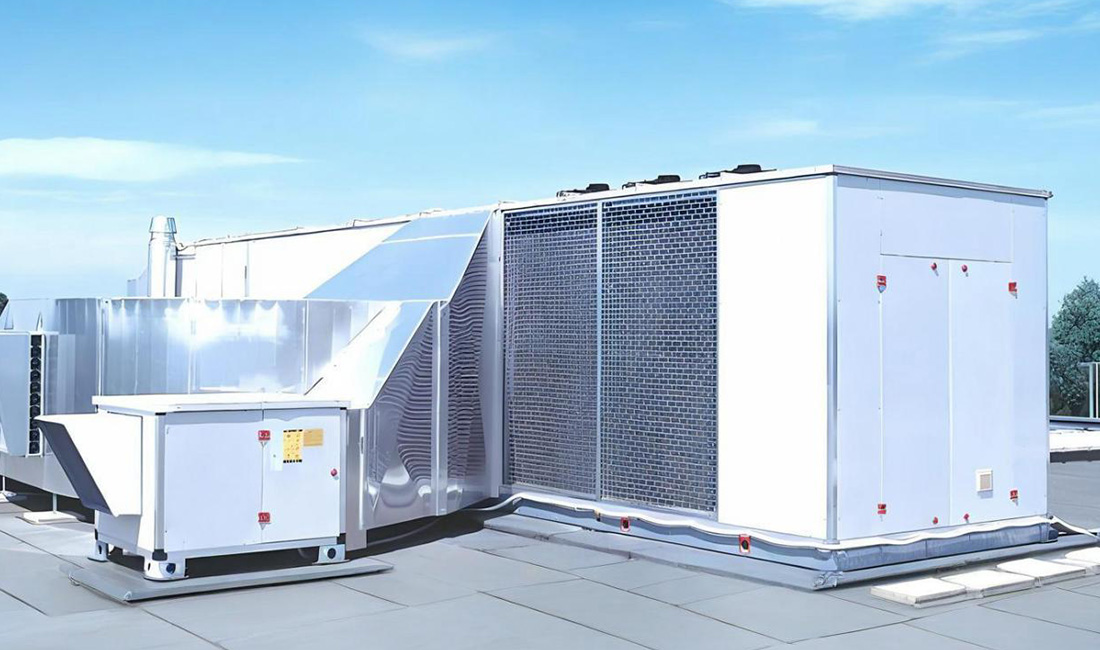

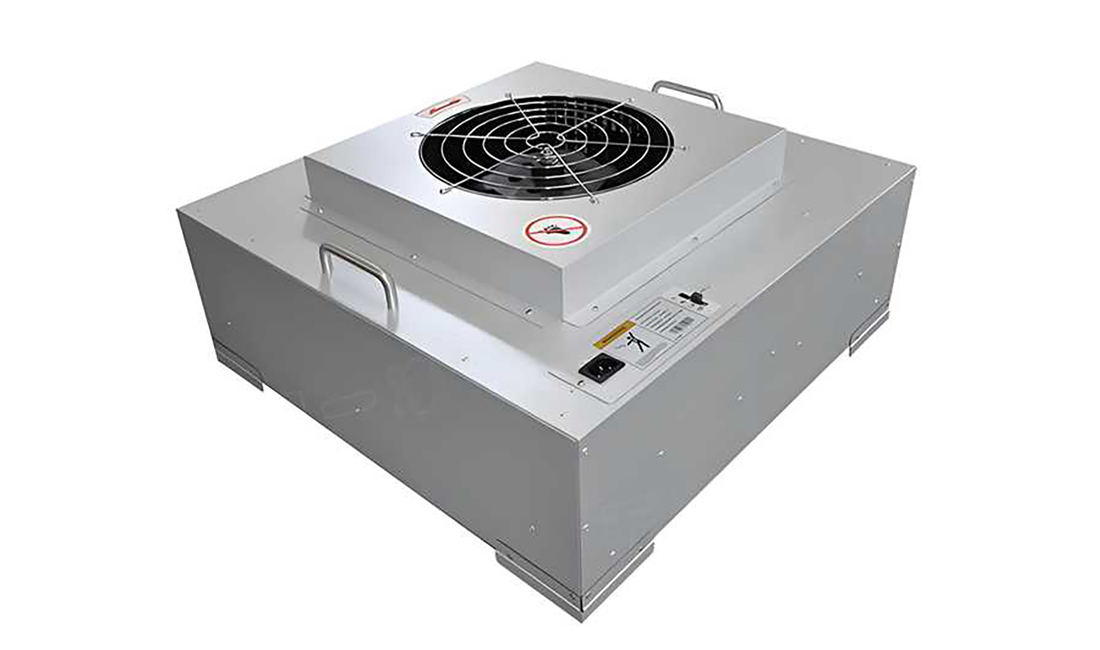

Application Scenarios |
Product Certificate |
UL Certification
Authoritative safety certification for the North American market, verifying that the AC160 forward-curved centrifugal fan complies with core North American standards in terms of electrical safety, fire resistance and operational reliability. It is applicable to ventilation projects in the United States, Canada and other regions, reducing overseas safety compliance risks and gaining recognition from international customers.
CE Certification
Mandatory conformity mark for the EU market. The AC160 forward-curved centrifugal fan meets core EU regulations including low voltage directive, electromagnetic compatibility and machinery safety, covering three core dimensions of safety, health and environmental protection. It can be freely circulated and used across the 27 EU member states and the European Economic Area.
CCC Certification
Statutory mandatory access qualification for electrical products in China. It certifies that the AC160 forward-curved centrifugal fan fully meets national mandatory standards for electrical safety, structural strength and electromagnetic compatibility, enabling lawful application in various industrial and commercial ventilation and heat dissipation scenarios nationwide, and securing the bottom line for safe equipment operation.
CQC Certification
Authoritative voluntary quality certification in China, highlighting the core advantages of the AC160 forward-curved centrifugal fan including high energy efficiency, stable operation and durability. It is ideal for high-end commercial and demanding industrial ventilation scenarios, boosting brand quality competitiveness and improving recognition in project selection.
RoHS Certification
Core EU environmental access qualification that strictly restricts the use of six hazardous substances including lead and mercury. The AC160 forward-curved centrifugal fan adopts eco-friendly raw materials and compliant manufacturing processes, making it suitable for high-demand clean ventilation scenarios such as medical, electronics and food industries, and fully meeting EU environmental standards.
Reach Certification
Core EU environmental compliance standard for chemical substances, which fully controls the content of Substances of Very High Concern (SVHC) in the AC160 forward-curved centrifugal fan. The product components pose no excess content risk, allowing barrier-free access to the EU and European Economic Area, and aligning with the global trend of green industrial development.
FAQ |
Q1: Does the fan require routine maintenance? Is maintenance difficult?
A: Routine maintenance is simple. Only regular cleaning of dust and debris from the fan air inlet and impeller is needed to avoid blockage that affects air volume. The fan has no vulnerable or consumable parts, features a long service life under normal working conditions, requires no frequent disassembly and inspection, and has low maintenance costs.
Q2: How do I judge whether the AC160 is suitable for my equipment or project?
A: Prioritize matching the following three conditions:
① The installation space matches the fan dimensions;
② The air volume and static pressure meet the ventilation, heat dissipation or purification requirements of the equipment;
③ The application scenarios are medium-low pressure ventilation such as fresh air, air conditioning terminals, purification, cabinet cooling, etc. It can directly match the installation standards of mainstream supporting equipment.
Q3: What type of fan is the AC160, and what are its core advantages?
A: The AC160 is a forward-curved centrifugal fan powered by AC. Its core advantages include compact structure, large air volume, medium-low pressure, low operating noise and high stability. It is suitable for space-limited scenarios that require quiet operation and high ventilation efficiency, making it the standard power component for small and medium-sized ventilation and heat dissipation equipment.
