NP-E Series Axial Fan with Nylon Impeller 800/910/1000 EC Axial Fans

[ High Efficiency ] High strength impeller optimized by ternary flow CFD fluid simulation technology, reasonably designed flow runner combined with ultra-efficient motor create the high efficiency of the fan.

[ Low Noise ] The designer closely combines aerodynamics and sound source, and makes the blade angle and blade pattern fully adapt to the ternary flow field, which always ensures lower noise at the same air volume.

[ High Reliability ] Motors have up to IP55 waterproof and dust proof protection, F class insulation, and been tested for 3 months of 65℃ high temperature test and 40,000 hours of life test, which ensure worse-free quality.

[ Wide Application ] The products is used wherever outstanding performance is required, for example, heat pump, ventilation, cold chain, equipment cooling, IDC small cabinet, high voltage inverter cabinet, energy storage, rail transit and more.

[ Variety of Models ] Available in dimensions of : 630mm~1000mm, this allows for air flow rates of up to 30070m3/h and static pressure of up to 300Pa.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Model	Voltage [V]	Frequency [Hz]	Speed [rpm]	Max Power [W]	Max Airflow [m³/h]	Noise [dB(A)]
A800F.E001	380	50	973	1800	25320	69.2
A800F.E002	380	50	1020	2220	28000	72
A910F.E002	380	50	1005	2295	31908	75
A910F.E001	380	50	983	1850	27898	73
A1000F.E003	540	50/60	750	2100	30070	65

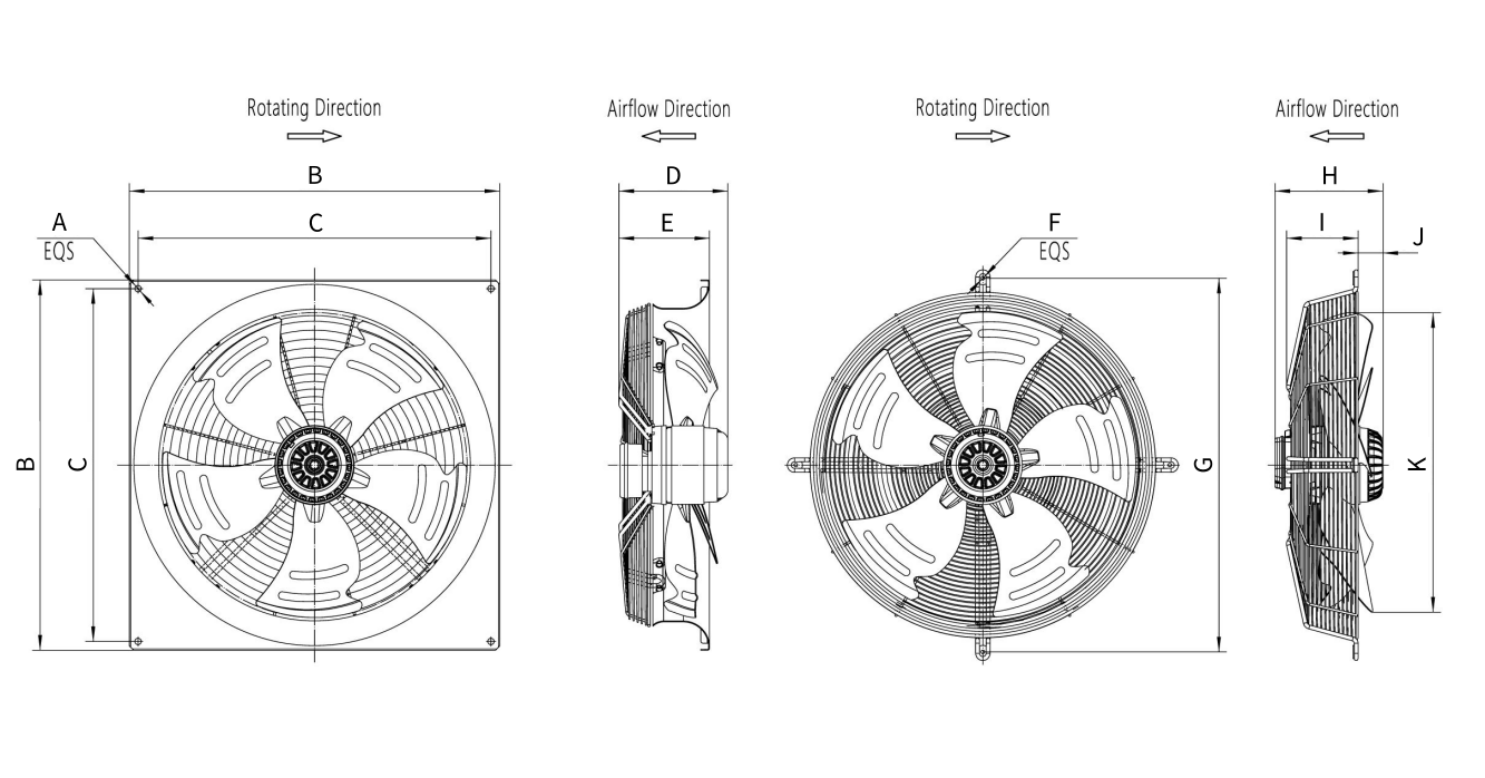

DIMENSION

Model	A	B	C	D	E	F	G	H	I	J	K
A800F.E001	4-Ø15	969	910	274		/	/	/	/	/	Ø850
A800F.E002	4-Ø15	969	910	274	/	/	/	/	/	/	Ø850
A910F.E002 A910F.E001	12-Ø14.5	1080	1040	306							Ø945
A1000F.E003	12-Ø12	1170	1135	360	/	/	/	/	/	/	Ø1020

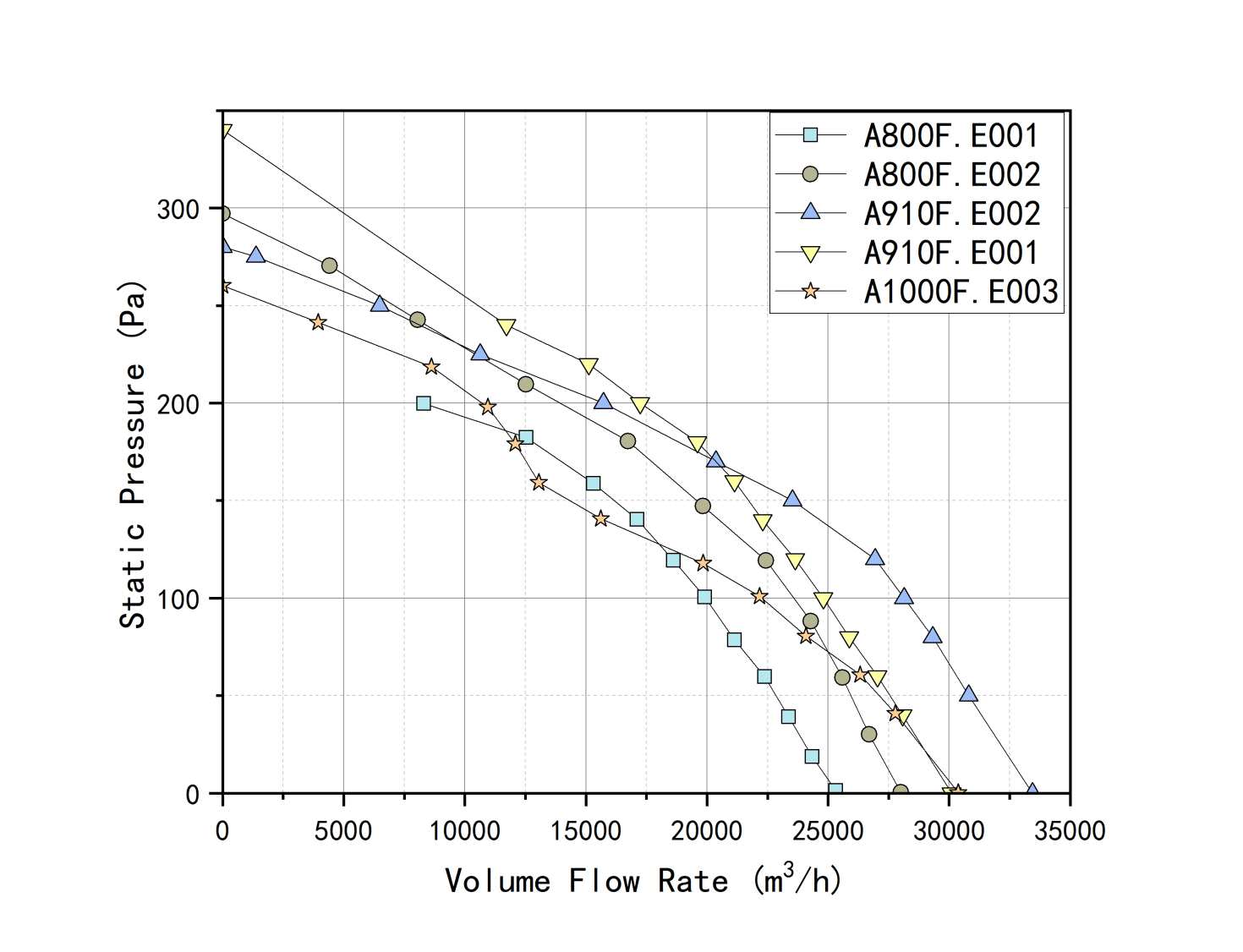

Airflow-static pressure curve (P-Q)

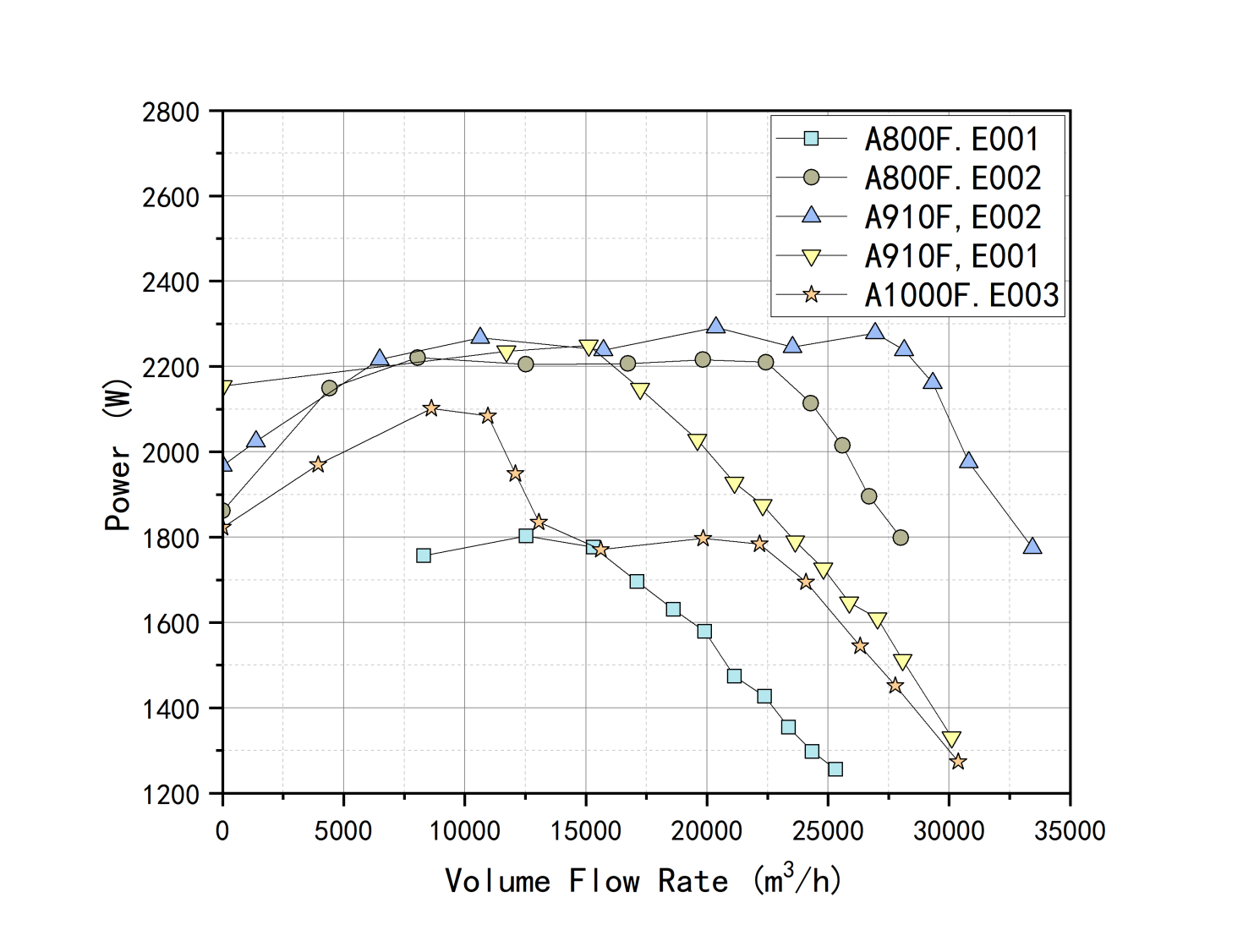

Airflow-power curve (N-Q)

Core Selling Points

1.Wide Specification Coverage, Suitable for All Scenarios

Complete diameter specifications covering three mainstream sizes: 800/910/1000mm to meet diverse ventilation and heat dissipation requirements. Supports 380V and 540V, compatible with 50/60Hz frequency, featuring flexible voltage adaptation for global working conditions. Multiple model options with clear airflow/power gradients for easy selection.

2.Strong Performance, High Ventilation Efficiency

High airflow output with a maximum of 31,908m³/h, delivering outstanding ventilation and air exchange capacity. Speed range of 750–1020rpm ensures stable operation and sufficient power.

3.Low Noise & Energy Saving, Cost-Effective Operation

Minimum noise level of only 65dB(A), and high-airflow models controlled at 69.2–75dB(A) for quiet performance. Reasonable power matching with a maximum power of 2295W, optimizing the balance between energy consumption and airflow. Equipped with EC motors, more energy-efficient than traditional AC fans, reducing long-term operating costs.

4.Reliable Structure, Easy Installation

Nylon impeller is lightweight, corrosion-resistant, anti-aging, with low wind resistance and long service life. Standardized mounting holes: 4-Ø15 for Type 800, 12-Ø14.5 for Type 910, 12-Ø12 for Type 1000, enabling efficient mass installation. Standardized dimensions for the fan body, impeller and mounting, suitable for both replacement and new projects.
