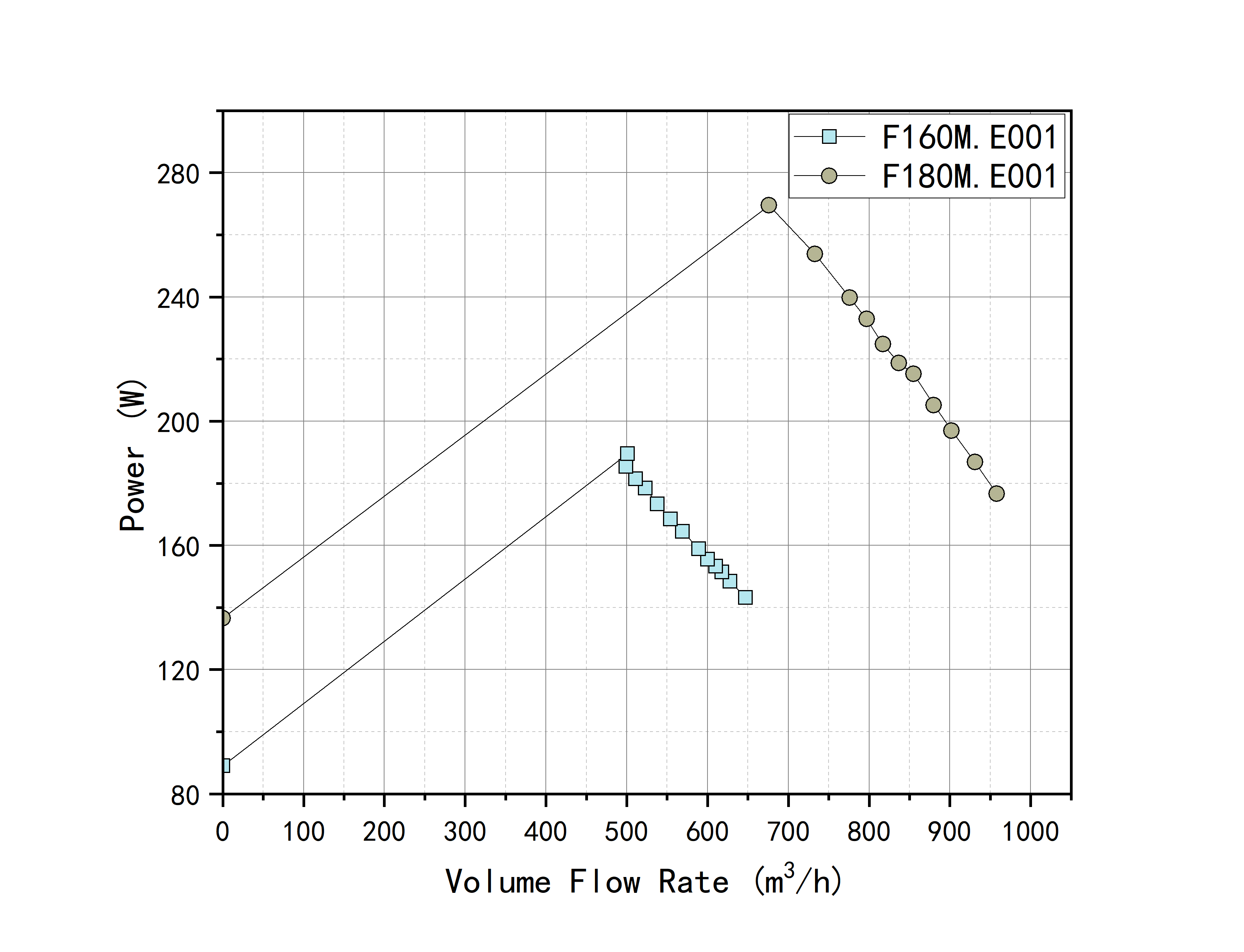

Model | Voltage [V] | Frequency [Hz] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] | |
 | F160M.E001 | 230 | 50 | 1905 | 143 | 647 | 64.5 |
 | F180M.E001 | 230 | 50 | 1440 | 177 | 958 | 64.0 |

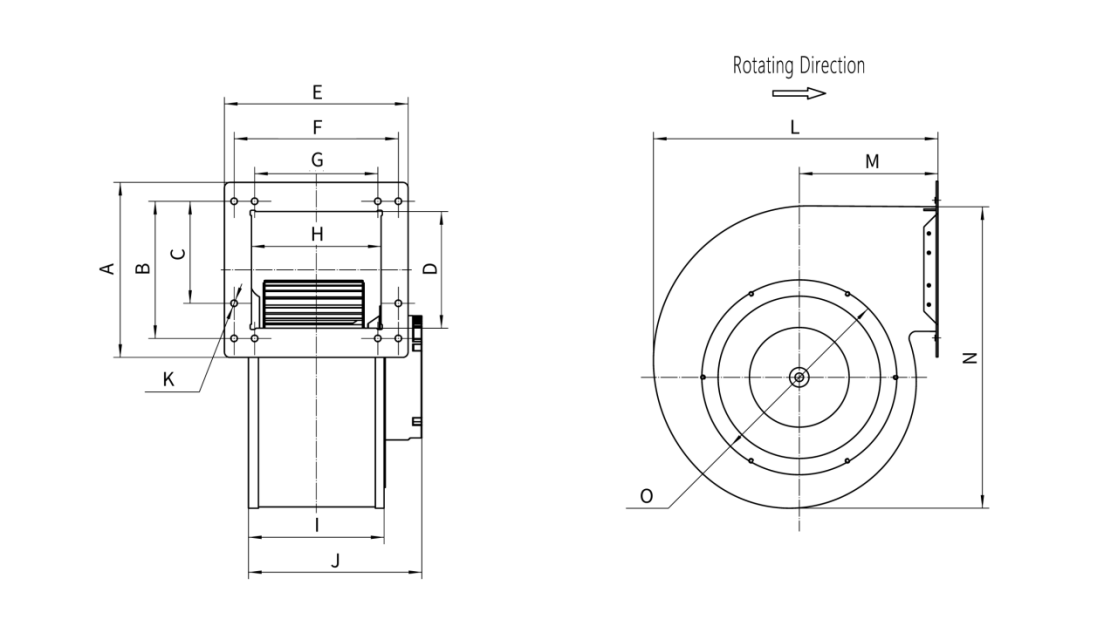

Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O |
F160M.E001 | 130 | 110 | 82 | 82 | 130 | 114.6 | 89.5 | / | 95 | 134 | 2-Ø6 | 219 | 97 | 246 | Ø160 |
F180M.E001 | 162 | 127 | / | 108 | 170 | 152 | 114 | 120 | 126 | 161 | 8-Ø6.2 | 263 | 128 | 278 | Ø180 |
This series is an EC forward-curved centrifugal fan featuring high efficiency, energy saving, large air volume, low noise, compact structure and easy installation. It is suitable for fresh air, purification, HVAC, equipment cooling and other applications, balancing performance and cost.I. Core Performance AdvantagesI. Core Performance Advantages
Equipped with a high-efficiency EC motor, this fan outperforms conventional AC fans (especially at partial load), delivering significant energy savings and lower long-term operating costs. Its aerodynamically optimized forward-curved impeller generates strong, high-volume airflow in a compact footprint, ideal for heavy ventilation and heat exchange. With dual noise reduction, it operates quietly at just 64.5/64.0dB(A), perfect for noise-sensitive commercial and residential spaces. Low power draw at peak airflow simplifies power distribution, reduces heat buildup, and extends service life.
The compact, integrated outer-rotor and forward-curved impeller design saves space and enables easy integration into tight enclosures (control cabinets, air handlers, HVAC units). Standardized dimensions and pre-matched mounting holes ensure compatibility with mainstream equipment, supporting seamless mass replacement and new product design. The brushless EC motor eliminates wear, and paired with premium bearings, it delivers reliable 24/7 operation with minimal maintenance and a long service life.

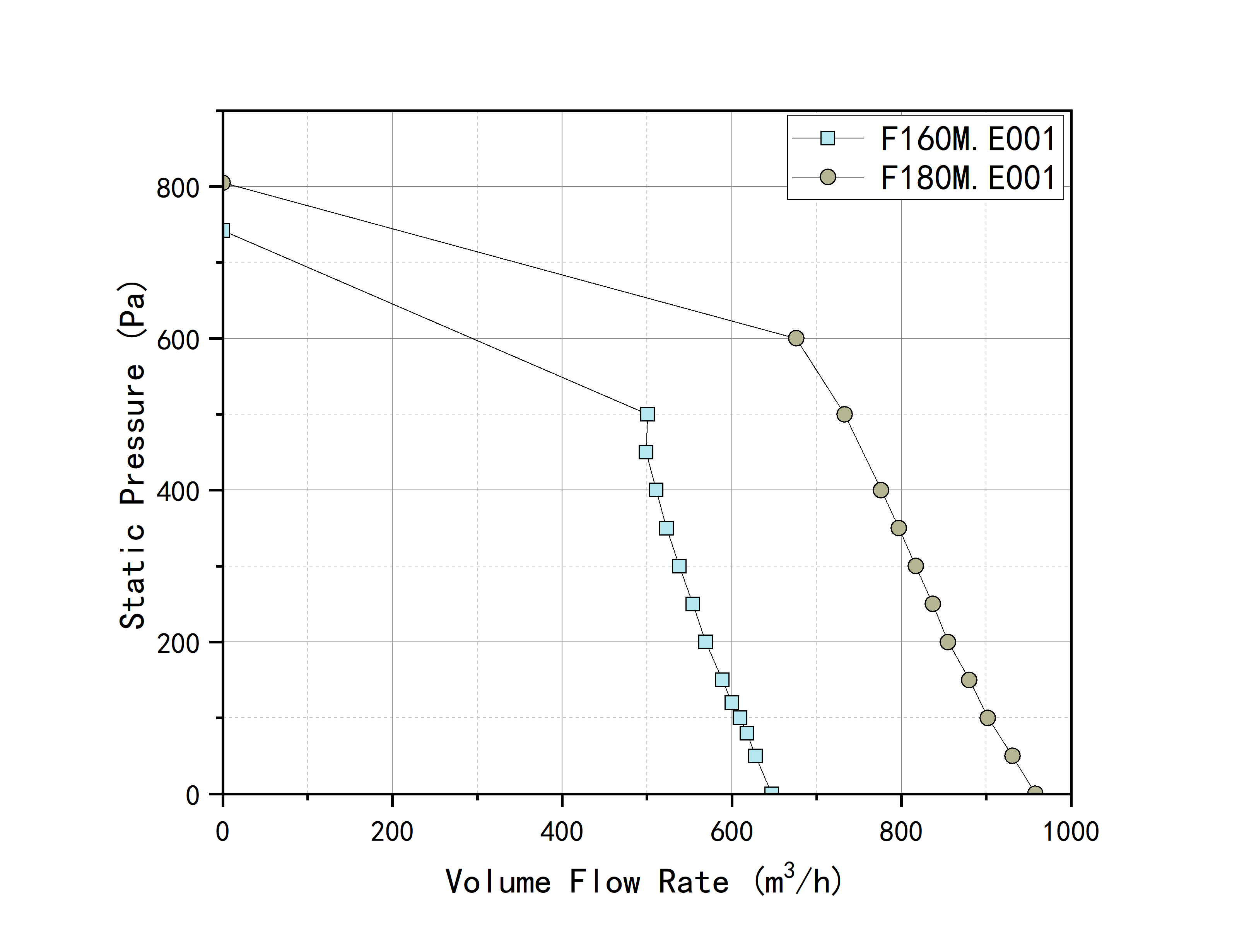

Supports wide operating conditions and precise stepless speed control, enabling accurate airflow/static pressure adjustment to match load and environment, eliminating damper throttling waste and ideal for VAV and intelligent air control systems. Compatible with standard 230V/50Hz mains power (no extra transformers required), it works seamlessly across residential, commercial, and industrial settings for faster deployment and lower total cost of ownership.
