| Quantity: | |
|---|---|
Model | Voltage [V] | Frequency [Hz] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] | |
| | F160M.A005 | 230 | 50 | 1260 | 164 | 491 | 56 |
230 | 50 | 1000 | 124 | 356 | 50 | ||
| | F160M.E004 | 230 | 50 | 1425 | 123 | 642 | 62 |
230 | 50 | 1135 | 60 | 514 | 58 |

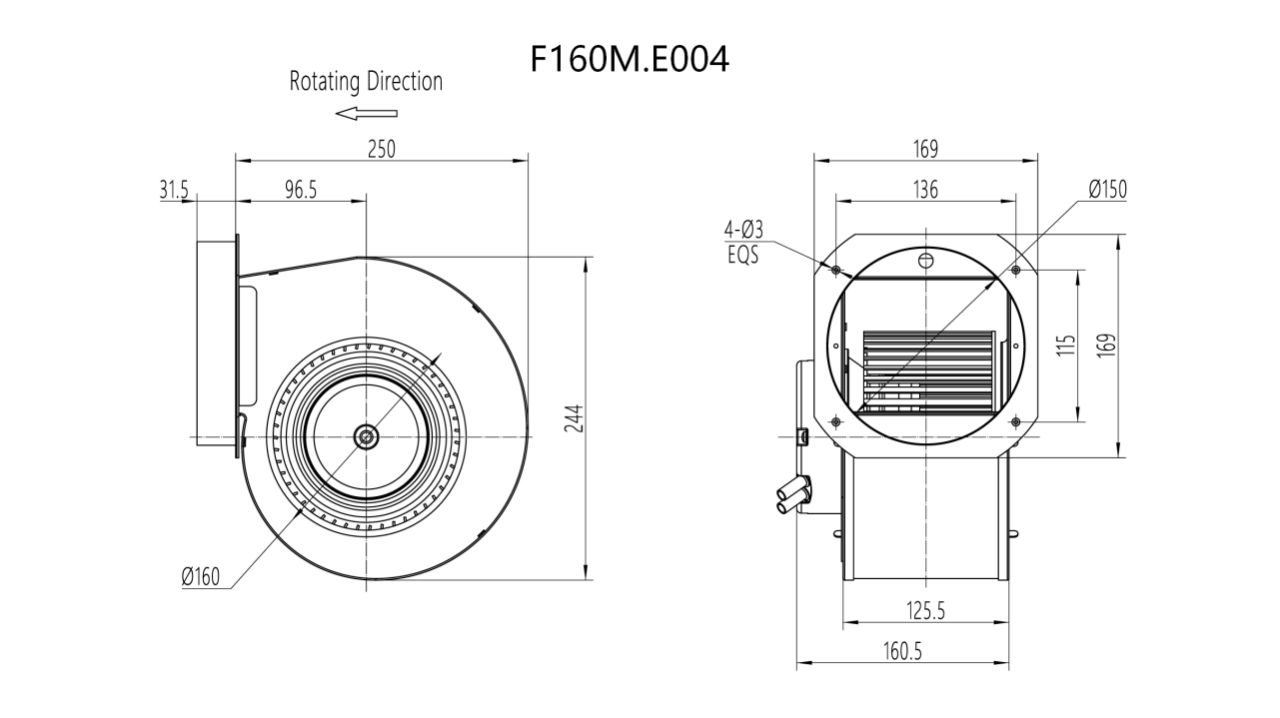

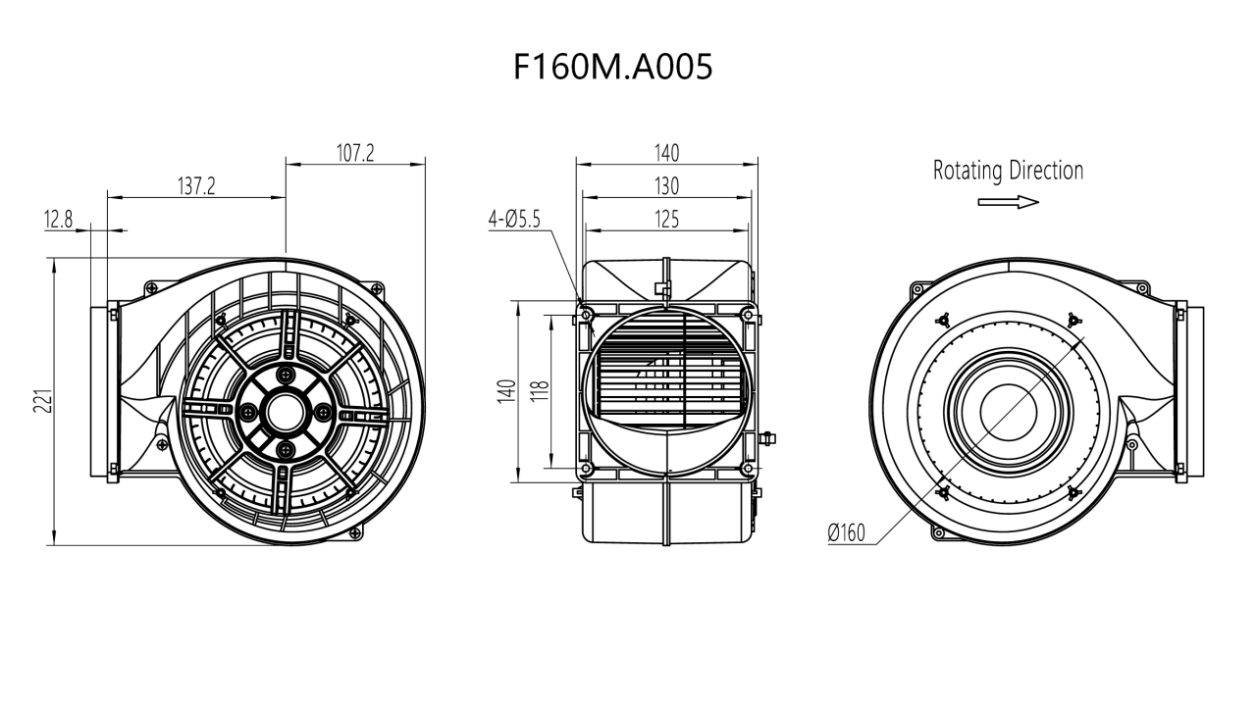

F160M.A005 | F160M.E004 |
 |  |
Both models adopt standard 230V/50Hz power supply, compatible with mainstream industrial and commercial scenarios without extra voltage transformation.The F160M.E004 delivers a maximum airflow of 642m³/h for rapid ventilation in large spaces; the F160M.A005 reaches up to 491m³/h, balancing stability and efficiency.Dual-speed adjustable design enables free switching between high and low speeds to meet various working conditions such as ventilation, heat dissipation and air exhaust.
Excellent power control achieves large airflow with low energy consumption, reducing electricity costs for long-term operation.Optimized aerodynamic design minimizes energy loss, offering lower power consumption than conventional fans at the same airflow, suitable for continuous uninterrupted operation.
Outstanding noise control keeps noise at a reasonable level even at high speed.Smooth running with low vibration, ideal for noise-sensitive places including equipment rooms, workshops and building ventilation systems.
Standardized dimensions and mounting ports allow plug-and-play installation, saving space and construction costs.Integrated structure ensures sturdiness, durability and good protection, adapting to long-term stable operation with low failure rate.
Dual-speed configuration combines quiet energy-saving low speed and powerful ventilation high speed, adapting to seasonal and time period changes.Widely used in ventilation & heat dissipation, equipment cooling, space air exchange, central air conditioning supporting systems and other scenarios with strong universality.
