Model | Voltage [V] | Max Current [A] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] | |
| | F120M.D001 | 48 | 50 | 2365 | 67 | 342 | 63.0 |
| | F140M.D001 | 48 | 1.40 | 2580 | 135 | 493 | 66.0 |
 | F160M.D001 | 48 | 1.92 | 1700 | 92 | 543 | 63.0 |

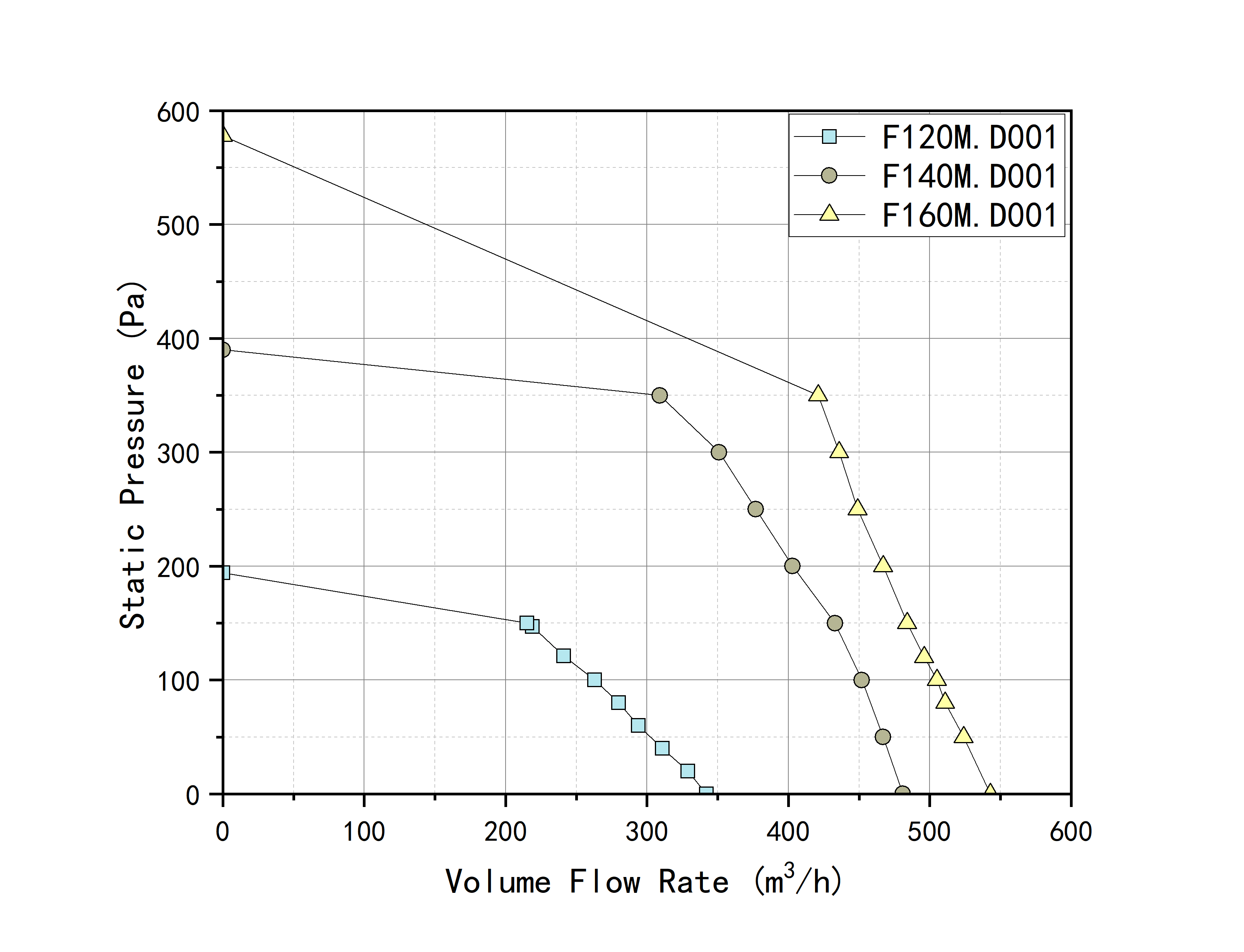

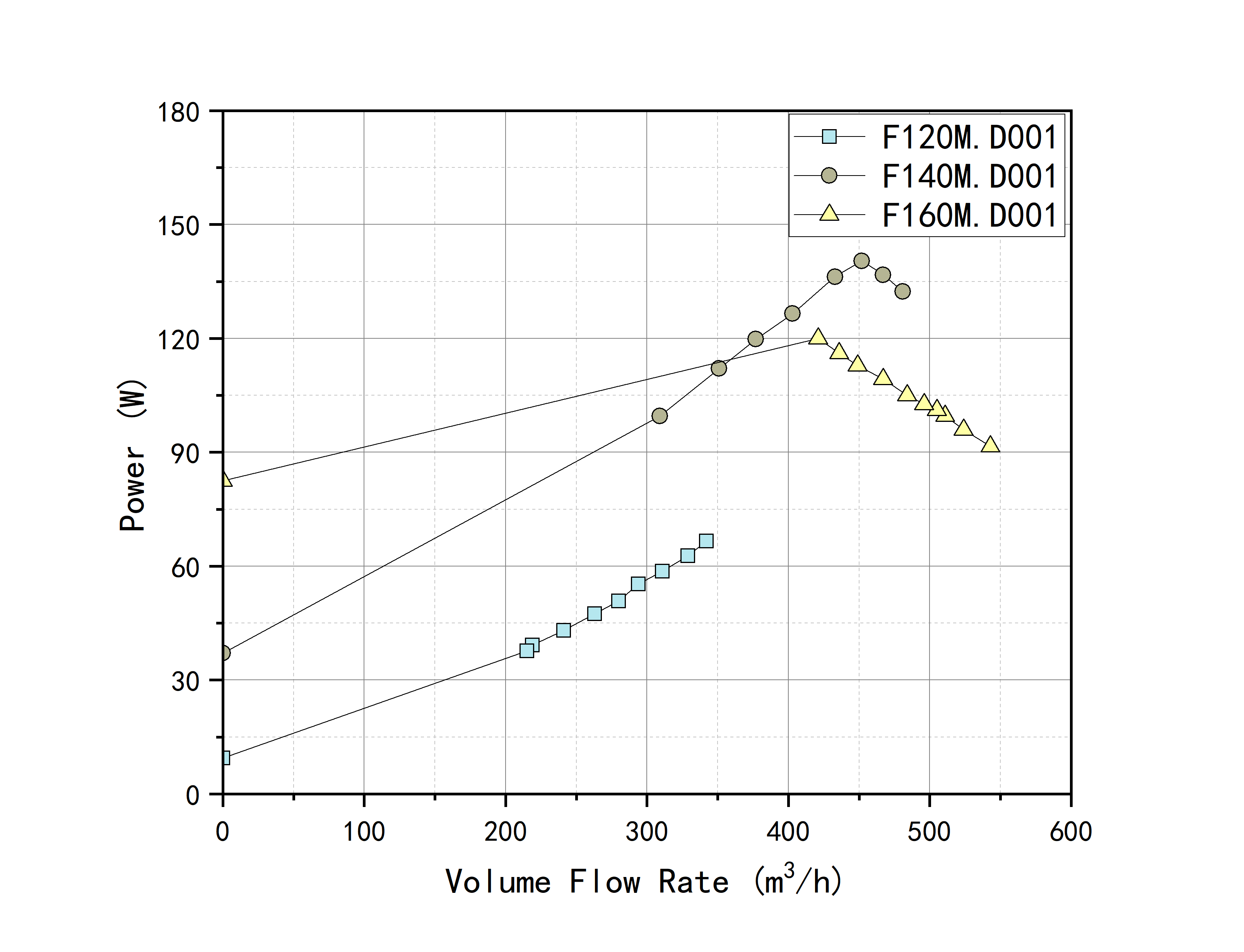

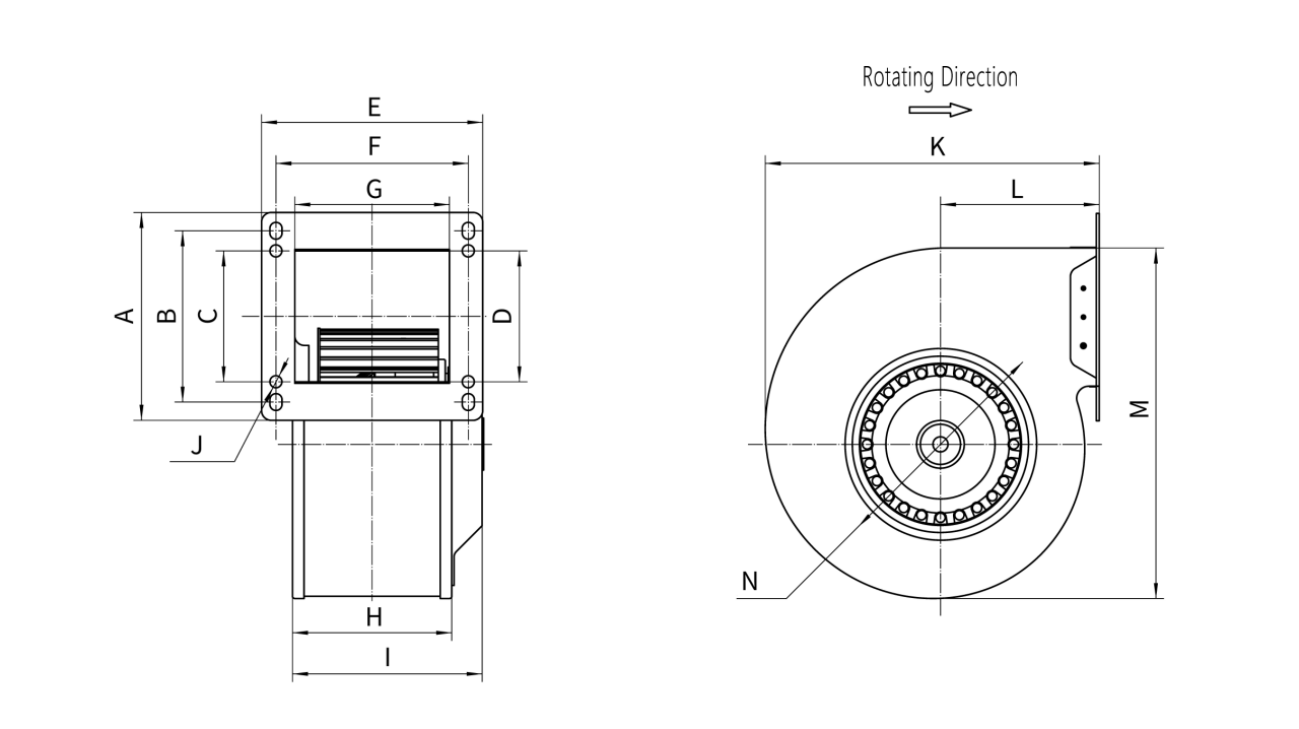

Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
F120M.D001 | 108 | 89 | 68 | 68 | 115 | 100 | 80.4 | 82.8 | 98.6 | 4-Ø6.5 | 114 | 82.5 | 182.5 | Ø120 |
F140M.D001 | 115 | 96 | / | 85.4 | 115 | 96 | 77 | 82.5 | 98 | 4-Ø8 | 208 | 107 | 209 | Ø140 |
F160M.D001 | 130 | 110 | 82 | / | 130 | 114.5 | 89.5 | 95 | 106 | 2-Ø6 | 219 | 97 | 264 | Ø160 |
This series of F120M/F140M/F160M DC forward-curved centrifugal fans features 48V DC drive, high airflow, low noise, standardized installation, and stable performance under wide working conditions. It is suitable for industrial heat dissipation, fresh air purification, equipment cooling, HVAC supporting systems and other scenarios, providing an integrated ventilation solution with high reliability and cost-effectiveness.
Unified 48V DC power supply, compatible with industrial and equipment integration; power ranges from 67–135W for sufficient power.
High airflow output: F120M up to 342m³/h, F140M up to 493m³/h, F160M up to 543m³/h, meeting large ventilation demands.
Forward-curved impeller + optimized volute ensure stable airflow under fluctuating system resistance, ideal for ducted and high-resistance working conditions.
Noise of the whole series is controlled at 63–66dB(A), delivering outstanding performance at the same airflow level.
Aerodynamically optimized blades + precision dynamic balance reduce turbulence and vibration, balancing heat dissipation and quiet operation.
Three mainstream diameters: 120mm/140mm/160mm, covering most equipment and ventilation module mounting positions.
Standardized mounting holes enable convenient and efficient replacement and new installation.
Compact structure and precise dimensions bring high space utilization, fitting narrow spaces such as cabinets, units and suspended ceilings.
48V DC power supply ensures smooth startup and fast speed regulation response, supporting stepless speed control with PWM/0-10V.
External rotor direct-coupled structure eliminates extra transmission loss, featuring high efficiency, low failure rate and longer service life.
Reasonable current-power matching results in low heat generation and strong stability, meeting 7×24h continuous operation requirements.
