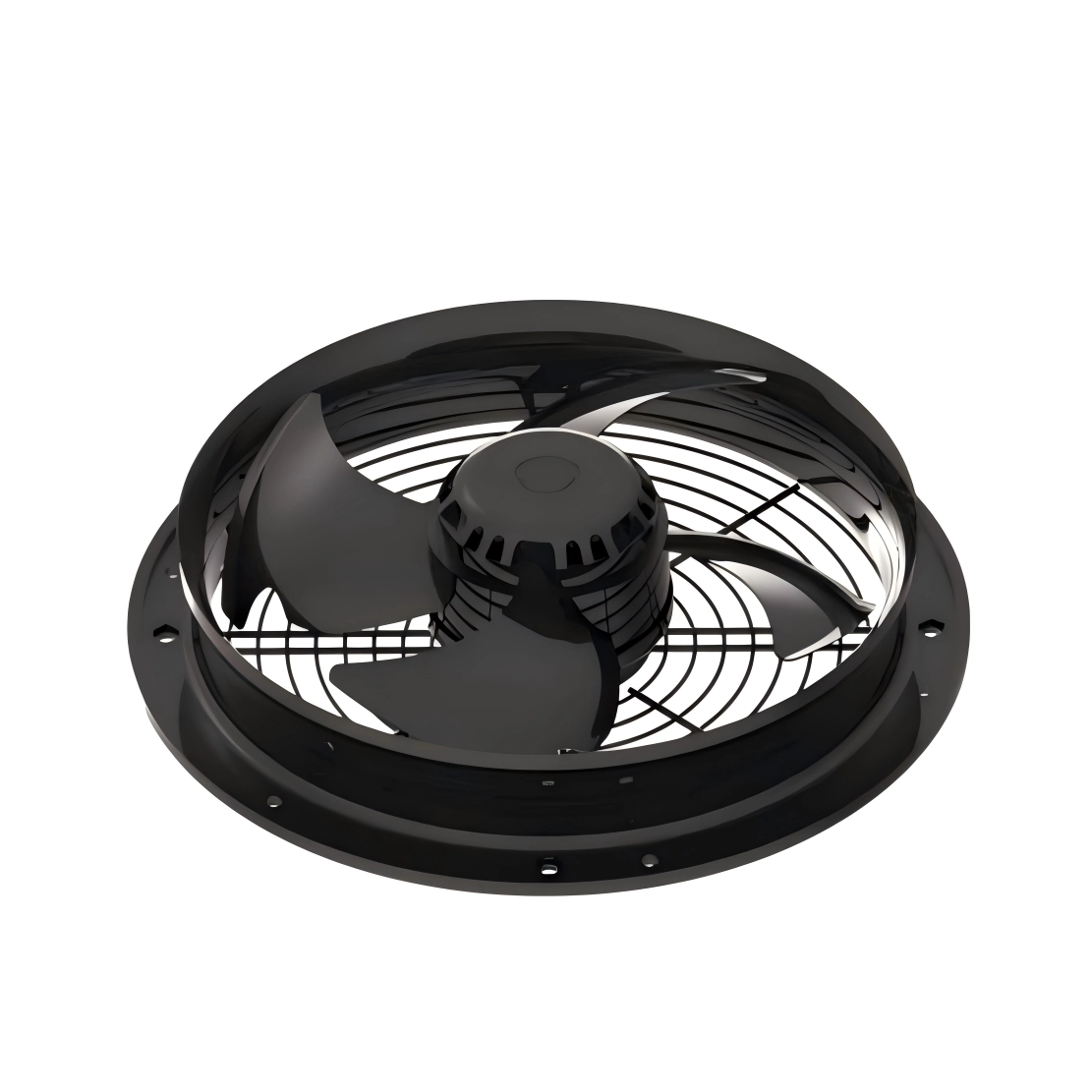

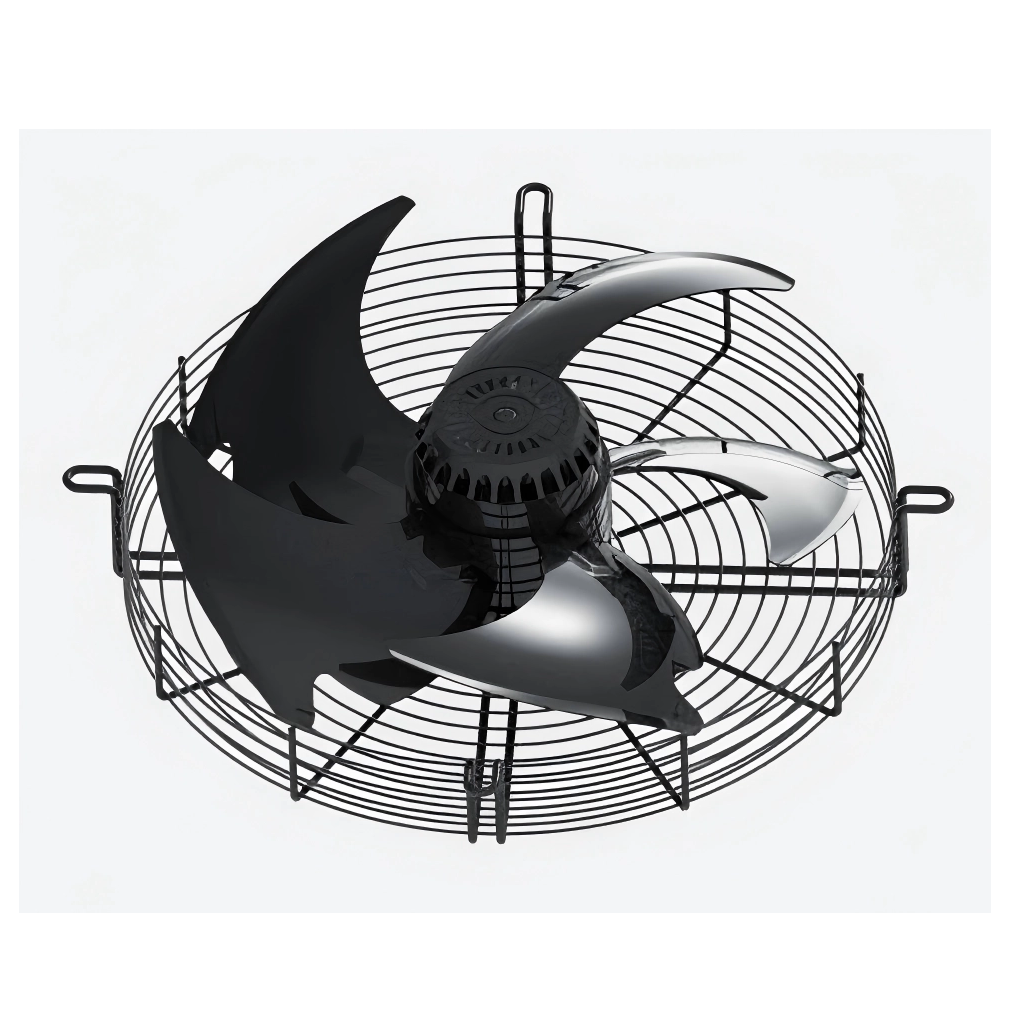

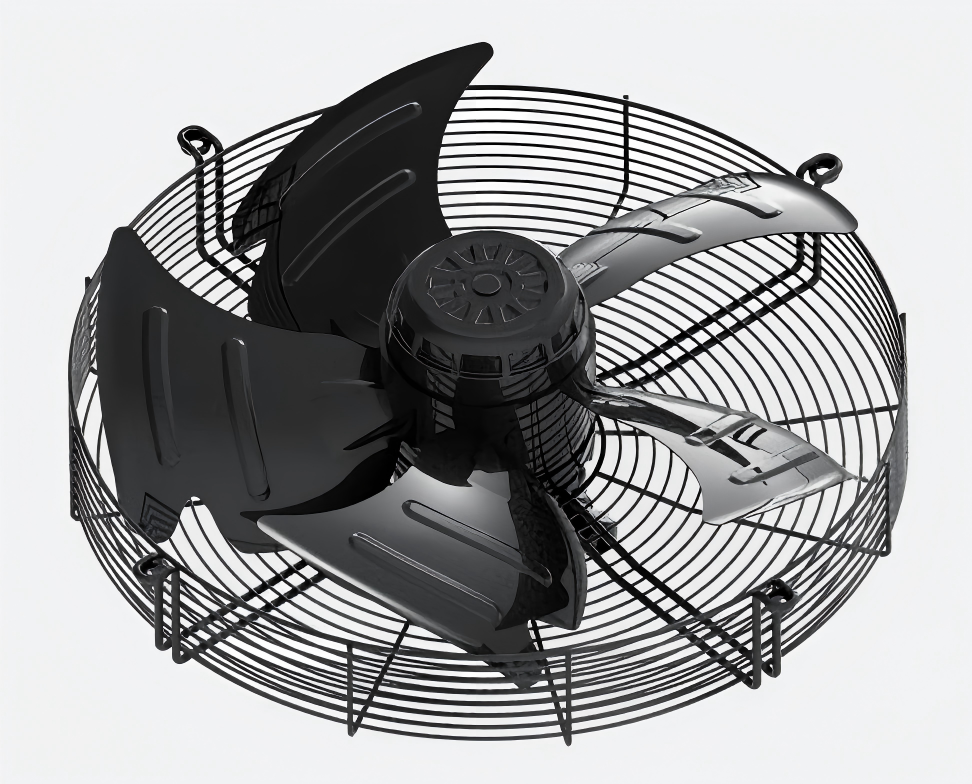

AC Axial Fans with Metal Impeller for Energy Storage

	Model	Voltage [V]	Frequency [Hz]	Speed [rpm]	Max Power [W]	Max Airflow [m3/h]	Noise [dB(A)]
	A300M.A001	400	50	2920	390	3150	68
	A300M.A002	230	50	2740	417	2950	65
	A300M.A010	380	50	2765	273	3239	68
	A450M.A001	380	50	1398	479	5411	63
	A500M.A002	400	50	1410	655	8080	69
		460	60	1620	955	9000	72
	A550M.A003	400	50	1447	864	11469	72
	A630M.A014	380	50	1398	2550	17933	76

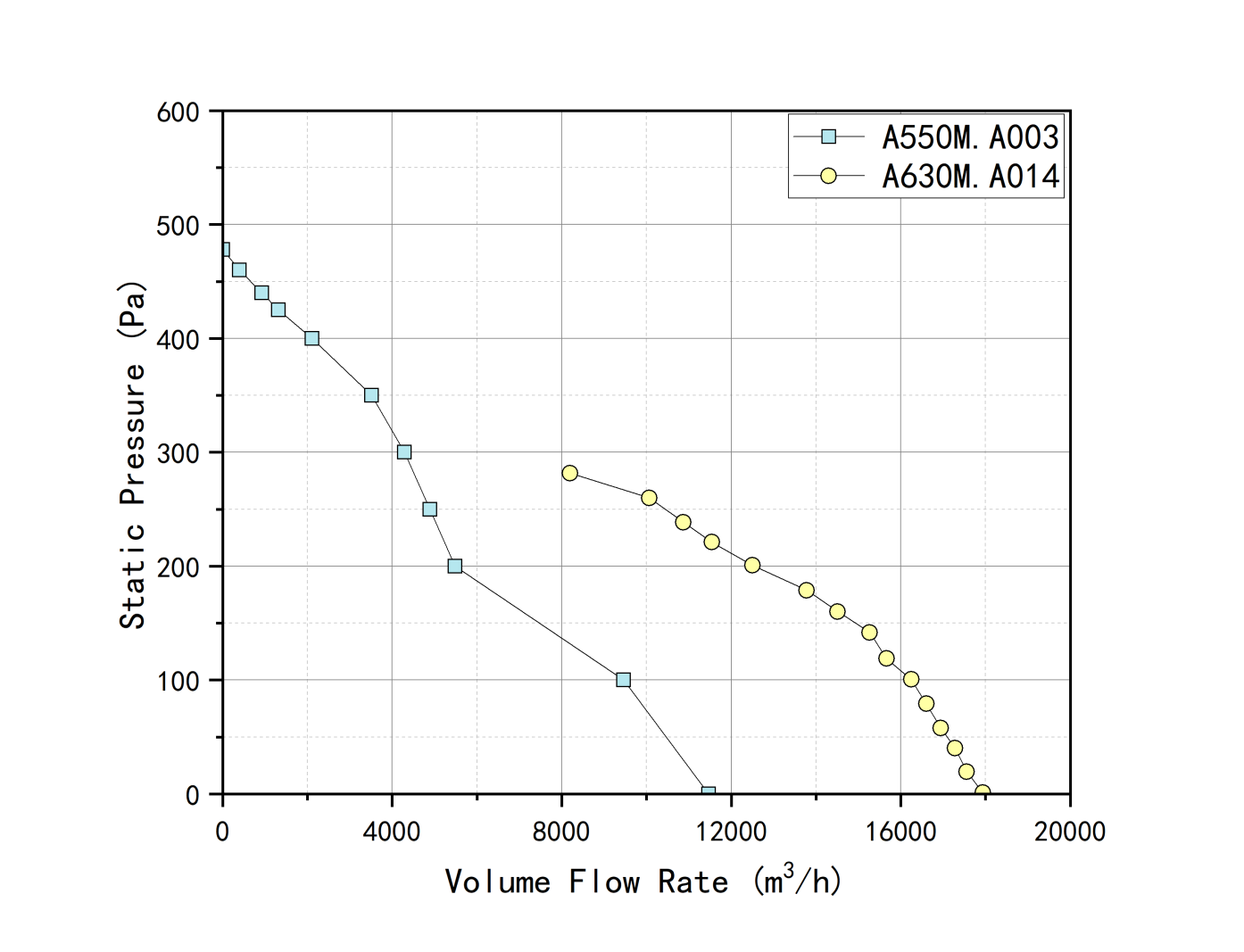

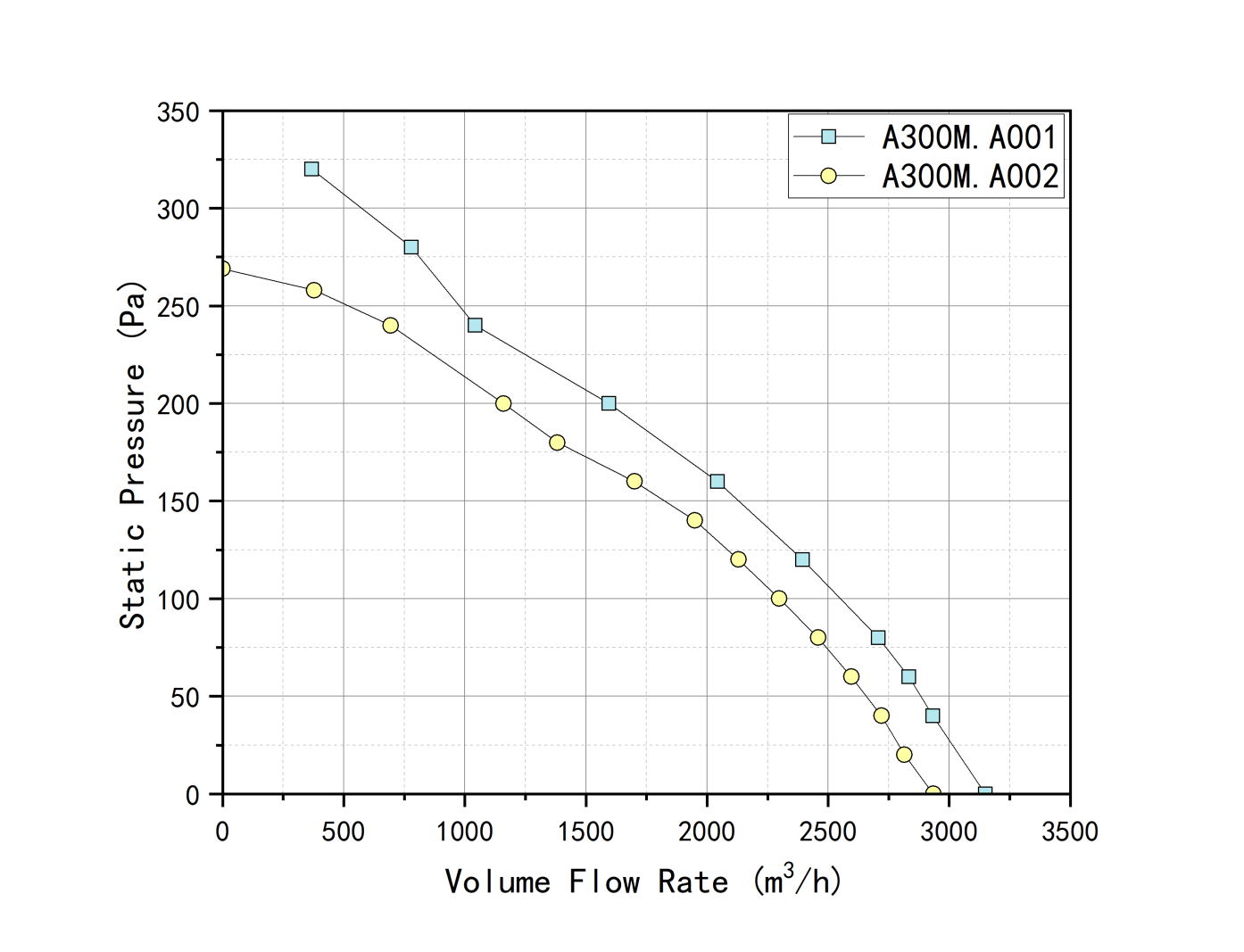

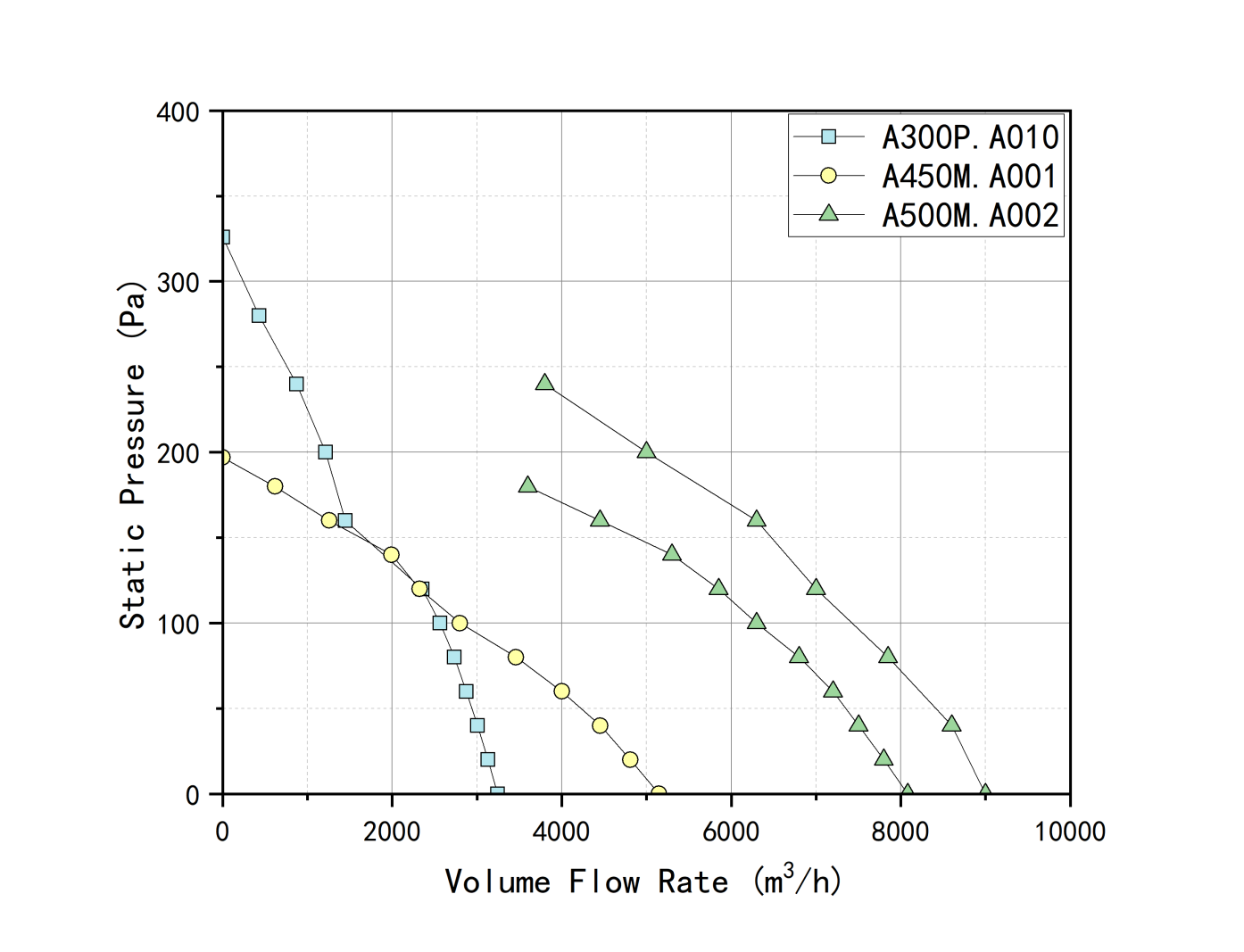

Airflow-static pressure curve：

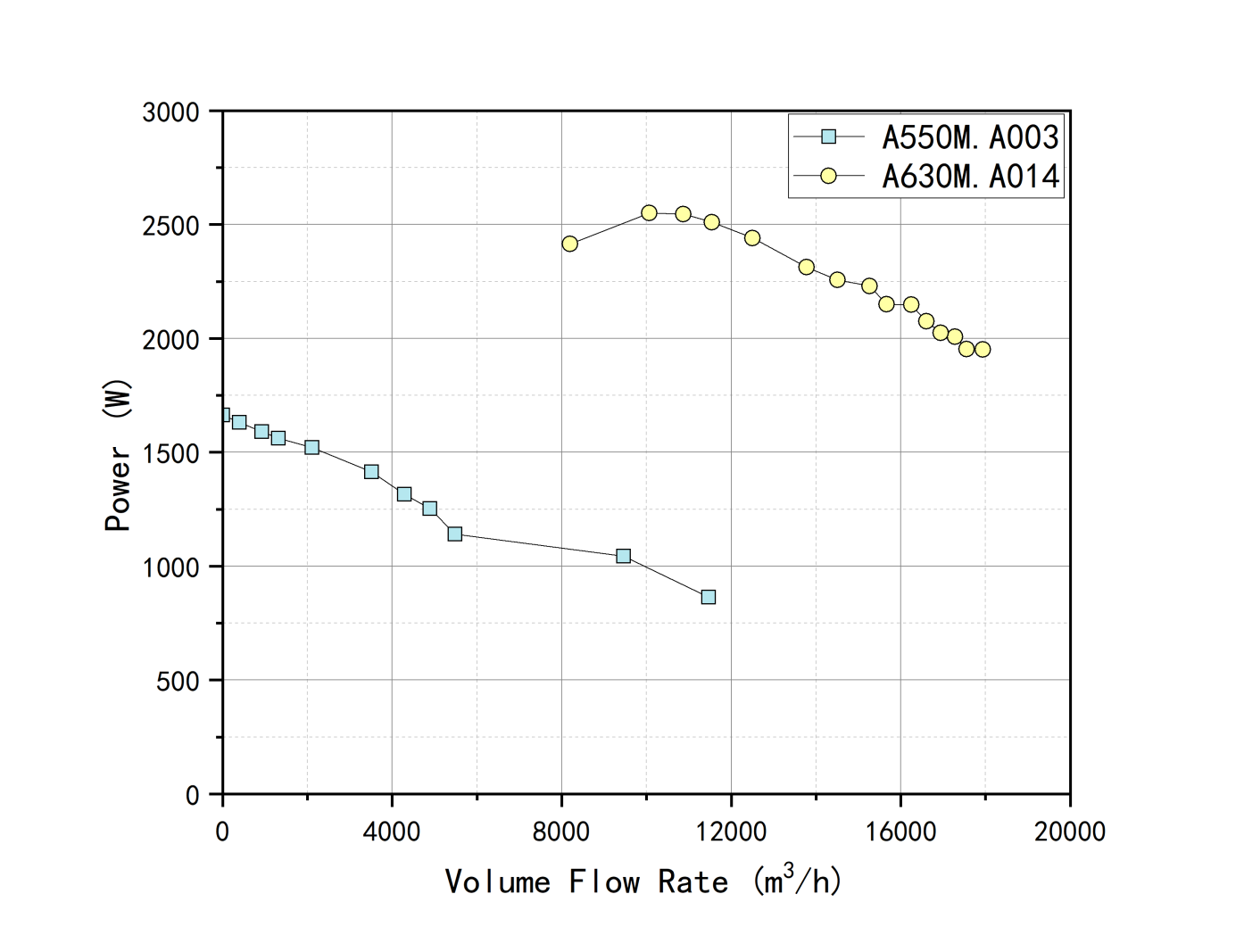

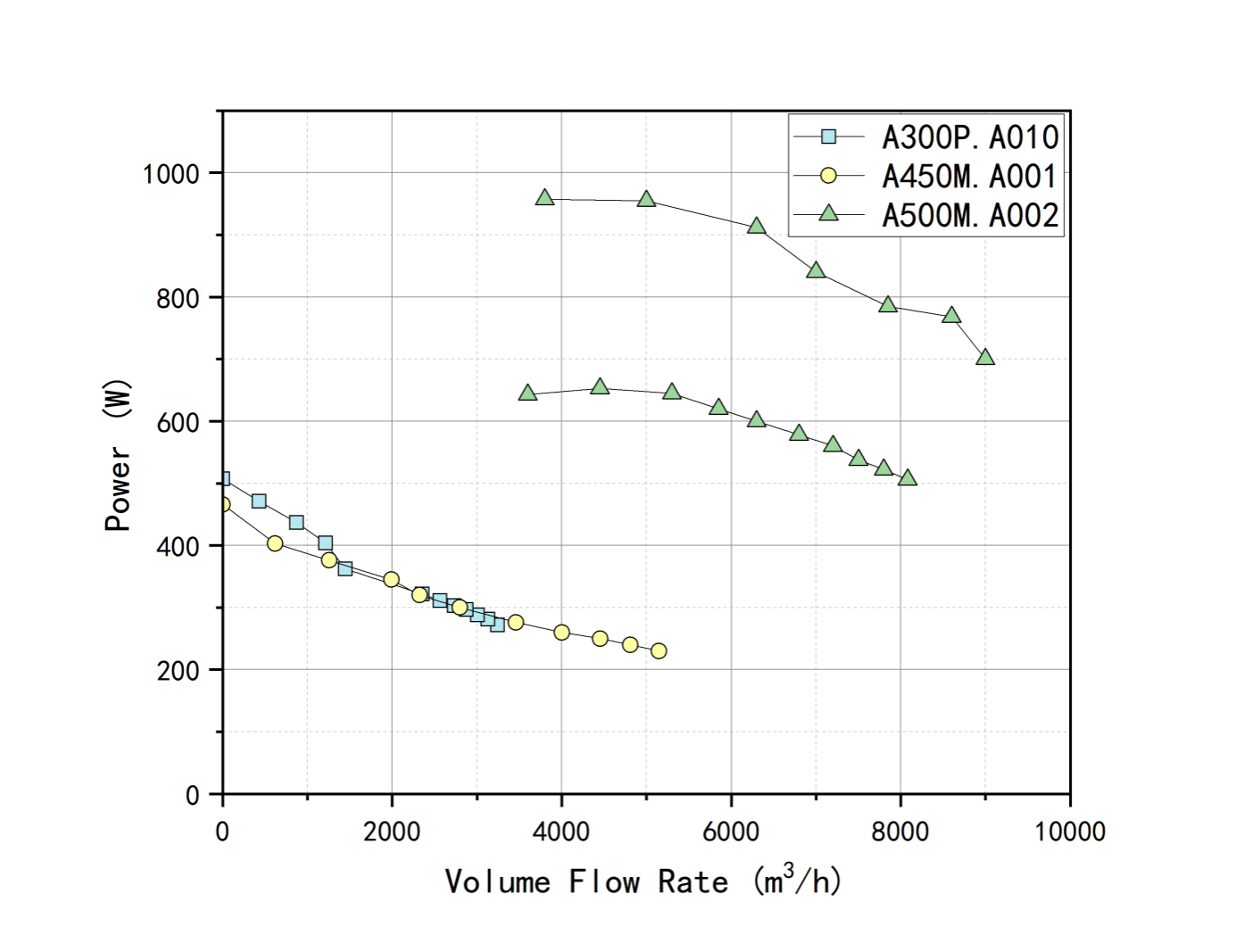

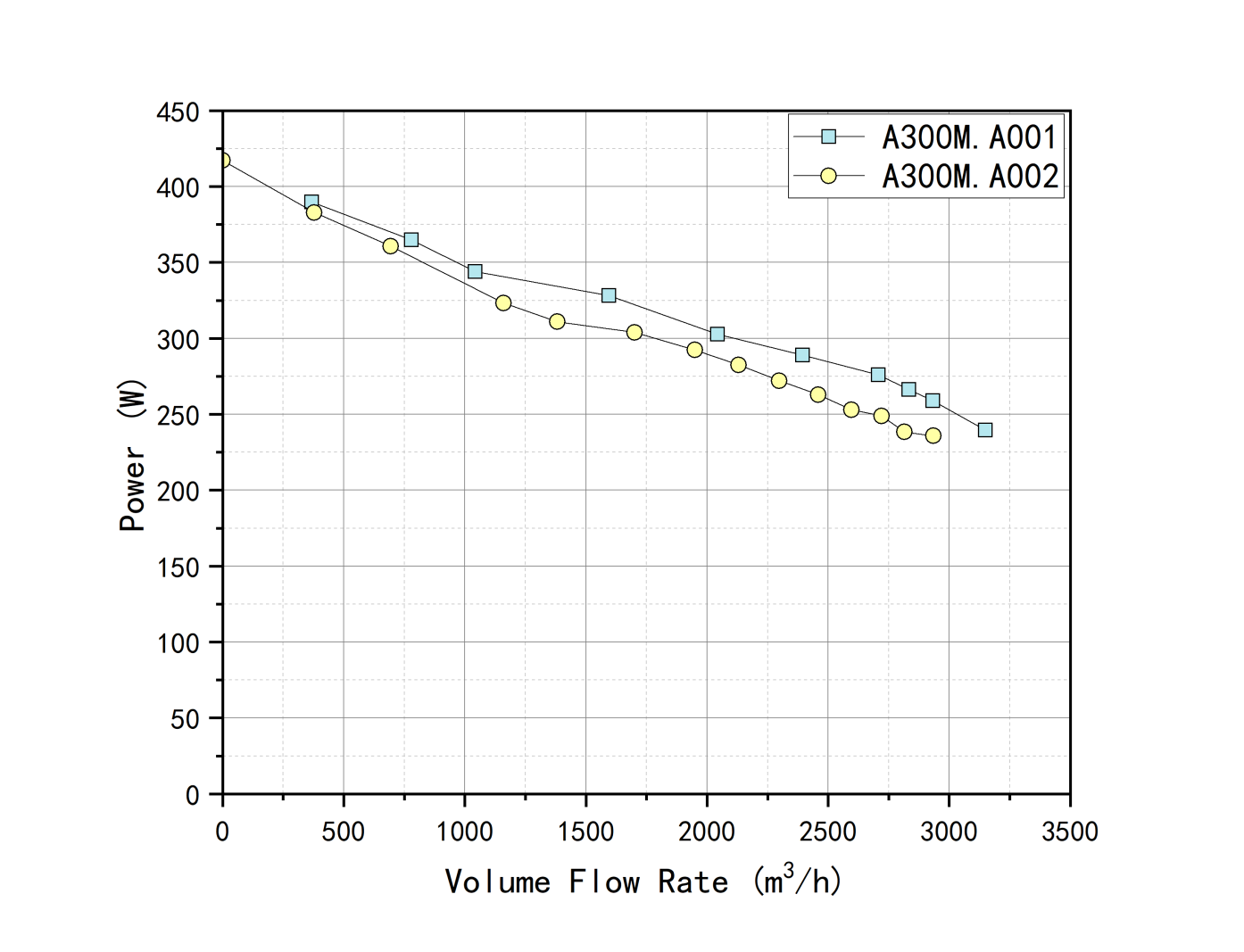

Airflow-power curve：

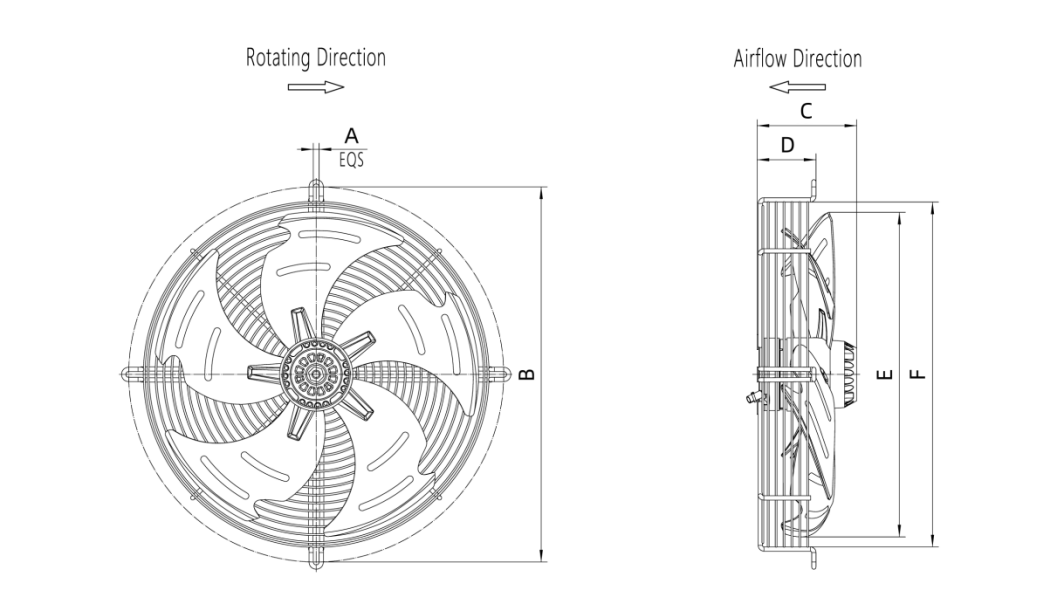

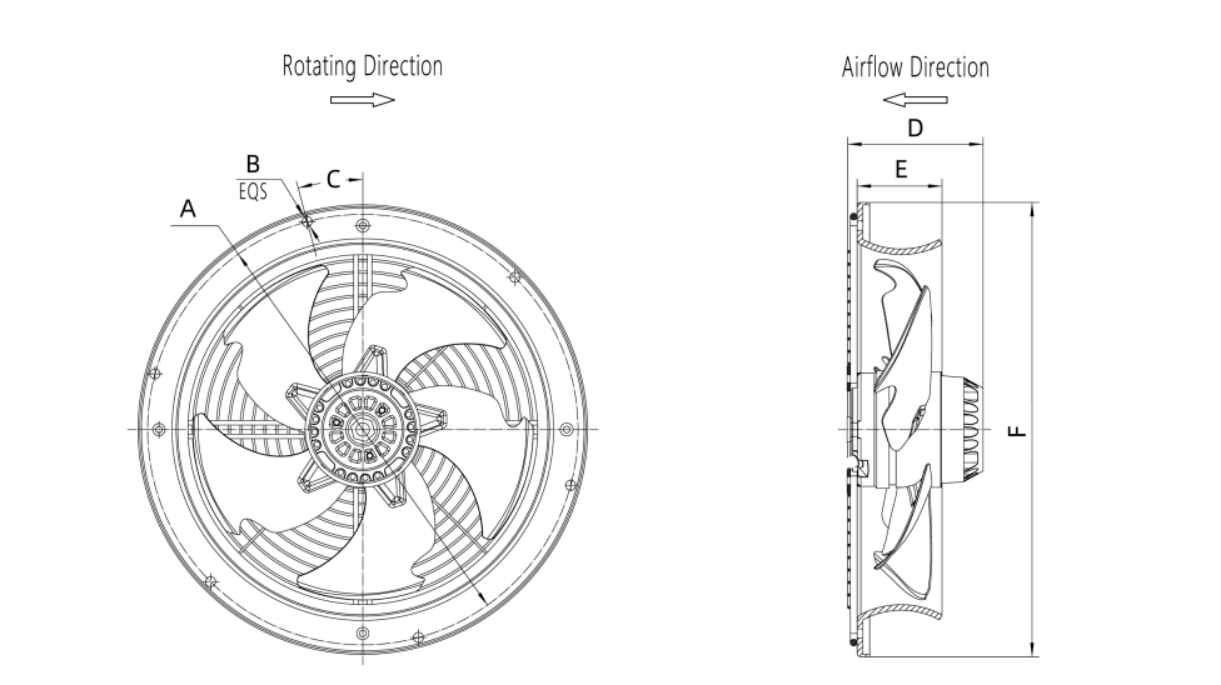

Dimension

Core advantage

1. Strong Performance, Efficient Heat Dissipation

• Ultra‑high airflow range: Single fan delivers 2950–17933m³/h; the A630M.A014 model reaches up to 17933m³/h, supporting high‑power cooling for energy storage containers.

• Excellent static pressure curve: Stable airflow under medium‑to‑high static pressure, maintaining high heat exchange efficiency even in restricted air ducts, suitable for liquid‑cooled and air‑cooled energy storage systems.

• Wide power coverage: 273–2550W, matching small cabinet cooling and large‑container centralized ventilation for various power‑density setups.

2. Metal Impeller, Sturdy & Long‑Life

• Metal impeller structure: Resists deformation, high temperature and dust impact; stable under long‑term high‑speed operation with far longer service life than plastic impellers.

• Reliable AC motor: Mature industrial‑frequency drive, wide voltage compatibility 230/380/400V, 50/60Hz, direct grid connection, simple control and low failure rate.

• Harsh environment adaptability: Continuous high‑speed operation and vibration resistance, suitable for long‑term duty in outdoor and semi‑outdoor energy storage cabinets.

3. Low‑Noise Design, Site‑Friendly

• Optimized noise level: 63–76dB(A) across models; larger fans feature lower noise, complying with regulations for energy storage stations near residential and park areas.

• Aerodynamic optimization: Reduces turbulence and eddies, boosting airflow while lowering wind noise for a better station environment.

4. Complete Specifications, Ready for Installation

• Full size range: A300/A450/A500/A550/A630 diameters fit standard energy storage cabinet openings.

• Standardized mounting: Universal 4‑hole / 6‑hole fixing patterns and consistent flange dimensions for fast replacement and new projects.

• Multi‑voltage option: 230V/380V/400V, 50/60Hz dual‑frequency, compatible with global power grids and project configurations.

5. Customized for Energy Storage, Safe & Stable

• Perfect thermal management: High airflow + stable static pressure rapidly removes heat from battery clusters, PCS and converters, ensuring system safety and cycle life.

• Robust structure: Metal impeller and heavy‑duty housing prevent foreign objects and impact, improving operational safety in energy storage containers.

• Long‑term reliability: Minimal maintenance required, reducing operation costs and downtime risks for energy storage stations.

FAQ

Q1: What energy storage scenarios are these metal impeller AC axial fans suitable for?

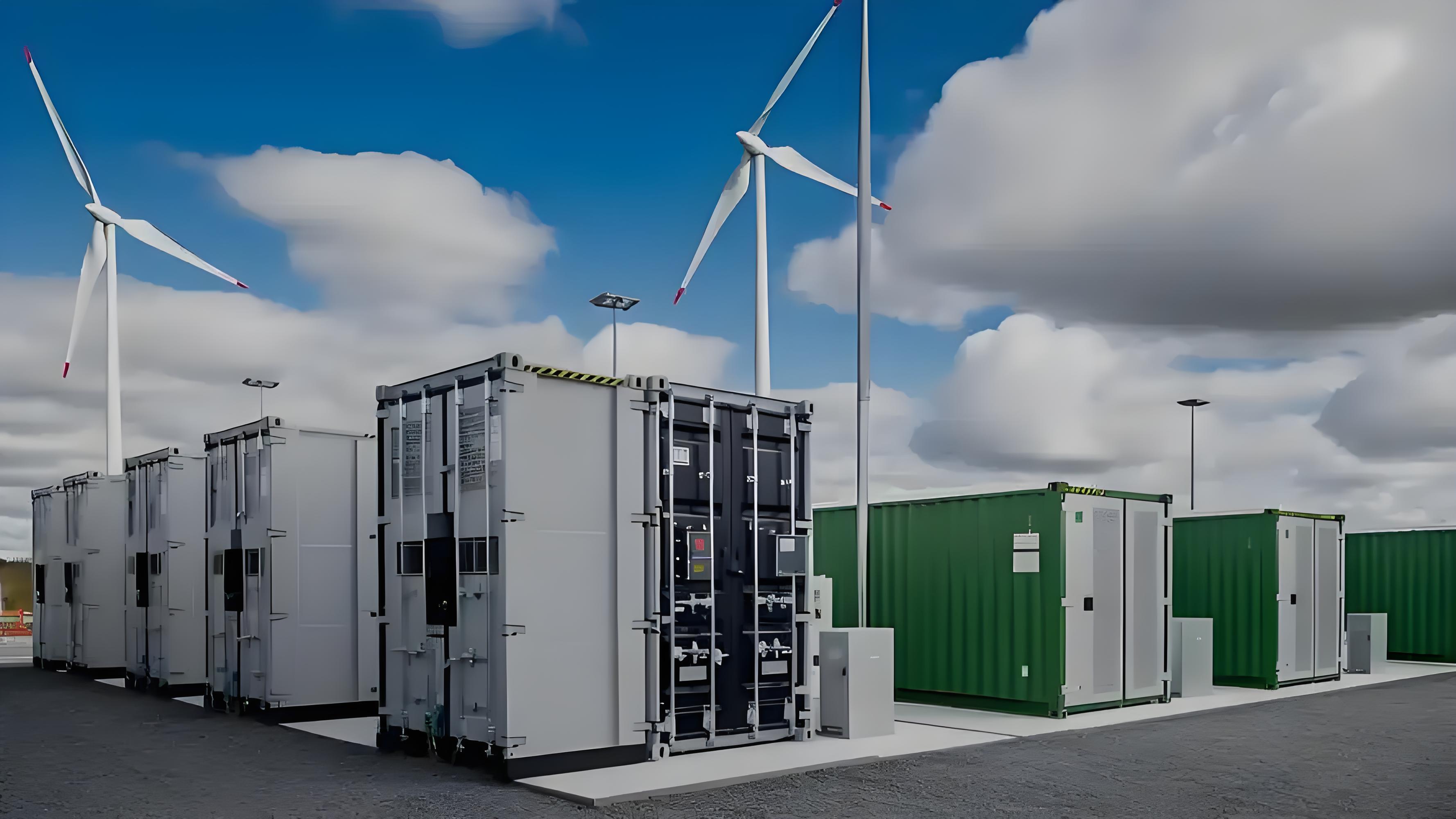

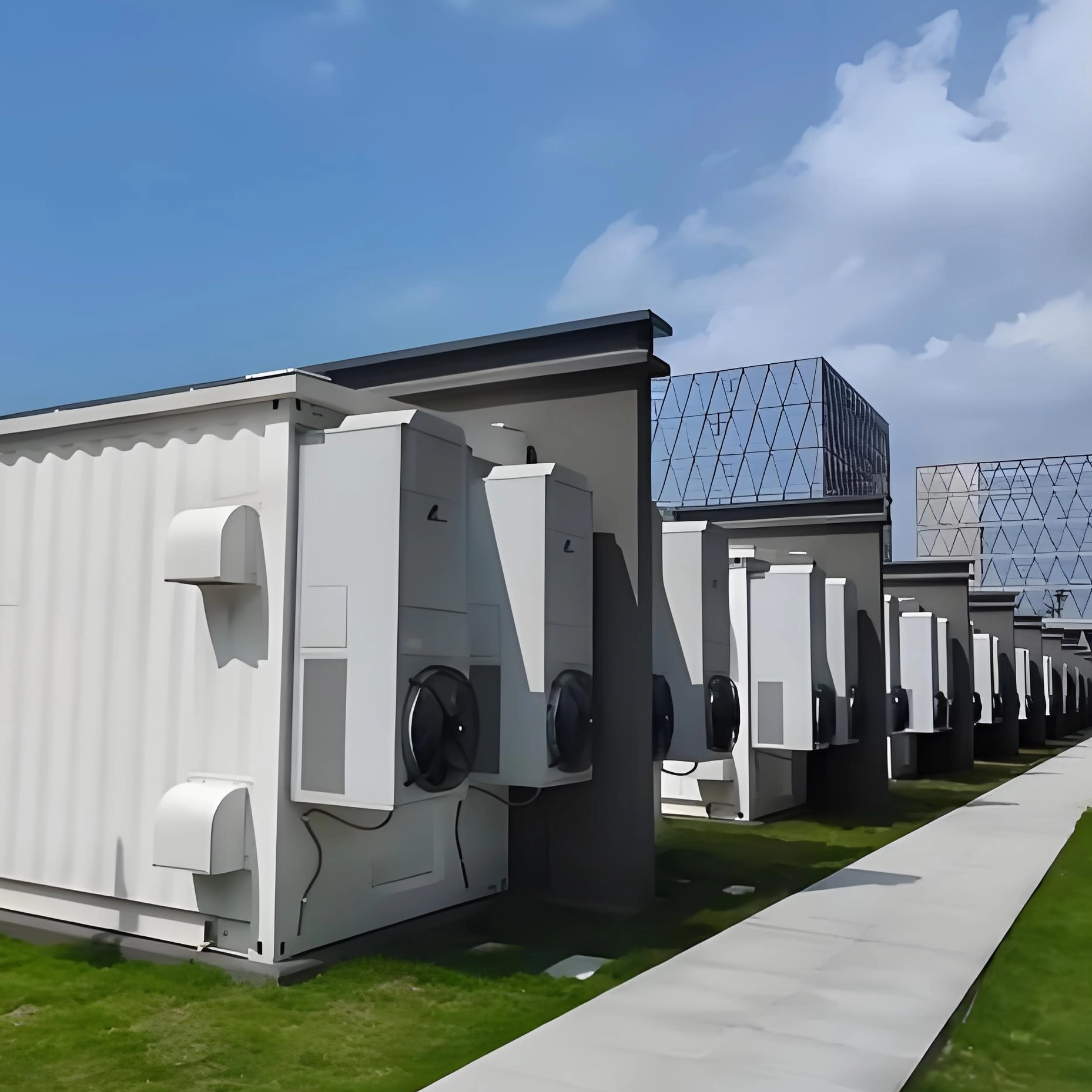

A: Designed exclusively for energy storage thermal management, they are fully compatible with containerized energy storage, cabinet-type energy storage, and residential/commercial energy storage cabinets. They efficiently dissipate heat from core components such as battery clusters, power conversion systems (PCS), and power converters, and support 24/7 continuous operation in outdoor and semi-outdoor energy storage stations.

Q2: What are the core advantages of metal impellers over traditional plastic impellers?

A: The key differences lie in durability and working condition adaptability:

• Superior resistance to deformation, high temperatures, and dust impact, eliminating the risk of fatigue deformation during long-term high-speed operation

• Significantly longer service life than plastic impellers, especially ideal for the harsh high-temperature and dusty environment inside energy storage cabins

• Higher structural strength to withstand greater wind pressure and vibration, reducing operational failure rates

Q3: What voltages and frequencies do the fans support? Can they adapt to power grids in different regions worldwide?

A: They support 230V/380V/400V 50Hz multi-voltage input, covering domestic and most overseas industrial power grids. The A500M.A002 model additionally offers a 460V 60Hz version, which can be directly adapted to the power grid standards of North America, Japan, South Korea and other regions without additional transformers.

Q4: Is the installation complicated? What daily maintenance is required?

A: Installation is straightforward with a standardized 4-hole/6-hole mounting design and uniform flange dimensions, matching the opening specifications of mainstream energy storage cabinets. It is plug-and-play, enabling rapid deployment for both new projects and old equipment replacement. No frequent daily maintenance is required; only regular cleaning of dust accumulation on the impeller surface is needed, greatly reducing the operation and maintenance costs of energy storage stations.

Q5: How to select the appropriate fan model for my energy storage system?

A: Selection is mainly based on three dimensions:

1. Cooling requirement: Choose the A300 series (2950-3239 m³/h) for low-power cabinets, and the A550/A630 series (11469-17933 m³/h) for large containerized energy storage

2. Installation size: Full diameters of A300/A450/A500/A550/A630 are available to match different cabinet openings

3. Power supply condition: Select the corresponding model according to the on-site grid voltage to ensure stable direct-drive operation
