[ High Efficiency ] Composite material impeller optimized by ternary flow CFD fluid simulation technology, reasonably designed flow runner combined with ultra-efficient EC motor create the high efficiency of the fan.
[ Low Noise ] The designer closely combines aerodynamics and sound source, and makes the blade angle and blade pattern fully adapt to the ternary flow field, which always ensures lower noise at the same air volume.
[ High Reliability ] Motors have IP54 waterproof and dust proof protection, F class insulation, and been tested for 3 months of 60℃ high temperature test and 40,000 hours of life test, which ensure worse-free quality.
[ Accurate Intelligent Control ] The fan adopts efficient EC motor and supports various control modes such as 0~10V /PWM/RS485 to accurately meet the ventilation needs of different period of time.

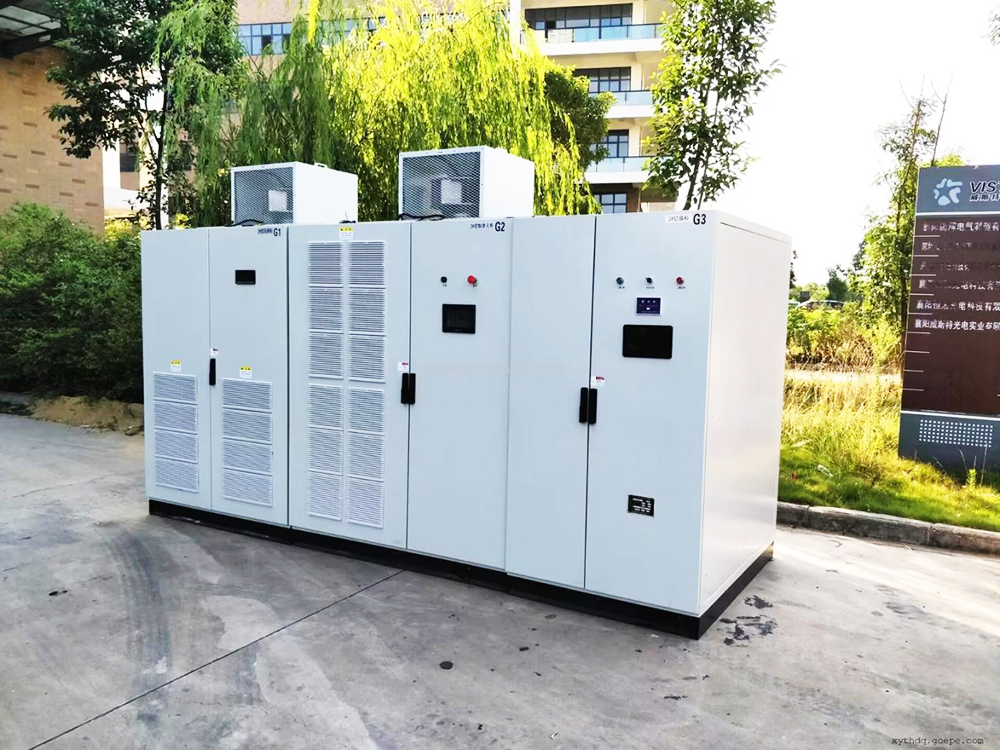

[ Wide Application ] The products is used wherever outstanding performance is required despite a lack of space, for example, IDC small cabinet, high voltage inverter cabinet, energy storage charging pile, commercial air conditioning, rail transit and more.
[ Variety of Models ] Available in dimensions of : 133mm, 175mm, 190mm, 225mm, 250mm, this allows for air flow rates of up to 1505m3/h and static pressure of up to 600Pa.
| Quantity: | |
|---|---|
B175P.E002
EBST
B175P.E002
Product Parameters |
Material: | Impeller:Nylon with Glass Fiber |
Direction of rotation: | Clockwise, seen on rotor |
| Control input: | 0-10VDC/PWM |
Type of protection: | IP 54 |
Insulation class: | F |
Bearing: | Maintenance-free Ball bearings |
Approval: | CCC |
Amb.Temp: | -25~+60℃ |
Model | Curve | Voltage [V] | Frequency [Hz] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] |
B175P.E002 | A | 230 | 50/60 | 5030 | 166 | 880 | 69 |
 | Ps [Pa] | Airflow [m3/h] | Speed [rpm] | Power [W] | ||
A | ① | 300 | 710 | 4980 | 166 | |
② | 400 | 610 | 4810 | 160 | ||
③ | 500 | 515 | 4770 | 160 | ||
④ | 560 | 440 | 4755 | 160 | ||
Product Parameters |
Application Scenarios |
UL Certification
Certified to the authoritative UL safety standards, EBST EC backward curved centrifugal fans ensure high reliability and stable operation, fully meeting the requirements of North American and global high-end markets.
CE Certification
Compliant with EU Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC) Directive, EC backward curved centrifugal fans are qualified for EU market access and smoothly applicable worldwide.
CCC Certification
In compliance with China's mandatory product certification standards, EC backward curved centrifugal fans fully meet electrical safety and EMC requirements, ensuring safer and more reliable operation for various certified domestic applications.
CQC Certification
Certified by the China Quality Certification Center (CQC) through stringent performance and quality tests, EC backward curved centrifugal fans deliver consistent quality and reliable support for long-term equipment operation.
RoHS Certification
Compliant with EU RoHS environmental directives with strict control of hazardous substances, EC backward curved centrifugal fans are eco-friendly and ideal for high-standard environments such as clean rooms and medical equipment.
REACH Certification
In full compliance with EU REACH regulations to control chemical risks, EC backward curved centrifugal fans meet global export compliance standards and are widely applicable to various high-end international equipment.
FAQ |
Q1: What are the core advantages of EBST EC backward curved centrifugal fans?
A1: The core advantages include five points: ① High efficiency and energy saving, adopting composite material impeller optimized by ternary flow CFD fluid simulation technology, combined with ultra-efficient EC motor; ② Low noise operation, blade angle and blade pattern adapt to ternary flow field, with lower noise at the same air volume; ③ High reliability, the motor has IP54 waterproof and dust-proof protection, F-class insulation, and has passed 3 months of 60℃ high temperature test and 40,000 hours of life test; ④ Accurate intelligent control, supporting various control modes such as 0~10V/PWM/RS485; ⑤ Various models, covering multiple sizes from 133mm to 250mm, with maximum air volume of 1505m³/h and maximum static pressure of 600Pa.
Q2: What is the energy efficiency performance of the fan, and why can it achieve high efficiency and energy saving?
A2: The fan has excellent energy efficiency performance, and the core reason lies in the dual optimization design: first, the composite material impeller is optimized by ternary flow CFD fluid simulation technology, combined with a reasonably designed flow channel to reduce air flow loss; second, it is equipped with an ultra-efficient EC motor, which itself has low energy consumption and high conversion efficiency. The combination of the two realizes the overall high efficiency and energy saving of the fan, suitable for various energy-sensitive scenarios.
Q3: What is the noise control level of the fan, and can it adapt to scenarios with high silent requirements?
A3: The fan has excellent low-noise performance. The design team deeply combines aerodynamics with sound source characteristics, making the blade angle and blade pattern fully adapt to the ternary flow field, which can continuously maintain lower noise at the same air volume, and can adapt to scenarios with high silent requirements such as IDC small cabinets and commercial air conditioners.
Q4: What guarantees are there for the reliability of the fan, and can it adapt to harsh environments?
A4: The fan has multiple guarantees for reliability: the motor has IP54 waterproof and dust-proof protection level and F-class insulation, which can resist the invasion of dust and water vapor; at the same time, it has passed 3 months of continuous 60℃ high temperature test and 40,000 hours of life test, with stable and worry-free quality; anti-vibration structure design is adopted for some scenarios (such as rail transit), which can adapt to harsh environments such as vibration and variable temperature and humidity.
Q5: What control modes does the fan support, and can it meet the ventilation needs of different periods?
A5: The fan is equipped with an efficient EC motor, supporting various control modes such as 0~10V, PWM, and RS485. It can accurately adjust the air volume according to actual needs, and can flexibly adapt to the ventilation needs of different periods and different loads, realizing intelligent operation.
Q6: What scenarios are EBST EC backward curved centrifugal fans mainly suitable for?
A6: It is mainly suitable for various scenarios with limited space but strict requirements on fan performance, including: IDC small cabinets, high-voltage inverter cabinets, energy storage and charging piles, commercial air conditioners, rail transit.

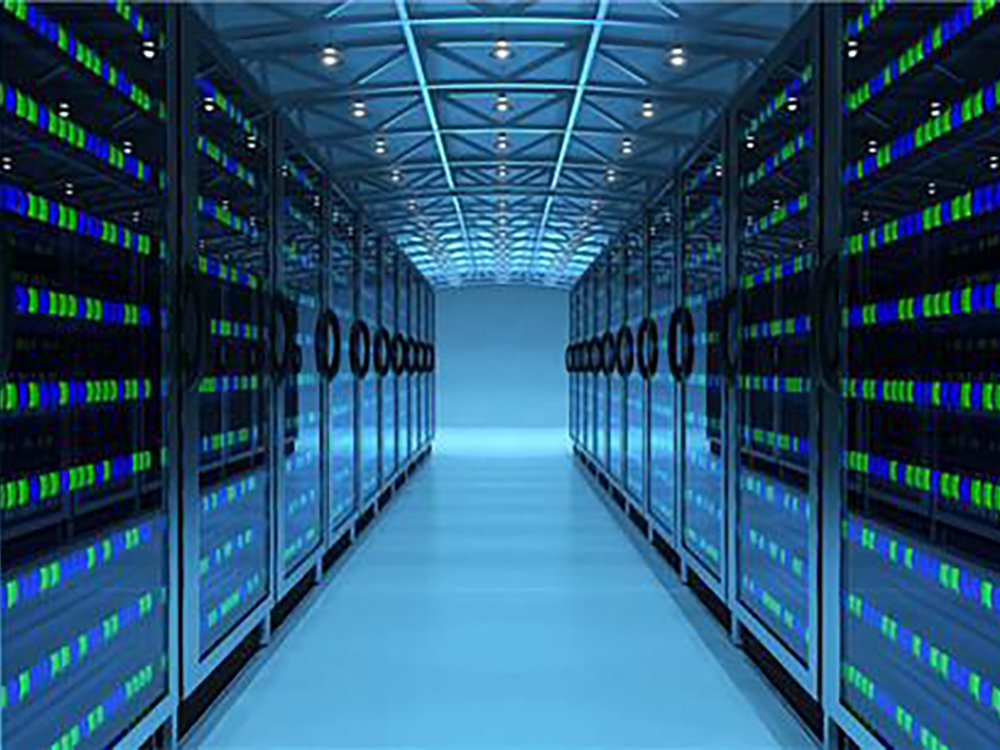

Q7: What is the core role of the fan in the IDC small cabinet scenario?
A7: IDC small cabinets have compact internal space and concentrated equipment heat generation, which impose strict requirements on the air volume, static pressure and silent performance of the fan. The fan is small in size and strong in wind pressure, which can achieve efficient heat dissipation in a narrow space, effectively ensure the stable operation of servers and network equipment, and avoid equipment failures caused by overheating.

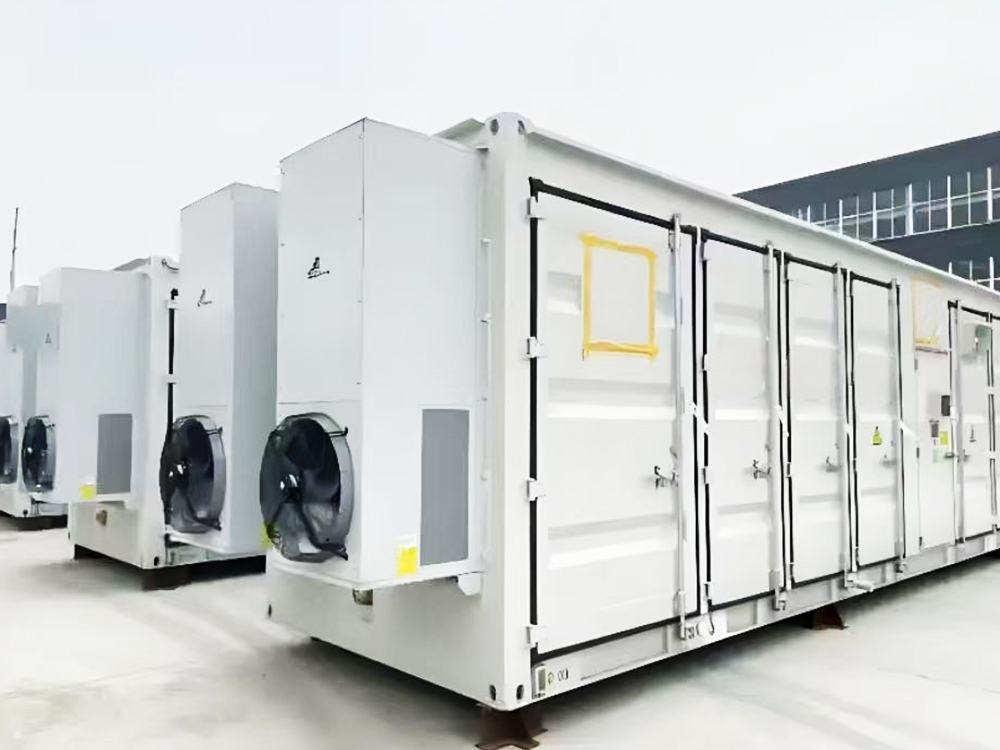

Q8: In the energy storage and charging pile scenario, how does the fan adapt to the usage needs?
A8: Energy storage systems and charging piles have high power density and heavy working load, and heat dissipation directly affects charging and discharging efficiency and equipment safety. The fan supports intelligent speed regulation, which can dynamically adjust the air volume according to the load, achieve efficient heat dissipation while reducing energy consumption, and can adapt to harsh outdoor and industrial use environments to ensure the safe and stable operation of equipment.

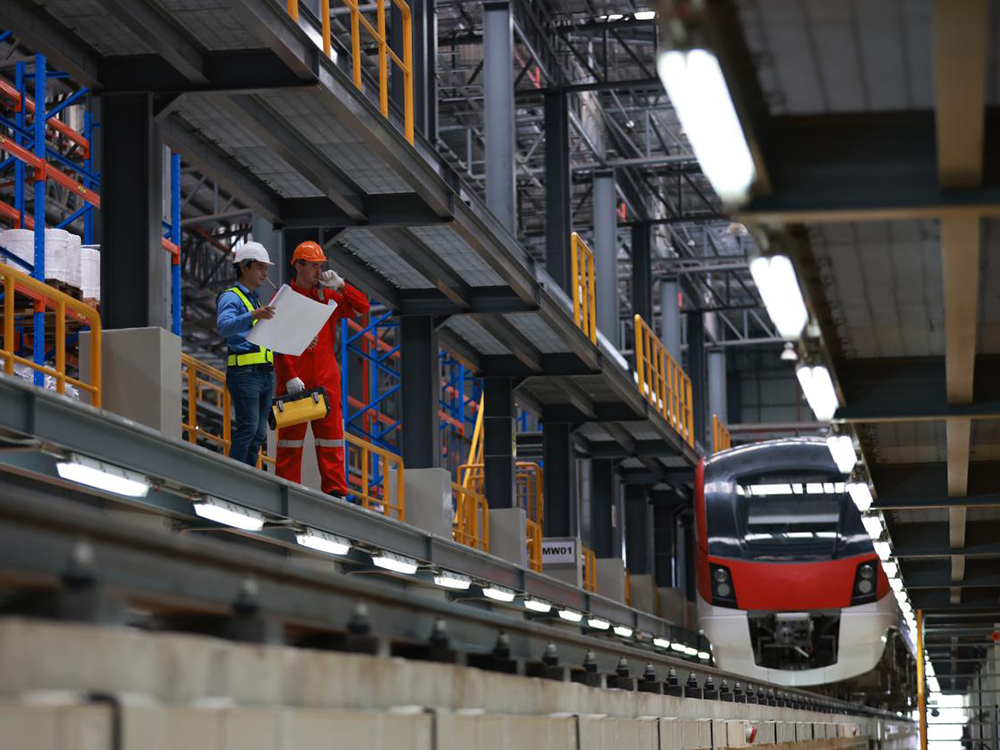

Q9: In the rail transit scenario, how does the fan cope with the complex environment?
A9: Rail transit vehicles and station equipment operate in long-term vibration and variable temperature and humidity environments, which have extremely high requirements on the reliability and protection performance of the fan. The fan has IP54 waterproof and dust-proof protection and anti-vibration structure design, which can be stably used in traction converters, air conditioning units, electrical control cabinets and other equipment to ensure the continuous and reliable operation of the rail transit system.
Q10: What authoritative certifications do EBST EC backward curved centrifugal fans have?
A10: It has six major authoritative certifications, namely: UL Certification, CE Certification, CCC Certification, CQC Certification, RoHS Certification, and REACH Certification, covering multiple dimensions such as safety, quality, environmental protection, and market access, adapting to the needs of different global markets.
