Selecting the wrong centrifugal fan impeller poses a critical engineering dilemma. It directly impacts system efficiency and motor lifespan. Poor choices also disrupt operational acoustics in sensitive environments. You face a significant choice between forward-curved and backward-curved blades. This decision goes far beyond a simple aerodynamic preference. It serves as a crucial factor in managing long-term equipment reliability. You must maintain stable airflow even under drastically fluctuating pressures.
We provide a definitive, engineering-focused comparison in this guide. Our goal is to help specifiers, facility managers, and OEM designers. You will learn how to confidently select the right fan for your unique application. We cover essential airflow demands, static pressure thresholds, and complex spatial requirements. By the end, you will understand exactly which technology fits your project seamlessly.
Forward-curved fans operate at lower speeds to move high air volumes at low static pressures, making them ideal for compact, clean-air HVAC applications.
The backward-curved centrifugal fan delivers higher aerodynamic efficiency and operates against high static pressure, suited for robust industrial and commercial environments.
Power Curve Differences: Backward-curved models feature a non-overloading power curve (preventing motor burnout), whereas forward-curved fans risk motor overload if system resistance unexpectedly drops.
Maintenance Realities: Backward-inclined blades resist dust accumulation, reducing maintenance frequency compared to the "cup-like" forward blades that easily trap particulates.
Blade orientation directly dictates the velocity of the air leaving the impeller. We frame this dynamic entirely through kinetic energy conversion. As the impeller rotates, it draws air into the center. The blades then aggressively fling this air outward. The exact angle of the blade determines how much kinetic energy transfers to the airstream. Engineers rely on this precise velocity angle to predict system performance.
Forward-facing blades cup the air in the direction of rotation. They accelerate this air to a very high velocity. They achieve this at surprisingly low operating speeds. The impeller transfers massive amounts of kinetic energy directly to the airstream. However, the system relies heavily on the surrounding scroll housing. This specialized housing must capture the high-velocity air. It then slows the air down to convert kinetic energy into usable static pressure. Without a well-designed scroll housing, a forward-curved impeller cannot function properly.

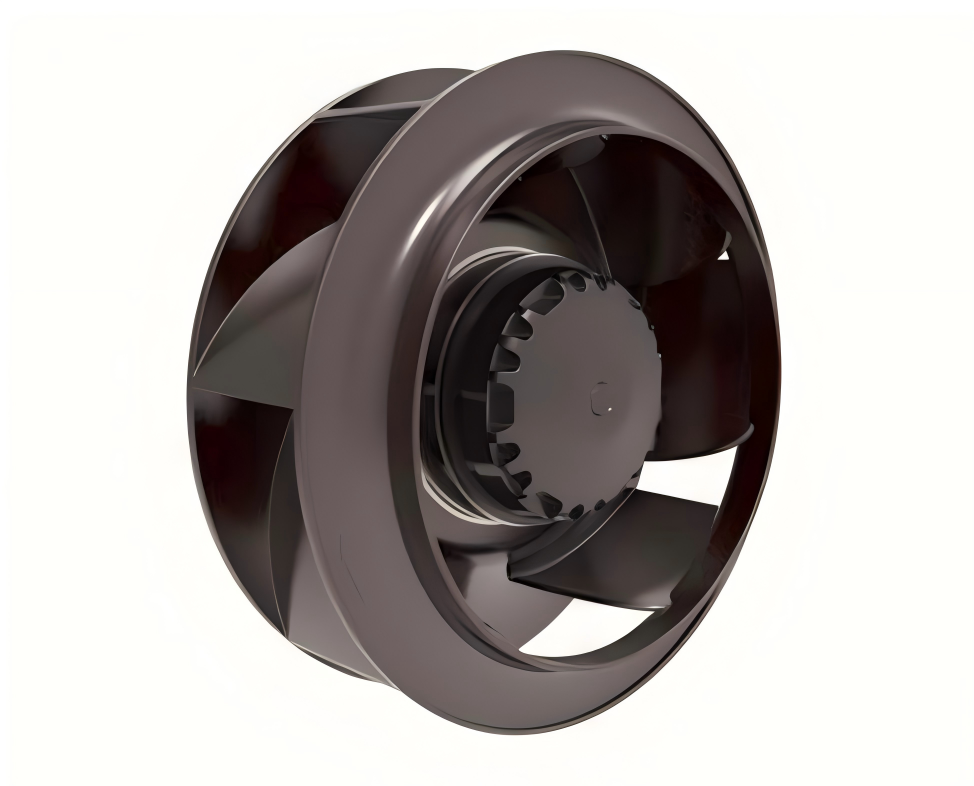

Backward-facing blades tilt away from the direction of rotation. This unique geometry generates static pressure directly within the impeller itself. The air leaves the blades at a much lower relative velocity. Therefore, the system requires less reliance on a tight outer housing. It converts energy efficiently before the air even exits the wheel. This mechanical advantage allows for flexible housing-less configurations. Engineers often deploy these impellers as standalone plenum fans in large air handlers.
Forward-curved models operate best within low-to-medium pressure limits. They excel when pushing air through minimal ductwork. You typically use them against resistances below three inches of water gauge. High pressure causes them to stall or lose significant airflow. Conversely, backward-curved designs boast an exceptional high-pressure tolerance. They easily push heavy air volumes through complex filtration systems. You can rely on them to overcome extreme system resistance in heavy industrial applications.
You must understand the forward-curved overloading power curve. The fan power draw increases continuously as airflow increases. Imagine a scenario where system resistance suddenly drops. An operator might remove a clogged filter or open a massive access door. The forward-curved fan immediately moves more air. It pulls a massive spike in electrical current. This sudden spike severely risks motor failure. It can trip breakers or burn out the motor entirely.
We highlight the inherent safety of the Backward-curved Centrifugal Fan here. It offers a highly desirable "non-overloading" characteristic. The peak power demand occurs very close to its peak efficiency point. If system resistance drops to zero, the power requirement actually decreases. This brilliant mechanical curve protects the motor across all possible operating conditions. It provides peace of mind for facility managers dealing with variable environments.
Peak static efficiency directly impacts your utility bills. Forward-curved fans typically hover around 55% to 65% peak static efficiency. They waste more energy as heat and noise. Backward-curved fans routinely achieve 75% to 85% peak efficiency. Some advanced airfoil designs push even higher. We translate this efficiency into tangible long-term energy consumption metrics. In continuous-duty systems operating 24/7, a 20% efficiency gain saves thousands of kilowatt-hours annually. You drastically reduce operating expenses over the equipment lifecycle.
Feature | Forward-Curved Fan | Backward-Curved Fan |
|---|---|---|
Operating Speed | Low | High |
Peak Static Efficiency | 55% - 65% | 75% - 85%+ |
Static Pressure Limit | Low to Medium | High to Very High |
Power Curve | Overloading | Non-Overloading |
Forward-curved limits become obvious in dirty environments. The cupped blade design acts as a natural particulate trap. Dust, grease, and debris accumulate quickly inside the curved pockets. This buildup rapidly leads to severe rotor unbalance. You will experience increased vibration in unfiltered environments. This vibration eventually destroys the motor bearings and shafts.
Backward-curved strengths shine in these demanding scenarios. The backward-leaning blade geometry allows dust and moisture to slide off easily. Centrifugal force naturally flings debris away from the blade surface. This self-cleaning action makes the impeller highly reliable. You can use it confidently for light particulate extraction. It dominates industrial ventilation applications where air quality remains unpredictable.
Forward-Curved: You will find these in residential furnaces and packaged rooftop HVAC units. They dominate small fan coil applications. Space constraint serves as the primary driver for these selections. Their compact size fits perfectly inside tight residential equipment cabinets.
Backward-Curved: Engineers specify these for demanding data center cooling arrays. They handle heavy-duty industrial dust collection effectively. You see them heavily in variable air volume (VAV) systems. They power high-capacity air handling units (AHUs) across large commercial properties.
We must address the distinct spatial advantage first. Forward-curved fans remain much more compact for a given CFM (Cubic Feet per Minute). This smaller size lowers the initial equipment footprint significantly. It also reduces the sheet metal required for the housing costs. You spend less money upfront during initial procurement.
Next, we address the natural premium of backward-curved fans. These impellers require higher manufacturing complexity. They spin faster and endure more stress. Manufacturers often build them using heavier gauge materials. They require incredibly precise dynamic balancing. This strict manufacturing tolerance predictably increases your upfront capital expenditure.
You must calculate the long-term trade-off carefully. The higher initial cost of a backward-curved fan rarely matters over a decade. You typically recover this premium rapidly through reduced electrical consumption. The non-overloading design prevents unexpected electrical spikes. You also benefit from drastically lower motor replacement rates. Continuous-duty applications reveal massive cost savings when evaluating a five-year or ten-year operational window.
Maintenance schedules vary wildly between the two designs. Forward-curved units require frequent cleaning intervals. You must scrub the blades to prevent dust accumulation risks. Backward-curved units require far less manual cleaning. Their self-shedding design protects the system balance. You evaluate bearing wear based on operational speed. Backward fans spin faster, but their superior balance usually extends overall bearing life. You spend less money on emergency balancing interventions.
Define System Resistance & Airflow Requirements: You must identify the exact required operating point. Plot this point on the manufacturer's performance curve. Ensure the fan can deliver the needed CFM against your worst-case static pressure.
Evaluate Spatial Constraints: Determine your physical limitations immediately. You must see if the larger housing size of a backward-curved fan fits your mechanical room. Sometimes a compact forward-curved scroll remains entirely mandatory due to strict space limits.
Assess Environmental Risks: Evaluate the incoming airstream thoroughly. Check filter availability and baseline air quality. Note any temperature extremes or moisture levels. Dirty air mandates a backward-inclined choice to prevent rapid unbalance.
Factor in Variable Speed Drive (VFD) Integration: Modern systems demand intelligent airflow control. A Backward-curved Centrifugal Fan pairs exceptionally well with VFDs. It maintains stable pressure and high efficiency across varied speeds. It provides precise, energy-efficient system control without risking motor burnout.
Forward-curved fans easily win on compact size. They provide excellent low-speed, low-pressure performance for tight residential spaces. However, backward-curved fans utterly dominate in aerodynamic efficiency. They offer unmatched high-pressure stability and absolute motor safety.
We encourage buyers to calculate their exact static pressure requirements carefully. You should consult an application engineer to evaluate lifetime energy models before finalizing any specification. Review comprehensive technical catalogs today. Request a custom performance curve analysis to guarantee long-term operational success.
A: Forward-curved fans generally produce less noise in simple applications. They operate at much lower rotational speeds to move air. This slow speed minimizes mechanical vibration and aerodynamic hum. However, backward-curved fans can be precisely optimized for specific acoustic frequencies. Engineers often use advanced silencers and heavy enclosures to mitigate their high-speed noise in industrial settings.
A: Yes, but you must address strict retrofit realities. A backward-curved impeller typically requires a larger physical footprint. You must verify space constraints inside your air handler. You will also need to adjust motor sizing and system speed. The new fan will require a different RPM to match your existing airflow demands.
A: It physically prevents nuisance tripping and sudden motor burnout. If duct doors open or filters fail, system resistance drops. An overloading fan pulls excessive electrical current and destroys the motor. A non-overloading curve caps the maximum power draw. This brilliant design saves thousands of dollars in emergency replacement costs.
A: They cost more upfront during initial procurement. The complex blade geometry and precise dynamic balancing require premium manufacturing. However, they are not more expensive over their lifespan. The drastic lifetime energy savings and reduced maintenance interventions quickly offset the initial purchase premium in continuous-duty applications.
