Selecting the wrong ventilation equipment leads to disastrous outcomes for facility managers and design engineers alike. You might face catastrophic motor failure, excessive energy consumption, or completely missed performance targets. Industrial systems require precision, stability, and unwavering reliability. A Backward-curved Centrifugal Fan solves these core engineering challenges seamlessly. We define this as a specific type of centrifugal blower where the impeller blades distinctly curve away from the direction of wheel rotation. This unique aerodynamic design sets it entirely apart from traditional, older options. You can securely position this fan type as the modern industry standard. It excels dramatically in high-efficiency, high-static-pressure applications. Engineers inherently rely on it where long-term reliability is absolutely non-negotiable. It also boasts incredible non-overloading characteristics. You will learn precisely how these impellers function dynamically within complex systems. We will comprehensively explore their technical advantages over forward-curved alternatives. You will also discover key specification criteria and typical commercial use cases to optimize your facility.
Non-Overloading Design: Backward-curved fans feature a self-limiting horsepower curve, preventing motor burnout even if system resistance fluctuates.
Superior Efficiency: They typically operate at 70-85% static efficiency, significantly lowering operational costs in continuous-duty applications.
Application Fit: Ideal for variable air volume (VAV) systems, industrial exhaust, and clean-to-lightly-dusty airstreams.
Footprint Trade-off: They require higher operating speeds and slightly larger housings compared to forward-curved alternatives to achieve the same airflow.

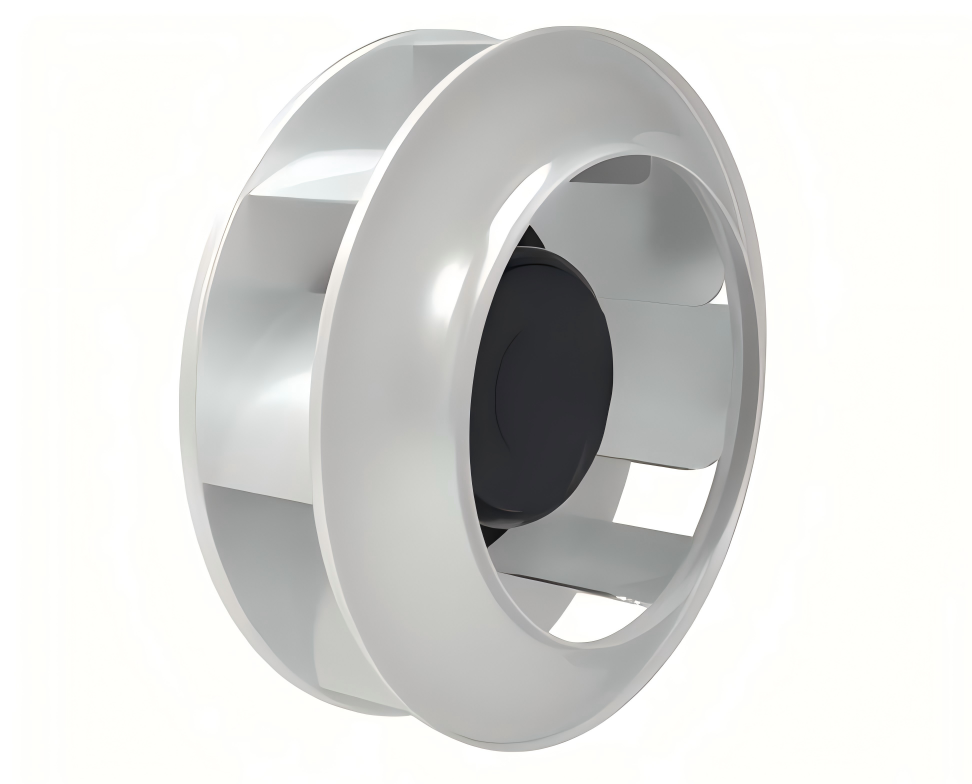

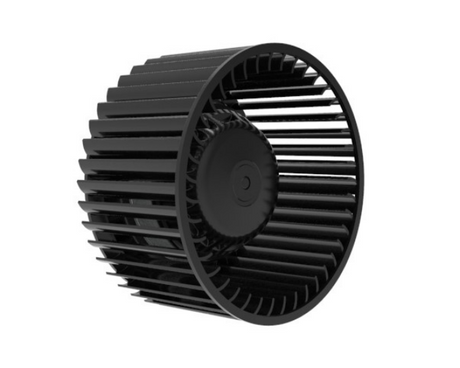

Fluid dynamics strictly determine how commercial ventilation equipment performs under mechanical stress. A Backward-curved Centrifugal Fan utilizes a highly specific, aerodynamically optimized blade profile. The blades physically curve away from the direction of the wheel's rotation. They do not rely on the brute-force air scooping seen in older designs. Instead, they gently accelerate the air through the wheel structure. They convert rotational kinetic energy into static pressure smoothly. This fluid transition creates a highly efficient air delivery method. The gradual expansion of air between the distinct blades minimizes turbulent wake. You experience far less energy loss through heat or vibration as a result.
The most critical commercial advantage is the non-overloading power curve. We consider this a built-in, foolproof safety mechanism for the internal motor. Maximum horsepower is reached near the exact middle of the fan's performance curve. Sometimes, system resistance drops suddenly in commercial buildings. You might open a large access door or completely remove a dirty filter bank. When this happens, airflow increases rapidly. In other fan types, this sudden rush of air severely overloads the motor. However, a backward-curved wheel actually demands less power as airflow moves past its peak efficiency point. The power curve drops off safely. This completely protects your expensive motor from catastrophic electrical burnout.
These fans handle robust airflow and demanding pressure tolerances constantly. They manage high static pressure exceptionally well across widely varying conditions. You can rely on them to operate efficiently without stalling mid-process. They also resist dangerous aerodynamic surging at lower flow rates. This inherent mechanical stability makes them perfect for unpredictable or rapidly modulating ductwork conditions.
Engineers frequently debate between backward-curved and forward-curved impellers. Each specific design serves distinct operational needs within complex HVAC environments. We must evaluate them rigorously across several technical parameters to make an informed, data-driven choice.
Efficiency and energy consumption sit at the absolute forefront of this ongoing debate. Backward-curved models heavily dominate in energy savings for high-duty cycles. They consistently operate near 80% static efficiency. Forward-curved fans certainly cost less upfront during initial equipment procurement. However, they consume significantly more power over their operational lifespan.
Operating speeds and physical footprint present a noticeable mechanical trade-off. A backward-curved fan requires much higher revolutions per minute (RPMs) to generate adequate pressure. It also needs a physically larger spiral housing to achieve identical cubic feet per minute (CFM) output. You must meticulously account for this required space during mechanical room layout design.
Particulate tolerance serves as another defining differentiation factor. Forward-curved blades feature tight, heavily "cupped" shapes along the wheel rim. They trap airborne dust quickly and require frequent, tedious cleaning protocols. Backward-curved blades act quite differently in dirty environments. They self-clean better due to their sweeping, elongated shape. This aerodynamic geometry allows them to handle mildly contaminated airstreams reliably without immediate performance degradation.
Acoustics require careful and highly nuanced review. Backward-curved fans generate very low noise levels precisely at their peak efficiency point. They push air smoothly without aggressive mechanical turbulence. However, their higher RPMs can shift operational noise into different, higher frequency bands. You must tune acoustic dampening materials and inline silencers accordingly to match this specific spectrum.
Here is a breakdown of their primary technical differences:
Performance Feature | Backward-Curved Impeller | Forward-Curved Impeller |
|---|---|---|
Peak Static Efficiency | High (70% - 85%) | Moderate (55% - 65%) |
Brake Horsepower Curve | Non-overloading (Self-limiting) | Overloading (Rises with flow) |
Nominal Operating Speed | Higher RPM requirements | Lower RPM requirements |
Physical Housing Size | Larger footprint required | Compact footprint allowed |
Airborne Dust Tolerance | Moderate (Self-cleaning geometry) | Low (Blades trap dust quickly) |
Specifying the correct ventilation equipment requires rigorous, data-driven analysis. You cannot rely on historical guesswork or arbitrary vendor suggestions. We strongly recommend evaluating several foundational criteria before issuing a final purchase order.
First, you must map system resistance accurately against published performance curves. You need to match the fan’s CFM and static pressure capabilities directly to your specific duct network. Ductwork friction, elbow turns, and filtration resistance dictate your unique system curve. The fan's peak efficiency point should intersect this calculated curve perfectly. Operating too far to the left or right of this optimal point causes severe mechanical inefficiencies.
Motor technology heavily influences modern commercial installations and compliance. You must carefully choose between standard AC induction motors and Electronically Commutated (EC) motors. Pairing backward-curved impellers with EC motors delivers incredible financial returns. EC motors offer precise, frictionless variable speed control. They easily comply with stringent modern energy regulations across various industrial sectors.
Material selection directly impacts equipment longevity in harsh conditions. We evaluate three primary material types for industrial applications:
Carbon Steel: The standard, highly cost-effective choice for heavy-duty, general-purpose industrial environments.
Aluminum Construction: Excellent for strict spark-resistant requirements and highly specialized lightweight applications.
FRP/Composite Materials: Absolutely mandatory for highly corrosive airstreams containing harsh, concentrated chemical fumes.
Finally, you must meticulously weigh direct drive against belt drive configurations. A direct drive assembly eliminates cumbersome belt friction completely. It requires much lower ongoing maintenance and offers a slightly smaller total footprint. Belt drive provides unique operational flexibility. It allows field engineers to easily adjust performance characteristics post-installation by simply swapping mechanical pulleys.
A highly engineered Backward-curved Centrifugal Fan excels across diverse and demanding applications. Let us closely explore where they provide the greatest measurable value to complex facilities.

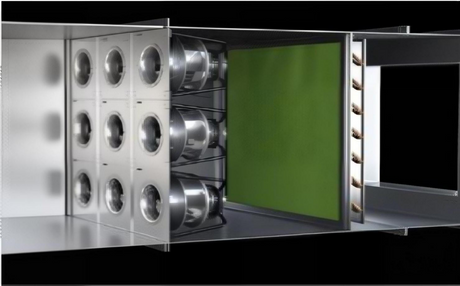

High-capacity Air Handling Units (AHUs) rely heavily on these precise aerodynamic impellers. They remain the absolute default choice for modern commercial HVAC infrastructure globally. Variable air volume (VAV) systems constantly modulate and require highly adaptable pressure control. This specific fan design accommodates VAV airflow fluctuations effortlessly without stalling or surging.
Data center cooling represents another critical, extremely high-stakes use case. Dense server racks generate massive thermal loads constantly. They require precise, high-efficiency continuous airflow to prevent catastrophic hardware failure. These tightly controlled environments demand minimal secondary heat generation from the fan motors themselves. The non-overloading efficiency makes them perfect for 24/7 mission-critical server farm operations.
Industrial process ventilation also heavily utilizes this robust core technology. Boiler drafting processes require highly dependable high-pressure airflow to maintain proper fuel combustion. Fume exhaust systems aggressively pull hazardous air through extensive, restrictive filtration banks. Cleanroom facilities demand unyielding static pressure to maintain sterile, positive-pressure environments. In all these specific scenarios, reliable and continuous air delivery remains strictly non-negotiable.
Installing high-performance airflow equipment comes with specific mechanical challenges. You must proactively anticipate implementation risks to ensure optimal system output. Proper foresight prevents expensive post-installation duct modifications.
The "System Effect" presents the most common and severely damaging pitfall. Poor inlet or discharge duct configurations physically choke incoming airflow. HVAC elbows placed too close to the fan inlet destroy critical aerodynamic efficiency immediately. They drastically degrade the fan's theoretical laboratory performance. You must provide adequate, straight duct runs before and after the installed unit.
Vibration and dynamic balancing demand strict, unforgiving attention from installers. Backward-curved impellers operate at significantly higher rotational speeds. This high velocity amplifies any slight mechanical imbalance exponentially. Precision dynamic balancing at the factory is an absolute necessity. You must also outline the clear need for proper structural vibration isolators. High-quality spring or rubber isolators prevent mechanical resonance from tearing aggressively through the building structure.
Clearance and installation realities often surprise unprepared facility managers. We noted earlier that these specific fans require notably larger outer housings. This larger physical size poses severe retrofit challenges. You might struggle immensely to fit them into tight mechanical rooms initially designed for smaller forward-curved fans. Plan your precise spatial requirements and mechanical pad dimensions meticulously before ordering.
Purchasing industrial ventilation requires a highly systematic, analytical approach. Follow these logical, sequential steps to procure the absolute best equipment for your facility layout.
First, define your rigid baseline environmental metrics. Gather exact CFM requirements for your target space. Determine your necessary static pressure in inches of water gauge (inWG) or Pascals (Pa). You must also accurately record your specific installation altitude and expected airstream temperature. Both variables drastically alter air density. Do this critical math before you ever approach manufacturers for technical quotes.
Next, intelligently calculate your long-term financial impact and daily operational expenditure. You face a slightly higher initial capital expenditure (CapEx) for backward-curved units. However, you must weigh this against significantly lowered operating power costs over a standard 5 to 10-year lifespan. The ongoing daily energy savings rapidly offset the initial premium purchase price.
Review manufacturer compliance with extreme engineering scrutiny. Ensure your short-listed vendors provide certified, fully independent performance data. Look actively for widely recognized industry certifications. AMCA (Air Movement and Control Association) certification guarantees highly accurate air and sound performance testing. Never accept unverified aerodynamic claims from uncertified, overseas manufacturers.
Selecting a backward-curved centrifugal fan represents a highly intelligent, long-term engineering investment for your facility. It certainly requires higher upfront capital and highly careful spatial planning during the design phase. However, its non-overloading safety profile completely eliminates sudden, costly motor burnout risks. The profound lifecycle energy efficiency seamlessly secures continuous, highly demanding industrial operations.
You should follow these exact operational steps to finalize your engineering strategy:
Evaluate your exact static pressure and precise CFM requirements under peak facility loads.
Assess spatial constraints, door clearances, and duct configurations in your mechanical rooms.
Prioritize EC motor pairings seamlessly to maximize long-term energy efficiency targets.
Validate all manufacturer performance curves using independent AMCA laboratory certifications.
Take the necessary next step in completely optimizing your facility airflows. Consult directly with an experienced application engineer today. Ask them to accurately plot your specific system curve against targeted backward-curved fan models. Request comprehensive technical data sheets to thoroughly verify physical performance limits before your final purchase.
A: As airflow increases past the peak efficiency point, the required horsepower actually decreases. This self-limiting power curve safely protects the equipment. If system resistance suddenly drops—like when filters are removed or duct doors open—the motor will not draw excess electrical current. It simply cannot burn out from overworking.
A: They handle light dust and moderate particulates much better than forward-curved fans due to their sweeping aerodynamic blade design. However, they are not true "material handling" fans. Heavy material conveyance requires straight radial blades designed specifically to transport heavy chips or debris without dangerous clogging.
A: At their peak efficiency point, they operate highly quietly. The mechanical nuance lies in their operating speeds. Because they spin at much higher RPMs, improper sizing or operating them outside their ideal curve can result in significant mechanical and aerodynamic noise. Proper system selection ensures extremely quiet operation.
