Selecting the wrong industrial fan leads directly to system inefficiency. It drives excessive energy consumption. It also causes premature mechanical failure. You simply cannot afford guesswork when engineering complex ventilation or exhaust systems. At their core, centrifugal fans operate by pulling air in axially. They then discharge it radially. However, matching the exact impeller design to your specific operating environment remains a highly technical challenge. Misaligned specifications guarantee rapid material buildup. They cause dangerous rotor imbalance. They inevitably lead to catastrophic downtime. To help you avoid these costly errors, we break down the three primary impeller designs. These include forward-curved, backward-curved, and radial models. We provide a strict, data-driven evaluation framework for specifying the correct fan type. You will learn exactly how to align your specific airflow needs. You will match static pressure and particulate handling requirements with the most effective equipment available.
Forward-Curved: Best for low-pressure, high-volume, clean-air applications where space is limited (e.g., HVAC units).
Backward-Curved: The highest efficiency option, offering non-overloading power characteristics ideal for variable-resistance systems.
Radial: The heavy-duty choice designed to handle heavy dust, particulates, and harsh industrial materials at the cost of lower energy efficiency.
Selection Rule: Final specification must weigh Total Cost of Ownership (TCO), static pressure requirements, and the operating environment's air quality.
Industrial fans account for a massive portion of facility energy use. Impeller design directly dictates overall aerodynamic efficiency. This aerodynamic efficiency determines your long-term utility costs. A poorly selected fan demands larger motors. It draws more electricity to move the same volume of air. Facility managers must evaluate fan efficiency strictly. You can significantly reduce daily operational costs by selecting an optimized blade shape.
You must align your fan type perfectly with your air quality. Misaligning these factors guarantees rapid mechanical failure. For example, using a high-efficiency clean-air fan for particulate extraction is a critical error. It causes rapid material buildup on the blades. Rotor imbalance quickly follows. This imbalance destroys bearings and causes catastrophic system failure. Proper specification prevents these cascading mechanical disasters.
Common Mistakes: Many buyers focus solely on initial purchase price. They ignore the specific air composition. Installing a light-duty fan in a heavily polluted airstream always increases maintenance frequency. It ultimately shortens the equipment lifespan dramatically.
You must understand how static pressure and airflow volume fluctuate. We measure airflow volume in Cubic Feet per Minute (CFM). This relationship changes based entirely on blade design. Each fan type generates a unique performance curve. Some curves are steep and stable. Others are flat and highly sensitive to pressure changes.
Pressure Sensitivity: Certain impellers drop CFM rapidly when system resistance increases.
Power Draw: Some blade designs draw more horsepower as airflow increases.
Stall Risks: Operating a fan outside its ideal curve causes aerodynamic stalling.
Engineers use these performance curves to match fans to specific ductwork configurations. You ensure stable airflow by plotting system resistance against the fan curve.
Forward-curved fans feature numerous shallow blades. These blades face forward. They curve in the exact direction of the wheel's rotation. A typical wheel contains anywhere from 24 to 64 individual blades. We often call this design a "squirrel cage" blower. The blades act essentially like scoops. They gather air and push it out through the housing.
This design moves extremely large volumes of air. It does this at relatively low operating speeds. However, it offers much lower static pressure capabilities. The power curve increases steadily alongside the airflow. This creates a significant operational risk. You face a high risk of motor overload if system resistance drops unexpectedly. For example, opening an access door removes system resistance. The fan suddenly moves more air. The motor draws more current and potentially burns out.
You must weigh the structural and operational tradeoffs carefully.
Strengths: They offer a very compact footprint. They provide incredibly quiet operation. They also carry a much lower initial purchase cost.
Weaknesses: They possess low structural strength. You cannot run them at high rotational speeds. They are highly sensitive to dust and debris. The shallow blades clog very easily.
Best Practices: Always install forward-curved fans in strictly clean-air environments. Ensure your ductwork includes high-quality upstream filtration. This prevents particulate accumulation inside the shallow blade curves.
Engineers heavily favor forward-curved fans for commercial HVAC systems. They dominate indoor climate control units. You will find them frequently in cleanroom ventilation setups. They also power most low-pressure domestic equipment. Their quiet operation makes them perfect for office buildings and residential air handlers. They deliver comfort without generating disruptive mechanical noise.

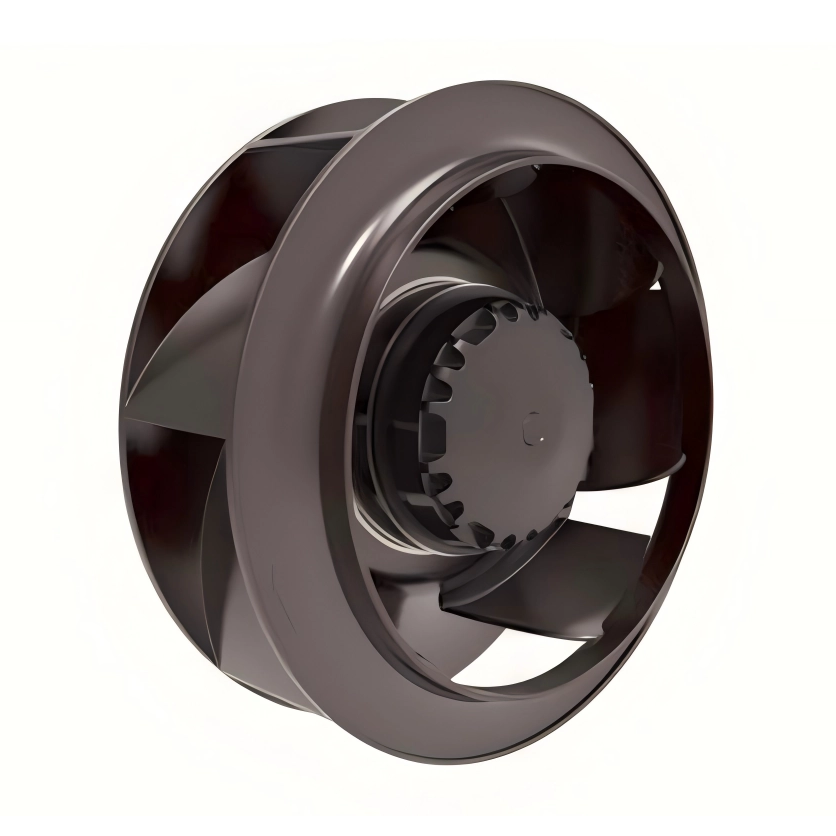

Backward-curved impellers use distinct blade geometries. Their blades tilt completely away from the direction of rotation. Manufacturers produce these blades in several distinct shapes. You can specify flat blades, curved blades, or aerofoil-shaped blades. Aerofoil blades mimic the cross-section of an airplane wing. This specific shape minimizes air turbulence significantly. It slices through the airstream smoothly.
The Backward-curved Centrifugal Fan operates at much higher speeds. It generates medium-to-high static pressure effortlessly. It boasts one absolutely crucial feature. It features a "non-overloading" horsepower curve. The motor reaches a peak power draw at a specific operating point. The power requirement then drops off. The motor will never overload even if the system pressure fluctuates. It remains safe even if pressure drops to zero.
This fan type represents the gold standard for many industrial processes. However, it requires careful system integration.
Strengths: It delivers exceptional energy efficiency. Aerofoil designs can reach up to 85 percent efficiency. It provides incredibly stable operation across a wide range of performance curves. It maintains surprisingly low noise levels at peak efficiencies.
Weaknesses: It requires a larger physical footprint than forward-curved models. It requires highly precise manufacturing techniques. This drives up the initial upfront cost significantly.
Implementation Risk: It handles light dust better than forward-curved blades. However, it remains entirely unsuited for heavy material handling. Sticky or abrasive materials will ruin the precise blade balancing.
These fans dominate heavy industrial settings. They are ideal for industrial forced-draft systems. You will see them in induced-draft applications for large boilers. They work perfectly on the clean-side of massive dust collectors. They also excel in variable air volume (VAV) systems. The non-overloading characteristic makes them perfect for variable-resistance duct networks.
Radial fans utilize the most rugged construction available. Their blades extend straight out from the center hub. They do not curve forward or backward. This represents the simplest aerodynamic design. Manufacturers build them using thick, heavy-gauge steel. The rotor looks like a standard paddle wheel. It relies on brute rotational force to move the air.
Engineers design radial fans specifically for extreme conditions. They operate at very high rotational speeds. They generate extremely high static pressures. They literally batter the air through the system. However, they deliver much lower overall aerodynamic efficiency. They consume significantly more power compared to backward-curved models. They sacrifice aerodynamic grace for pure mechanical durability.
You choose a radial fan when survival matters more than efficiency.
Strengths: The straight blades offer a self-cleaning design. Centrifugal force naturally prevents material buildup. The wheels are highly durable. Maintenance teams can repair them easily in the field. Welders can patch the straight steel plates quickly.
Weaknesses: They produce the loudest operation of any fan type. They offer the absolute lowest energy efficiency. They require much larger motors to achieve the same airflow as other designs.
Common Mistakes: Never install a radial fan where noise control is a priority. They require heavy acoustic dampening enclosures if placed near human workers. Always account for the massive motor requirements during electrical planning.
Radial fans dominate the toughest industrial processes. You need them for pneumatic conveying systems. They move wood chips, paper scraps, and plastic pellets. They handle heavy dust collection perfectly. They withstand high-temperature exhaust streams from industrial furnaces. They thrive in environments filled with corrosive or highly abrasive particulates. No other fan survives these harsh conditions.
Your airstream composition dictates your first filtering decision. You must assess exactly what the fan will move.
Clean air: You can use either forward-curved or backward-curved fans.
Light dust: You should select a backward-curved fan using a flat blade design.
Heavy material or Abrasives: You absolutely must specify a radial fan.
Ignoring this rule guarantees catastrophic mechanical failure. Airborne particulates destroy precise aerodynamic balances quickly.
You must map your ductwork resistance accurately. Every elbow, filter, and damper adds static pressure.
Low pressure and tight space: A forward-curved fan fits perfectly here.
Fluctuating pressure: A backward-curved fan offers the necessary non-overloading safety.
High pressure and harsh conditions: A radial fan provides the necessary brute force.
You must guide your buyers to calculate lifetime energy consumption. You should compare this against initial capital expenditure. Backward-curved fans require higher initial investment. However, they reduce monthly electrical draws significantly. Forward-curved alternatives offer cheaper upfront pricing. They cost much more to operate over a ten-year lifespan. You must model the utility rates in your specific facility to make an accurate choice. The long-term savings of an efficient fan usually offset the initial price tag rapidly.
You cannot simply order a fan out of a catalog. You must document specific engineering metrics first. You need accurate system resistance curves. You must record exact operating temperatures. You need to measure precise physical space constraints. Gather these exact parameters first. Then, you consult a specialized manufacturer for custom sizing. This ensures you receive equipment perfectly matched to your process.
Fan Type | Blade Design | Pressure Capability | Air Quality Suitability | Efficiency Level |
|---|---|---|---|---|
Forward-Curved | Shallow, curved forward | Low to Medium | Strictly Clean Air | Low to Moderate |
Backward-Curved | Tilted away from rotation | Medium to High | Clean Air to Light Dust | Very High (up to 85%) |
Radial | Straight from center hub | Extremely High | Heavy Dust and Materials | Low |
No single fan type is universally superior across all applications. Proper selection remains strictly an engineering matching process. You must align the equipment with the physical realities of your facility. Forward-curved designs excel in compact, highly clean spaces where noise matters. Radial models absolutely dominate harsh material handling and abrasive environments. Meanwhile, the backward-curved design stands as the gold standard for energy-efficient industrial applications. It handles variable pressures beautifully while protecting your electrical infrastructure.
You cannot risk a facility shutdown due to poor equipment specification. We strongly encourage engineers, facility managers, and buyers to act decisively. Review your specific system resistance curves thoroughly. Map out your exact particulate loads and temperature ranges. Once you have this data, consult immediately with a certified fan manufacturer. They will help you finalize a specification that ensures long-term operational success.
A: The backward-curved fan, specifically the aerofoil design, represents the most energy-efficient option available. The blade profile resembles an airplane wing. This smooth aerodynamic shape reduces air turbulence significantly. It allows the fan to convert mechanical energy into airflow with minimal waste. These models routinely achieve efficiencies exceeding 85 percent under optimal operating conditions. They save massive amounts of electricity over their lifespan.
A: The forward-curved blades act exactly like tiny scoops. They catch and hold airborne dust rapidly. This causes severe blade cupping and material buildup. The accumulated dirt throws the high-speed rotor completely out of balance. This severe imbalance creates violent vibrations. These vibrations destroy the shaft bearings quickly. This ultimately leads to total mechanical and motor failure.
A: A non-overloading power curve provides built-in motor protection. As airflow increases and system resistance drops, the power draw eventually peaks and then declines. Even if ductwork bursts or pressure drops to zero, the motor will never exceed its maximum rated horsepower. This intrinsic design prevents electrical overloads. It completely eliminates the risk of burning out your expensive motors during sudden system changes.
A: Yes, but it requires careful retrofitting. Backward-curved fans require a much larger physical footprint to move the same volume of air. They also must operate at significantly higher RPMs. You cannot simply swap them directly into the same tight housing. You will likely need to modify your ductwork transitions. You must also resize your motor drives and evaluate your electrical infrastructure.
