Understand Static Pressure, Dynamic Pressure, Total Pressure And External Static Pressure in One Minute for Accurate Fan Selection

Abstract

In HVAC system design and fan‑selection work, concepts including static pressure, dynamic pressure, total pressure and external static pressure are frequently confused. This paper interprets the core differences among these four types of pressure in plain language and clarifies their conversion relationships, helping engineers interpret fan parameters and complete selection calculations correctly.

In HVAC‑ventilation sites, many technicians mix up static pressure, dynamic pressure, total pressure and external static pressure. Misinterpretation of these parameters directly leads to improper fan selection, resulting in insufficient airflow, excessive noise and unsatisfactory system performance. This article sorts out these pressure concepts in an easy‑to‑understand way to avoid common pitfalls in fan selection.

1. Static Pressure and Dynamic Pressure: Two Fundamentally Different Pressure Properties

Many practitioners confuse static pressure and dynamic pressure, though their physical meanings are completely distinct. Simply put: static pressure is the force pushing outwards against duct walls; dynamic pressure is the force propelling airflow forward.

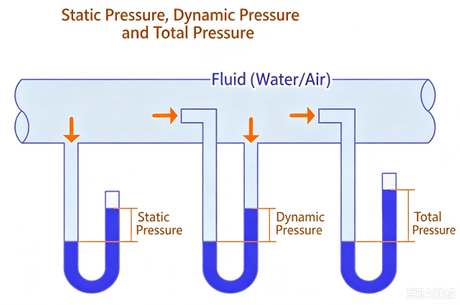

• Static Pressure: Pressure acting perpendicularly on duct walls and exerting outward expansion force on the duct. It is independent of airflow direction.

• Dynamic Pressure: Generated only by moving air. Its direction aligns with airflow, and it drives air to travel forward.

2. Total Pressure = Static Pressure + Dynamic Pressure: Mutual Conversion in Duct Reducer Sections

Total pressure is the sum of static pressure and dynamic pressure, representing the full pressure energy carried by airflow.

Duct cross‑section changes at reducers alter internal air velocity: higher airflow velocity increases dynamic pressure and reduces static pressure; lower airflow velocity decreases dynamic pressure and raises static pressure.

Under ideal conditions ignoring duct resistance loss, total pressure remains constant. In practical operation, total pressure decays moderately due to resistance losses along the ductwork.

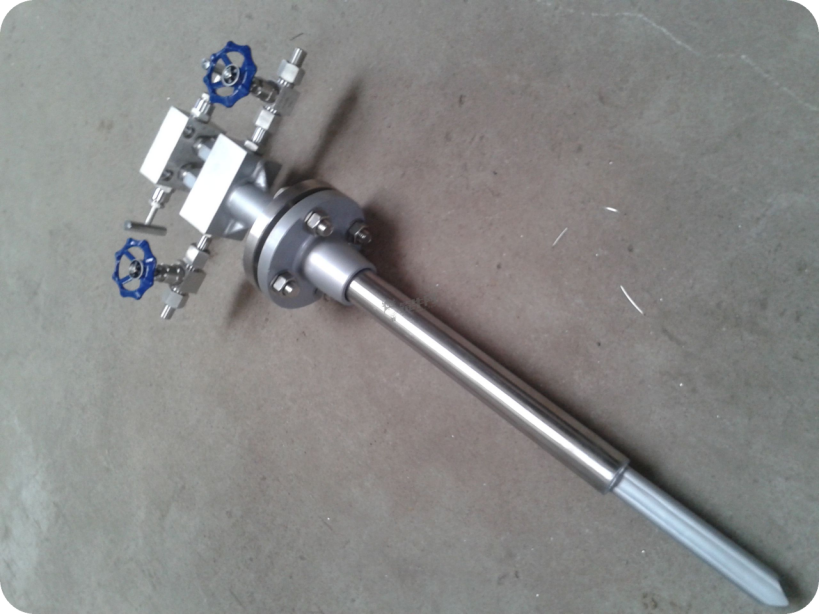

On‑site Measurement Tip The Pitot tube is the most widely‑used instrument for duct‑pressure field testing in engineering. A single Pitot tube can measure static pressure, dynamic pressure and total pressure, making it a common tool for ventilation commissioning.

3. External Static Pressure: Core Reference Indicator for Fan Selection

Multiple pressure values including static pressure, dynamic pressure and total pressure can be measured at the fan outlet. However, external static pressure is the key parameter for fan selection.

External static pressure refers to the pressure available to the downstream duct system after deducting internal fan losses. It is used to overcome total resistance of downstream duct components such as ducts, elbows and filters. Matching external static pressure against total system resistance ensures the fan delivers design airflow.

4. Summary of Key Takeaways

Master the three core logics below to correctly interpret fan nameplates, conduct on‑site duct‑pressure testing and perform fan selection:

1. Static pressure pushes outwards on duct walls, while dynamic pressure propels airflow forward. They represent distinct physical quantities.

2. Total pressure = Static pressure + Dynamic pressure. Static pressure and dynamic pressure convert into one another at duct reducers; total pressure drops in real‑world conditions due to resistance losses.

3. Prioritize external static pressure in fan selection; it represents the effective pressure the fan can supply to the duct system.
