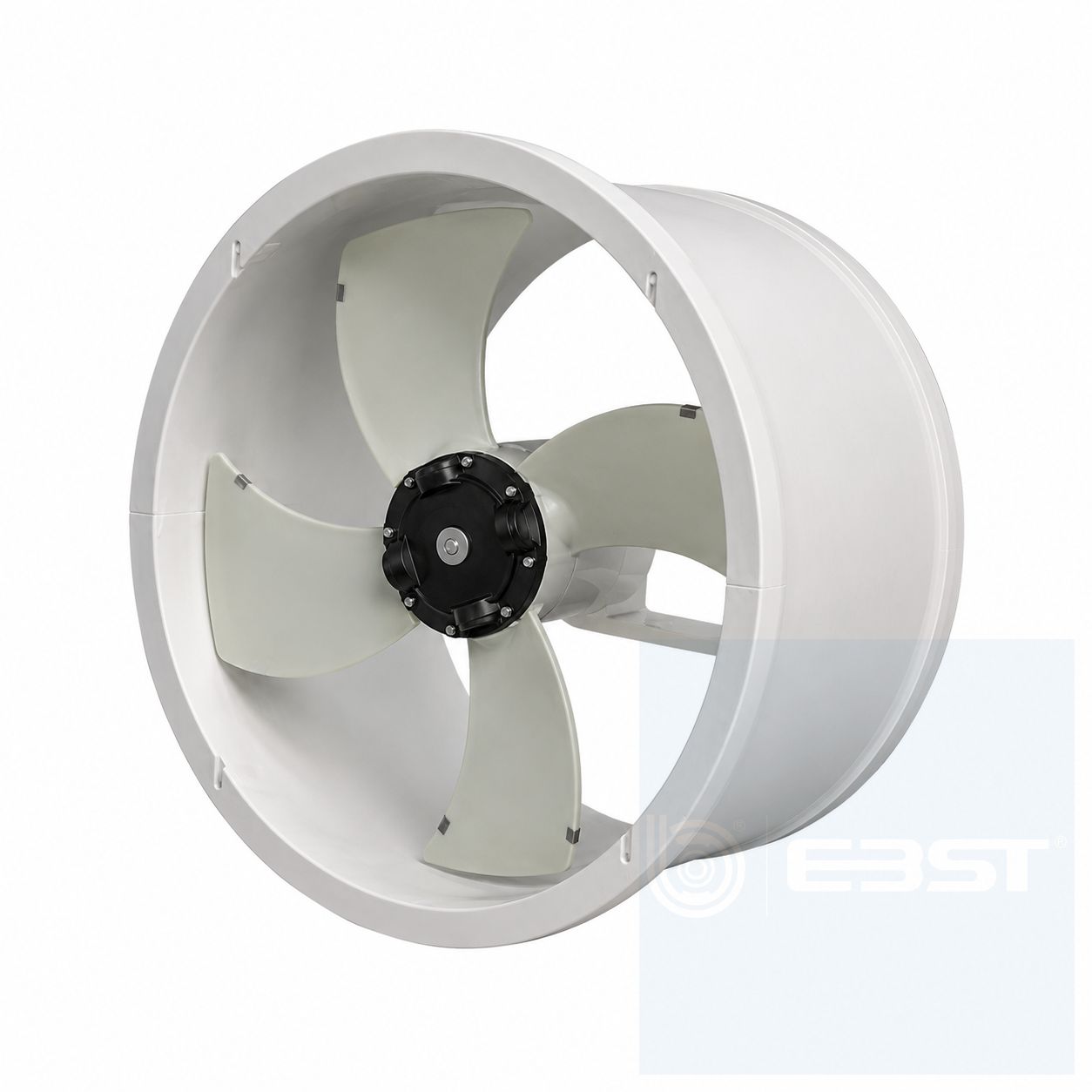

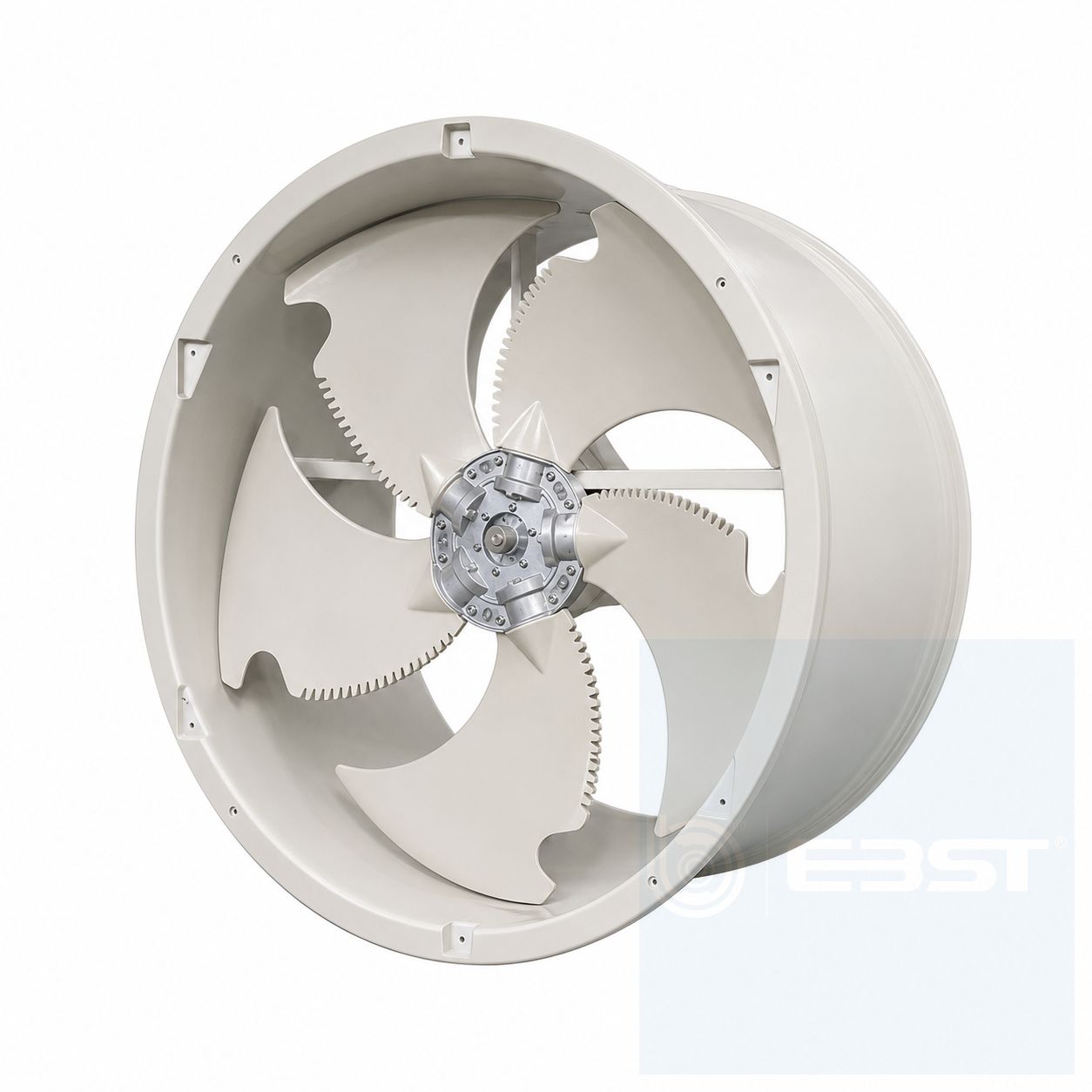

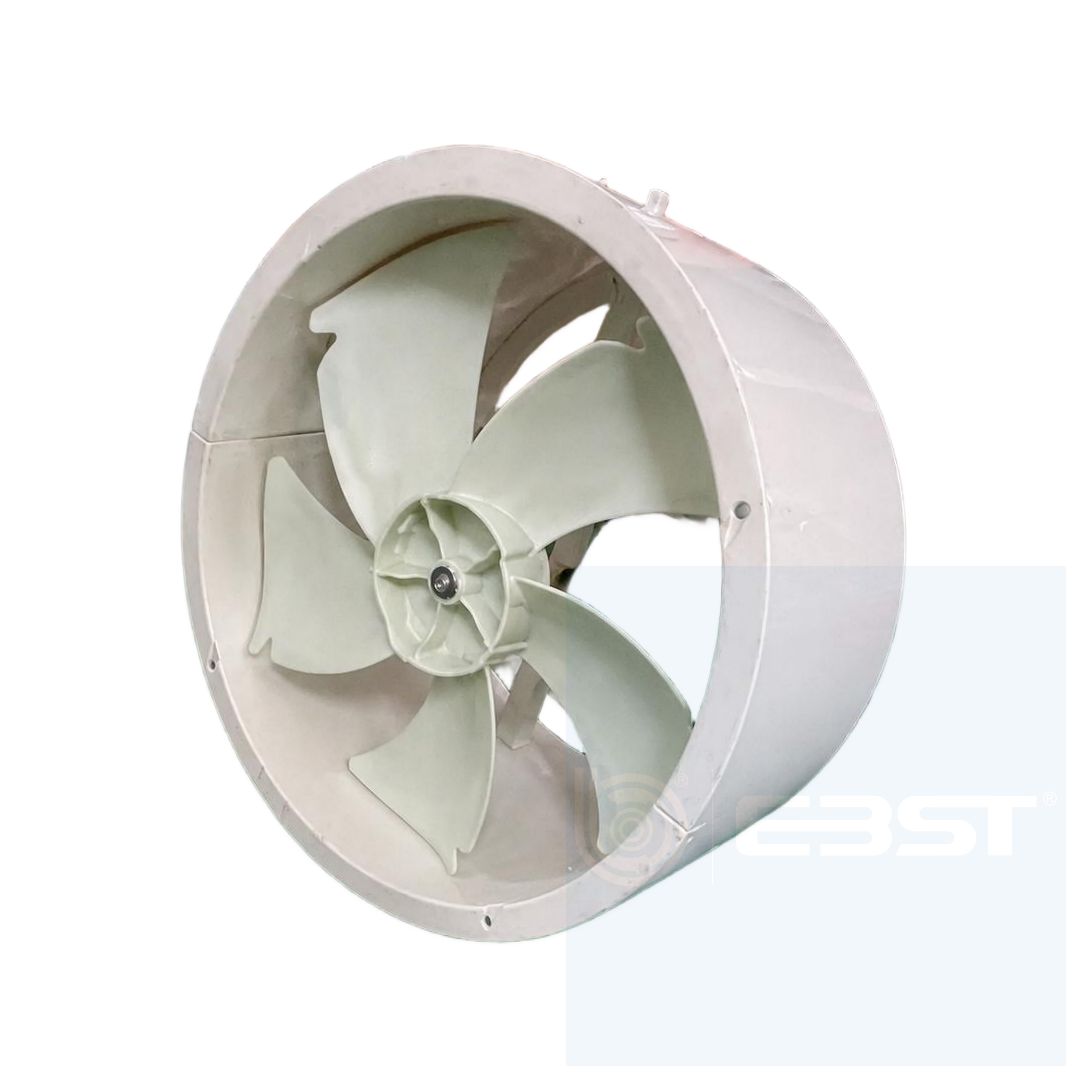

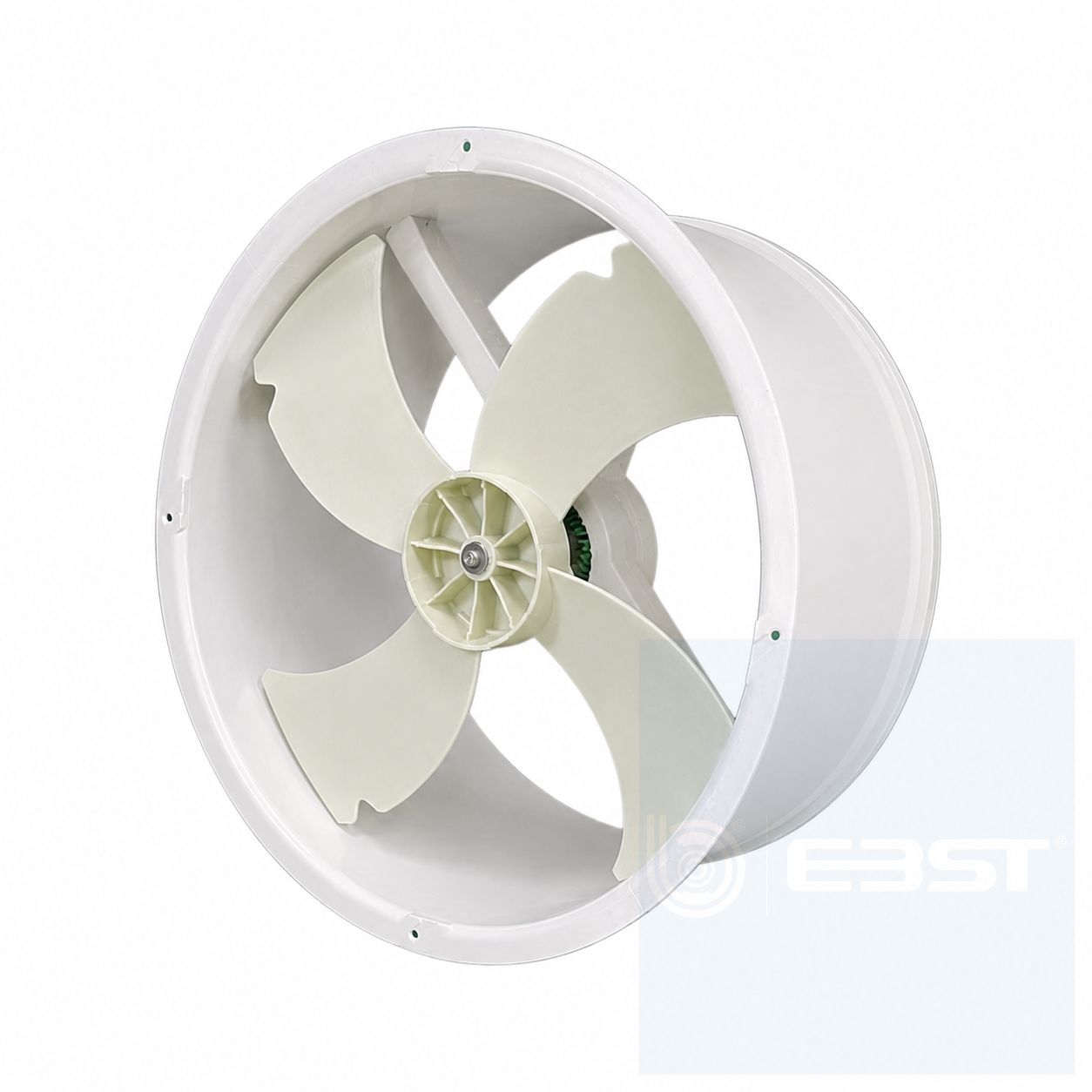

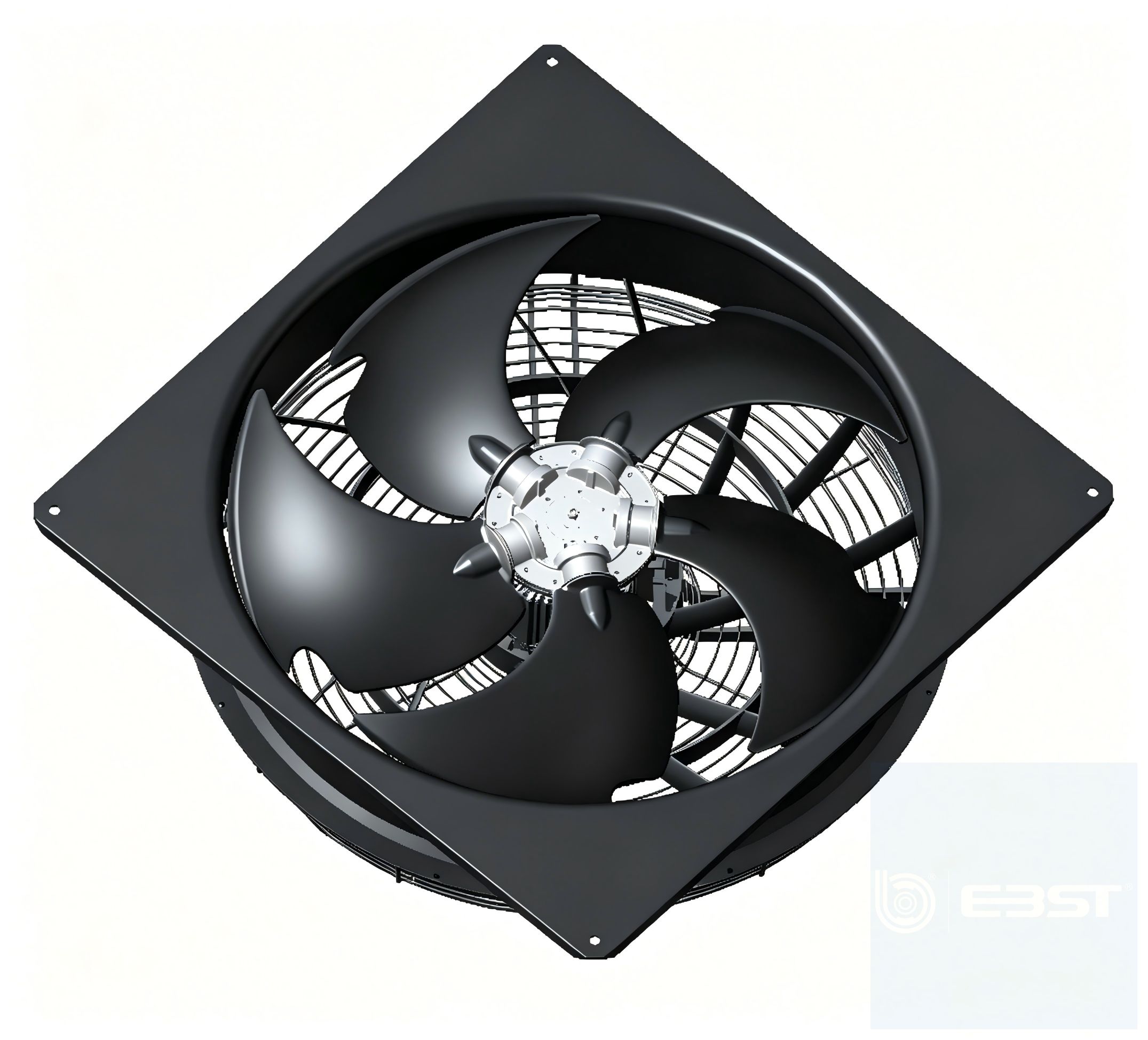

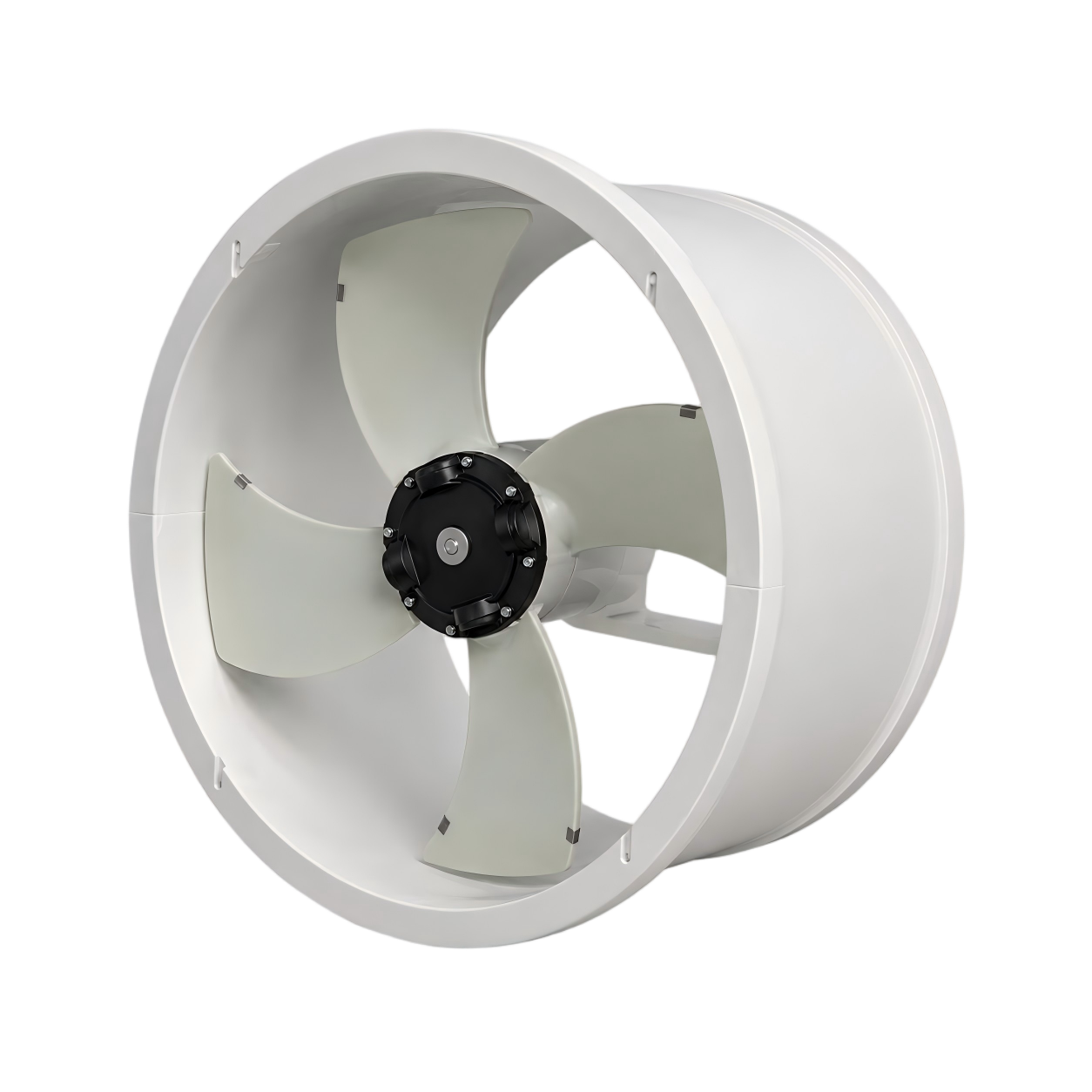

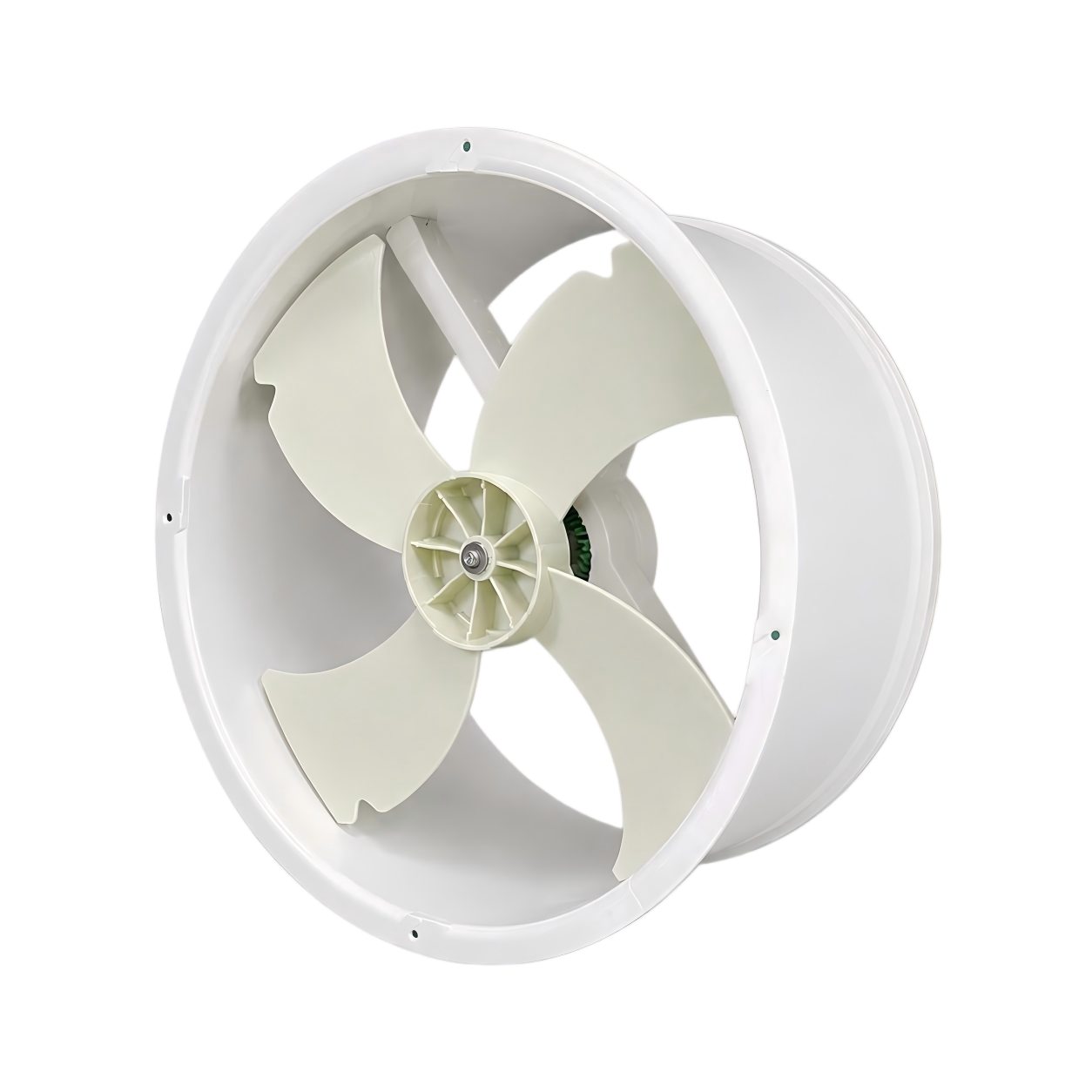

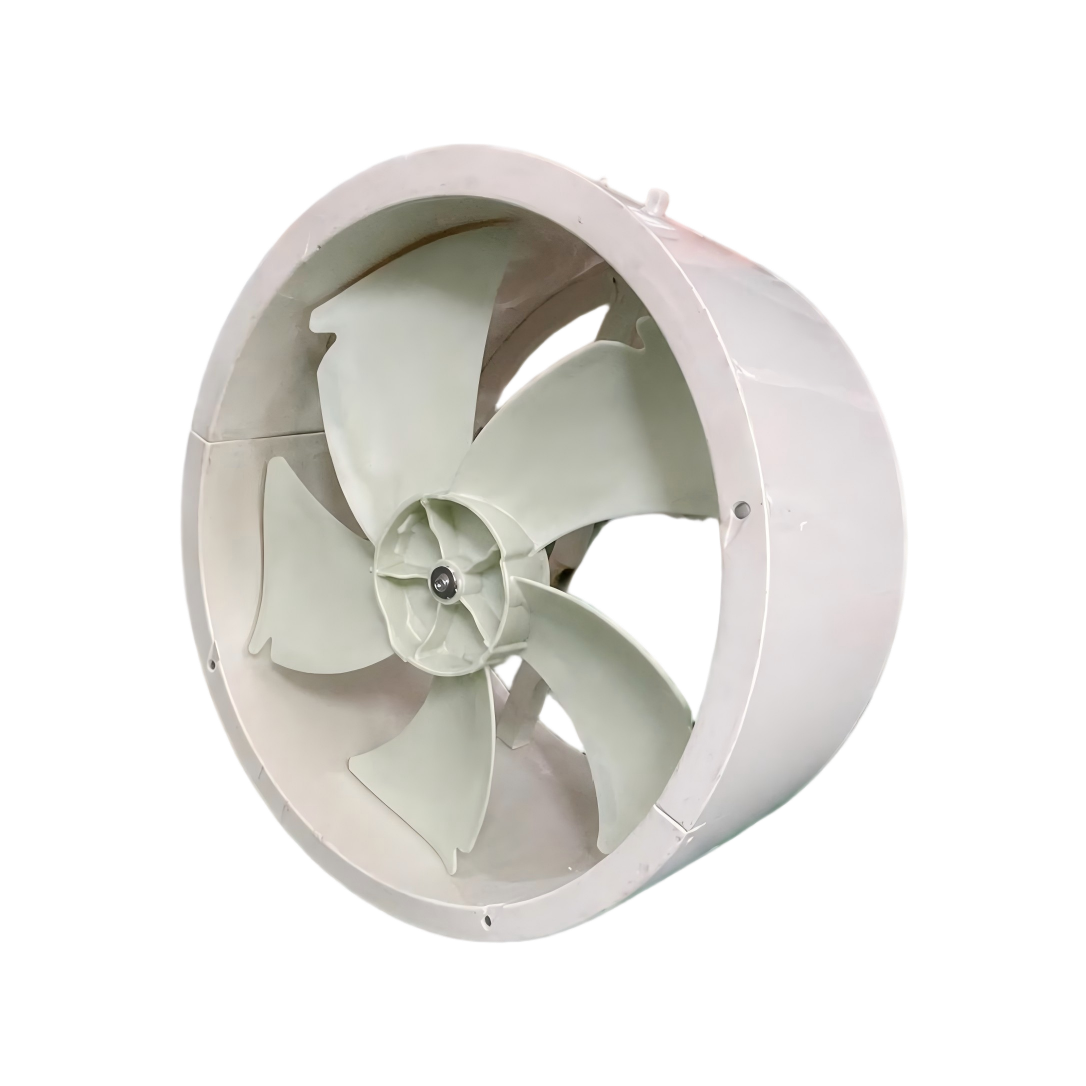

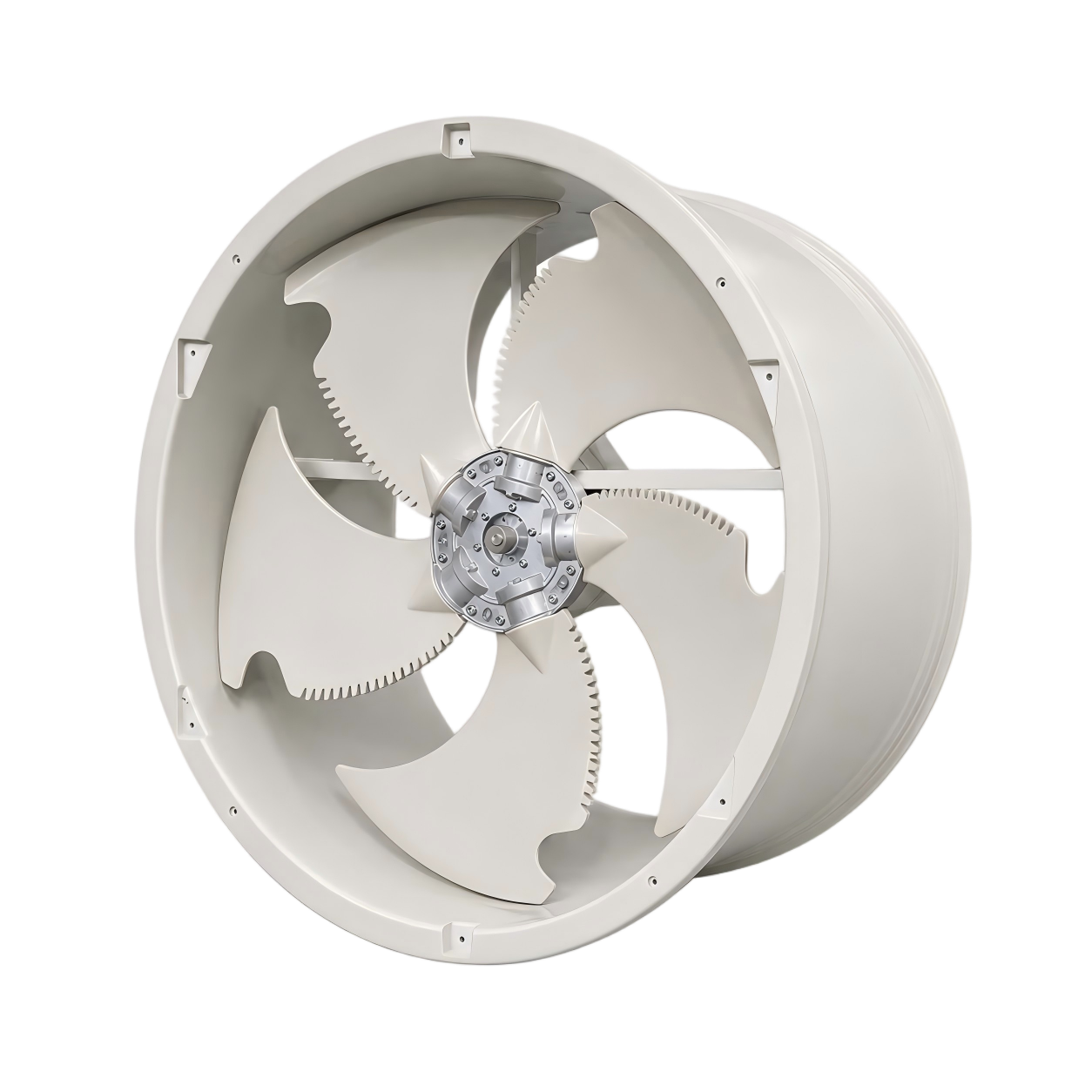

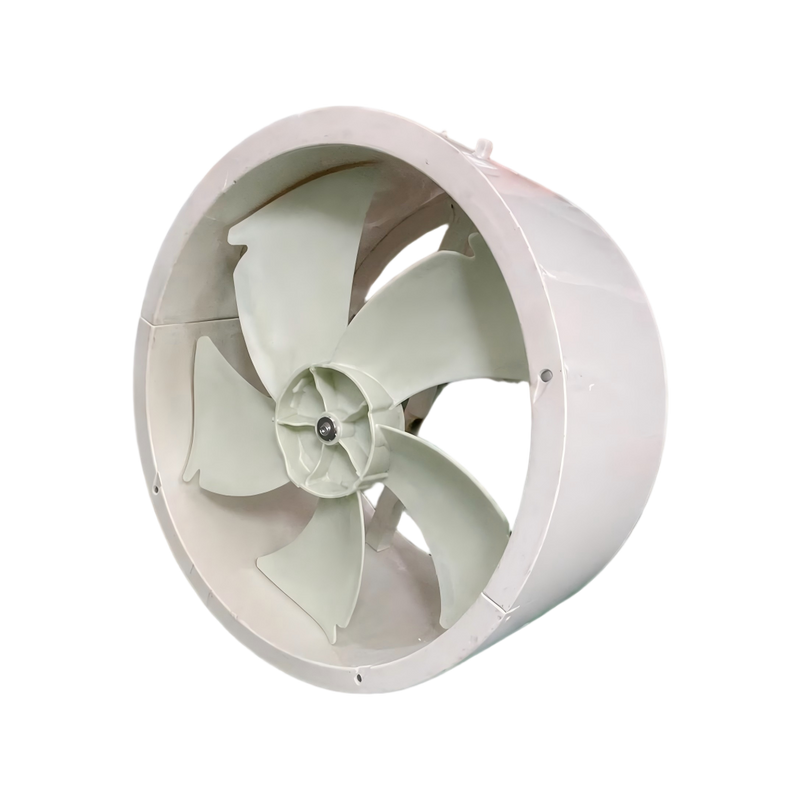

EC 450//550/710/910/960 Axial Fans for Agriculture And Animal Husbandry

	Model	Voltage [V]	Frequency [Hz]	Speed [rpm]	Max Power [W]	Max Airflow [m3/h]	Noise [dB(A)]
	A450P.E001	220	50/60	1467	361.6	4548.9	75.8
	A550P.E001	220	50/60	1450	347.1	7354.1	83.6
	A710F.E003	380	50/60	1475	1569	14643	85.5
	A910F.E017	380	50/60	1000	3127	28745	85.3
	A960F.E001	380	50/60	1150	3727	34525	78.4

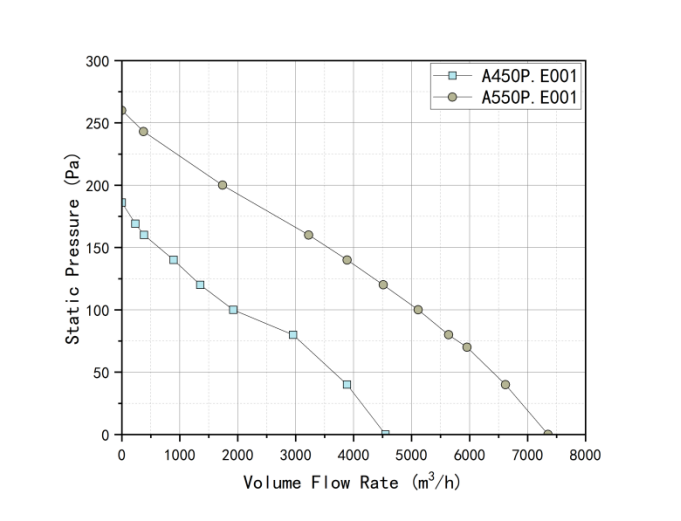

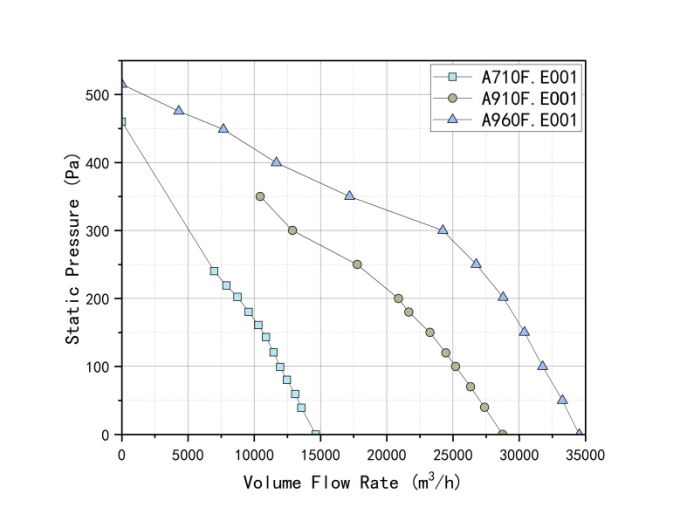

AIRFLOW-STATIC PRESSURE CURVE

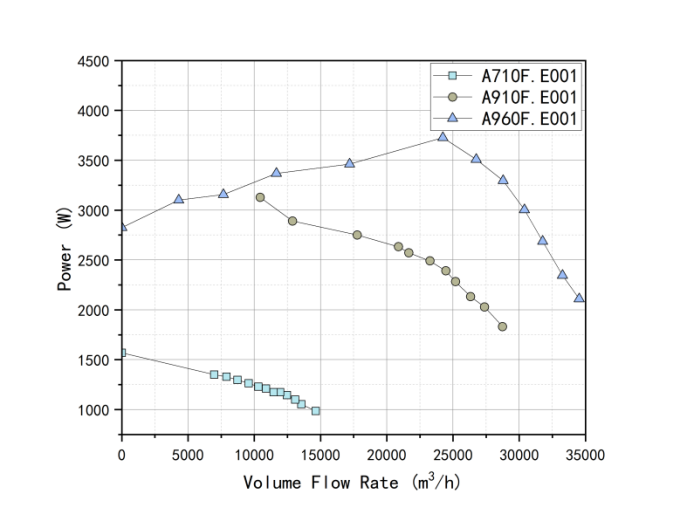

AIRFLOW-POWER CURVE

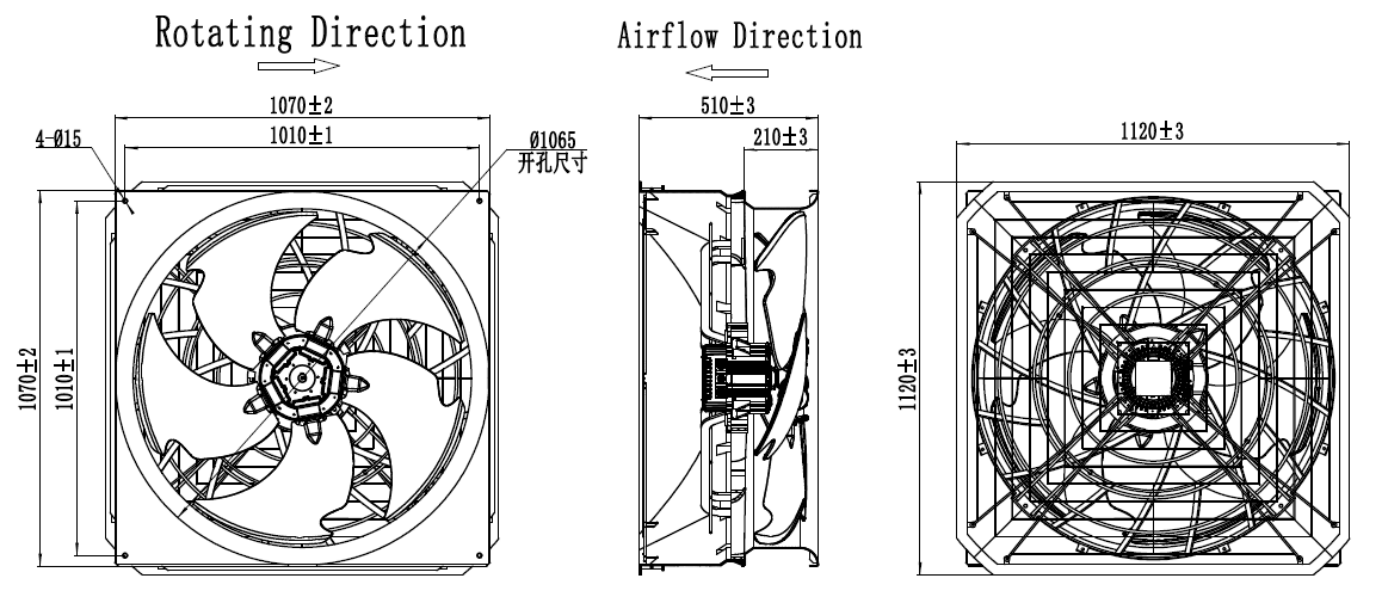

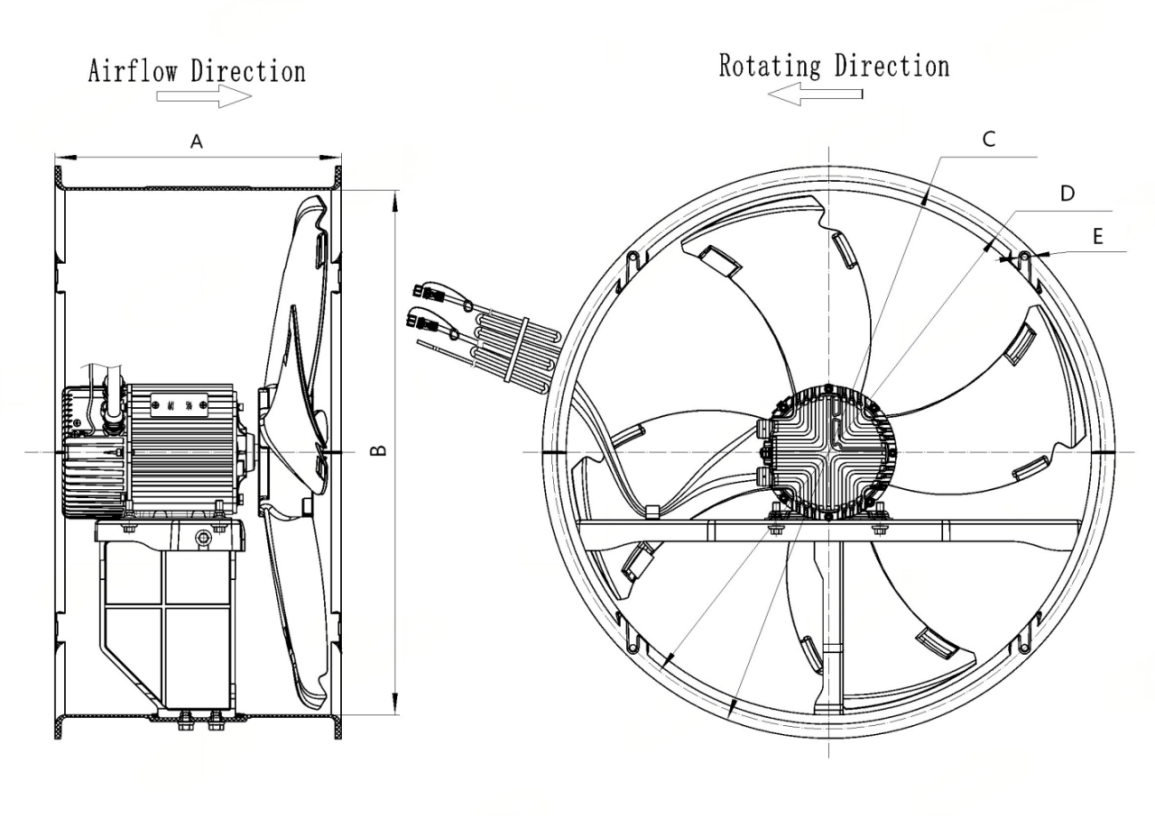

Dimension

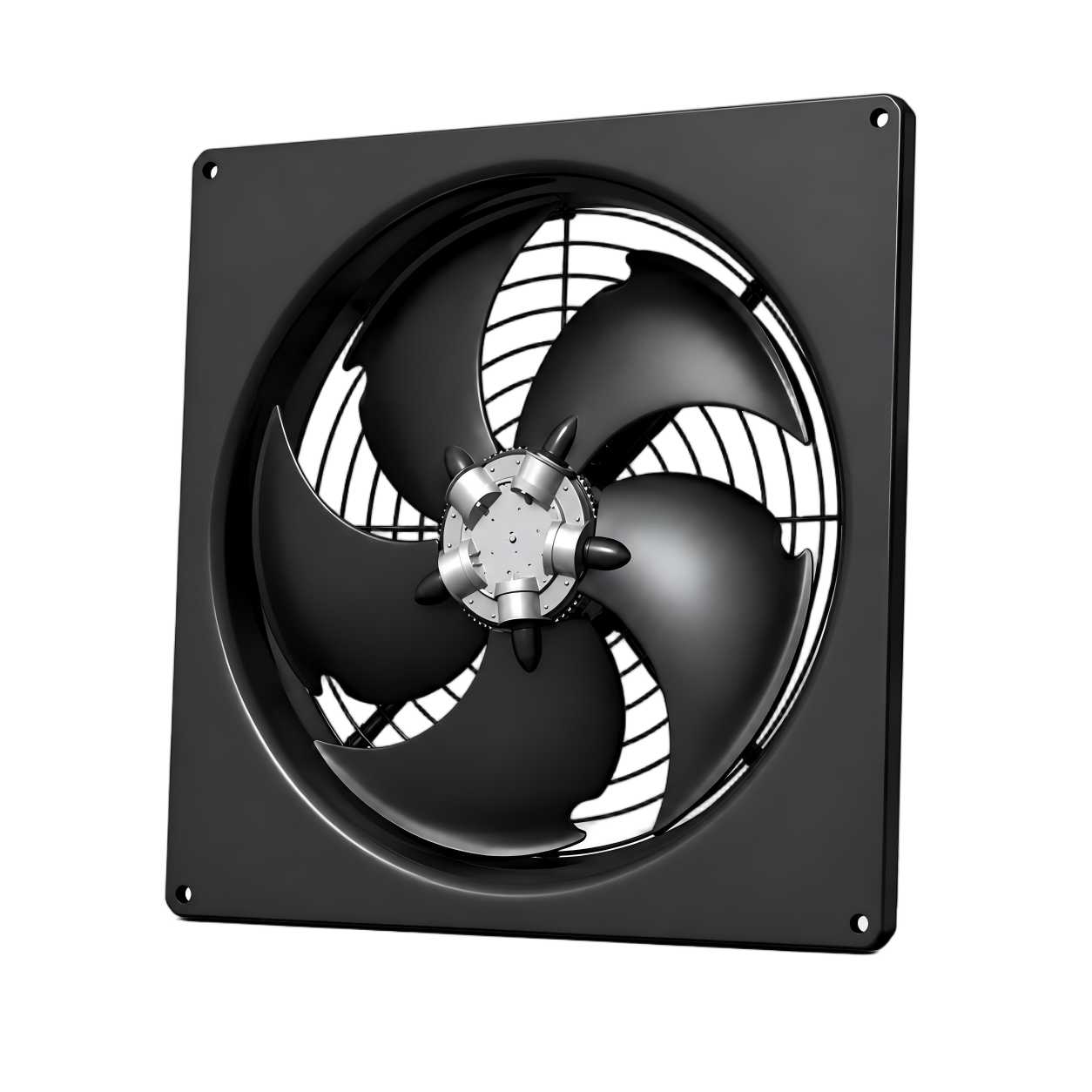

A960F.E001

Core Advantage

01 Dual Protection Design
Reliable Performance in High-Ammonia & High-Humidity Conditions
• High-Strength Composite Fan Blades
• SMC Molded FRP Housing
• IP67-Rated Motor Protection

02 Long-Lasting Durability & Stable Airflow
Consistent Ventilation Performance Over Time
• Optimized Aerodynamic Blade Design
• Anti-Deformation Composite Nylon / PPS Materials
• 40,000-Hour Durability Tested

03 Smart Control & IoT Connectivity
Demand-Based Ventilation with Higher Energy Efficiency
• Stepless Precision Speed Control
• Supports PWM, 0–10V and RS485 Communication Protocols
• Compatible with Smart Farm Management Systems

04 Quiet Operation, Reduced Livestock Stress
A More Comfortable Environment for Livestock
• Optimized Airflow Path Design
• Low-Noise Dedicated Motor
• Noise level reduced by approximately 5 dB compared to the average.

01 High Ventilation Efficiency & Energy Saving
High airflow with low energy consumption, ideal for large-scale livestock ventilation needs
• Axial airflow design with lower resistance and reduced pressure loss
• Delivers higher airflow at the same power input
• IE4 / IE5 high-efficiency motors meet next-generation energy-saving standards

02 Flexible Installation & Wide Application
One fan for multiple applications across diverse livestock and agricultural environments
• Compact and lightweight structure for easier installation
• Compatible with duct systems and direct equipment integration
• Covers ventilation needs from small to large-scale systems
• Suitable for livestock houses, greenhouses, equipment rooms and industrial ventilation

03 High Reliability & Low Maintenance Cost
Stable long-term operation with reduced labor and maintenance costs
• Brushless motor (BLDC) reduces mechanical wear

• Fewer wear parts for higher structural reliability
• Designed for continuous long-term operation

• Only minimal routine cleaning required

04 Low Noise & Livestock-Friendly Environment

Reduces stress and improves livestock productivity performance

• Noise level as low as approx. 55 dB(A)

• Optimized airflow design reduces turbulence and noise

• Improves feeding and resting conditions for livestock

• Supports better weight gain and egg production performance

05 Compliance & Eco-Friendly Design

Meets domestic and international compliance requirements for global markets

• Complies with ERP2026 Ecodesign requirements

• Recyclable material content ≥75%

• Meets RoHS hazardous substance restriction standards

• Fully compliant for global export and bulk procurement requirements
