Engineers often encounter newly installed fans underperforming in the field. They immediately question if the impeller runs backward. A centrifugal fan running in reverse still moves air out the discharge. It does not turn into a vacuum. However, it operates at severely compromised efficiency and volume. Operating fans in reverse drives immediate system underperformance. It also risks mechanical damage and critical process failures. This article evaluates the mechanical consequences of reverse rotation. We specifically examine high-efficiency equipment like a Backward-curved Centrifugal Fan. You will learn the aerodynamic reasons behind this failure. We also explore how to specify correct solutions for true bidirectional airflow needs.
Airflow direction does not reverse: Centrifugal force still pushes air radially outward; the fan will not turn into a vacuum at the discharge.
Severe performance degradation: Running in reverse typically cuts airflow (CFM) by 50% or more and drastically reduces static pressure capabilities.
Impeller geometry dictates efficiency: A backward-curved centrifugal fan relies on precise aerodynamics; reversing rotation causes immediate aerodynamic stall and severe turbulence.
Root causes are usually electrical: Unintentional reverse rotation is almost always caused by incorrect phase wiring in three-phase motors.
Bidirectional applications require different tech: If true reversible airflow is a project requirement, standard centrifugal fans are the wrong choice; reversible axial fans or mechanical damper systems must be specified.
Centrifugal fans rely on basic physics. They throw air outward from the center hub. Spin direction does not change this core mechanism. Many technicians hold a common misconception. They assume reversing the motor reverses ductwork airflow. This remains physically impossible for centrifugal volute designs. The impeller still flings air radially outward into the casing. You will never create a vacuum at the discharge port. The air simply exits the same way, just poorly.
Reversing rotation drastically alters aerodynamic performance. The system immediately fails to meet design criteria.
Volume (CFM/CMH): Expect a severe volume drop. Airflow often falls 40% to 60% below rated capacity. The system starves for air. Critical cooling processes will rapidly overheat.
Static Pressure: The fan loses its pressure-building capability. It cannot overcome standard system resistance. Duct friction essentially chokes the remaining airflow. Air fails to reach distant terminals.
Power Consumption: Inefficient air handling changes motor load dynamics. Less actual work occurs. Amperage draw usually drops initially. However, severe turbulence causes erratic electrical loads. This instability harms motor lifespans over time.
Performance Metric Comparison
Metric | Normal Forward Rotation | Reverse Rotation |
|---|---|---|
Airflow Volume (CFM) | 100% of Design Capacity | 40% to 60% Drop |
Static Pressure | Meets System Resistance | Fails to Overcome Resistance |
Power Draw (Amps) | Stable, matches curve | Lower average, highly erratic |
Airflow Direction | Discharge outward | Discharge outward |

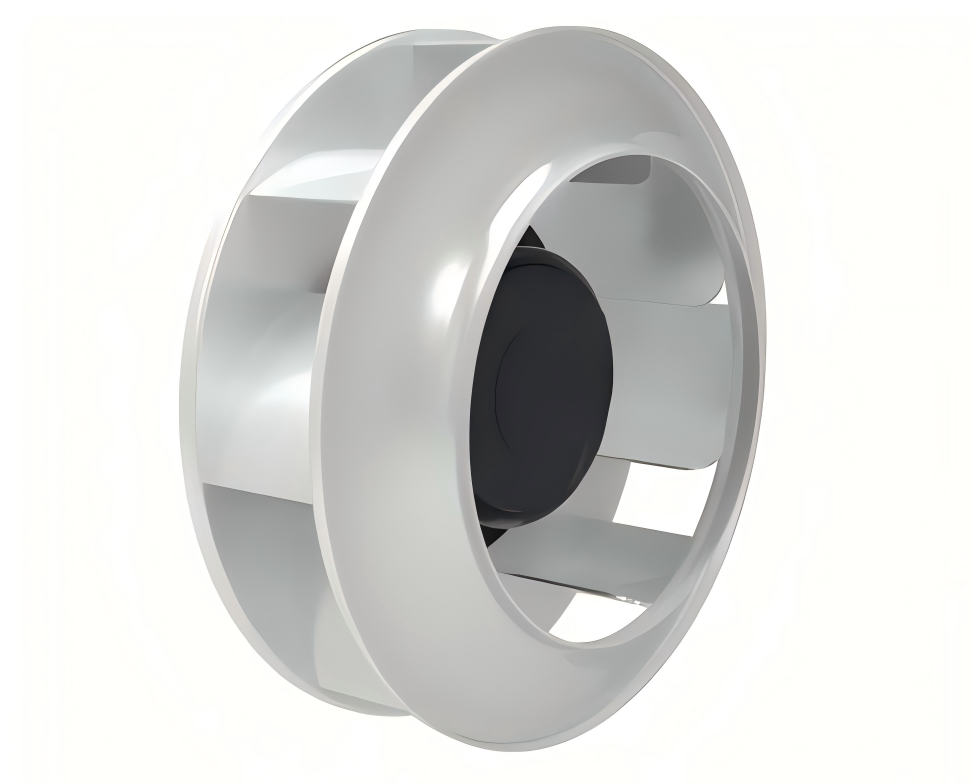

Engineers design backward-curved impellers for precise aerodynamics. Air glides smoothly over the convex side of the blade. This specific geometry maximizes kinetic energy transfer. Normal operation delivers distinct industrial benefits. You achieve incredibly high peak efficiency. The fan features a non-overloading power curve. Motor sizing becomes highly predictable and safe. This makes a Backward-curved Centrifugal Fan ideal for variable volume systems.
Spinning a backward-curved impeller in reverse proves disastrous. The impeller strikes the air with the wrong blade edge. It acts like a forward-curved fan but with terrible geometry. The precise aerodynamic angles completely fail. Boundary layer separation occurs almost immediately along the blade. The fan loses critical laminar flow. Extreme turbulence dominates the casing interior. Airflow essentially stalls out inside the housing. The system wastes energy simply churning dead air.
Operating in aerodynamic stall creates severe mechanical stress. Turbulent airflow violently buffets the metal impeller. This buffeting causes intense vibration throughout the assembly. Vibration travels directly into the drive shaft. You risk premature bearing wear within weeks. Motor fatigue accelerates under these unstable operating conditions. Structural welds may eventually crack. Equipment lifespan drops significantly when neglected.
Accidental reversal happens frequently in commercial construction. Three-phase motors harbor a common electrical trap. Swapping any two power leads reverses motor rotation instantly. This represents the absolute most frequent cause of reversal. It typically happens during initial field commissioning. It also occurs frequently after routine electrical maintenance. Electricians may swap leads at the main breaker unknowingly. This quietly sabotages the distant mechanical equipment.
Field technicians must know how to spot reversal quickly. You must audit systems using standard engineering methods. Follow these three diagnostic steps:
Visual inspection: Power off the unit safely. Watch the impeller carefully during spin-down. Compare its direction to the manufacturer's rotation arrow on the casing.
Acoustic indicators: A reversed fan sounds fundamentally wrong. Listen for abnormal chopping sounds. You will hear rhythmic surging instead of smooth, continuous airflow.
Data points: Measure actual system static pressure via pitot tubes. Compare this exact reading to the manufacturer’s published fan curve. A massive pressure deficit strongly indicates reversed rotation.
Preventing reversal saves critical commissioning time. Implement phase rotation meters during all installations. These affordable tools confirm electrical phase sequence before startup. Standardize your internal commissioning checklists. Force technicians to physically verify rotation manually. Mandate this step before integrating fans into critical process loops. Proactive electrical testing prevents catastrophic system startups.
Some industrial facilities actually require bidirectional airflow. Supply and exhaust cycles demand air movement in two alternating directions. Kiln drying operations require reversing draft paths for even curing. Emergency smoke clearance systems often need immediate exhaust extraction capability. Running standard centrifugal fans backward fundamentally fails these requirements. You must specify completely different mechanical solutions.
This approach yields the highest long-term aerodynamic efficiency. Keep your high-efficiency centrifugal fan running in one single direction. Use a network of actuated motorized dampers. Install dedicated bypass ducts to reroute the air physically. You reverse the airflow path within the facility itself. You never reverse the fan rotation. The fan operates continuously at peak aerodynamic efficiency. Industry standards generally favor this mechanical bypass method.
Sometimes damper networks require too much physical space. You must switch fan types entirely to fit the footprint. Reversible axial fans solve this geometric issue. They feature perfectly symmetrical blade profiles. They provide nearly equal aerodynamic performance in both directions. The motor simply reverses electrically to change draft directions. However, they generate noticeably lower static pressures than centrifugal designs. They also produce higher acoustic noise profiles.
Engineers must carefully weigh critical system tradeoffs. Unidirectional centrifugal setups offer massive static pressure capabilities. They deliver superior aerodynamic efficiency metrics. However, the external damper network requires extra physical footprint and maintenance. Reversible axial setups offer a much simpler installation footprint. The ducting remains perfectly straight. However, static pressure limits drop considerably. Energy consumption often rises for similar volume tasks.
Safety must remain the primary focus during corrections. Never assume a panel is dead. Follow strict troubleshooting protocols when correcting rotation errors:
Initiate formal Lock out / tag out (LOTO) procedures.
Secure the electrical panel completely with verified locks.
Inspect motor terminal box connections for damage.
Swap two phase wiring leads to reverse the field.
Remove LOTO devices and safely restart the system.
Verify airflow metrics against the baseline fan curve immediately.
Replacing damaged units requires careful vendor engagement. Specify exact operational parameters up front. Match the specific impeller type to facility requirements. Consider particulate loads, temperature extremes, and pressure needs. A backward-curved design handles clean air highly efficiently. Radial impellers manage heavy industrial dust loads much better. Airfoil blades maximize clean air efficiency but foul easily.
Shortlist vendors using strict engineering criteria. Require clear, certified performance curves from manufacturers. Ask for detailed 3D CAD models for clash detection. Ensure they offer robust technical support during field commissioning. Reliable vendors prevent rotational errors through clear documentation.
Centrifugal fans technically spin in reverse when wired incorrectly. However, they fundamentally fail to operate as functional air-moving devices. They cannot reverse duct airflow due to centrifugal physics. Maximizing ROI on high-efficiency equipment requires strict adherence to proper rotation. Proper electrical commissioning prevents disastrous system underperformance and equipment fatigue. Facility managers and engineers must audit underperforming systems diligently. Always check for phase rotation errors before assuming a fan is undersized. Fixing two wires often solves massive airflow deficits instantly.
A: No. It will still blow air out the discharge port, but at a drastically reduced volume and pressure. The centrifugal force still flings air outward regardless of spin direction.
A: While it may not instantly burn out the motor (as it often draws less amperage due to moving less air), the associated vibration, turbulence, and potential for overheating in poorly cooled setups can reduce operational lifespan.
A: The most reliable method is to power off the fan and observe the impeller as it slows down, comparing its direction to the manufacturer's rotation arrow stamped on the housing.
A: Some radial-blade centrifugal fans are less sensitive to direction, but no standard volute-housed centrifugal fan is designed for efficient bidirectional airflow. True reversible fans are almost always axial designs.
