Walk into a cool shopping mall in summer, watch servers run steadily in a data center, or breathe clean air in a hospital operating room — behind all these scenes, there is a silent "unsung hero": the fan.

Among the many types of fans, one product is called the "energy-saving honor student" by engineers — the EC backward curved centrifugal fan. The name sounds technical, but it is actually not far from our daily lives. Today, let us break it down in the simplest way possible.

1. Breaking Down the Name: What Do the Three Terms Mean?

The name "EC backward curved centrifugal fan" actually consists of three parts:

1.1 Centrifugal Fan — Moving Air by "Throwing"

Imagine spinning a wet umbrella on a rainy day — water droplets fly off along the edge of the umbrella. The principle of a centrifugal fan is exactly the same:

• Air enters from the center of the fan

• The impeller spins at high speed, "throwing" air outward to the periphery

• Air is collected in the volute casing and discharged under pressure from the outlet

Just like a washing machine spin dryer throws water out by rotating, a centrifugal fan "throws" air out and pressurizes it through rotation.

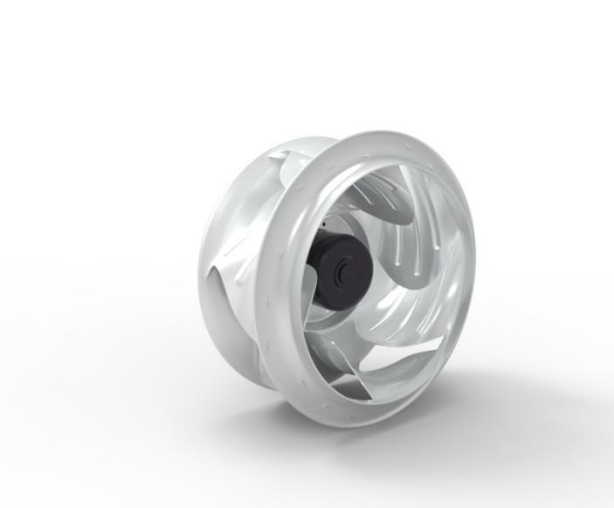

1.2 Backward Curved — Blades Tilt Backward

"Backward curved" refers to the bending direction of the impeller blades.

Think of it this way: when the impeller rotates clockwise, the blades do not curve forward in the direction of rotation — they curve backward (like swept-back wings).

What is the benefit of this design? Simply put — smoother airflow, less waste, higher efficiency. Just as a streamlined car is more fuel-efficient than a boxy one.

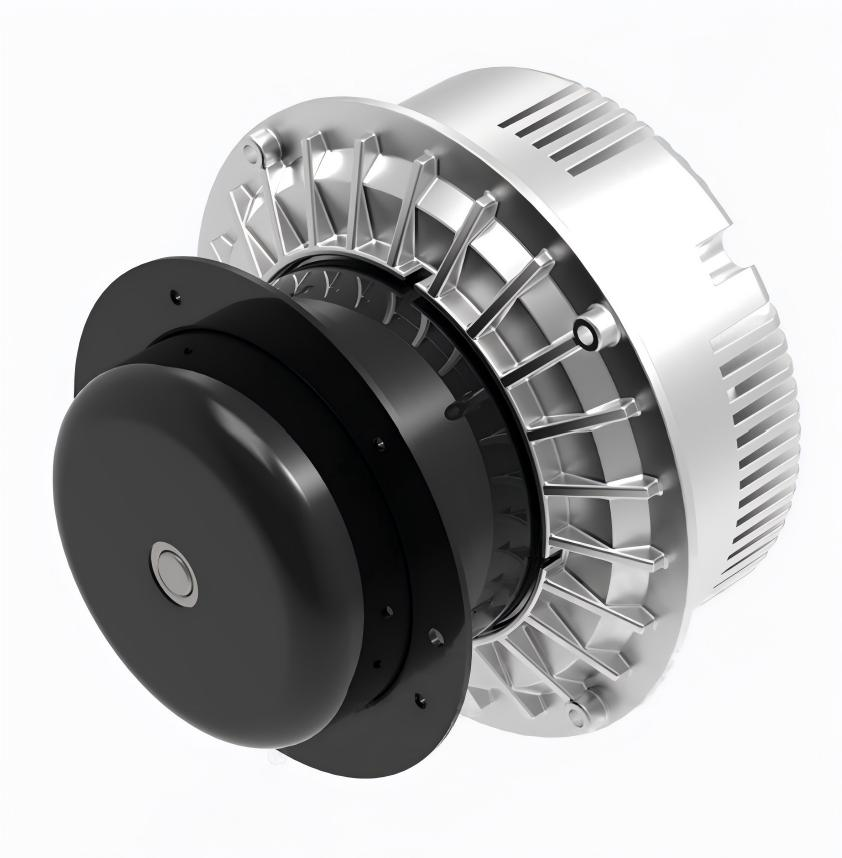

1.3 EC — The Smart "Electronic Heart"

EC stands for "Electronically Commutated," which essentially means a brushless DC motor.

Traditional motors use brushes (small brush-like components) to switch the direction of current. Over time, they wear out, generate heat, and produce sparks. EC motors, on the other hand, use electronic circuits to perform this switching — no physical friction. It is like upgrading from a "button phone" to a "smartphone": smarter, more energy-efficient, and more durable.

2. What Makes EC Backward Curved Centrifugal Fans So Good?

Advantage 1: Exceptionally Energy-Efficient

Traditional fans are like old-fashioned fans with only "on" and "off" settings — they either run at full speed or stop. EC fans, however, offer stepless speed control, like adjusting the volume on a speaker: they deliver exactly the amount of airflow needed, with no waste. Combined with the inherently high aerodynamic efficiency of backward curved blades, EC backward curved centrifugal fans consume over 20% less energy than traditional fans. The electricity cost saved by one fan in a year may exceed its purchase price.

Advantage 2: It Won't "Overwork" Itself

If a duct becomes blocked or resistance increases, a traditional fan motor may burn out due to overload. Backward curved centrifugal fans have a remarkable characteristic — non-overloading. This means that even when system resistance changes or airflow fluctuates, power consumption does not spike suddenly, and the motor always operates within a safe range. Like an experienced long-distance runner who knows how to pace themselves, they won't suddenly sprint and collapse.

Advantage 3: Quiet Operation

Have you ever been annoyed by the humming noise of an outdoor AC unit?

EC backward curved centrifugal fans reduce noise on two levels: backward curved blades make airflow smoother, reducing "wind noise" caused by air turbulence; and EC brushless motors have no brush friction, resulting in lower mechanical noise. This makes them ideal for hospitals, libraries, and office buildings where quietness is essential.

Advantage 4: Smart and Easy to Control

EC fans come with a built-in "brain" (control circuit) and can:

• Adjust speed via 0-10V signals or PWM pulse-width modulation

• Connect to building automation systems via RS485/Modbus

• Achieve automatic constant airflow and constant static pressure control

• Operate in networked arrays with unified scheduling

Simply put, they can "talk" to your smart system and deliver air on demand — instead of just mindlessly spinning.

Advantage 5: Virtually Maintenance-Free

With no brush wear and no consumable parts, EC fans typically last over 40,000 hours. Running 24 hours a day, that is nearly 5 years of continuous operation. For data centers, hospitals, and other scenarios where downtime is not an option, this is critically important.

An EC backward curved centrifugal fan is, at its core, a combination of "a smarter motor + a more efficient impeller". There is no mysterious black technology — it simply puts every kilowatt-hour of electricity to its best use.

Under the "dual carbon" goals, energy saving is no longer an option but a necessity. From a single fresh air unit to the HVAC system of an entire building, choosing EC backward curved centrifugal fans is both a smart move to reduce operating costs and a contribution to a greener future.

Want to learn more about fan selection, or need technical advice for a specific project? Feel free to leave a comment or contact our technical team.
