AC Circular Duct Fan

	Model	Size [mm]	Voltage[V]	Frequency [Hz ]	Power input [W]	Speed [r/min]	Air flow [m3/h]	Noise level  [dB(A)]
	B190M.A013	100	220	50	2574	63.5	267	65.3
	B190M.A015	100	120	60	2711	74.9	262	67.1
	B190M.A012	125	220	50	2555	63.6	257	65.3
	B190M.A014	125	120	60	2719	76.3	306	67.1
	B225M.A011	150	220	50	2463	86	532.7	69.8
	B225M.A013	150	120	60	2191	117.6	518.7	69.6
	B225M.A012	160	220	50	2540	84.2	554.8	71.0
	B225M.A014	160	120	60	2295	117.5	575.9	71.4
	B250M.A035	200	220	50	2400	180.6	920.6	72.6
	B250M.A034	200	120	60	2140	195.5	849.3	71.0
	B250M.A036	250	220	50	2521	165.2	923	71.3
	B250M.A033	250	120	60	2195	191.5	899	70.6
	B280M.A058	315	220	50	2558	264	1458.5	73.0

Airflow-static pressure curve：

Airflow-power curve：

Dimension

Core advantage

1. Precise Airflow Control & Efficient Air Delivery

Airflow is adjusted according to the needs of different scenarios such as residential, commercial, and industrial environments. The strong pressure easily overcomes resistance from pipe length and elbows, eliminating insufficient airflow issues to ensure efficient ventilation and exhaust performance.

2. Flexible Adaptation & Easy Installation

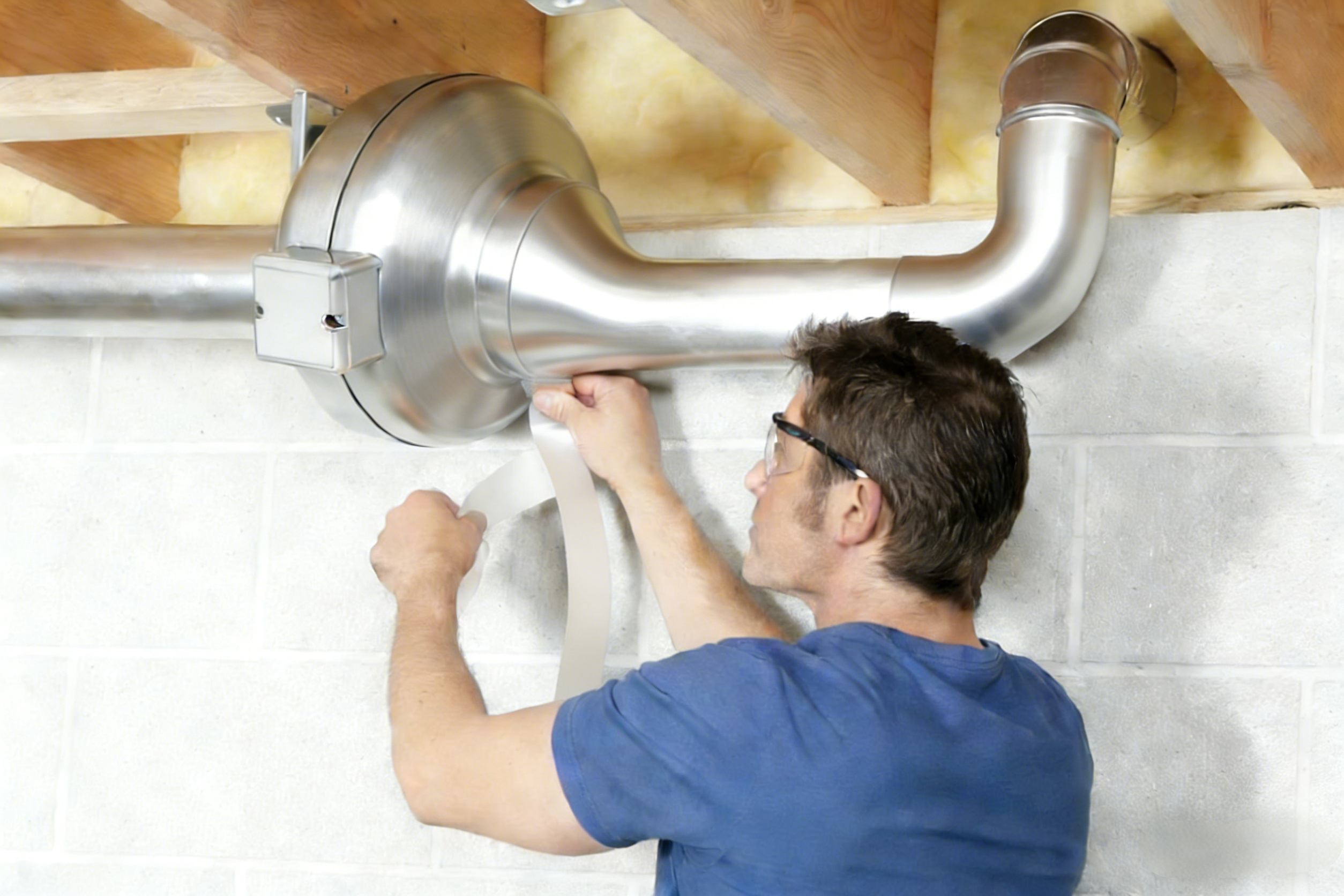

Inlet and outlet port diameters precisely match pipe dimensions. Compact design enables the fan fits ceiling, wall corner, and other installation spaces for convenient installation without wasting space.

3. Durability & Stability

The fan has undergone reliability testing at -40°C to 65°C for 40,000 hours. The electric engine features built-in overheating and overload protection. The material of the casing and the impeller is corrosion-resistant, reducing the failure possibility during long-term use and significantly lowering maintenance costs.

4. Low-noise & Economic Efficiency

Operating noise ≤50dB, quiet and non-disturbing. The fan adapts a high-efficiency motor with an F class insulation, significantly reducing energy costs over long-term use.

5. High Environments Adaptability

Different protection levels of motors is optional according to different usage scenarios and transport media, such as ordinary air, cooking fumes, corrosive gases and more, protection class up to IP54.

FAQ

• Q1 What is an AC circular duct fan used for?

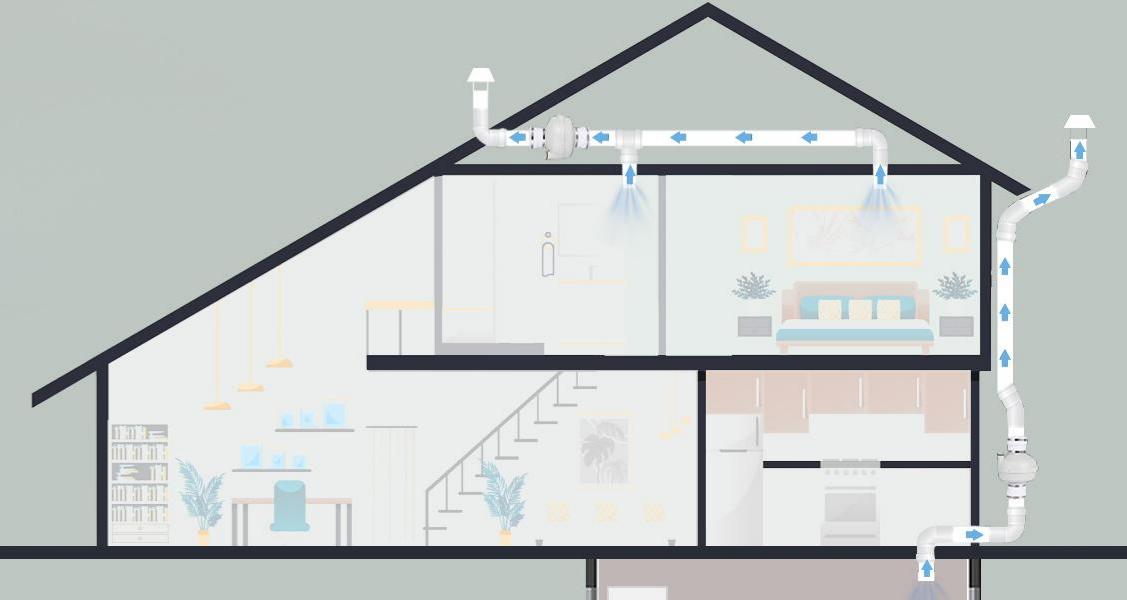

  A1 It is mainly applied for ventilation, air exchange, exhaust and fresh air supply in homes, offices, warehouses, bathrooms, kitchens and commercial duct systems.

• Q2 What voltage does the AC circular duct fan support?

  A2 Standard models support  220V/50HZ  120V/60HZ AC mains voltage, customized voltage options are available for special regional requirements.

• Q3 Is the AC circular duct fan reversible for airflow direction?

  A3 Most models support bidirectional air supply and exhaust; the airflow direction can be adjusted by wiring setup or internal structure installation.

• Q4 What are the main advantages of an AC circular duct fan?

  A4 Compact round duct design, easy pipeline installation, stable AC motor operation, low noise, long service life and cost-effective.

• Q5 Can the AC circular duct fan run continuously for long hours?

  A5 Equipped with durable AC ball bearing motor, it supports 24-hour continuous operation with stable performance and low heat generation.
