A800F.D004
EBST
Model | Voltage [V] | Frequency [Hz] | Speed [rpm] | Max Power [W] | Max Airflow [m3/h] | Noise [dB(A)] | |
 | A800F.D004 | 540DC | / | 973 | 1800 | 25320 | 69.7 |

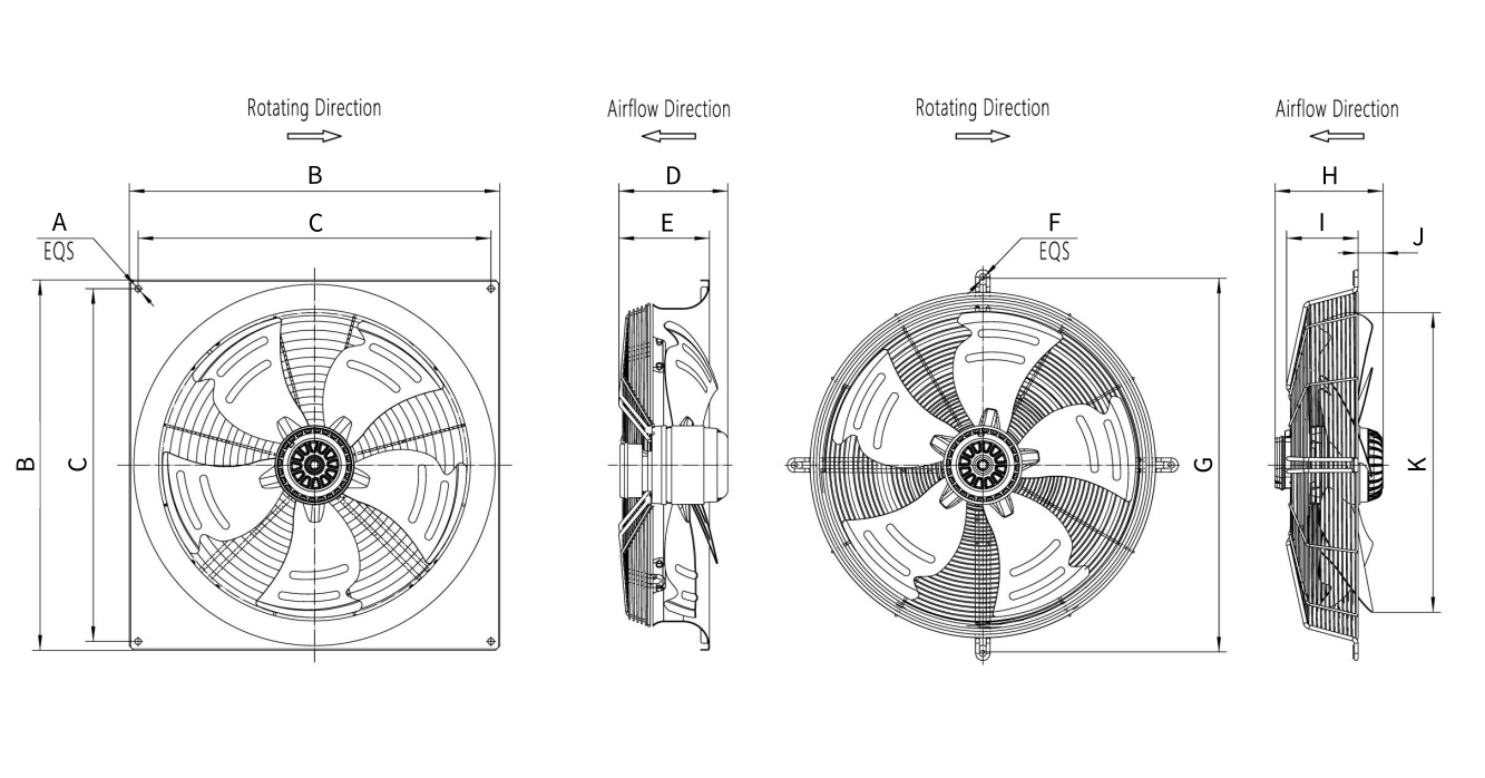

Model | A | B | C | D | E | F | G | H | I | J | K |
A800F.D004 | 4-Ø15 | 970 | 910 | 270.5 | / | / | / | / | / | / | / |
1.High Air Volume: Maximum airflow of 25320 m³/h, delivering high ventilation efficiency to meet the needs of large spaces and high-flow ventilation.
2.High Power & Stable Output: Maximum power of 1800 W, strong power, stable and reliable for long-term operation.
3.Low Noise Operation: Noise level as low as 69.7 dB(A), maintaining low noise even at high air volume, suitable for noise-sensitive applications.
4.High Speed Performance: Rotation speed of 973 rpm, with excellent airflow and static pressure performance.
5.Stable DC Power Supply: 540V DC power supply, strong voltage adaptability, smooth operation and excellent energy consumption control.
6.Standardized Installation: Standardized installation dimensions (4-Ø15, 970/910/270.5), facilitating equipment integration and on-site installation.
